John Deere® Compatible
Feeder House Chain Assembly

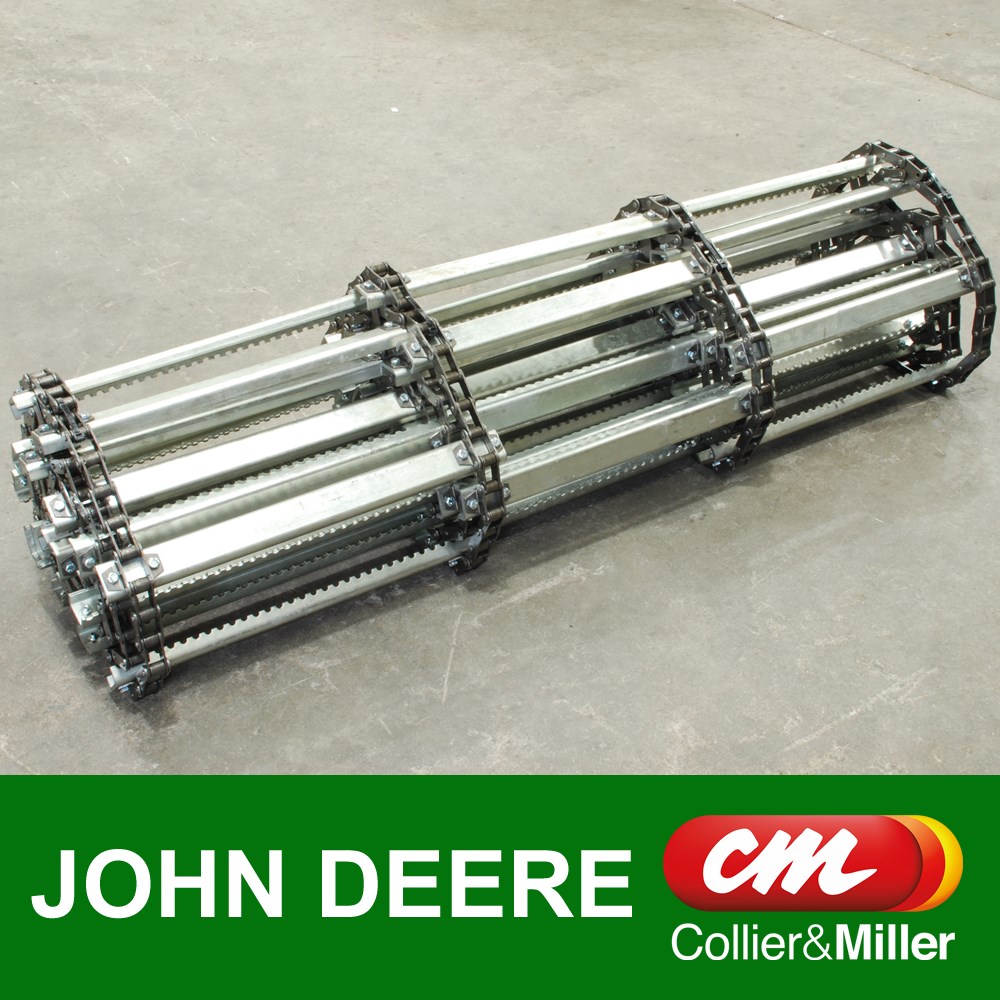

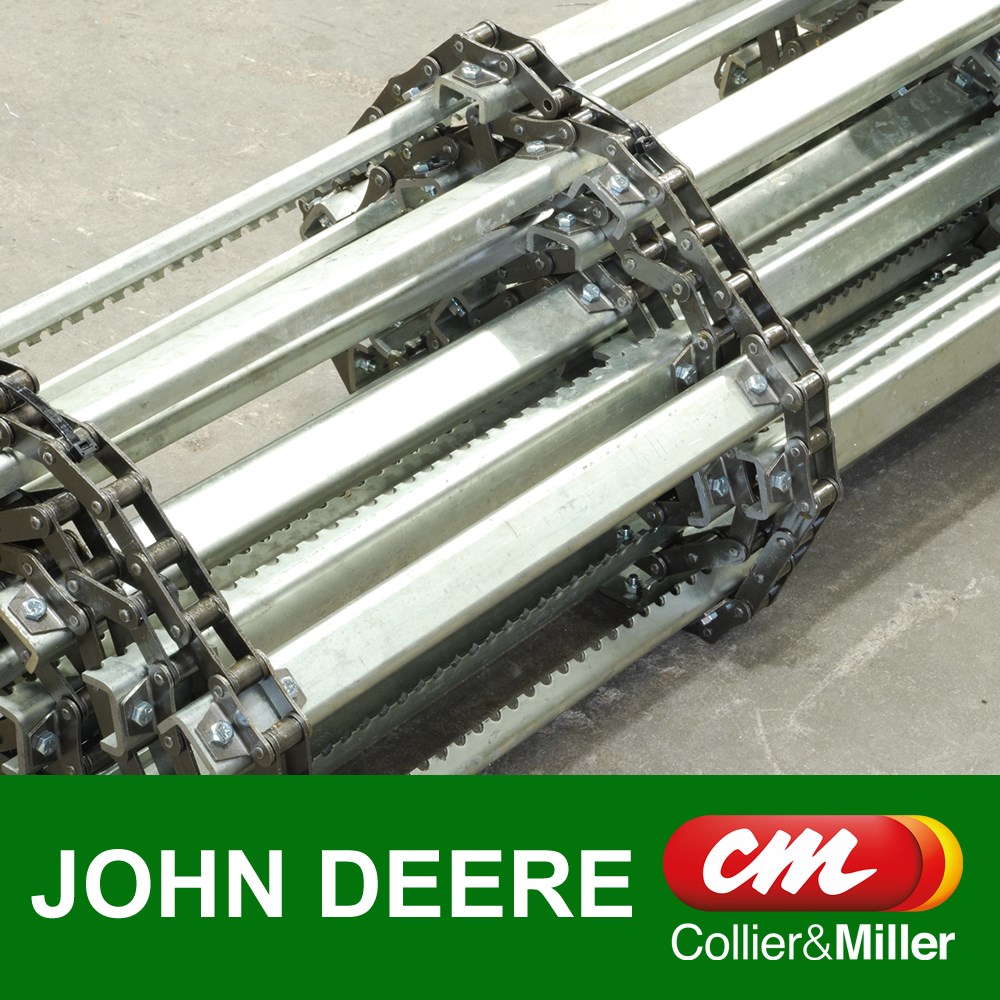

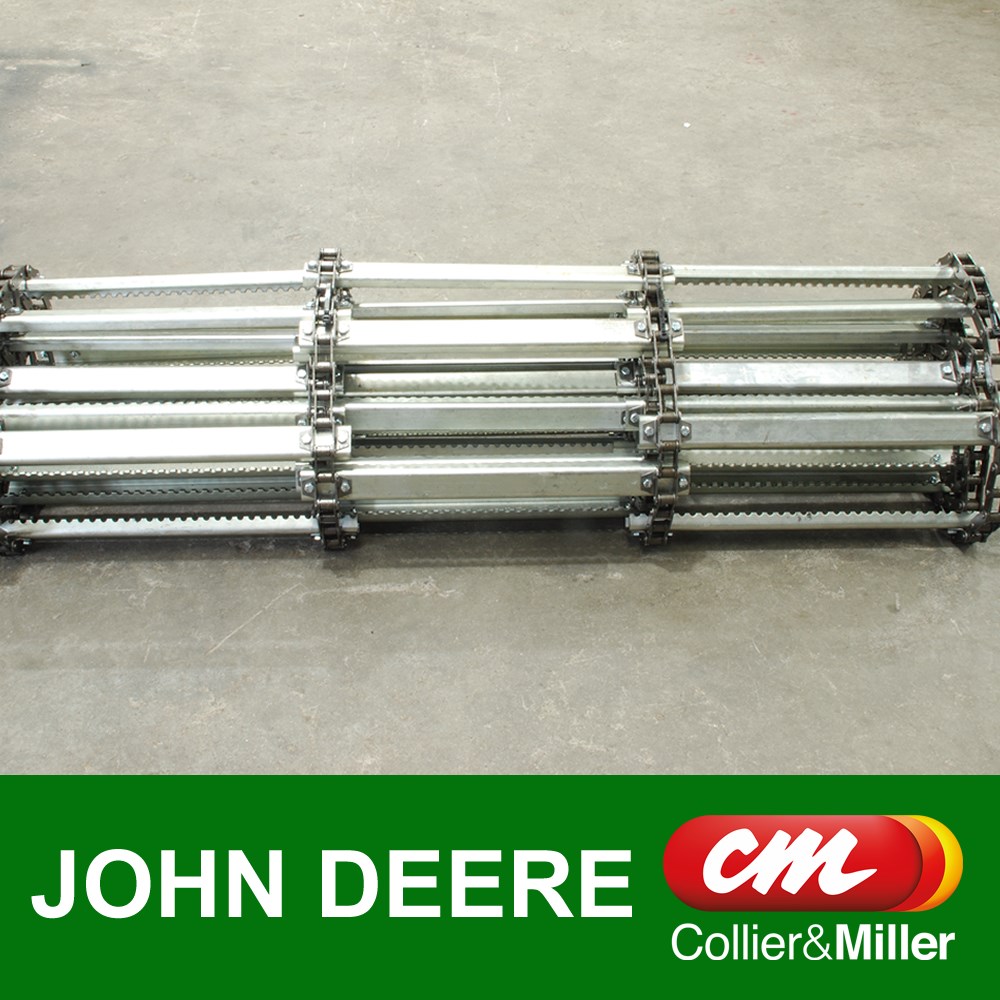

C&M replacement complete feeder house chain assembly to suit the front feeder house on compatible models of John Deere® combines harvesters.This is a set of four (4) replacement chains fitted with 6mm roll-serrated U-Bar slats configured with 51 bars.
This complete chain assembly is supplied with connectors and half links for each chain. We supply these chains in Australia from premium grade black-pin chain and durable zinc plated roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.
51 X HEAVY DUTY 6MM ROLL SERRATED U-BARS Part Numbers
- AH143399, A-AH143399, AH207778 AH138186
| Series |
Models |
Serial/Year |
| John Deere® 50 Series walker |
9650 |
(Straw walker) |
| John Deere® 60 Series walker |
9660 |
(Straw walker) |
| John Deere® 9600 Maximizer Series |
9600 Maximizer |
Conventional |
| John Deere® 10 Maximizer Series |
9610 Maximizer |
Conventional |
Features
- C&M assembled in Australia

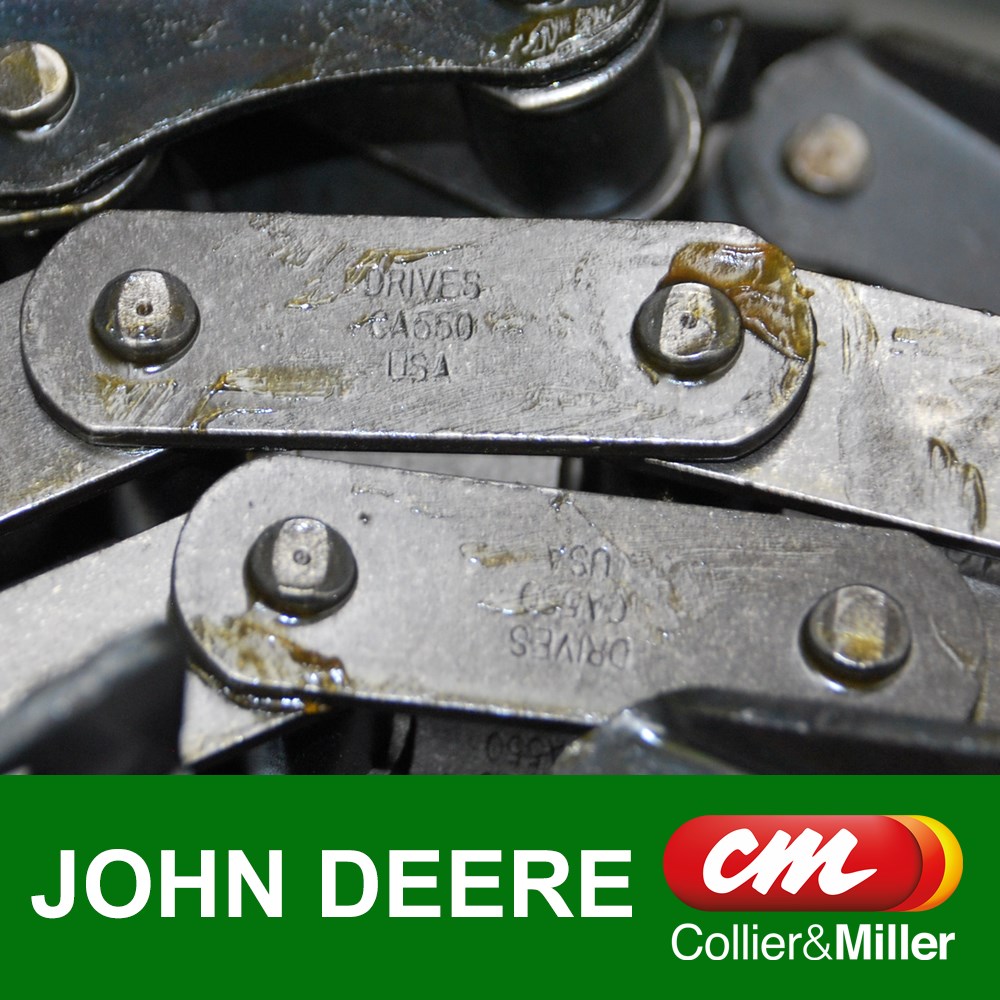

- Quality black pin chain
- Grade 350 6mm roll-serrated U-Bar
- 51 Bars
- Connectors & Half Links Included
