MASSEY FEEDER 4 CHAIN ASSY A557 8-4-4-8 45B 9540 9560 9545 9565 71447108

A557 8-4-4-8 45B 9540 9560 9545 9565 71447108

Product Code: CM091OEM

Detail
Technical
Interchange
Downloads

Massey Ferguson® 9500 9505 Series

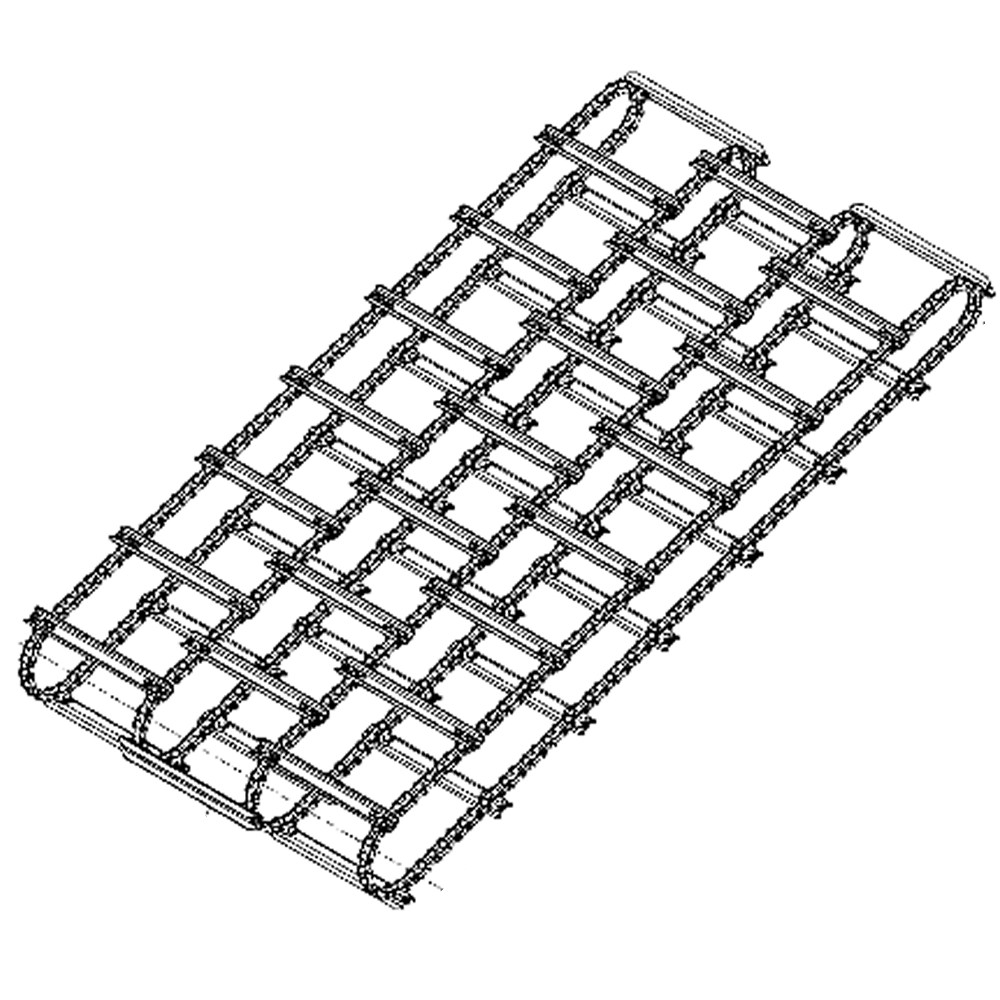

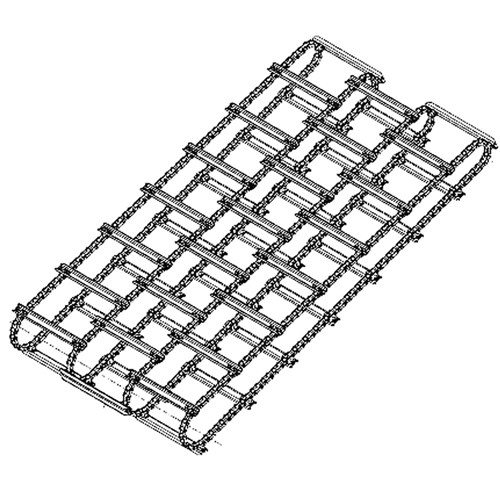

Feeder House Chain Assembly - 4 Chain

C&M replacement complete feeder house chain assembly to suit the front conveyor on Massey Ferguson® combine harvesters fitted with the 4-chain setup .This is a set of replacement chains fiited with electroplated 6mm roll-serrated u-bar slats with the same spacing as the Massey® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Part Number

71447108

Series	Model	Serial/Year
Massey Ferguson® 9500 Series	9540 9560
Massey Ferguson® 9505 Series	9545 9565

Features

C&M assembled in Australia
Premium chain
Zinc plated 6mm roll-seratted U-Bar
Threaded connectors & half links included
Claas 10.9 bolts treated with loctite
Torque-prevailing cone lock nuts
Assembled ready to install

C&M Technical Specifications

Item	Details	Notes
CM091OEM	Massey Ferguson® 9500 & 9505 Series	Check serial numbers
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	4 Chain with bars
Attachment Pattern	8-4-4-8	Same as OEM
Number of Pitches	121	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	45
Chain centre to centre	420mm + 420mm + 420mm
Bar Type	6mm U-Bar G350	Roll serrated & electroplated
Bolts	180 x CM1025 10x25mm Class 10.9	Threadlocker Pre-Treated
Nuts	180 x MCCN10 M10MM Cone Lock	Torque prevailing
