MASSEY FEEDER CHAIN ASSY A557 8-4-8 3ROW 114L 28B 9790 PRIOR SN HP36101

A557 8-4-8 3ROW 114L 28B 9790 PRIOR SN HP36101

Product Code: CM095OEM

Detail
Technical
Interchange
Downloads

Massey Ferguson® Compatible

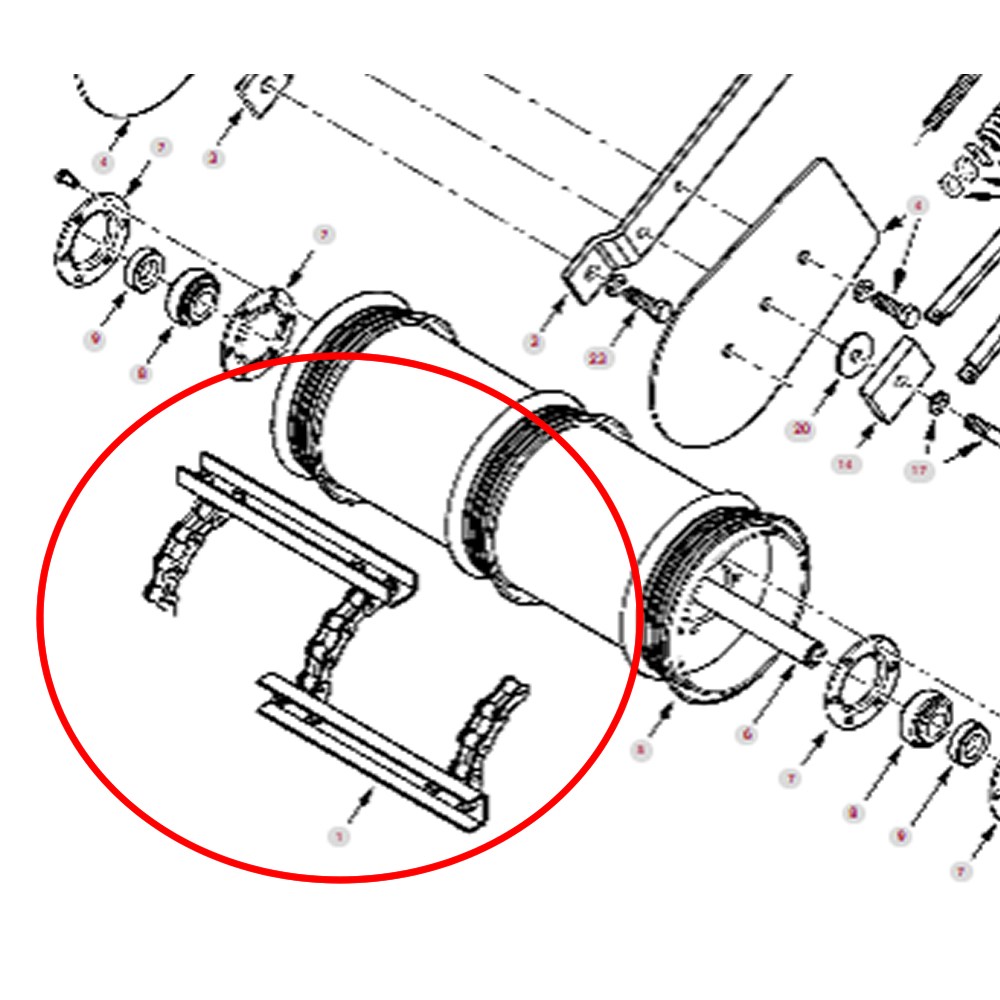

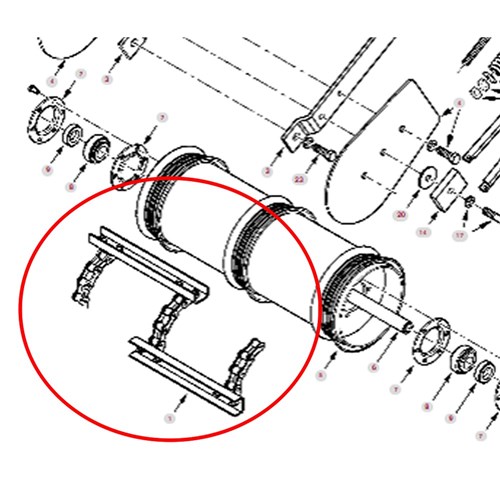

Feeder House Chain Assembly (PRIOR SN HP36101)

C&M replacement complete feeder house chain assembly to suit the front feeder house on Massey Ferguson 9790 combine harvester.This is a set of three (3) replacement chains fitted with roll-serrated, electroplated 6mm U-Bar slats with the same spacing as the original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and quality serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

Part Number

71449003

Series	Models	Serial/Year
Massey Ferguson® 9700 Series	9790	3 Chain version Prior S/N HP36101

Chain Features

C&M assembled in Australia
Premium chain
Zinc plated 6mm roll-seratted U-Bar
Threaded connectors & half links included
Claas 10.9 bolts treated with loctite
Torque-prevailing cone lock nuts
Assembled ready to install

C&M Technical Specifications

Item	Details	Notes
CM095OEM	Massey Ferguson® 9790	Prior SN HO36101 (3 Chain)
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	3 Chain with bars
Attachment Pattern	8-4-8	Same as OEM
Number of Pitches	121	Including Connectors
Supplied Connectors	3 x Conns 3 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	28
Chain centre to centre	629mm + 629mm + 629mm
Bar Type	6mm U-Bar G350	Roll serrated & electroplated
Bolts	112 x CM1025 10x25mm Class 10.9	Threadlocker Pre-Treated
Nuts	112 x MCCN10 M10MM Cone Lock	Torque prevailing
