Draper Idle Roller - Centre Conveyor

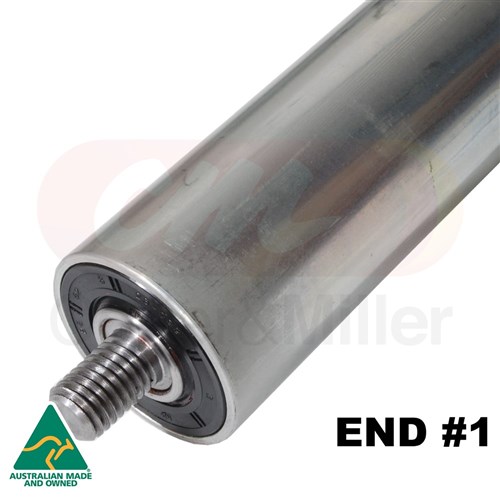

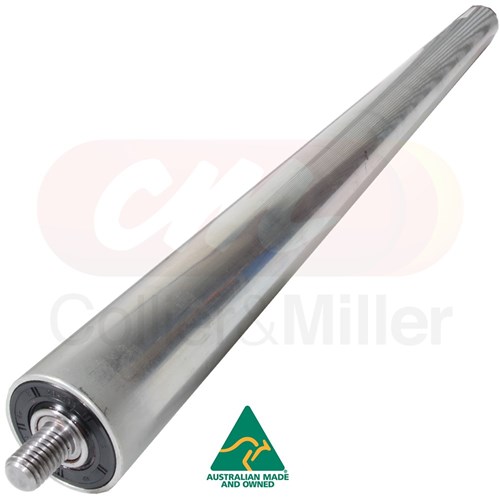

C&M aftermarket center feed belt idler roller with shaft and bearings to suit Macdon, Case and New Holland draper cutting platforms. This center feed belt idler roller is is a complete unit fitted with shaft and bearings. Manufactured from from heavy wall pipe for increased service life.
OE Part Numbers
| Brand |
Tube |
Shaft |
Bearing |
Seal |
| Macdon |
100201 |
101715 |
101026 |
100862 |
| Case-IH |
338326A1 |
338361A1 |
338345A1 |
341036A1 |
Application

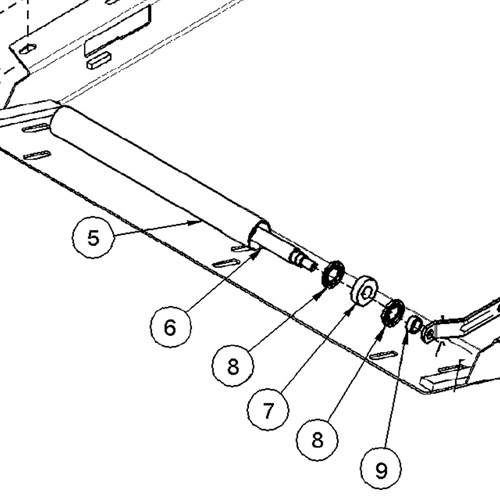

- Center feed belt idler-tensioner roller (38" Wide Deck)
Models
| Series |
Models |
Fitment |
| Macdon Combine Adaptors |
871, 872, 873 |
38.4" Feed Deck Belt Width |
| Macdon 900 Series |
962, 963, 972, 973, 974 |
38.4" Feed Deck Belt Width |
| Case 10 Series |
1042, 1052 |
38.4" Feed Deck Belt Width |
| Case 20 Series |
2042, 2052, 2062 |
38.4" Feed Deck Belt Width |
| New Holland |
84C |
38.4" Feed Deck Belt Width |
Features
- C&M Australian Made
- Painted Finish
- Not Lagged
- Fits 38.4" Wide Belt
- Supplied as complete set with shaft and bearings
- TC12485 seal
- Japanese 6205DDUC3 bearings
