DRAPER BELT SINGLE V 41.5" CASE-IH 3152 3162 1012363

CASE-IH 3152 3162 1012363

Product Code: CM1012363

Detail
Applications

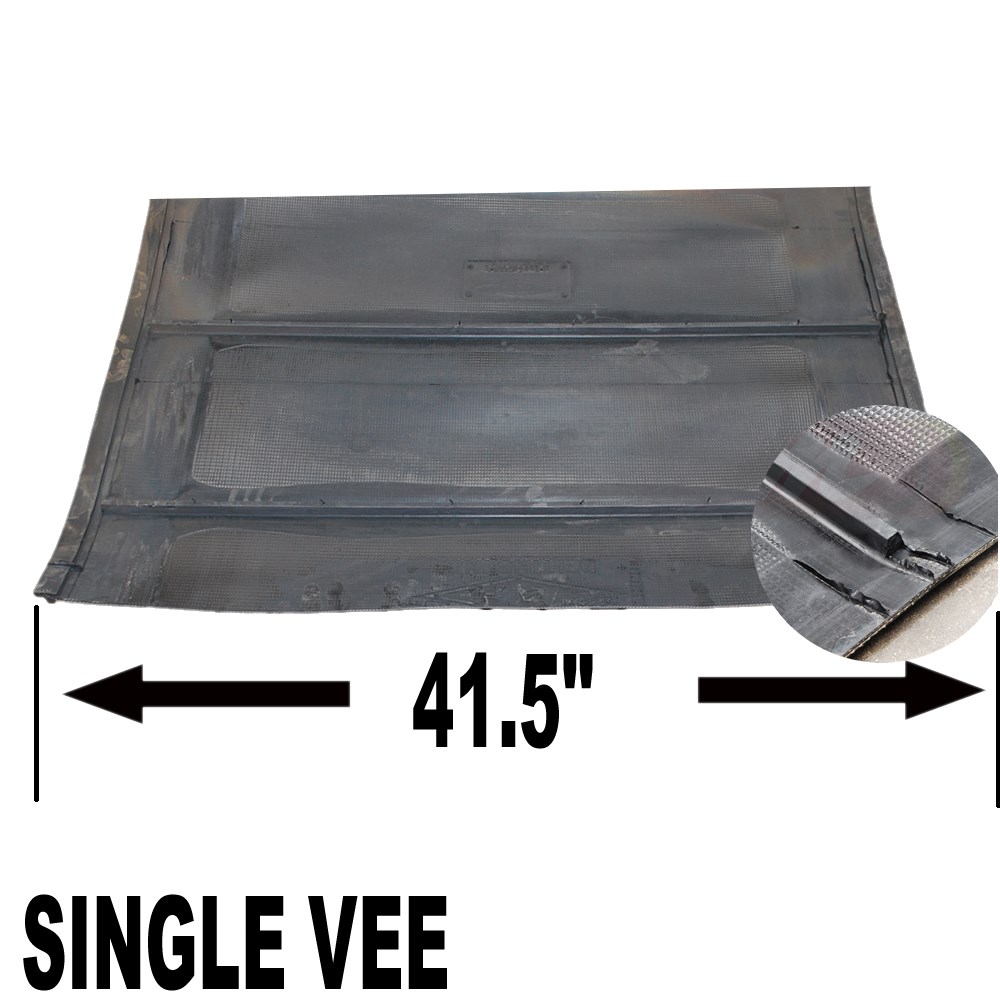

Draper Belting - 41.5" Single V

Aftermarket Draper belt to suit Case cutting platforms. Manufactured by WCCO in the USA, this side draper belt measures 41.5" wide, with straight cleats and has a single side stepped V guide.

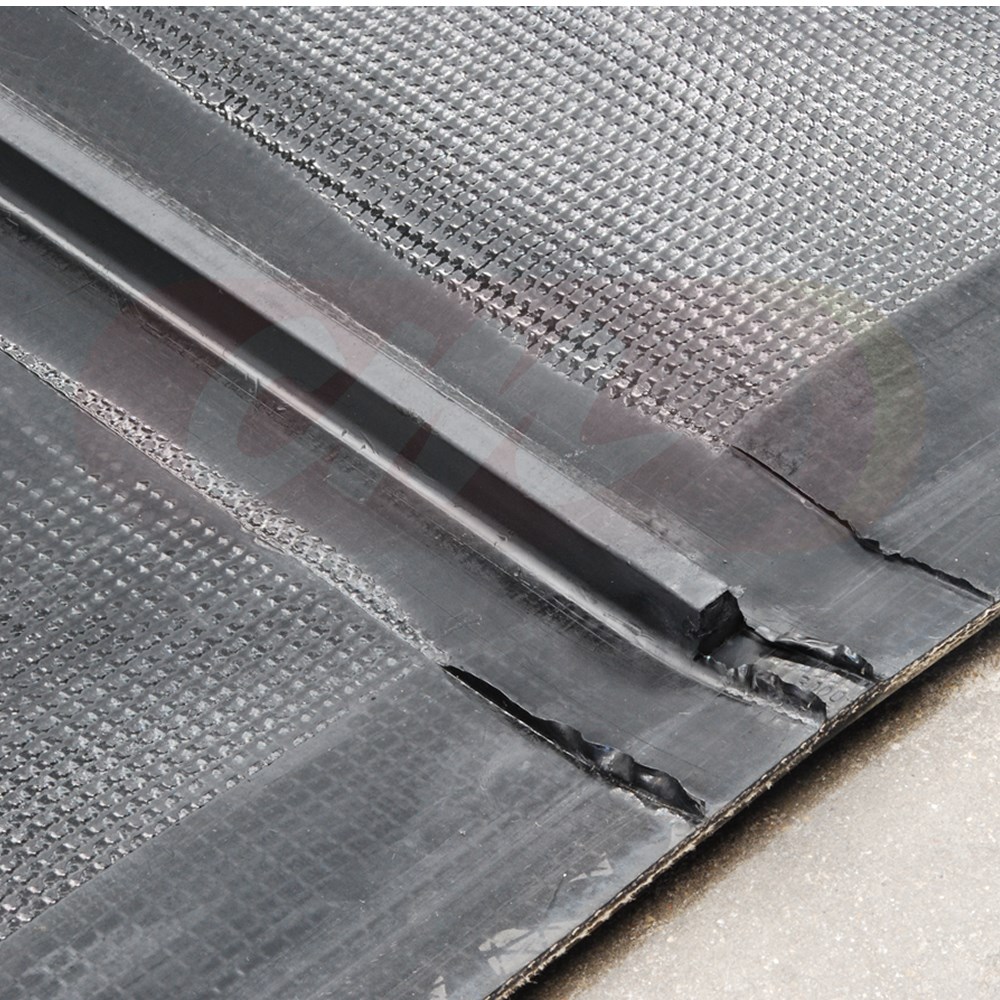

WCCO’s patented RAPTOR™ Belting uses 100% polyester filament fabric with a friction coating capability with higher tensile, tear, and puncture resistance. RAPTOR™ draper belting has higher strength properties, superior durability and also features an innovative teardrop-shaped fiberglass reinforcement rod inside of the cleat for increased stiffness, making it more significantly stiffer in the cross direction than its competition.

Part Numbers

30' 4731566 4731565, 45' 4731568 47371567, 40' 84487818, 45' 4731572

Fitment

Series	Models	Serial/Year
CASE 3152	3152-30, 3152-35, 3152-40, 3152-45
CASE 3162	3152-30, 3152-35, 3152-40, 3152-45
New Holland	840CD-30, 840CD-35, 840CD-40, 840CD-45
New Holland	880CF-30, 880CF-35, 880CF-40, 880CF-45

MODEL FITMENT	MAT Width	FRONT Width	LEFT HAND Exact Length	LEFT HAND Cut Length	RIGHT HAND Exact Length	RIGHT HAND Cut Length
CASE 3152 Rigid	41.5"	30'	267.40"	23'	267.40"	23'
CASE 3152 Rigid	41.5"	35'	327.40"	28'	327.40"	28'
CASE 3152 Rigid	41.5"	40'	387.40"	33'	387.40"	33'
CASE 3152 Rigid	41.5"	45'	447.40"	38'	447.40"	38'
CASE 3162 Terra Flex	41.5"	30'	267.40"	23'	267.40"	23'
CASE 3162 Terra Flex	41.5"	35'	327.40"	28'	327.40"	28'
CASE 3162 Terra Flex	41.5"	40'	387.40"	33'	387.40"	33'
CASE 3162 Terra Flex	41.5"	45'	447.40"	38'	447.40"	38'
New Holland 840C Rigid	41.5"	30'	267.40"	23'	267.40"	23'
New Holland 840C Rigid	41.5"	35'	327.40"	28'	327.40"	28'
New Holland 840C Rigid	41.5"	40'	387.40"	33'	387.40"	33'
New Holland 840C Rigid	41.5"	45'	447.40"	38'	447.40"	38'
New Holland 880CF SuperFlex	41.5"	30'	267.40"	23'	267.40"	23'
New Holland 880CF SuperFlex	41.5"	35'	327.40"	28'	327.40"	28'
New Holland 880CF SuperFlex	41.5"	40'	387.40"	33'	387.40"	33'
New Holland 880CF SuperFlex	41.5"	45'	447.40"	38'	447.40"	38'
