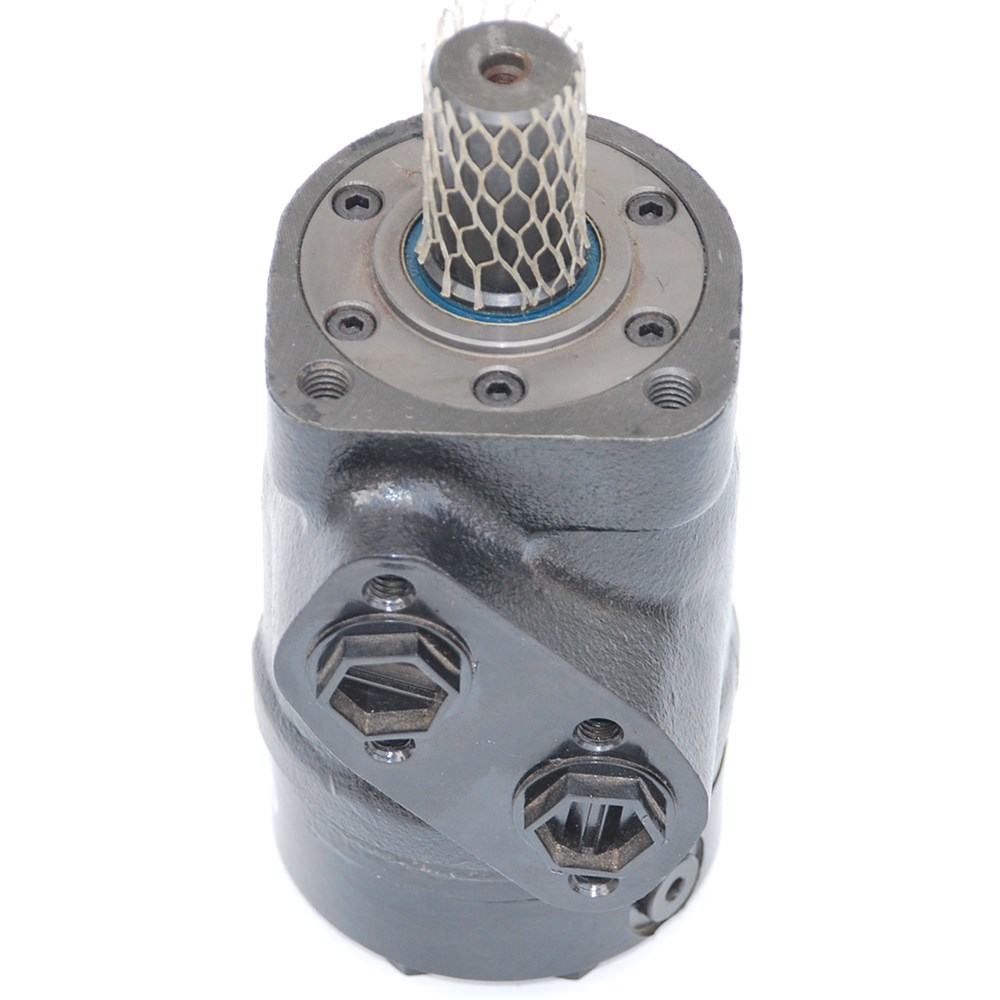

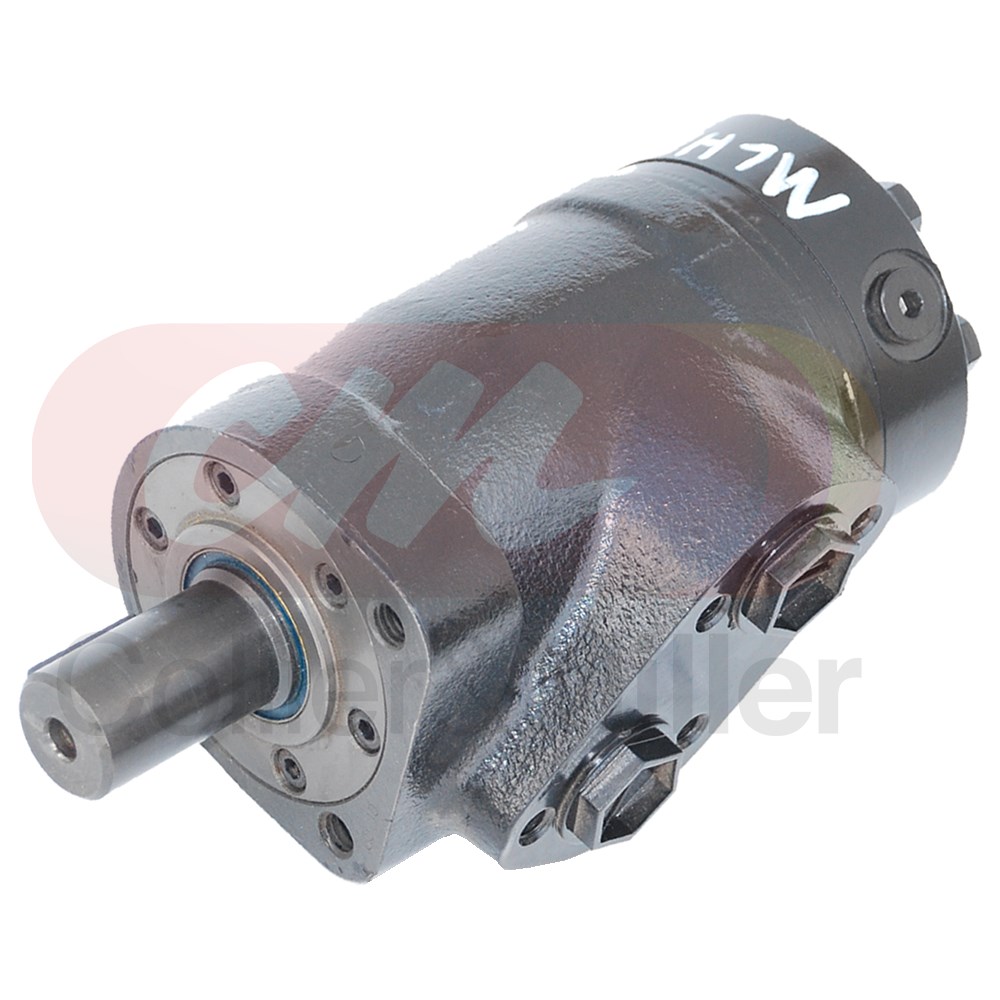

M+S aftermarket hydraulic draper belt side delivery motor to suit most common Macdon and CNH cutting platforms. Used to drive the draper side belt, this hydraulic motor is the aftermarket 2 bolt, 40CC version, with a 1" Dia shaft and a 1/4" X 1" half moon key way, also has a case drain fitted. Save money by replacing your OEM hydraulic motor with a more cost effective motor.
Macdon & CNH draper fronts side motors were supplied as SAE 2 bolt or 4 bolt mounting. Refer to table for alternate item fo 4 bolt motor.
Part Numbers
- Macdon 120930, 174329, 172471, 220891
- Case-IH 87561200, 47562869
Fitment
- Side draper delivery motor
Models
| Brand |
Model |
Serial/Year |
| Macdon |
D50, D60, (D65 -244010) FD70, FD75 |
Alternate 4 bolt mount is CM220936 |
| Case-IH |
2142, 2152, 2162 |
Alternate 4 bolt mount is CM220936 |
| New Holland |
82C, 83C, 86C |
Alternate 4 bolt mount is CM220936 |
Features
- M+S MLHP
- 40cc, 2.44 CuIn
- Special square flange 2 bolt
- 1" X 1/4" keyed shaft
- Needle bearings
- Side ports 2x7/8-14 UNF
- High pressure shaft seal
