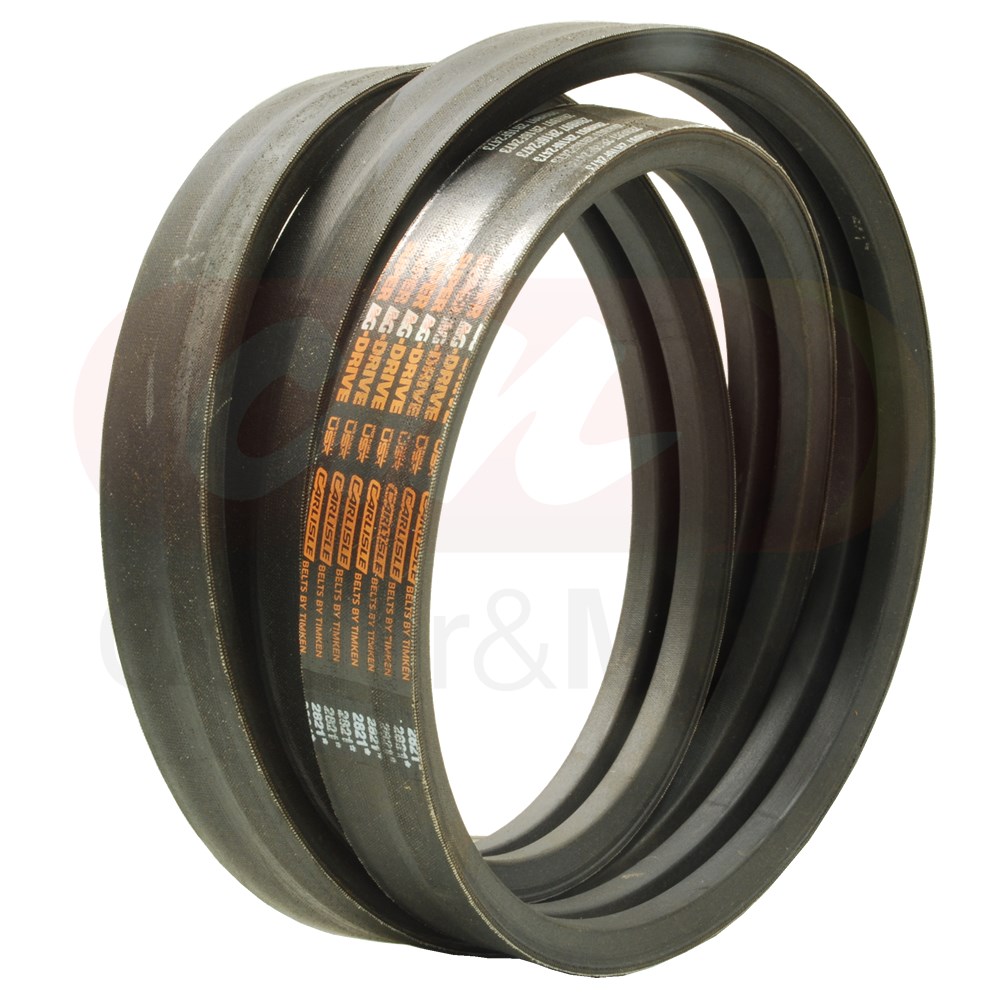

CASE-IH® Compatible Auxiliary Pump Drive Belt (2-Rib Banded HB)
Keep your
power transmission system in top condition with this premium Timken banded HB series drive belt. Specifically engineered for Case IH® Axial-Flow combines, this heavy-backed 2-rib belt is the professional choice for maintaining reliable auxiliary pump drive performance.
Designed as a direct-fit replacement for OEM part number 124572A1, this aramid-reinforced belt provides an
extended service life by resisting high shock loads and vibration. Implementing proactive
preventative maintenance by replacing worn auxiliary belts ensures consistent hydraulic pressure and protects your combine's drive train from the failures associated with belt stretching or snapping.
CASE-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 124572A1

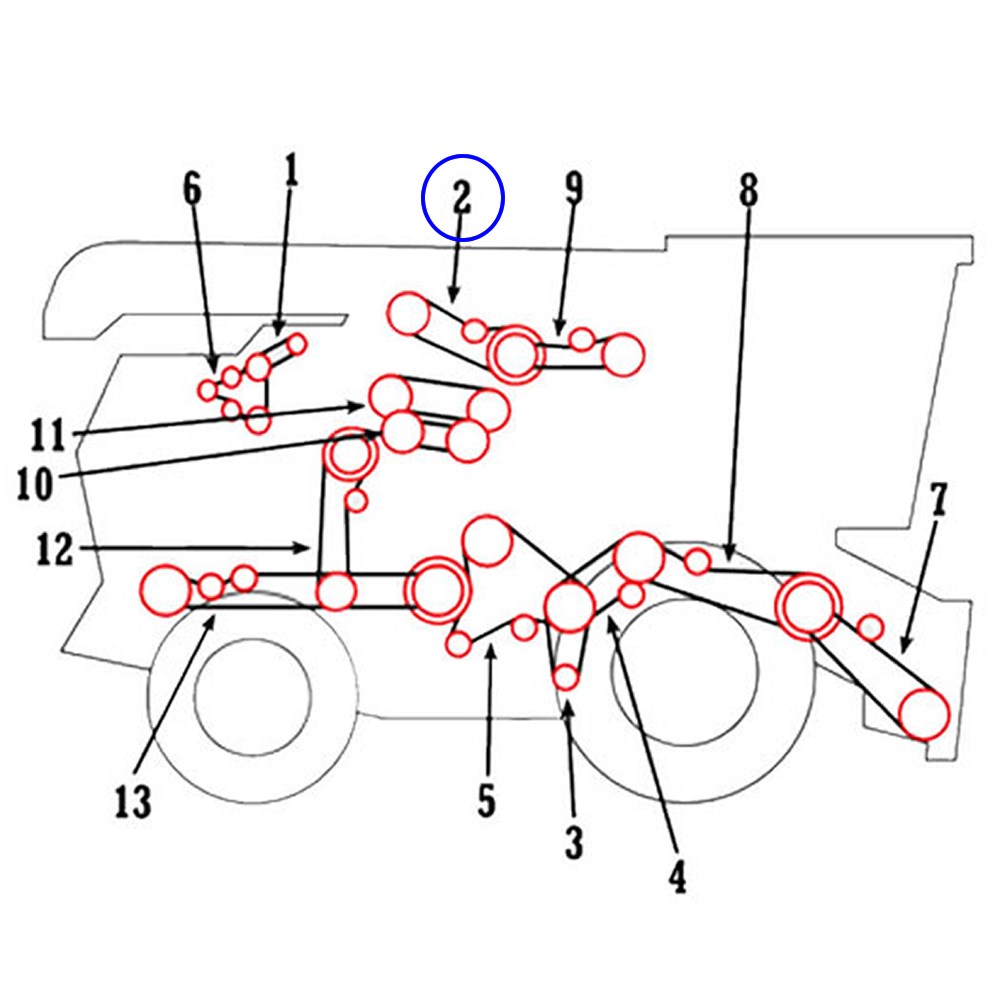

2-Rib Banded HB Belt for Case IH 2166, 2365, 2366 Axial-Flow Models
| Series |
Models |
Year Range |
| Case-IH® 2100 Series |
2166 Axial-Flow |
01/95 - 12/97 |
| Case-IH® 2300 Series |
2365, 2366 Axial-Flow |
10/97 - 08/04 |
Technical Specifications & Features
- Quality Assurance: Genuine Timken (Made in USA) to keep your equipment in top condition.
- Belt Configuration: 2-Rib Banded HB Series | 2421.42 mm Effective Length.
- Material Technology: High-performance advanced polymer compounds for superior heat resistance.
- Driveline Integrity: Strong aramid cord construction for maximum resistance to shock loads.
- Design: Heavy-backed construction specifically engineered for demanding harvester applications.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your power transmission system in top condition, we recommend inspecting the auxiliary pump pulley grooves for wear or debris buildup when installing this new banded belt.
Standard preventative maintenance for this drive includes checking the tensioner pulley alignment. Replacing worn belts simultaneously ensures an extended service life for your hydraulic system and prevents unnecessary downtime during the harvest window.
Recommended Maintenance Upgrade
We specifically recommend inspecting your Hydraulic Pump Drive Hub when servicing the auxiliary drive to ensure the splines are greased and in premium working order.
