CASE-IH® Compatible Upper Feeder House Pivot Shaft (67.625")
Restore reliable drive performance to your early model Axial-Flow combine with this premium 67-5/8" (1718mm) upper feeder house pivot shaft. Precision-manufactured to suit high-load agricultural applications.

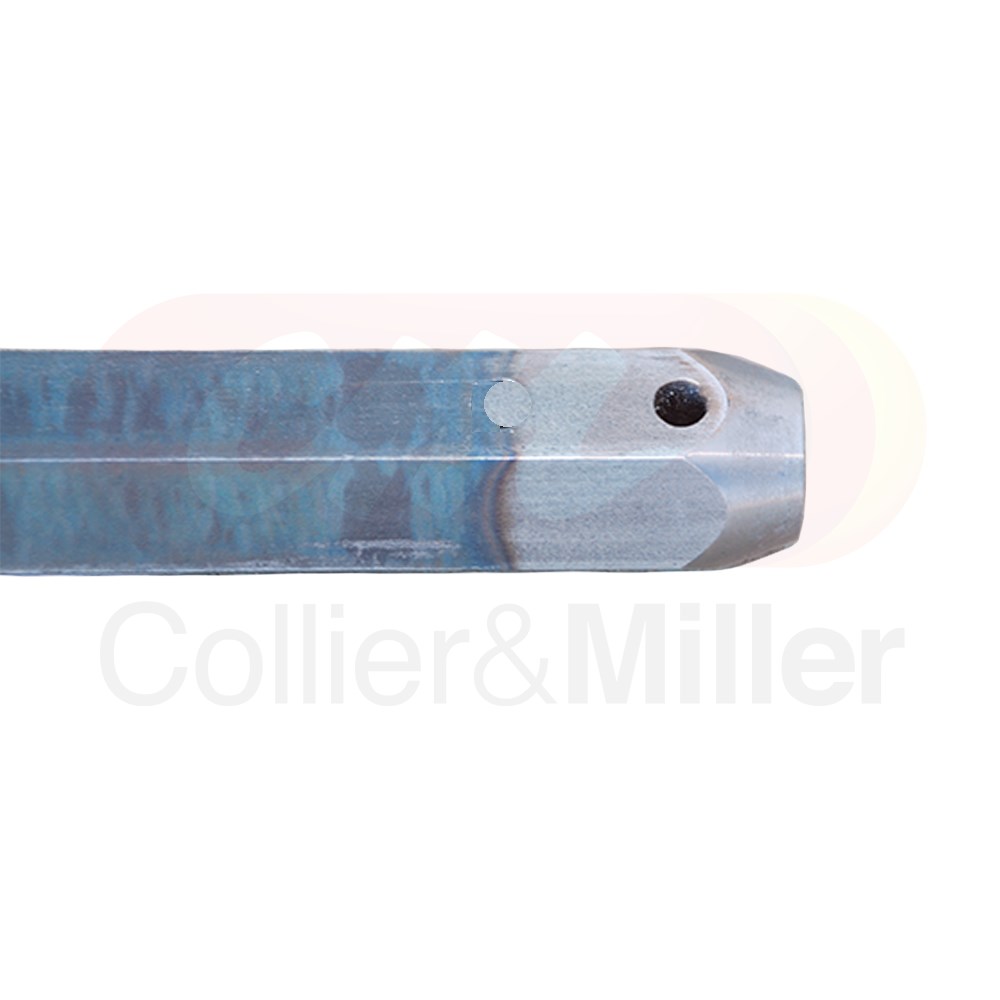

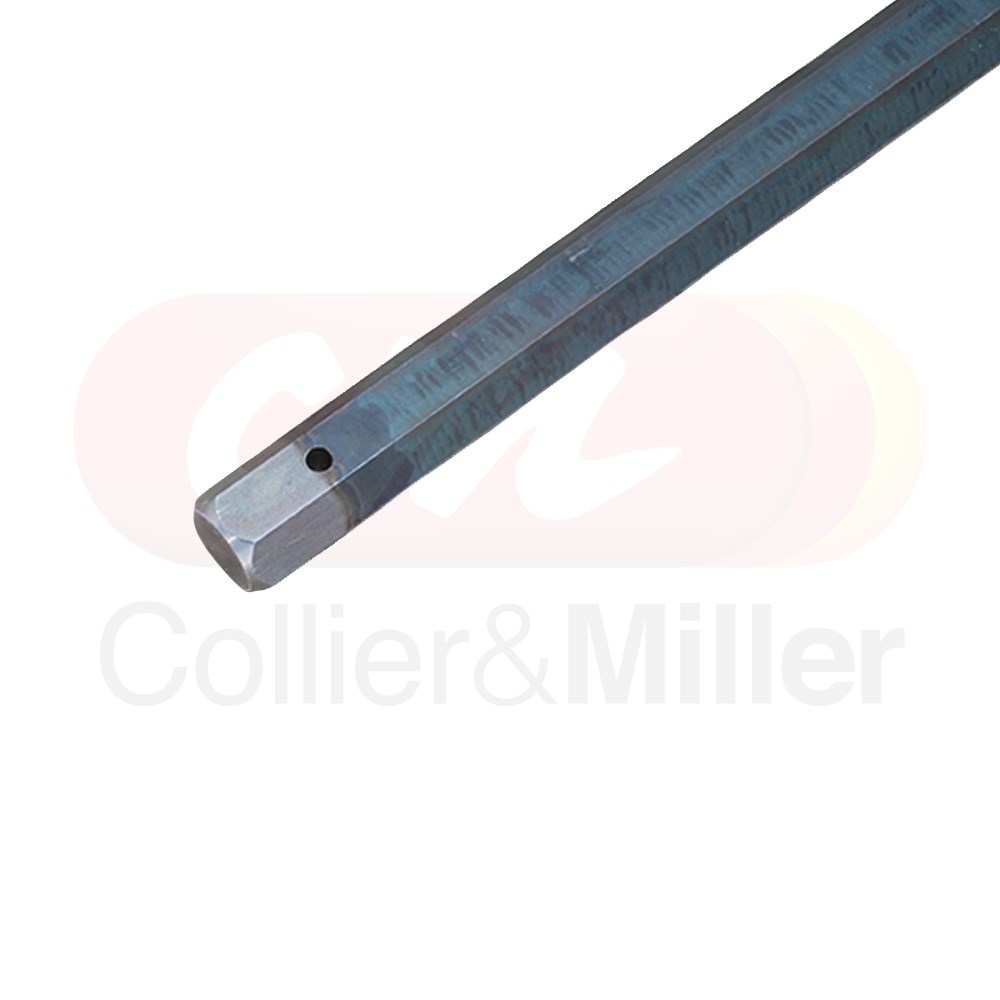

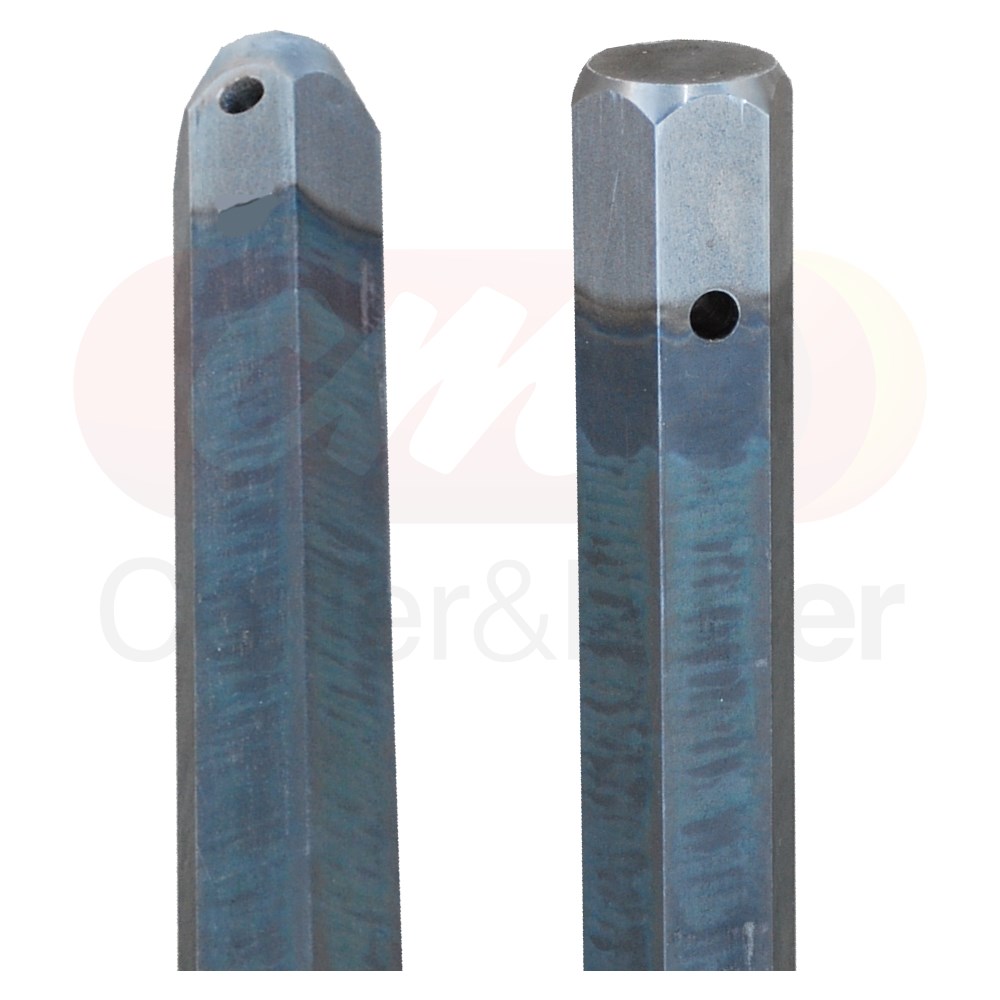

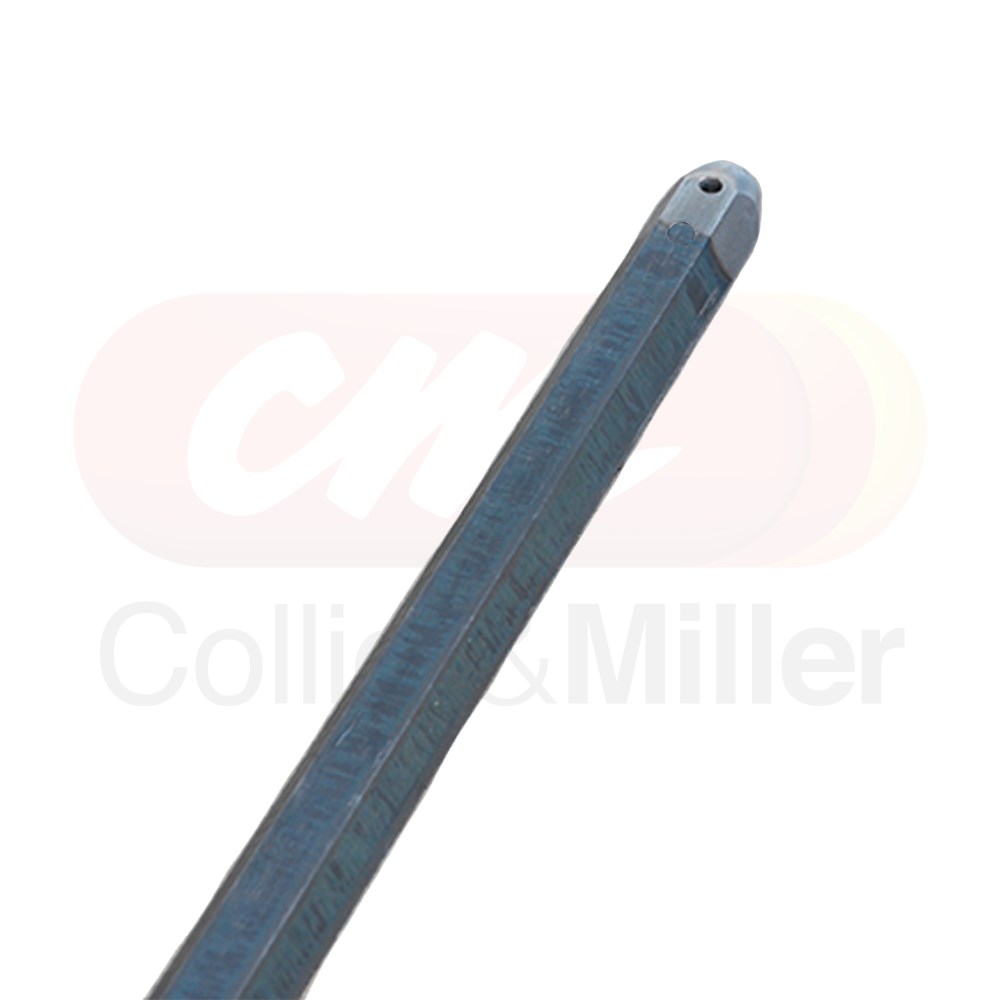

This heavy-duty drive shaft is a direct-fit aftermarket solution for Case IH® 1600, 2100, and early 2300 series machines. Machined from 1-1/2" Hex bar, it comes pre-drilled for 3/8" x 2-1/2" roll pins (not included), ensuring a straightforward installation and perfect alignment within the feeder house assembly.
Case-IH® Model Compatibility
Replaces OEM Part Numbers: 1321440C1, 1321440C2, 1321440C3, 1321440C4
67-5/8" Upper Feeder House Shaft for Case IH 1680, 1688, 2188, 2388 Models
| Series |
Models |
Serial Range |
| Case-IH® 1600 Series |
1680, 1680E, 1682, 1688 |
All Units |
| Case-IH® 2100 Series |
2188 |
All Units |
| Case-IH® 2300 Series |
2388 |
SN: < JJC0268799 |
Technical Specifications
- Length: 67-5/8" (1718mm)
- Material: 1-1/2" Hex Bar
- Fitting: Pre-drilled for 3/8" x 2-1/2" roll pins at both ends.
- Application: Upper feeder house drive/pivot shaft for legacy and mid-series models.
- Available for fast Australia-wide dispatch from Collier & Miller.
