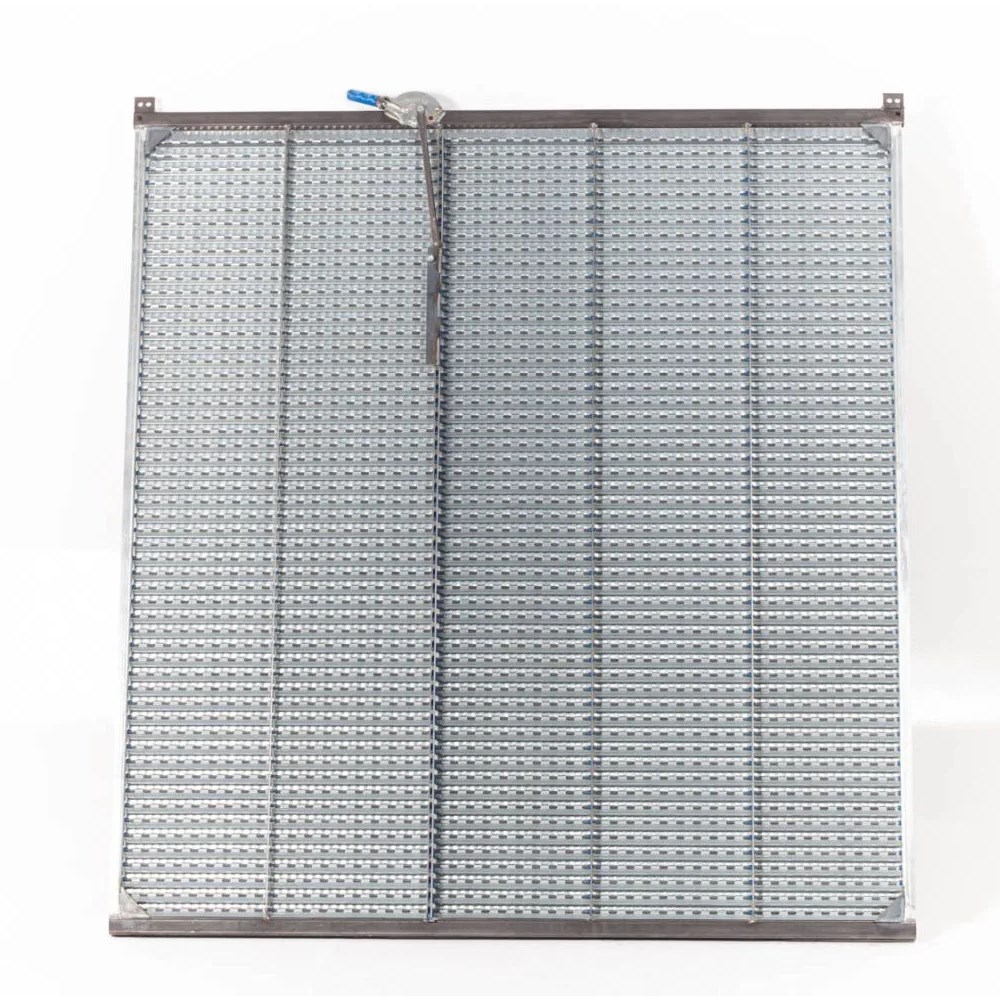

Case-IH® Compatible Bottom Sieve (Anti-Rattle Design)
Enhance your grain sample and reduce machine wear with this premium Lowen Manufacturing anti-rattle lower sieve. Specifically engineered for Case IH® mid-series combines, this A&I aftermarket sieve eliminates common rattle and pivot-point wear.

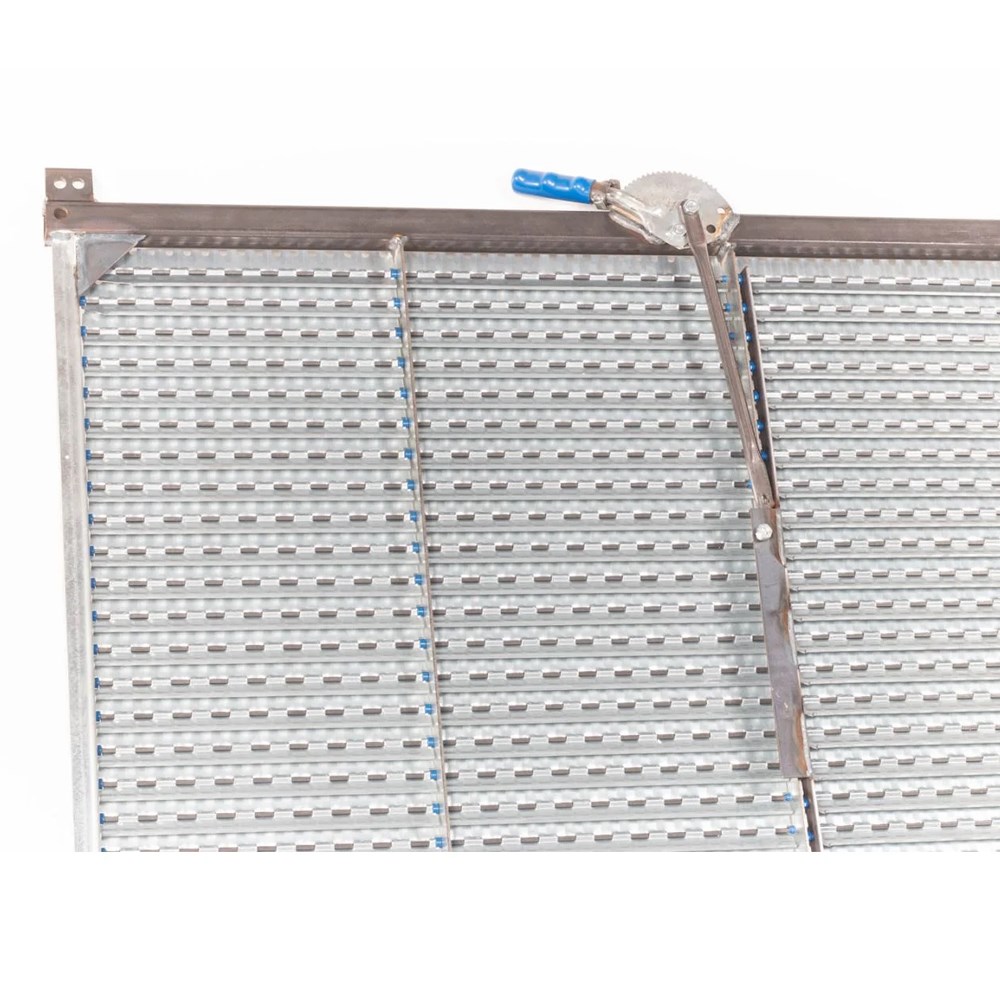

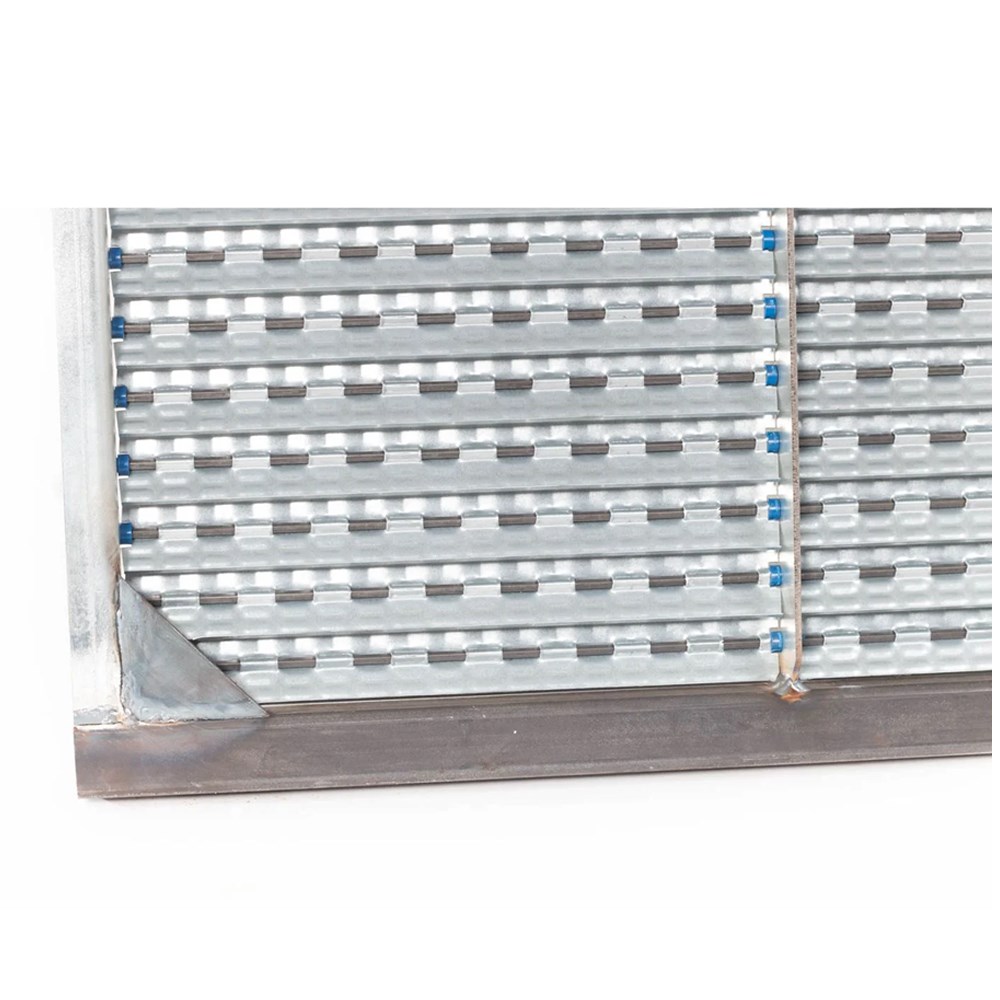

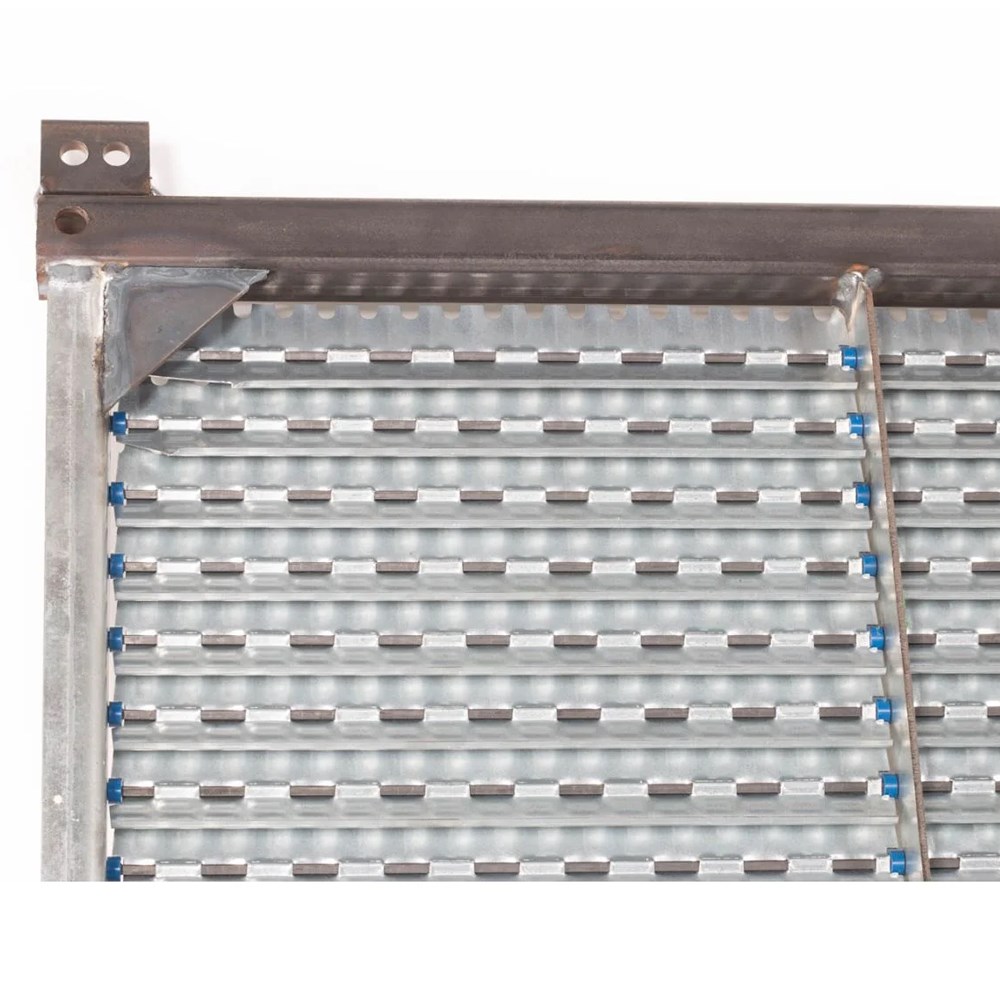

The advanced design features nylon bushings fixed at every pivot point within the frame. These are secured by a unique square-pin configuration that retains the bushes, significantly extending the service life of the sieve compared to standard OEM versions.
Case-IH® Model Compatibility
Replaces OEM Part Numbers: 1322464C1, 1322464C7, 92161896, 87712275E
Case IH Anti-Rattle Bottom Sieve for 2377, 2388, 2577, 2588 Models
| Series |
Models |
Serial/Year |
| Case-IH® 2300 Series |
2377, 2388 |
|
| Case-IH® 2500 Series |
2577, 2588 |
|
Technical Specifications
- Design: Genuine Lowen Manufacturing Anti-Rattle system.
- Bushing: Durable nylon bushes at every pivot point for silent operation.
- Hardware: Square pins designed for maximum bush retention and wear prevention.
- Slat Type: Blunt Finger with 1-1/8" spacing.
- Dimensions: Width = 60.75", Length = 65".
- Available for fast Australia-wide dispatch from Collier & Miller.
