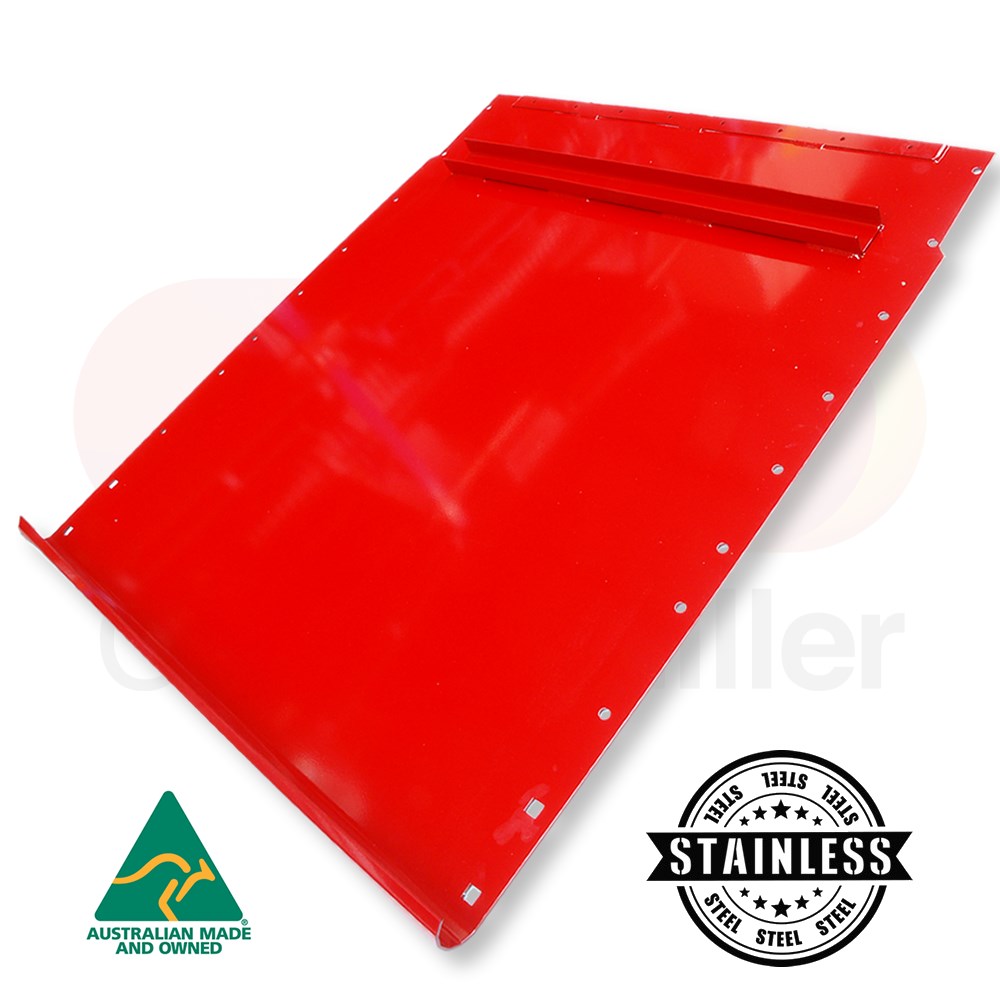

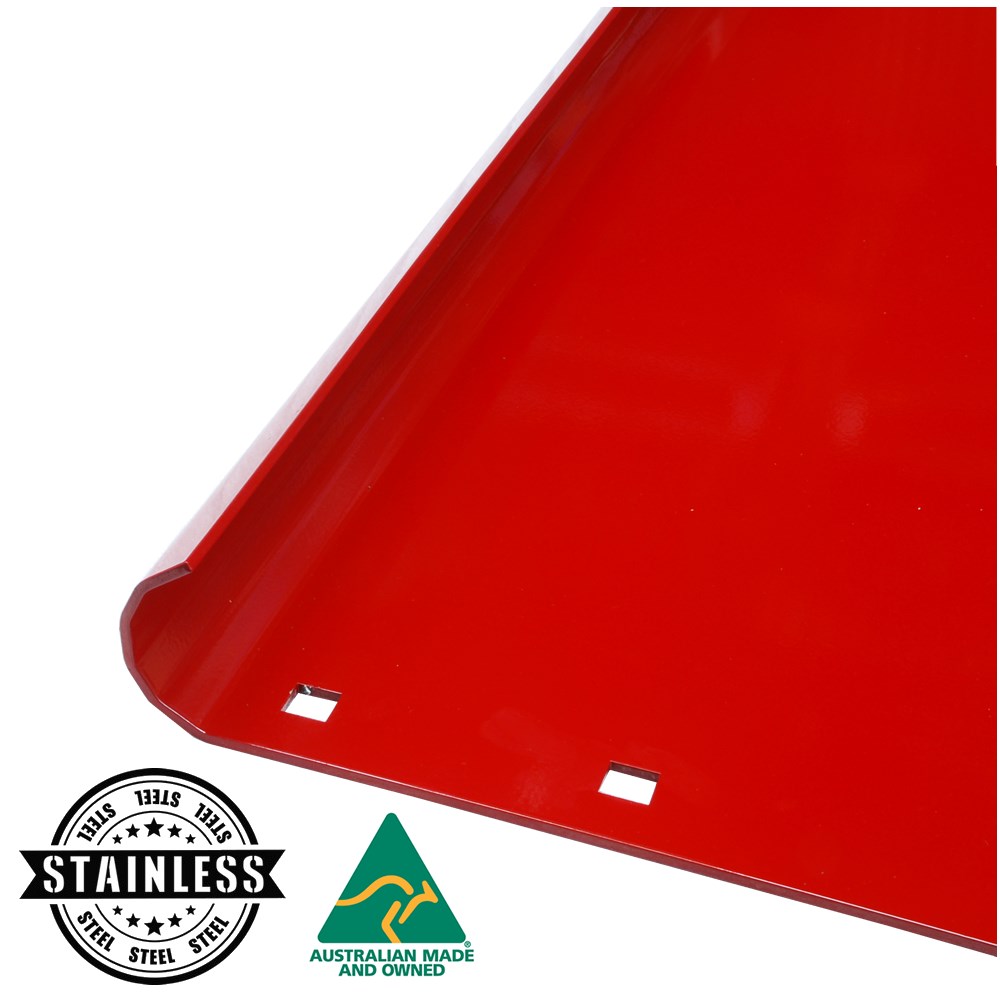

Case-IH® Compatible Stainless Steel Feeder House Floor (54.5")
Invest in a significantly longer service life for your feeder house with this premium C&M Australian-made stainless steel feeder house floor. Specifically engineered for Case-IH® Axial-Flow combines, this 54.5" (1384mm) floor panel is the professional choice for keeping your product feeding system in top condition.
This floor panel is manufactured from high-grade extended wear stainless steel, providing the ultimate solution for high-capacity harvesting. The stainless steel construction offers superior corrosion resistance, preventing the surface pitting and rust-related drag often found in standard carbon steel floors during the off-season. This ensures your feeder house maintains a consistently smooth, low-friction surface for optimum crop transition through multiple harvests.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 1324572C1, 1324572C2
Feeder House Floor Compatibility: Case IH Axial-Flow (54.5" Length)
| Series |
Models |
Floor Length |
| Case-IH® 1400 Series |
1480, 1482 |
54.5" (1384mm) |
| Case-IH® 1600 Series |
1680, 1680E, 1682, 1688 |
54.5" (1384mm) |
| Case-IH® 2100 Series |
2188 |
54.5" (1384mm) |
| Case-IH® 2300 Series |
2377, 2388 |
54.5" (1384mm) |
| Case-IH® 2500 Series |
2577, 2588 |
54.5" (1384mm) |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: 3mm high-grade Stainless Steel for maximum corrosion resistance.
- Wear Rating: Extended wear configuration designed for abrasive crop conditions.
- Product Feeding: Slick, polished surface finish prevents material "hang-up."
- Precision Build: Segment pressed for exact OEM fitment.
- Finish: Powder-coated in Case-IH® Red for additional external protection.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The feeder house lower floor is a high-impact zone exposed to the full volume of abrasive grain and dust entering the combine. Standard painted steel floors eventually lose their coating, allowing moisture to cause surface corrosion which increases friction and power consumption. We recommend inspecting the floor for thinning or "scouring" patterns during every preventative maintenance check.
Upgrading to this high-performance stainless steel floor is a strategic choice to **save money** on long-term maintenance. The extended wear properties ensure the floor maintains its structural integrity far longer than carbon steel alternatives, keeping your product feeding system in top condition and ensuring a smooth transition for your feeder house chain.
Installation Tip: Verify Fastener Seating
When installing your new high-strength stainless floor, ensure all mounting bolts are seated perfectly flush with the floor surface. Any protruding hardware will catch crop material and accelerate abrasion in localized spots. A perfectly smooth transition from the header to the feeder house chain is essential for high-capacity harvesting.
