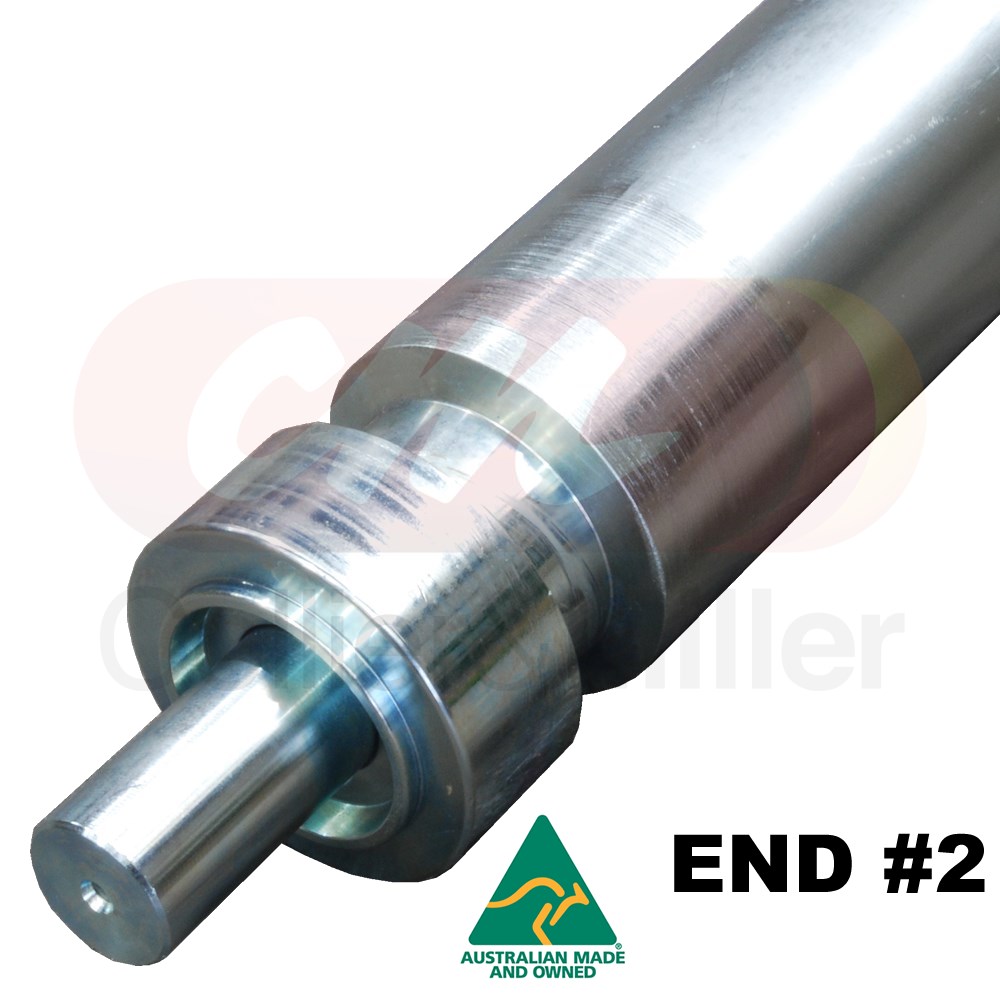

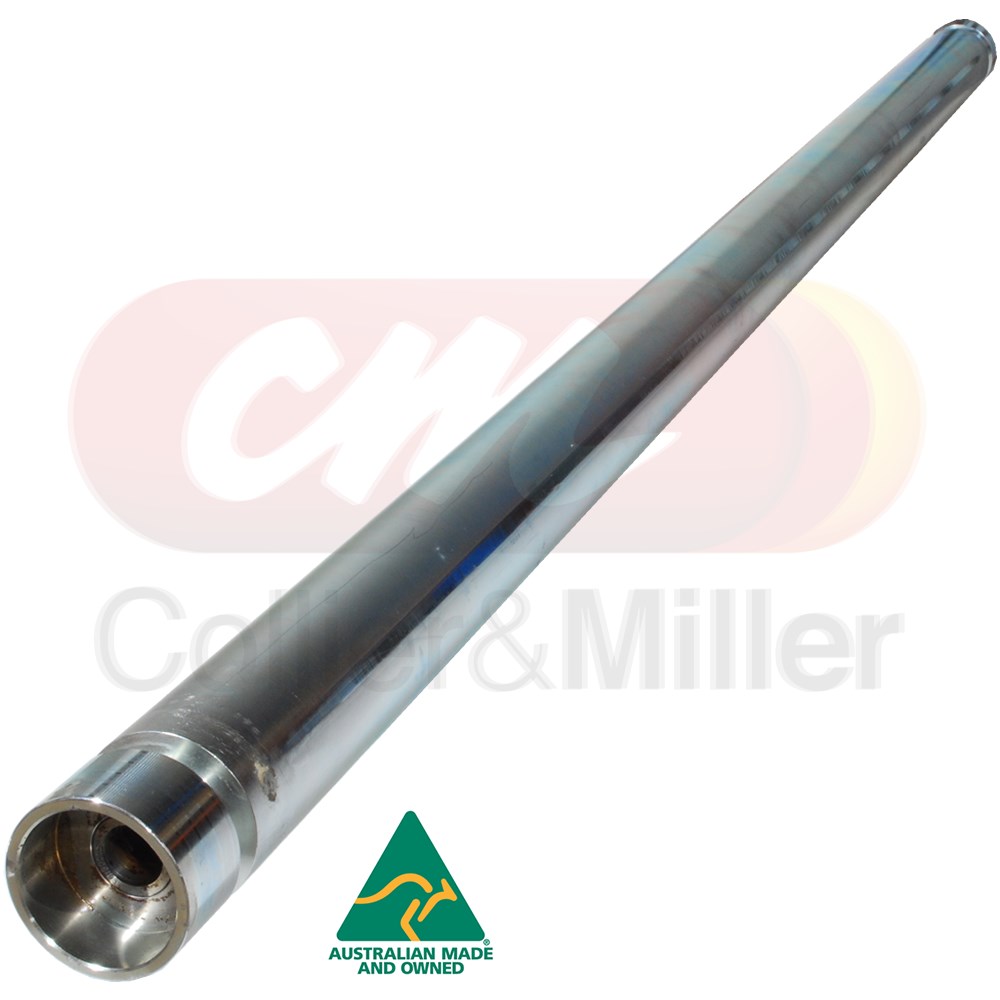

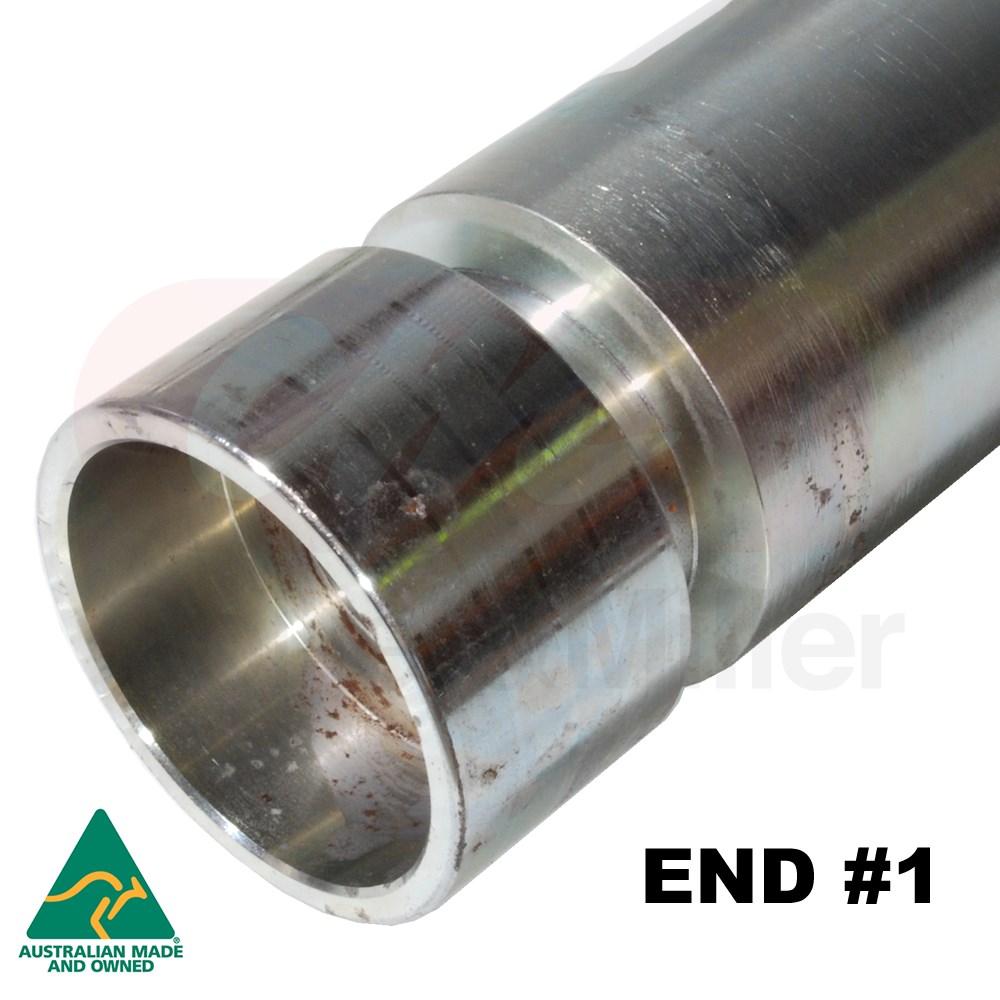

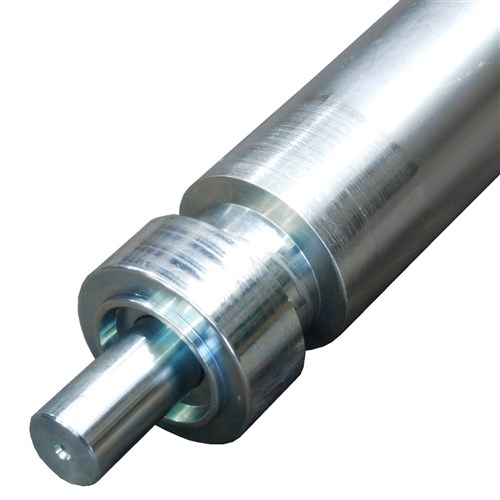

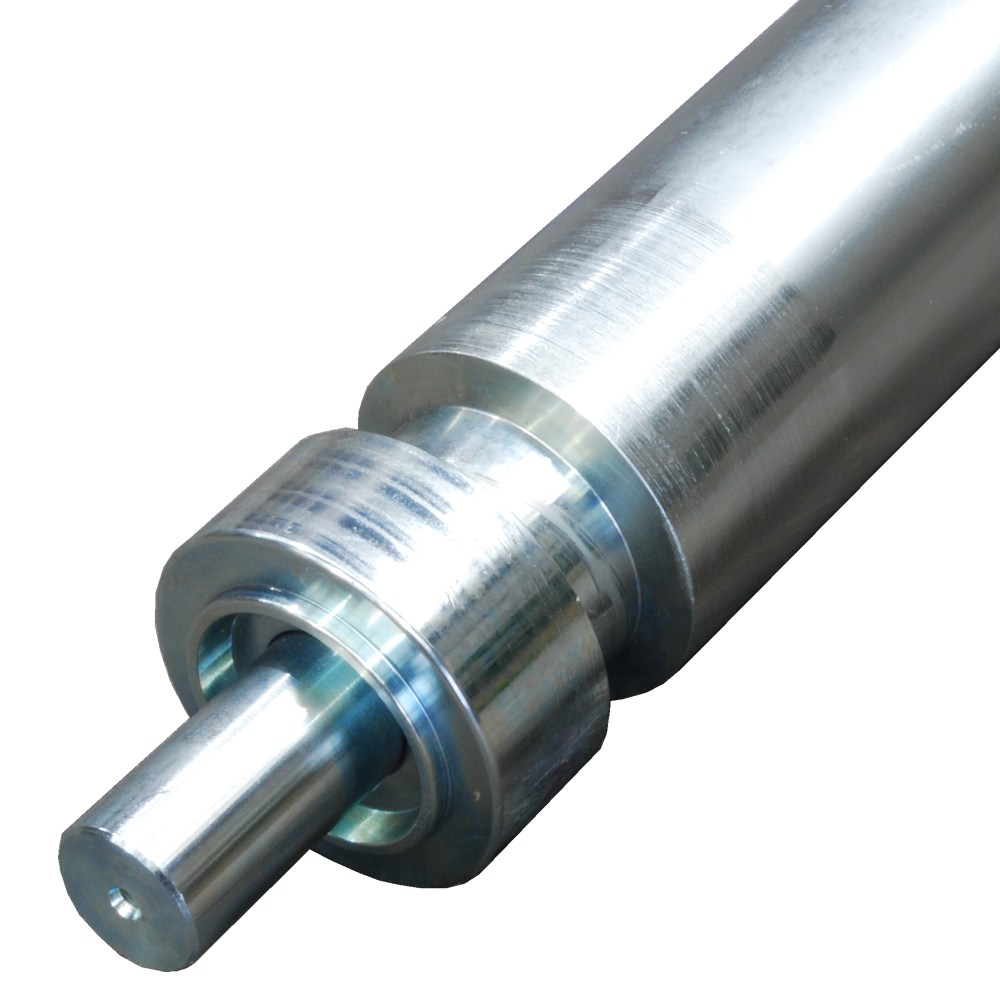

C&M aftermarket centre feed drive roller to suit Macdon and CNH cutting platforms fitted with CA20 or CA25 combine adaptor.This centre feed drive roller takes the 78.5" centre belt, and has been machined specifically with a hardened splined bush on the drive end to allow for positive drive and improved service life.
Measuring 3" in diameter and features a V groove on either end, allowing it to either take the OEM centre belt with two V guides, or the aftermarket belt with a single V guide.
Roller is supplied Un-lagged.Part numbers
- Macdon 133891
- Case 87627760 (SN Break) After Y7ZN00301
Application
- Combine adaptor center feed drive roller
Models
| Series |
Models |
Serial/Year |
| Macdon Combine Adaptors |
CA20 |
2012 AND LATER |
|
CA25 |
All with Splned Hub |
| Macdon D Series |
D50, D60, FD70 |
2012 and later with CA20 with Splned Hub |
|
D65, FD75 |
All with Splned Hub |
| Case 21 Series |
2142, 2152, 2162 |
(SN Break) After Y7ZN00301 |
| New Holland |
82C, 83C, 86C |
All with Splned Hub |
Features
- C&M Australian Made
- 1" x Z6 Spline Hub
- UN-Lagged
- V-Groove each end
- Accepts double vee and single vee matting
