BOTTOM UNLOADING AUGER GEARBOX

CASE IH 13473362C2

Product Code: CM1347336C2
  $1402.50
EACH inc GST
Afterpay Logo
4 payments of $350.63
In Stock Low Stock Contact Us Please See Attributes 0
Increase value Decrease value

  • Detail

CASE-IH® Compatible

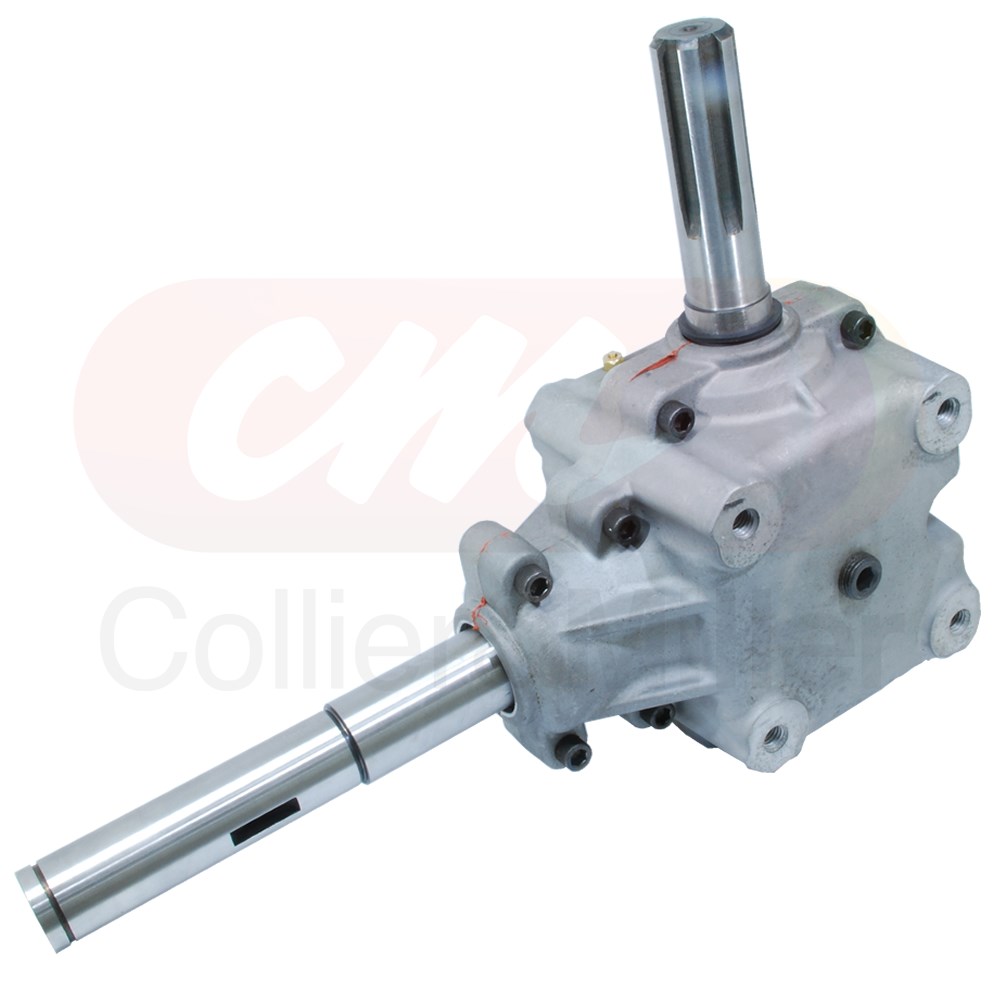

Unloading Gearbox (Bottom)


Aftermarket bottom grain tank unload auger gearbox to fit Case-IH® combine harvesters.

Part numbers
  • 1347336C2
Series Models Serial/Year
Case-IH® 14 Series 1460, 1480
Case-IH® 16 Series 1620, 1640, 1644, 1660, 1666, 1680, 1688
Case-IH® 21 Series 2144, 2166, 2188
Case-IH® 23 Series 2344, 2366, 2377, 2388
Case-IH® 25 Series 2577, 2588
Case-IH® 88 Series 5088

Specifications
  • Shaft #1 Diameter 1.375" - Z6 Pline Shaft (130mm L from housing)
  • Shaft #2 Diameter 35mm x 8mm keyed (210mm L from housing)
  • Mounting holes 110mm square
Case-IH® Compatible ensures the C&M aftermarket part will fit the machine model stated based on our research and customer feedback. C&M parts are an aftermarket product and do not make a claim to be a genuine Case-IH® part. It is recommended prior to ordering you should verify the parts will fit your equipment. Case-IH® is a registered trademark of CNH Industrial America LLC
