MacDon® & Case-IH® Compatible Cross Auger Connection Repair Kit

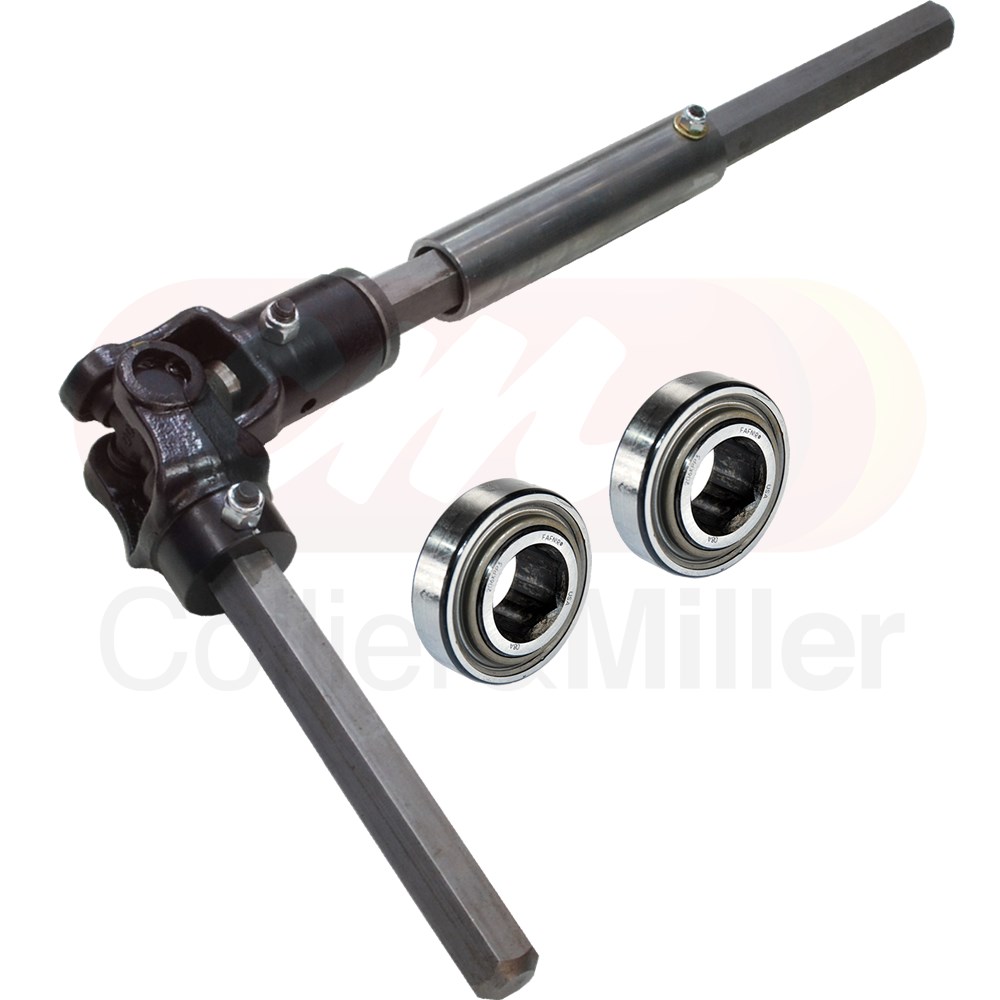

Restore the drive integrity of your cross auger with this premium C&M Australian-made cross auger center connection repair kit. Specifically designed for MacDon® and Case-IH® draper fronts equipped with a cross auger, this kit provides a simple solution for replacing worn internal drive components in the center connection assembly.
This comprehensive kit offers a convenient and cost-effective way to refurbish your auger drive without purchasing individual OEM parts. By replacing the universal joint, hex shaft, and bearings simultaneously, you ensure a longer service life for the cross auger system and keep your header in top condition during high-capacity harvesting.

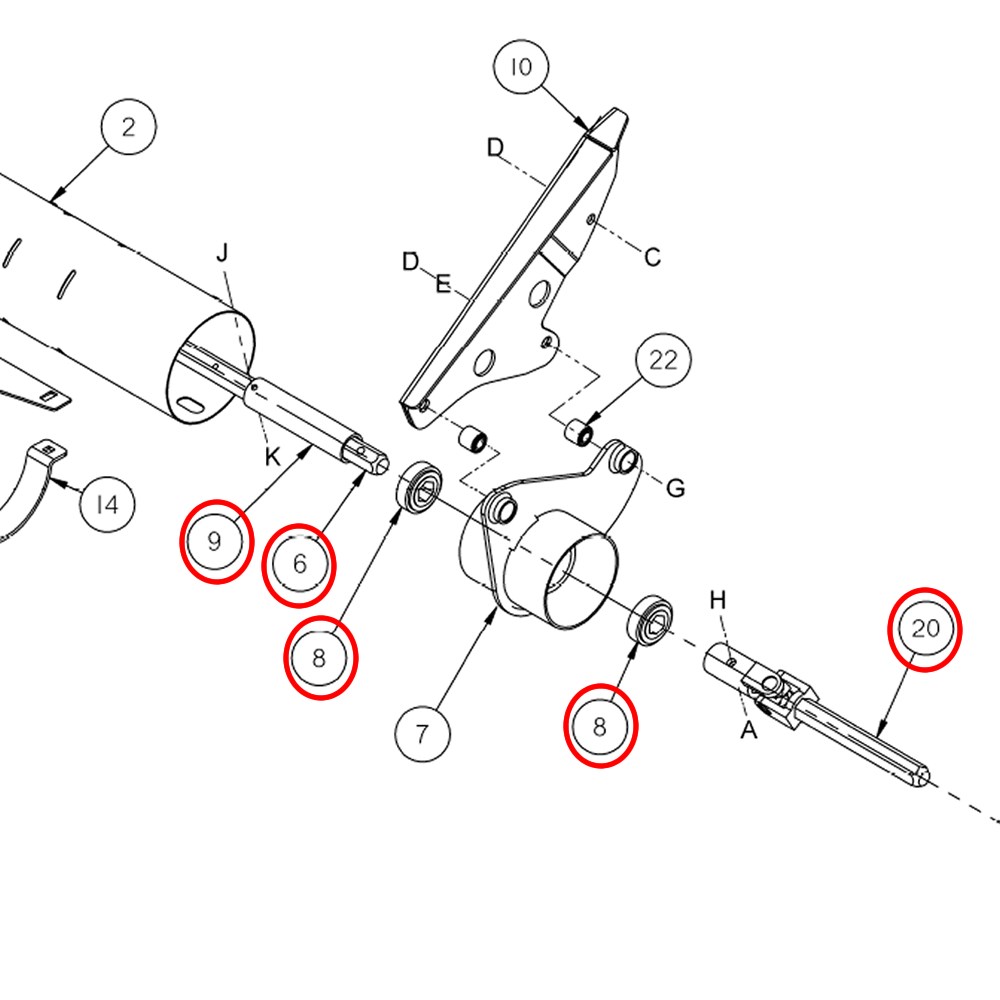

Kit Components & OEM Cross-Reference
C&M Refurbishment Kit: Assembled to match or exceed original equipment performance.
| Item Description |
MacDon Part No. |
Case-IH Part No. |
| Universal Joint Assembly (Series 1) |
165064 |
87585353 |
| Center Spacer |
174802 |
87481580 |
| Drive Hex Shaft |
174081 |
87480990 |
| Precision Hex Bearings (Pair) |
172507 |
87627083 |
Model Compatibility & Fitment
Cross Auger Connection Fitment: 30ft and Wider Header Fronts
| Brand / Series |
Models |
Width Specification |
| Case-IH 21 Series |
2142, 2152, 2162 |
30' and Wider |
| MacDon D Series |
D50, D60, D65 |
30' and Wider |
| MacDon FD Series |
FD70, FD75 |
30' and Wider |
Technical Specifications & Features
- Manufacturer: Proudly C&M assembled in Australia (Griffith, NSW).
- Joint Compatibility: Accepts Series 1 Universal Joint (M22 x 54mm cross).
- Shaft Design: High-tensile Hex Shaft for positive drive engagement.
- Bearings: Includes 2 x high-performance hex-bore bearings.
- Service Type: Extended wear refurbishment solution for center auger joints.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The cross auger center connection is a high-use area that is often neglected until a universal joint failure. Over time, the hex bearings can develop play, which places undue stress on the universal joint and leads to failure. We recommend inspecting the joint for backlash during every preventative maintenance check.
Using this high-performance repair kit ensures all critical wear components are renewed at once. A fresh hex shaft and new bearings provide a stable drive that prevents the "whipping" motion common in worn auger assemblies. This extended wear solution keeps your feeding system balanced and operating at peak capacity.
Installation Tip: Check Cross Auger Timing
When reassembling the cross auger using the new 174081 hex shaft and 165064 universal joint, ensure the auger flighting is correctly timed to prevent material from bunching in the center. Lubricating the Series 1 U-joint with a high-quality lithium grease during installation will ensure a longer service life and smoother operation.
