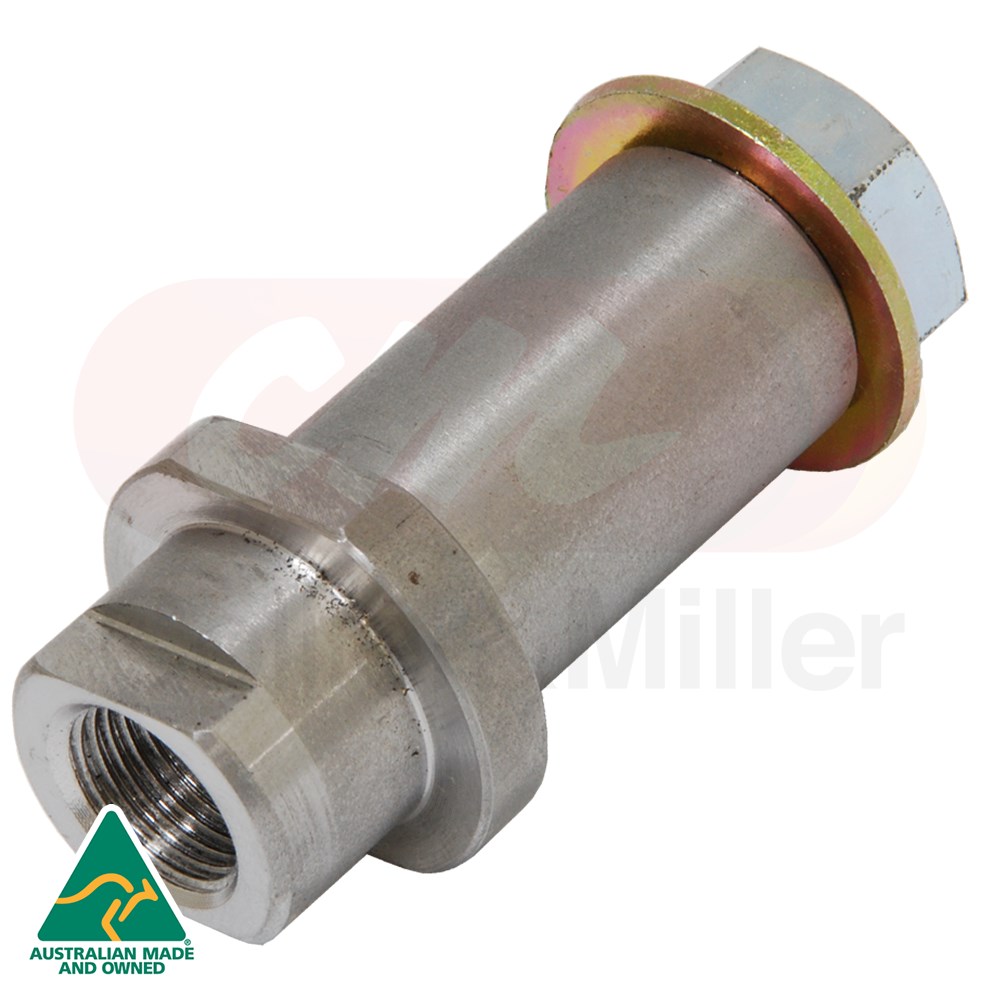

Case-IH® MacDon® & New Holland® Compatible Draper Roller Bearing Pin
Ensure the smooth operation of your product feeding system with this premium C&M Australian-made draper roller bearing pin. Specifically engineered for Case-IH®, MacDon®, and New Holland® draper platforms, this high-performance pin is the professional solution for repairing worn components in the draper belt drive assembly.
Manufactured in our Griffith factory to exact OEM dimensions, this high-precision pin provides a precision seat for the roller bearings. The pin is electroplated for enhanced corrosion and abrasion resistance, ensuring a longer service life even in high-dust and high-moisture harvesting environments. This extended wear solution is designed to keep your draper rollers in top condition, preventing the belt tracking issues caused by worn or bent pins.
OEM Cross-Reference & Compatibility
- MacDon Part Number: 165735
- Case-IH Part Number: 87560474
Draper Roller Pin Compatibility: MacDon, Case & New Holland
| Series |
Models |
Reference |
| MacDon® D / FD Series |
D50, D60, D65, FD70, FD75 |
Standard Fitment |
| Case-IH® 21 Series |
2142, 2152, 2162 |
Standard Fitment |
| New Holland® 80C Series |
82C, 83C, 86C |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Kit Contents: Supplied as a complete set including 1 x Pin, 1 x Bolt, and 1 x Washer.
- Finish: Electroplated for superior finish.
- Wear Rating: Extended wear configuration designed for high-capacity product feeding.
- Refurbishment: Essential for repairing worn components to restore roller alignment.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The draper roller bearing pin is a vital wear point in the product feeding assembly. Over time, the pin can develop a "shoulder" due to bearing movement or abrasion, which leads to roller misalignment and eventual draper belt damage. We recommend inspecting the pins for surface wear and straightness during every preventative maintenance check to ensure your belt drive remains in top condition.
Upgrading to this high-performance C&M pin is a strategic choice to save money on expensive draper belt replacements. The high-strength electroplated finish provides a significantly longer service life than non-plated alternatives, ensuring consistent belt tension and reliable material flow into the harvester throughout the season.
Installation Tip: Bearing Inspection
When repairing worn components, always inspect the roller bearings before reassembly. A worn pin often indicates that the bearing has failed or seized. Installing a new high-strength pin with a fresh bearing ensures a vibration-free product feeding transition. This is the ideal time to check your draper belt edges for fraying to maintain maximum intake efficiency.
