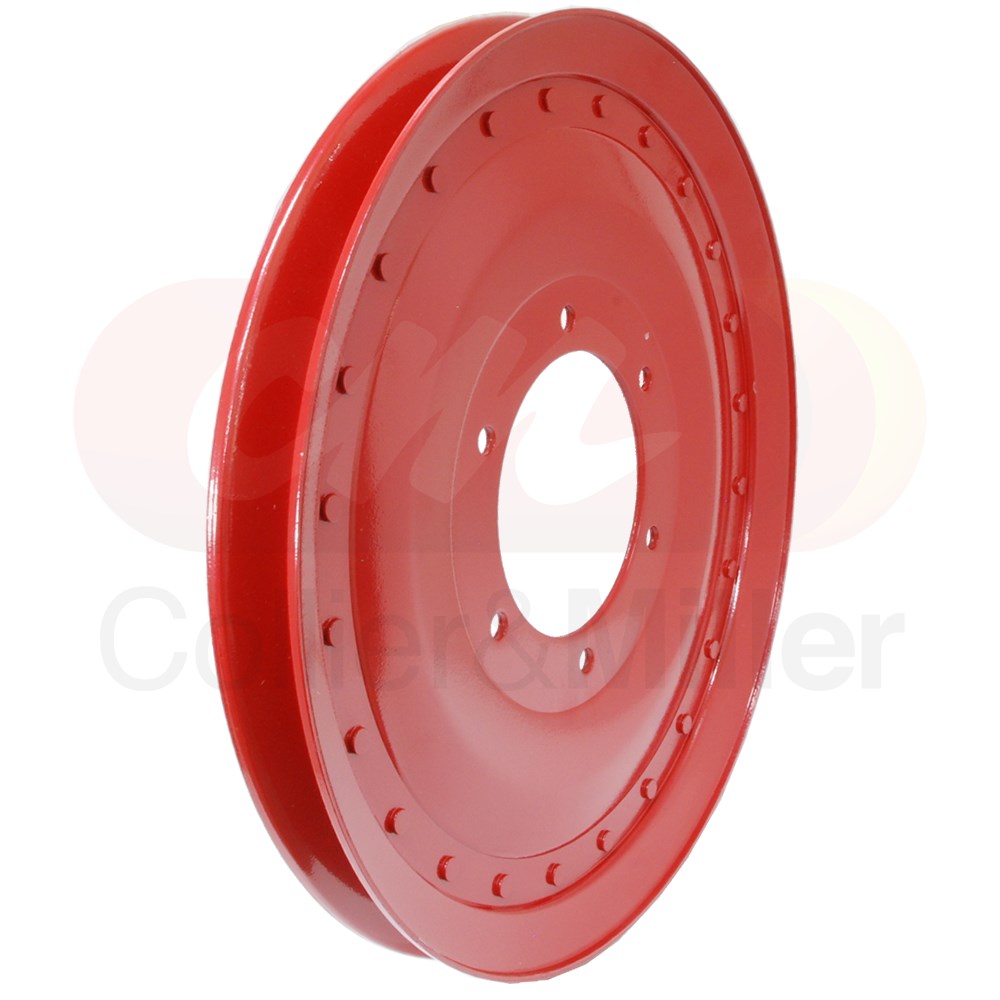

CASE-IH® Compatible Cleaning Fan Pulley (Standard Speed)
Maintain optimal airflow and cleaning performance with this high-quality aftermarket standard speed cleaning fan pulley. Engineered specifically for Case IH® mid-series and legacy combine harvesters to provide a precision fit and reliable belt drive.

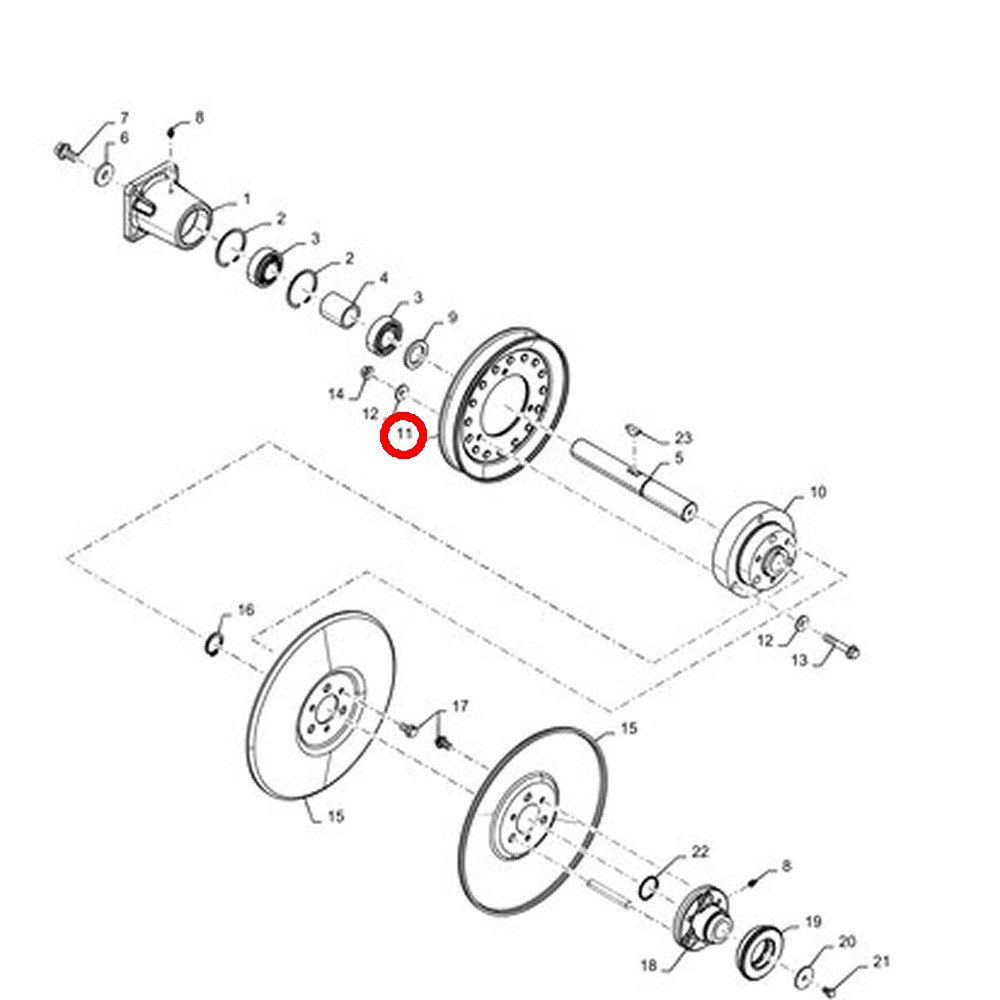

This durable 254mm pulley is a direct-fit replacement for the original cleaning fan drive system. Manufactured to meet OEM specifications, it ensures consistent fan RPM across a wide range of Case IH® models, from the early 1400 series through to the modern 150 series.
Case-IH® Model Compatibility
Replaces OEM Part Number: 193948C1
Case IH Standard Speed Fan Pulley for 1460, 1680, 2388, 5088, 7150 Models
| Series |
Models |
Serial/Year |
| Case-IH® 1400 Series |
1420, 1440, 1460, 1470, 1480, 1482 |
|
| Case-IH® 1600 Series |
1620, 1640, 1640E, 1644, 1660, 1666, 1680, 1680E, 1688 |
|
| Case-IH® 2100 Series |
2144, 2166, 2188 |
|
| Case-IH® 2300 Series |
2344, 2366, 2377, 2388 |
|
| Case-IH® 2500 Series |
2588 |
|
| Case-IH® 88 Series |
5088, 6088 |
|
| Case-IH® 130 Series |
5130, 6130, 7130 |
|
| Case-IH® 140 Series |
5140, 6140, 7140 |
|
| Case-IH® 150 Series |
5150, 6150, 7150 |
|
Technical Specifications
- Diameter: 254mm for standard speed operation.
- Width: 39.61mm for precise belt alignment.
- High-strength construction to withstand harvest vibration and load.
- Direct replacement for Case IH OEM part 193948C1.
- Available for fast Australia-wide dispatch from Collier & Miller.
