CASE-IH® Compatible Shaker & Auger Drive Shaft (59.19")
Ensure a positive, slip-free drive for your cleaning shoe and bed augers with this precision-manufactured 1-1/8" hexagon shaker drive shaft. Designed as a direct-fit aftermarket solution for a wide range of Case IH® mid-series combine harvesters.
This heavy-duty drive shaft measures 59.19" in length and is machined from high-grade 1-1/8" hexagon bar. It features threaded ends and precision-cut woodruff key slots to provide a reliable, positive drive for both the shaker arms and the bed auger system.
Case-IH® Model Compatibility
Replaces OEM Part Numbers: 1970192C1, 1970192C2
Case IH 59.19" Hex Shaker Drive Shaft for 1660, 2166, 2366, 5088, 7150 Models
| Series |
Models |
Serial/Year |
| Case-IH® 16 Series |
1640, 1640E, 1644, 1660, 1660E, 1666, 1670, 1680E |
|
| Case-IH® 21 Series |
2144, 2166 |
|
| Case-IH® 23 Series |
2344, 2365, 2366 |
|
| Case-IH® 88 Series |
5088 |
|
| Case-IH® 130 Series |
4130, 6130 |
|
| Case-IH® 150 Series |
5150, 6150, 7150 |
|
Technical Specifications
- Shaft Profile: 1-1/8" Hexagon for high-torque drive engagement.
- Total Length: 59.19" (1503.4mm).

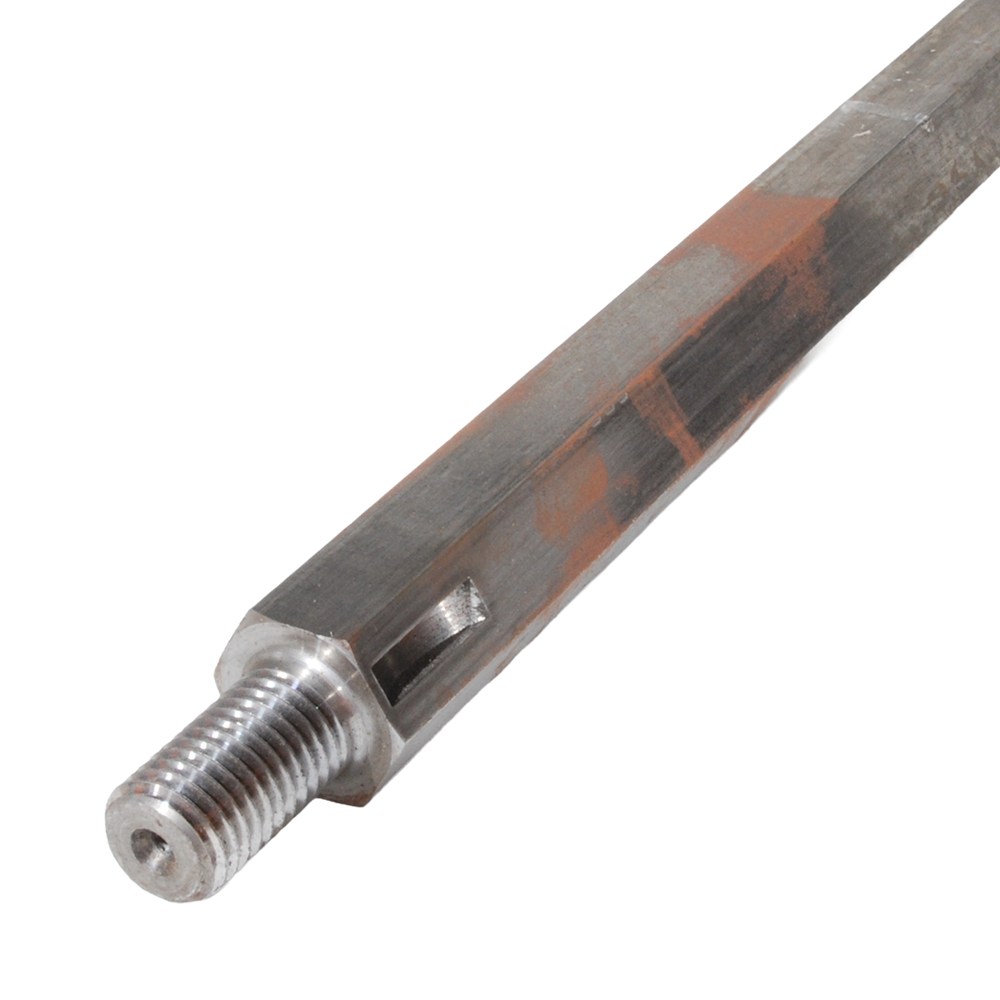

- Drive Type: Threaded ends with woodruff key slots for positive drive.
- Dual Application: Drives both shaker arms and bed auger assemblies.
- Available for fast Australia-wide dispatch from Collier & Miller.
