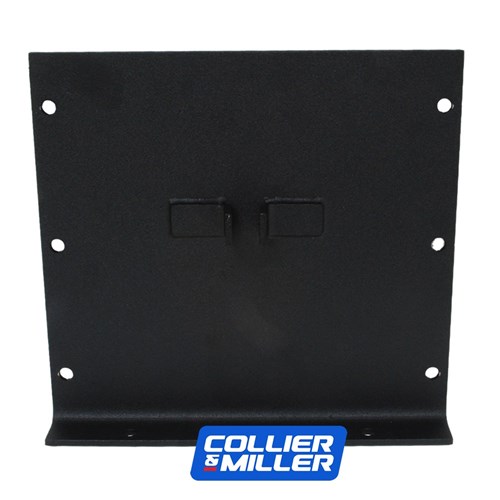

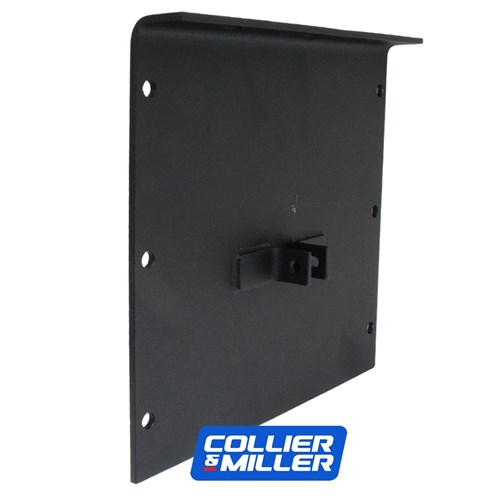

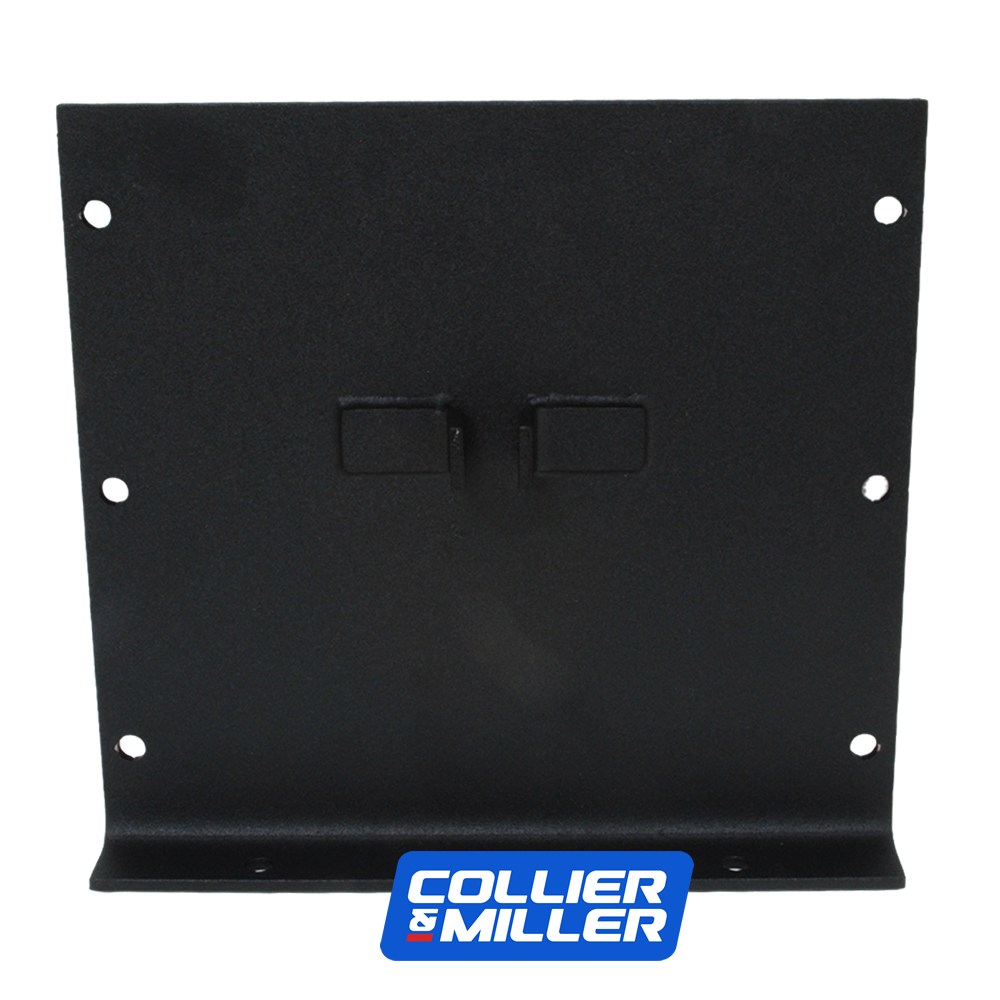

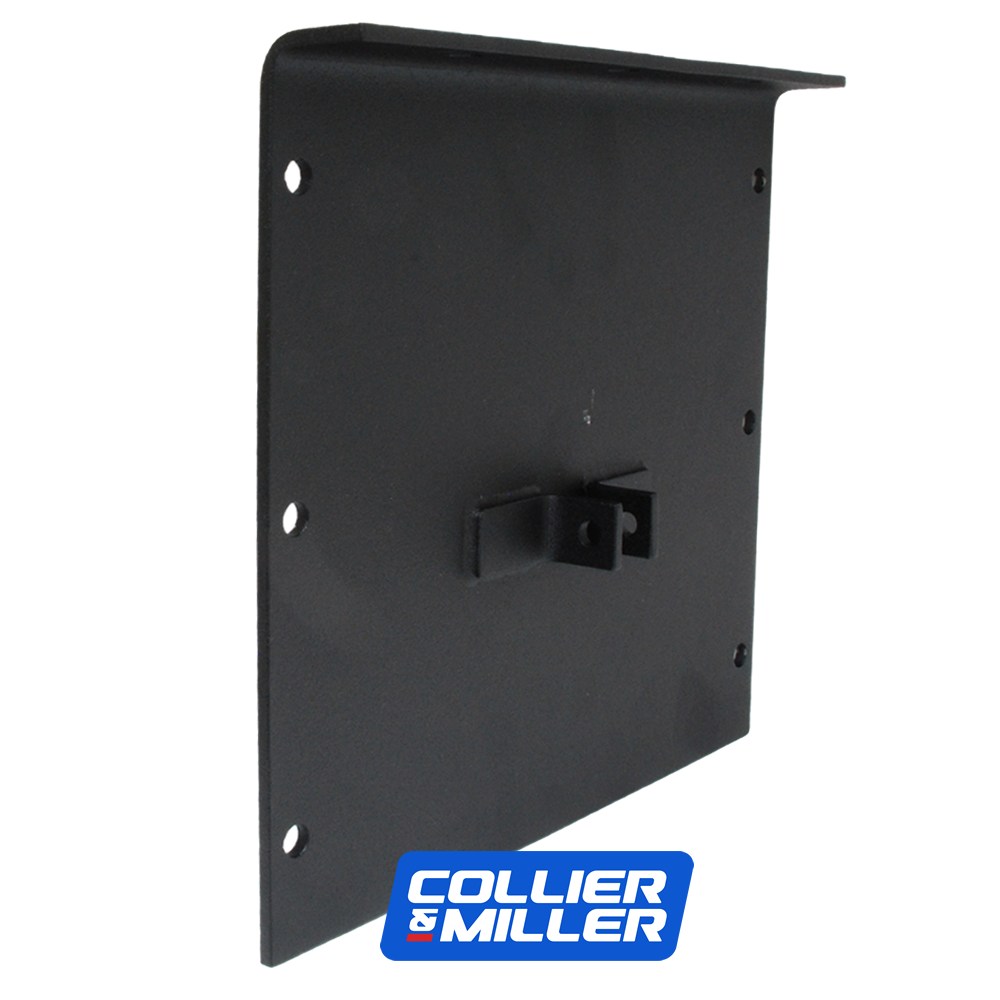

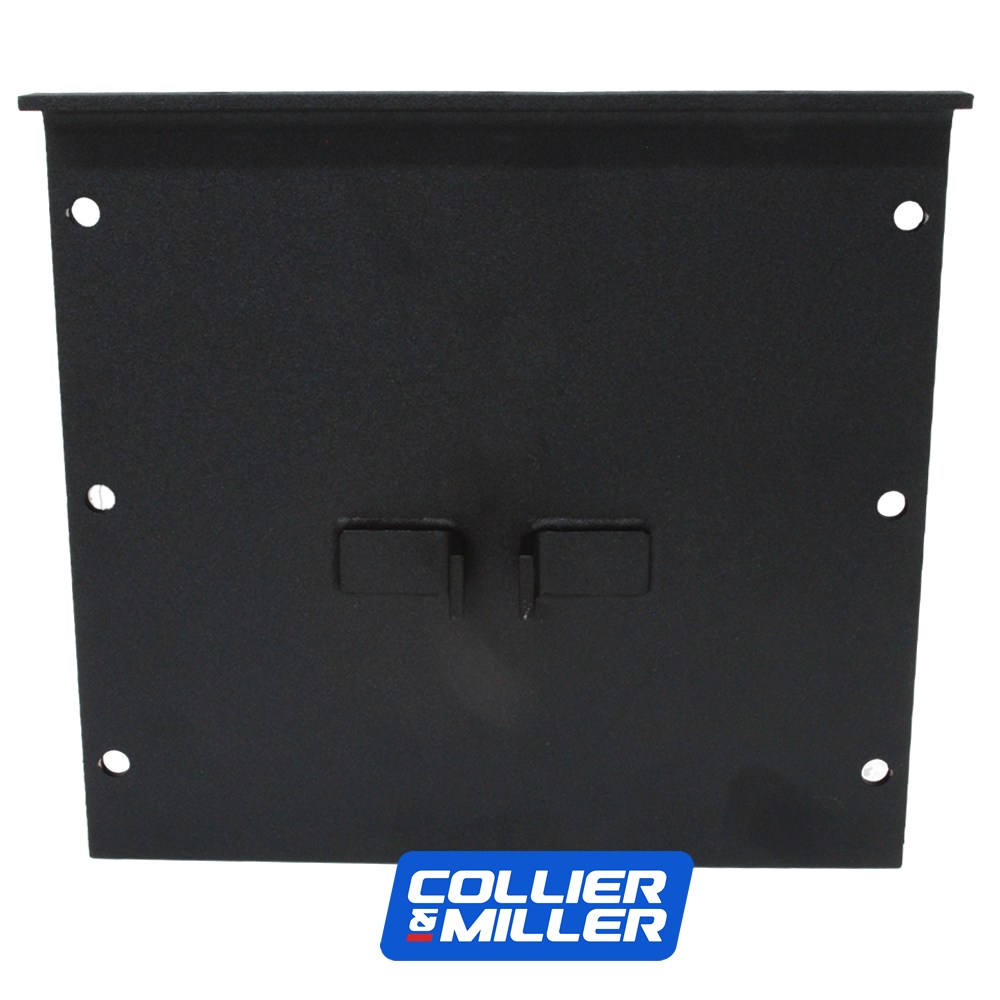

Case-IH® Compatible Stainless Steel Clean Grain Elevator Boot Front Cover
Repair the lower clean grain elevator on selected Case-IH® Axial-Flow combines with this C&M made in Australia stainless steel elevator boot front cover. Manufactured from 4mm grade 304 stainless steel, this direct-fit replacement suits compatible 2377, 2388, 2577 and 2588 combines and replaces OEM part number 249262A1.

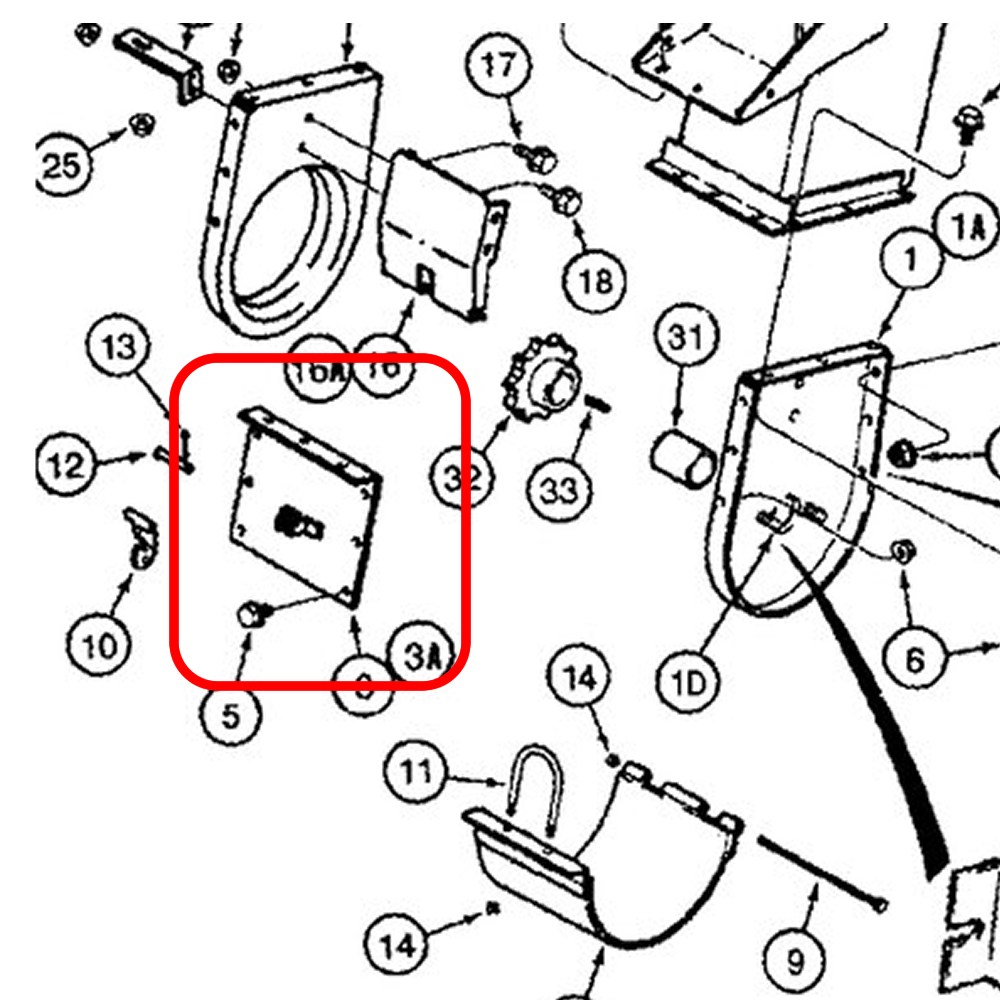

Manufactured by C&M at our engineering facility in Griffith, NSW, the cover protects the transition point where grain moves from the cross auger area into the clean grain elevator. This section is continually exposed to abrasive grain and dust as material is collected by the elevator paddles.
The heavy-duty stainless steel construction provides increased resistance to corrosion, pin-holing and gradual surface thinning compared with a standard painted carbon steel cover. Its extended wear design helps maintain the boot profile and can reduce the risk of grain leakage from a worn lower elevator housing.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers:
Compatible Case-IH® Combine Harvesters
Stainless Steel Clean Grain Elevator Boot Front Cover Compatibility
| Series |
Models |
Serial Number Reference |
| Case-IH® 2300 Series |
2377, 2388 |
Before serial number JJC0276540
Between serial numbers HAJ292001 and HAJ300000 |
| Case-IH® 2500 Series |
2577, 2588 |
After serial number HAJ0300001
After serial number HAJ300001 |
Confirm the combine model, serial number and existing clean grain elevator boot configuration before ordering.
Technical Specifications & Features
- Product Type: Clean grain elevator boot front cover.
- Manufacturer: C&M made in Australia at our Griffith, NSW engineering facility.
- Material: 4mm grade 304 stainless steel.
- Application: Lower clean grain elevator boot on compatible Case-IH® Axial-Flow combines.
- Wear Protection: Extended wear construction for an abrasive grain transition area.
- Finish: Powder-coated exterior for a factory-style appearance.
- Fitment: Precision laser-cut and formed as a direct-fit replacement.
- OEM Reference: Replaces 249262A1.
- Shipping: Available for fast Australia-wide shipping from Collier & Miller.
The C&M Difference
This C&M made in Australia component is manufactured around the fit and function of the original boot cover. The mounting pattern, folded profile and operating clearances are checked to provide a practical direct-fit replacement. The use of 4mm grade 304 stainless steel also provides an extended wear alternative for an area exposed to repeated abrasive grain flow.
Expert Maintenance Review
The clean grain elevator boot front cover is a common wear point because grain changes direction before being collected by the elevator paddles. Inspect the internal face for polished sections, pinholes, thinning around the edges, distorted mounting holes and signs of grain or dust leakage.
When the cover is removed, inspect the clean grain elevator chain, paddles, lower sprocket, bearings and shaft. A stretched chain, damaged paddle or worn sprocket can reduce material clearance and increase contact with the boot cover.
Installation Tip: Check the Sealing Surface
Remove old crop residue, rust scale and damaged sealing material from the boot mounting flange before fitting the replacement cover. Tighten the mounting hardware evenly and check that the cover sits flush against the housing to help reduce fine-grain and dust leakage.
Recommended Maintenance Check
After installation, correctly tension the clean grain elevator chain and rotate the assembly by hand. Confirm that each paddle clears the new cover without contact and inspect adjoining boot panels for thin or damaged sections before operating the combine.
Case-IH® names, models and OEM part numbers are used for identification and compatibility reference purposes only. This is an aftermarket replacement product and is not represented as a genuine Case-IH® component.
