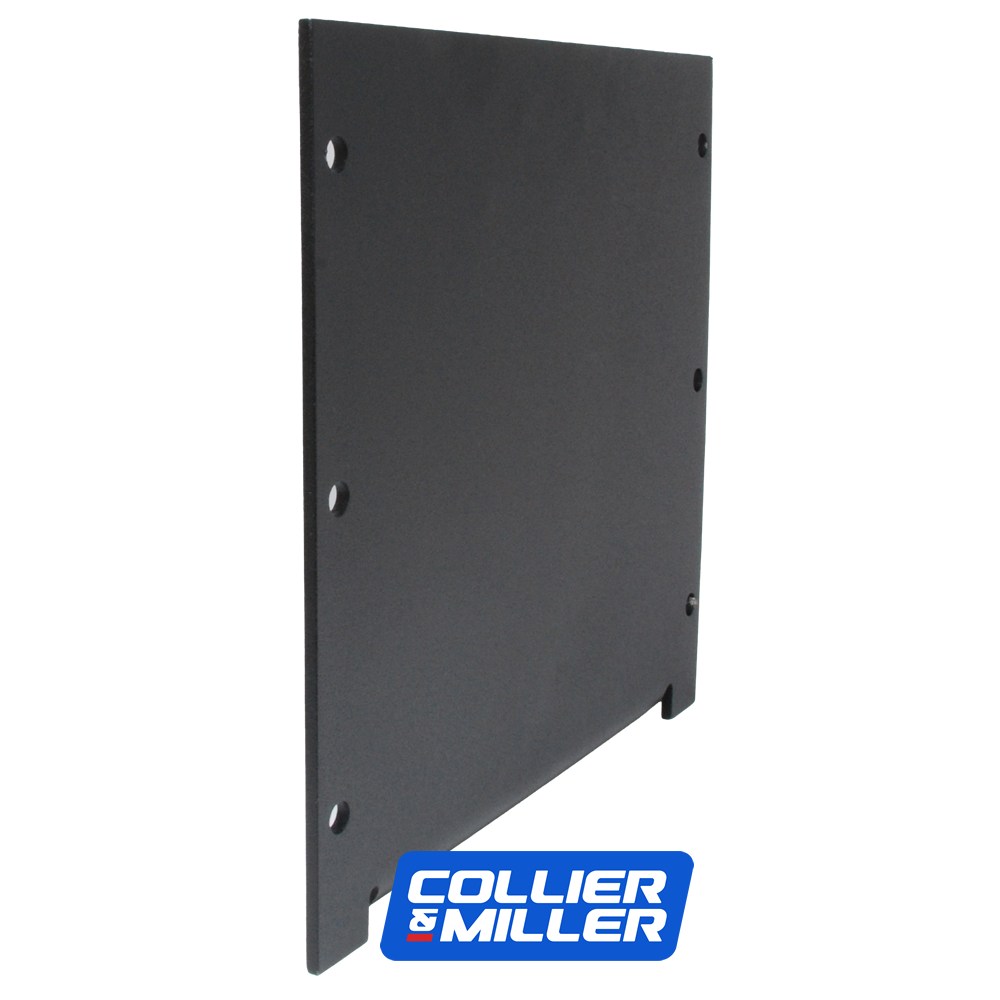

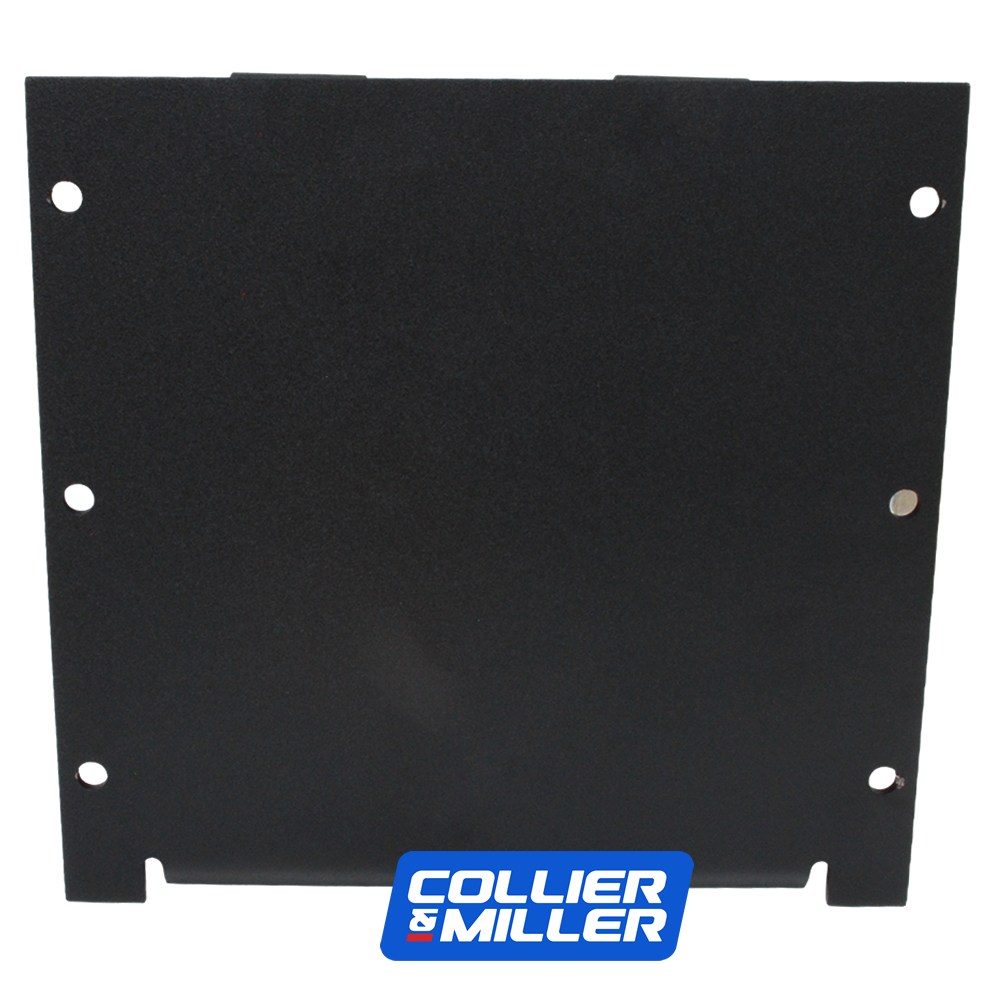

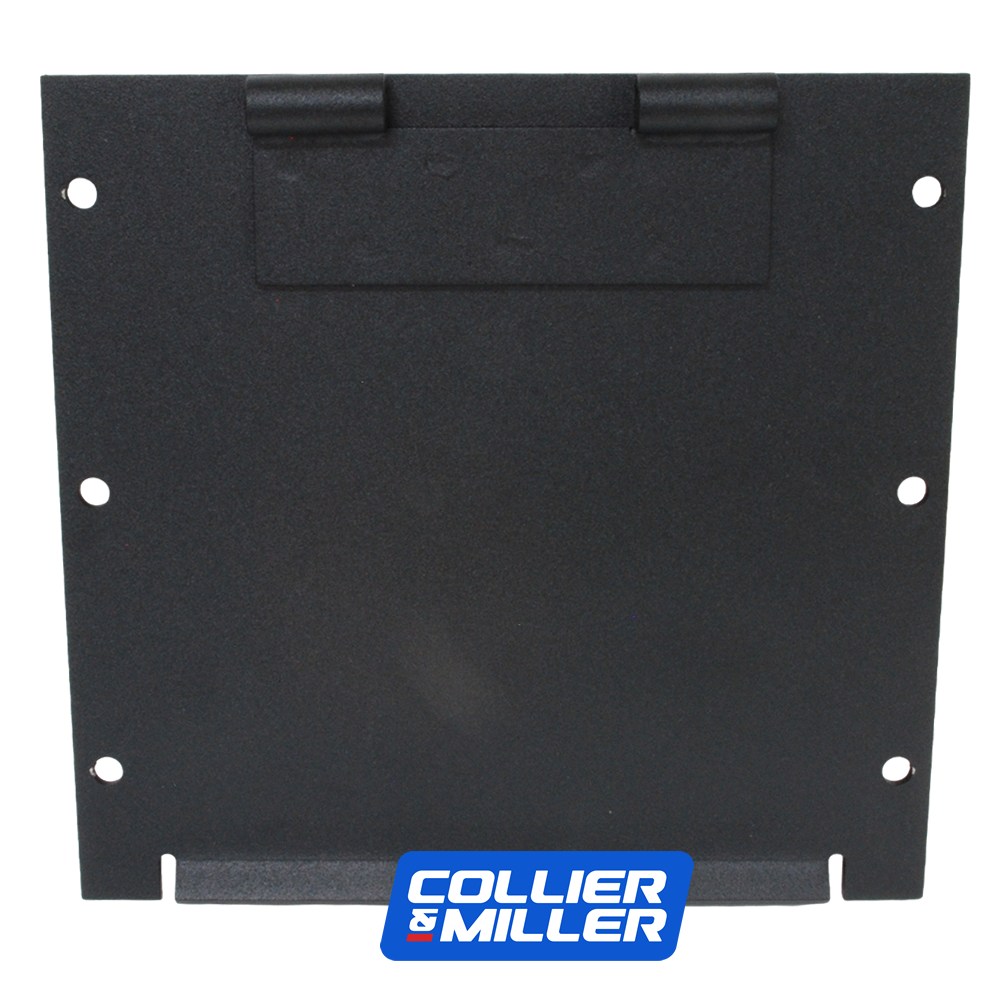

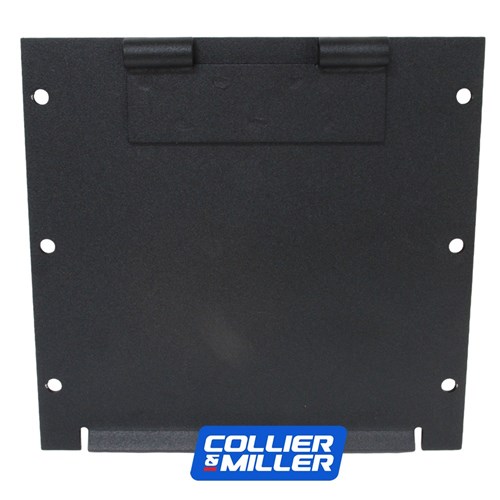

Case-IH® Compatible Stainless Steel Clean Grain Elevator Boot Rear Cover
Enhance the reliability of your grain handling system with this premium C&M Australian-made stainless steel clean grain elevator boot rear cover. Specifically engineered for Case-IH® mid-series Axial-Flow combines, this high-performance cover is the professional solution for repairing worn components in the primary elevator intake zone.
Manufactured in our Griffith factory from heavy-duty 3mm grade 304 stainless steel, this cover provides superior abrasion resistance compared to standard carbon steel units. While the material naturally resists the elements, its primary advantage is maintaining a polished, high-density surface that resists the constant scouring of grain and dust. This extended wear construction ensures your elevator boot stays in top condition, providing a significantly longer service life and reducing seasonal downtime.
Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 249264A1
Elevator Boot Rear Cover Compatibility: Case-IH Mid-Series Axial-Flow
| Series |
Models |
Serial Number Range Reference |
| Case-IH® 2300 Series |
2377, 2388 |
JJC0276540 (BSN) / HAJ292001 to HAJ300000 (BTW) |
| Case-IH® 2500 Series |
2577, 2588 |
HAJ0300001 (ASN) / HAJ300001 (ASN) |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: 3mm Grade 304 Stainless Steel for maximum high-strength integrity.
- Wear Rating: Extended wear configuration designed for high-abrasion grain zones.
- Finish: Professional powder-coated exterior for a factory-standard appearance.
- Fitment: Precision laser-cut as a direct-fit replacement for the original boot cover.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The clean grain elevator boot rear cover is a primary wear zone where grain transition from the cross augers into the elevator paddles occurs. Standard painted steel covers often suffer from rapid thinning and eventual "blow-outs," which leads to significant grain loss and intake inefficiency. We recommend inspecting the interior face of the cover for abrasion thinning during every preventative maintenance check.
Upgrading to this high-performance 3mm stainless steel cover is a strategic choice to save money on long-term maintenance. The high-density stainless surface maintains its structural thickness far longer than carbon steel, keeping your grain handling system in top condition and ensuring a smooth transition into the elevator leg for a trouble-free harvest.
Installation Tip: Check the Seal
When installing the new 249264A1 stainless cover, ensure the boot mounting flange is clean of all old crop residue and rust scale. A flush, high-strength fit is essential to prevent fine seed leakage. This is the ideal time to check your clean grain elevator chain and paddles for wear to maintain maximum elevator throughput.
