Schumacher® Compatible
Knife Head Trunnion 17mm

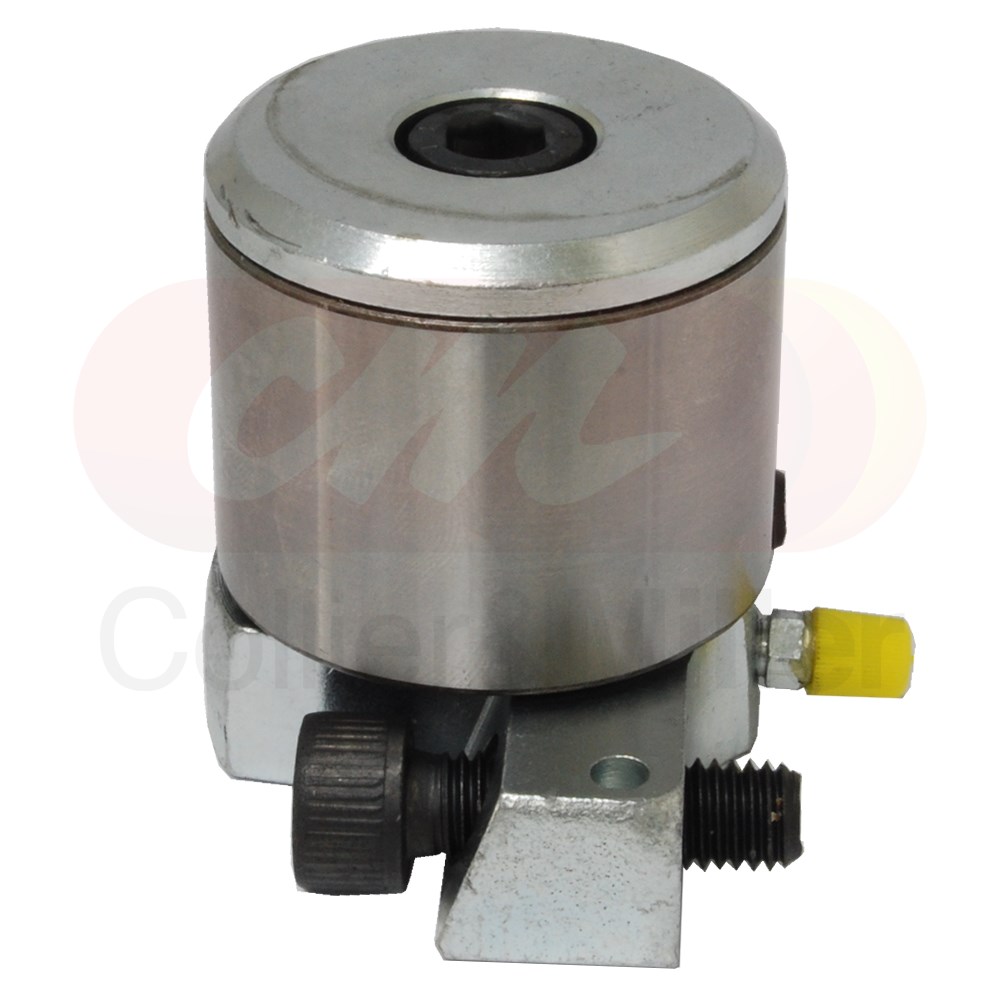

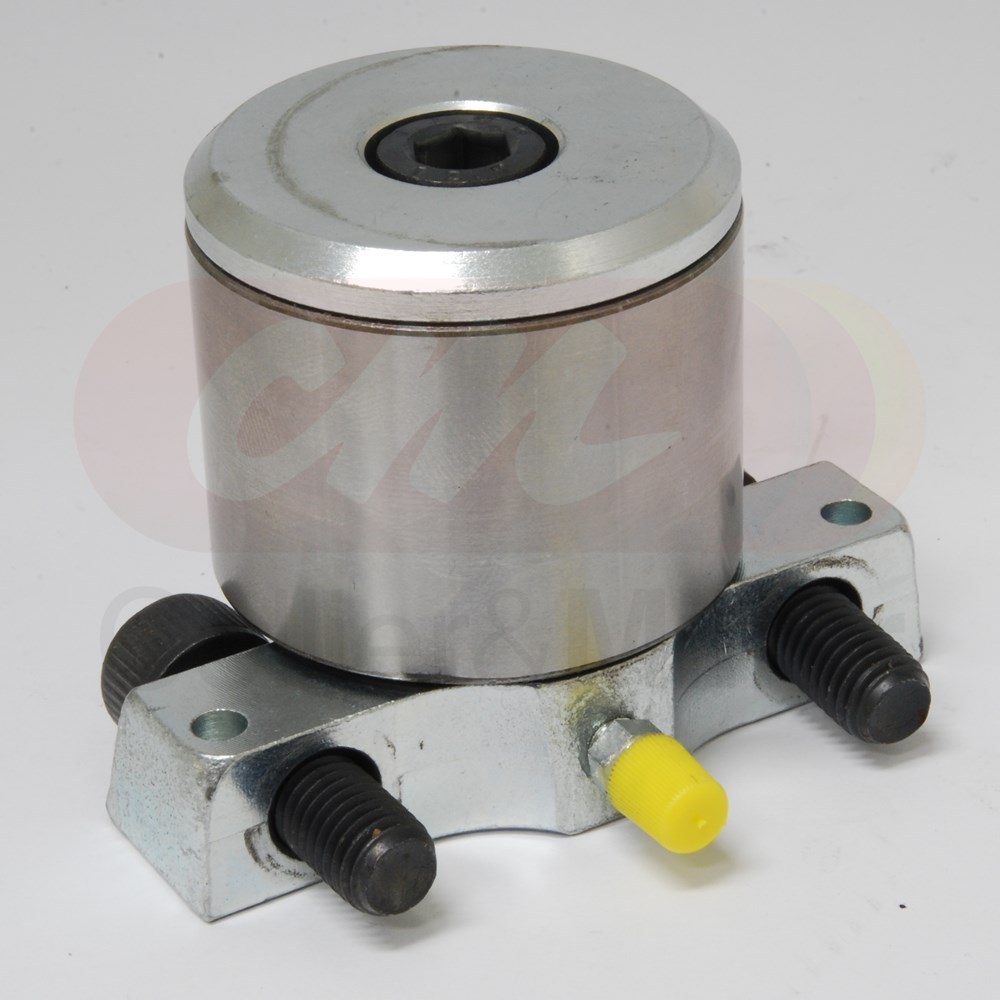

Aftermarket knife head bearing actuator (trunnion) to fit HoneyBee, Midwest and New Holland draper cutting platforms fitted with Schumacher wobble boxes. This actuator form's part of the knife drive assembly.
The actuator is fitted with a grease nipple for ease of greasing the unit, inturn extending the life. The bearing is also replacable so you do not have to change the complete unit everytime. Specific feature is block size of 17mm.
Part Numbers
- Midwest Assembly 816-00048-06
- HoneyBee Assembly 26228

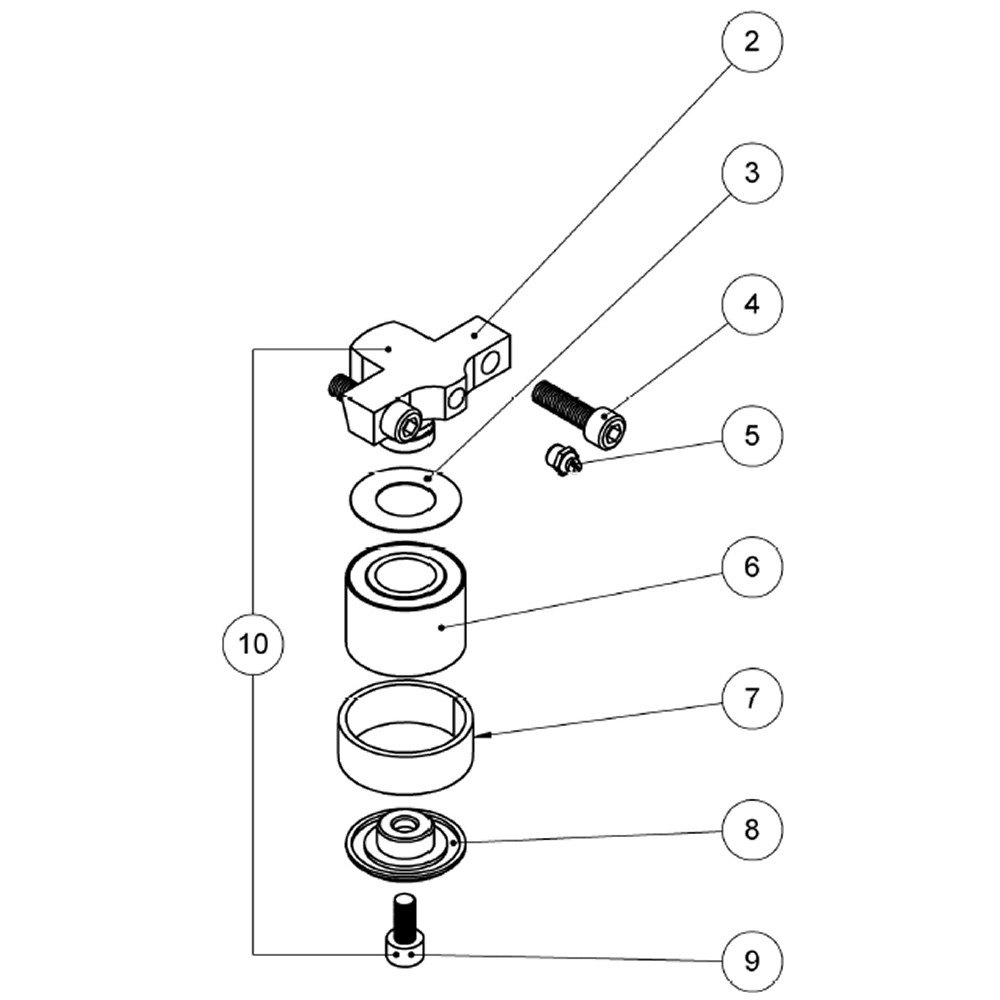

Contains
| Midwest Part Number |
HoneyBee Part Number |
New Holland Part Number |
Description |
Qty |
| Included with 816-00048-06 (2) |
26246 |
86564390 |
Trunnion - Schumacher Only |
1 |
| Included with 816-00048-06 (3) |
25902 |
86564389 |
Dust Cap |
1 |
| 904-11035-01 (4) |
19787 |
86566100 |
Socket Cap Screws M10x35mm |
2 |
| 891-91206-01 (5) |
26356 |
86565864 |
Grease nipple M6 |
1 |
| 884-05225-01 (6) |
26258 |
86565872 |
Bearing Knife Head |
1 |
| 816-00057-06 (7) |
25297 |
|
Bush - Knife Head Nylon Ring |
1 |
| Included with 816-00048-06 (8) |
26271 |
86564391 |
Cover - Knife Head Bearing |
1 |
| 904-110020-1 (9) |
19788 |
86528768 |
Screw Socket Head M10x20 |
1 |
| Series |
Models |
Serial/Year |
Wobble Box |
| Midwest Crophawk |
Pre 2011 |
|
Schumacher |
| Midwest Crophawk |
2011-2012 |
MWF-11030644 to MWF-12110709 |
Schumacher |
| Duras & Dural Premium |
All |
|
Schumacher |
| HoneyBee GBH |
All |
1999> |
Schumacher |
| New Holland 88C |
30P, 36P, 42P, 45P |
02/07-12/11 |
Schumacher |
| New Holland 994D |
All |
05/99-12/00 |
Schumacher |
| New Holland 994 NH |
All |
04/98-12/04 |
Schumacher |
| New Holland 92C |
All |
06/01-12/12 |
Schumacher |
| New Holland 94C |
All |
04/03-12/12 |
Schumacher |
Features
- Supplied as complete unit
- Fits short stroke gearbox
- Greasable
- Replacable bearing
- 17mm block
