CASE IH CLEAN GRAIN CHAIN ASSY
CA557 4TH 148 LINKS 37 PADDLES
Product Code: CM333557
$1095.60
EACH inc GST
Manufactured to Order
Increase value
Decrease value
-
Detail
-
Technical
-
Interchange
Case-IH® Compatible

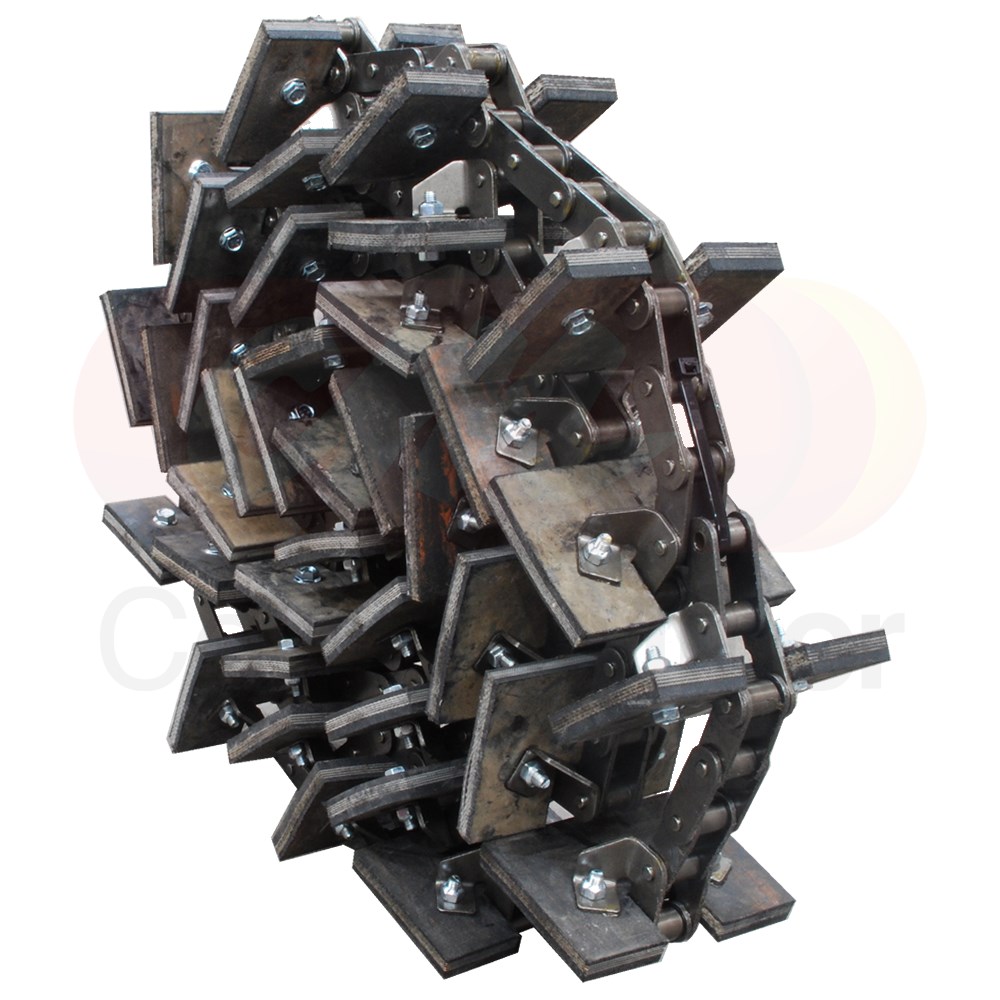

Clean Grain Elevator Chain Assembly
C&M replacement clean grain (main) chain assembly to suit the clean grain elevators on Case-IH® early series combine harvesters. This is a complete chain assembly including heavy duty paddles with the same spacing and attachment as the Case-IH® original chain.
Part number
- 1321334C92, 1321334C91 1317613C92
| Series |
Models |
Serial/Year |
| Case 1600 Series |
1640, 1644, 1660, 1666, 1670 |
|
| Case 2100Series |
2144, 2166 |
|
| Case 2300 Series |
2344, 2366 |
|
Features
- CA557 Premium quality chain

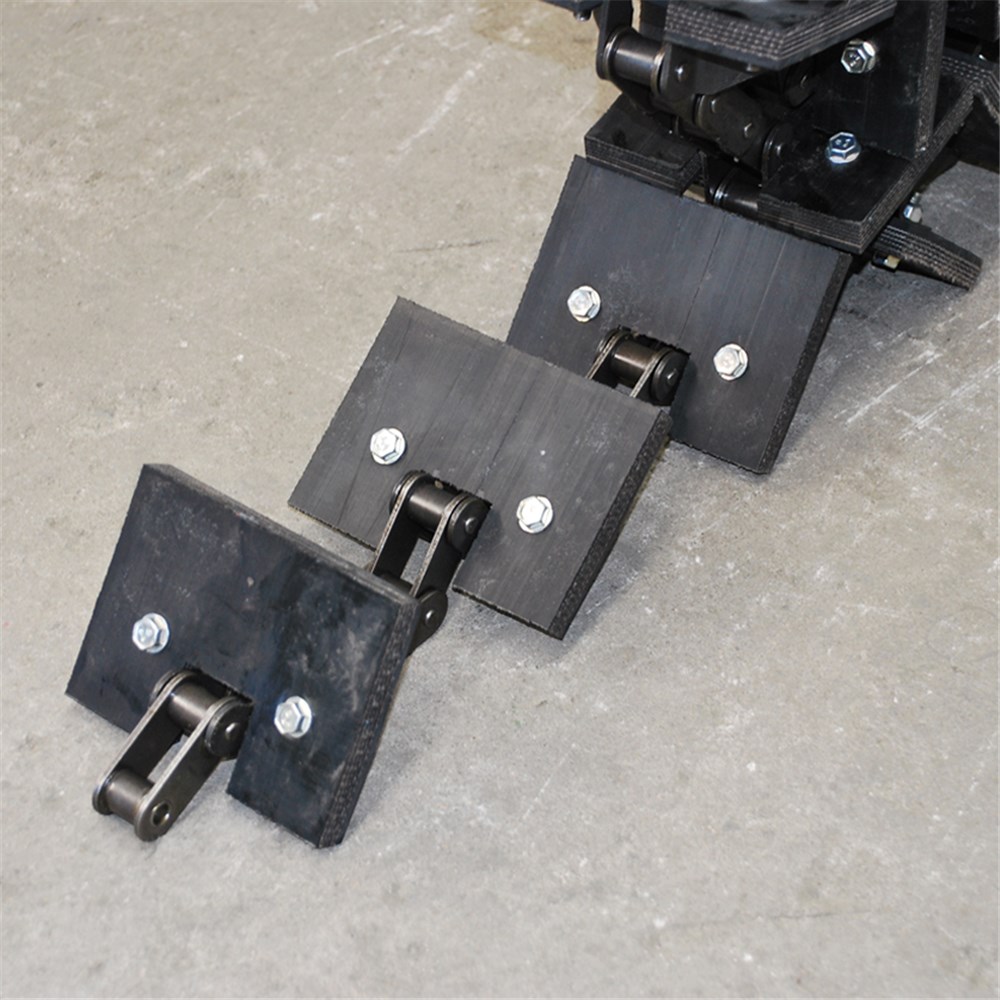

- 37 x Precision water-jet cut paddles
- Bolt-together assembled
- Supplied with connectors & offset link
- Assembled in Australia
C&M Technical Specifications
| Item |
Details |
Notes |
| CM333 |
case-IH® |
|
| Chain Brand |
AMEC |
Stamped C&M |
| Chain Type |
CA557 |
SE-4L |
| Chain Assembly |
Single chain with paddles |
|
| Attachment Pattern |
4th |
|
| Number of Pitches |
149 |
Including 1 x connectors 1 x offset |
| Supplied Connectors |
1 x Conns 5 x Offset Links |
Cottered |
| Number of paddles |
37 |
|

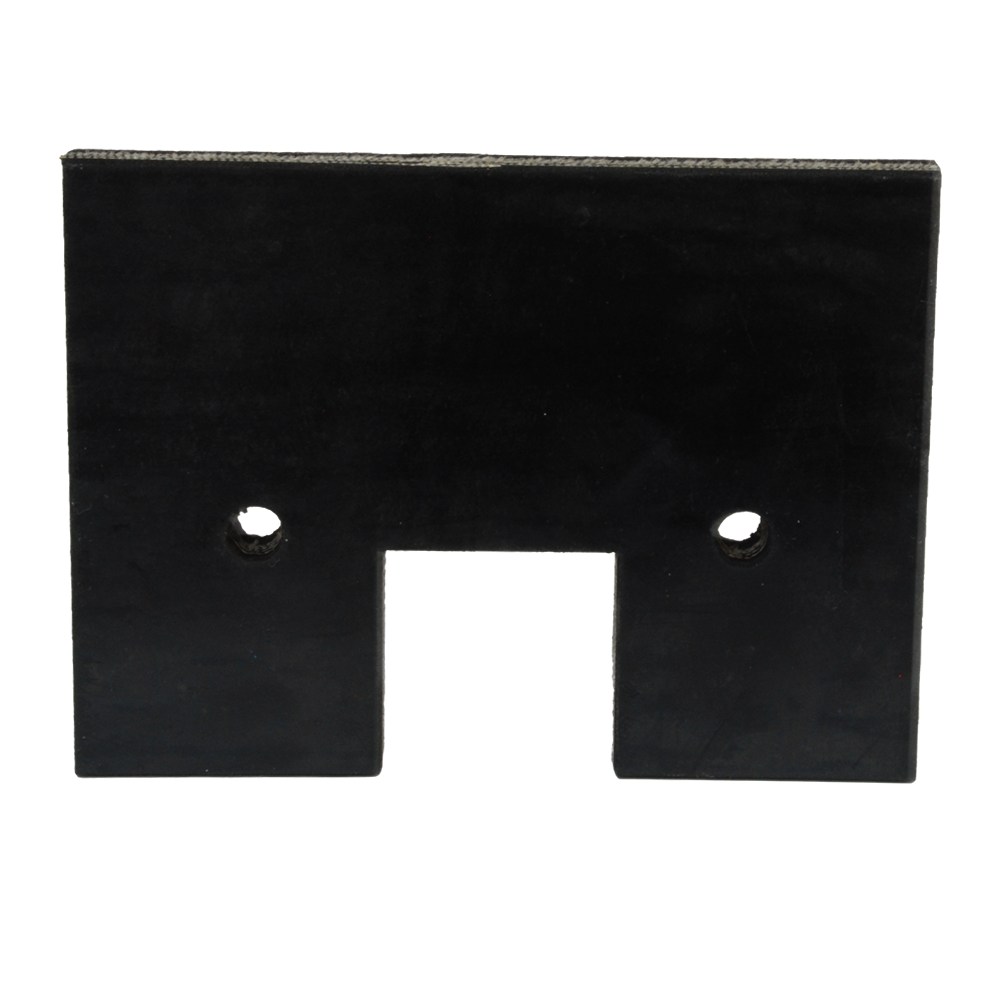

| Paddle Material |

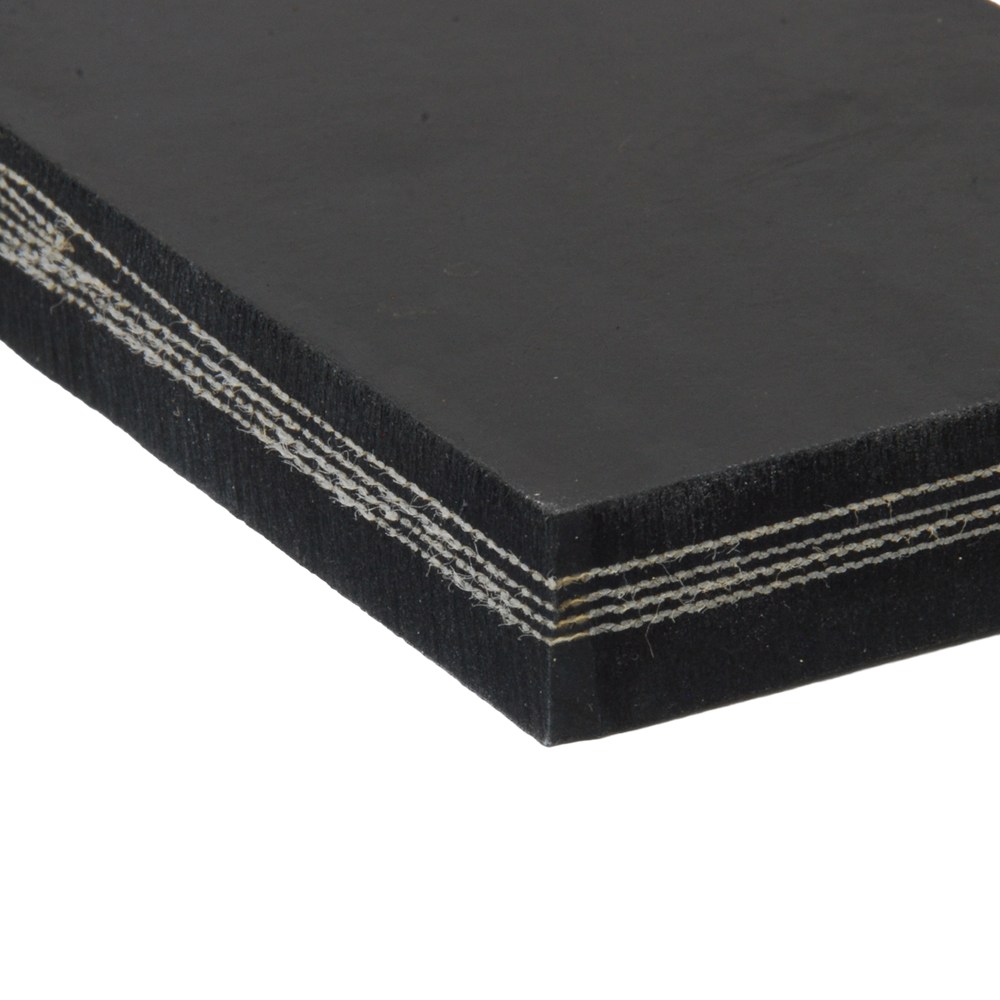

11MM X 4 Ply |
WaterJet Cut |
| Paddle Size |
W=5.50" H=4.00" |
W=140mm H=102mm |
| Bolts |
74 x M8x29 class 8.8 flange head |
Threadlocker Pre-Treated |
| Nuts |
74 x MCCN8 8mm |
Torque prevailing |
Build Sheet
1321334C92 1321334C91 1317613C92
