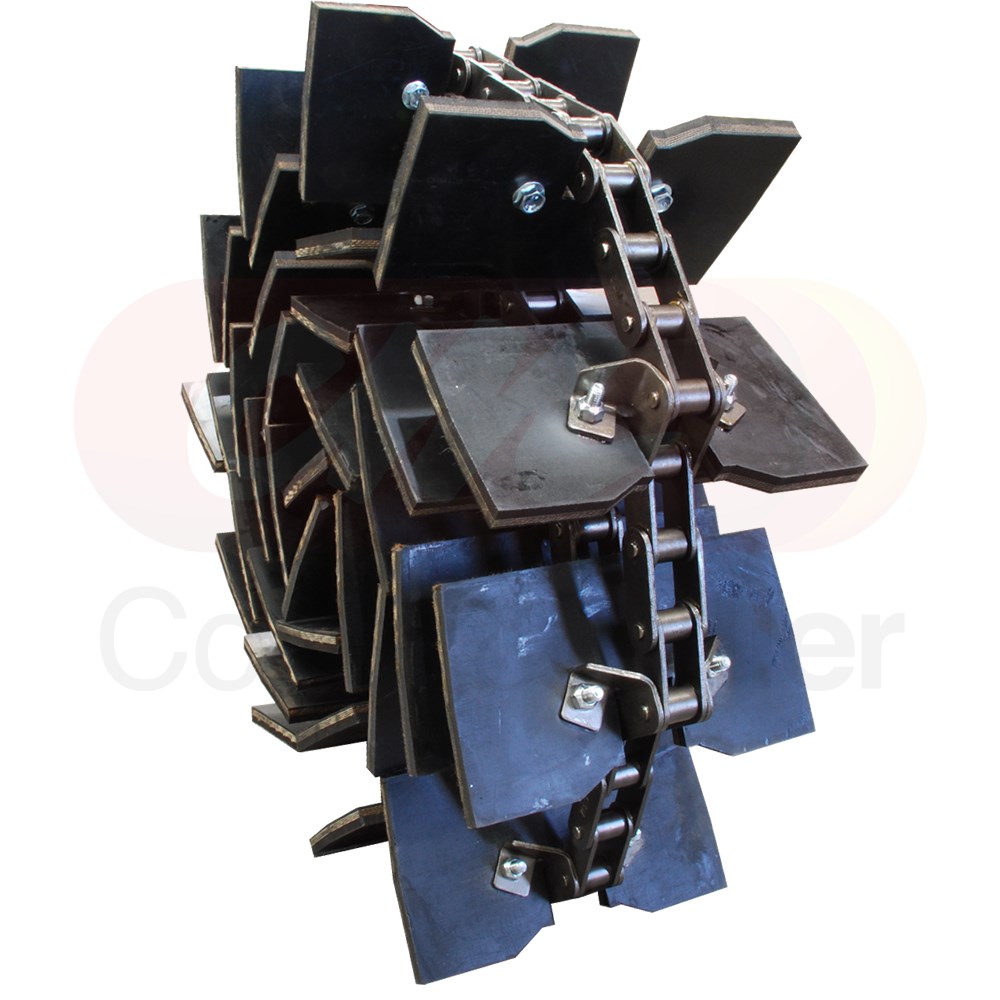

C&M replacement main grain chain assembly to suit the clean grain elevators on John Deere combine harvesters. This is a complete chain assembly including water-jet cut paddles with the same spacing as the John Deere original chain.
This assembly is supplied as a 148 x 35 paddle chain. Half links are provided to make up assembly to 145, 147 or 148 links as required. We supply these chains in Australia from premium grade agricultural chain and quality reinforced paddles. We guarantee the quality of trhis assembly, however we recommend you fit new sprockets at the time of installation.
Location
- Main (Clean) grain chain assembly
Part Numbers
| Part Number |
Fitment |
Specifications |
| AXE25091 |
Standard Capacity Clean Grain Chain |
35 Paddles 145L |
| AXE72667 |
High Capacity Clean Grain Chain |
35 Paddles 147L |
| AXE16681 |
Extra High Capacity Clean Grain Chain |
35 Paddles 148L |
Fitment
| Series |
Models |
Serial/Year |
Sprocket Teeth |
| S6 Series |
S660, S670 |
AXE25091 Standard Capacity |
Z=8T |
| S7 Sereies |
S760, S770 |
AXE25091 Standard Capacity |
Z=8T |
| S6 Series |
S670, S680 |
AXE72667 High Capacity |
Z=10T |
| S7 Sereies |
S770, S780, S790 |
AXE72667 High Capacity |
Z=10T |
| S6 Series |
S690 |
AXE16681 Extra High Capacity |
Z=11T |
| S7 Sereies |
S790 |
AXE16681 Extra High Capacity |
Z=11T |
Features
- Chain assembly fits standard, high capacity & extra high capacity
- Remove half links to adjust chain length
- 35 Paddles
- Quality premium grade chain
- Assembled in Australia
- Bolt on paddles
- 1 x Connectors
- 5 x Half links
