JOHN DEERE CLEAN GRAIN CHAIN A557 4TH 35 PADDLES 145L S SERIES REGULAR CAPACITY

A557 4TH 35 PADDLES 145L S SERIES REGULAR CAPACITY

Product Code: CM336SC

Detail
Technical
Interchange
Downloads

John Deere® Compatible

Clean Grain Chain Assembly (Standard Capacity)

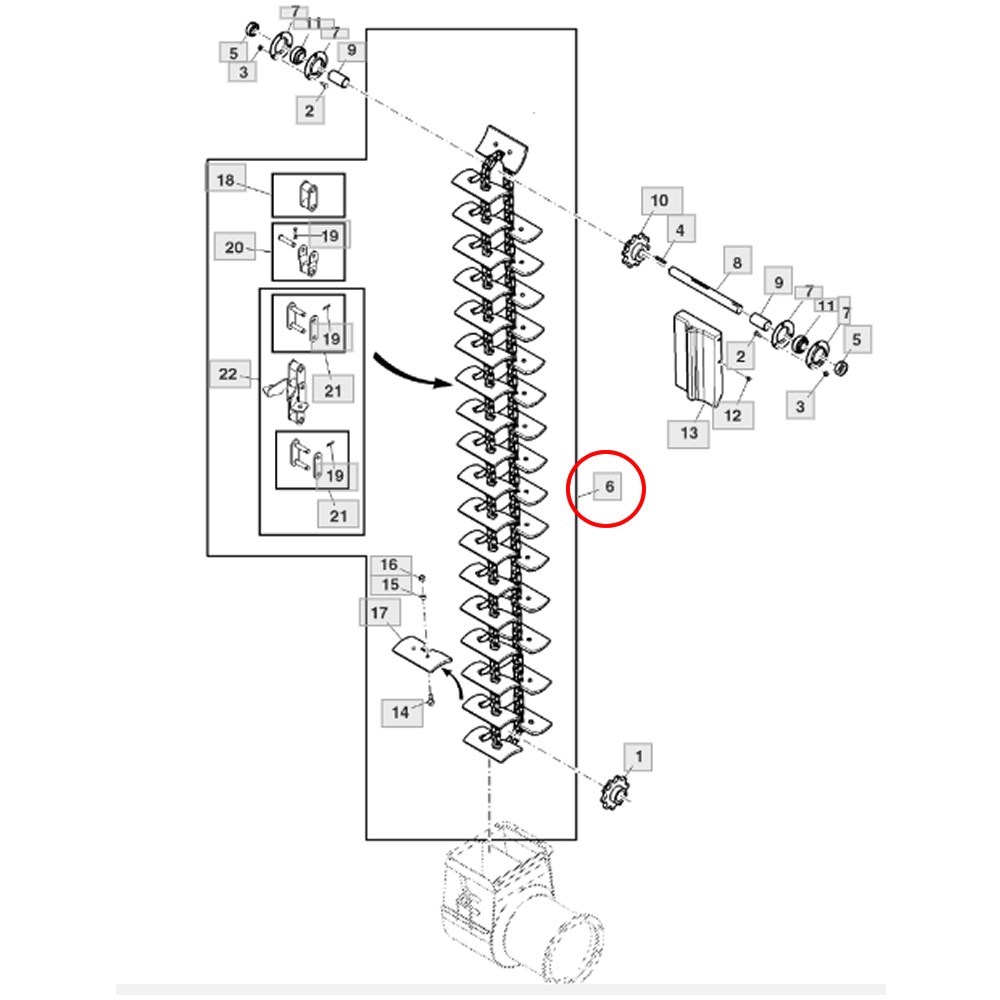

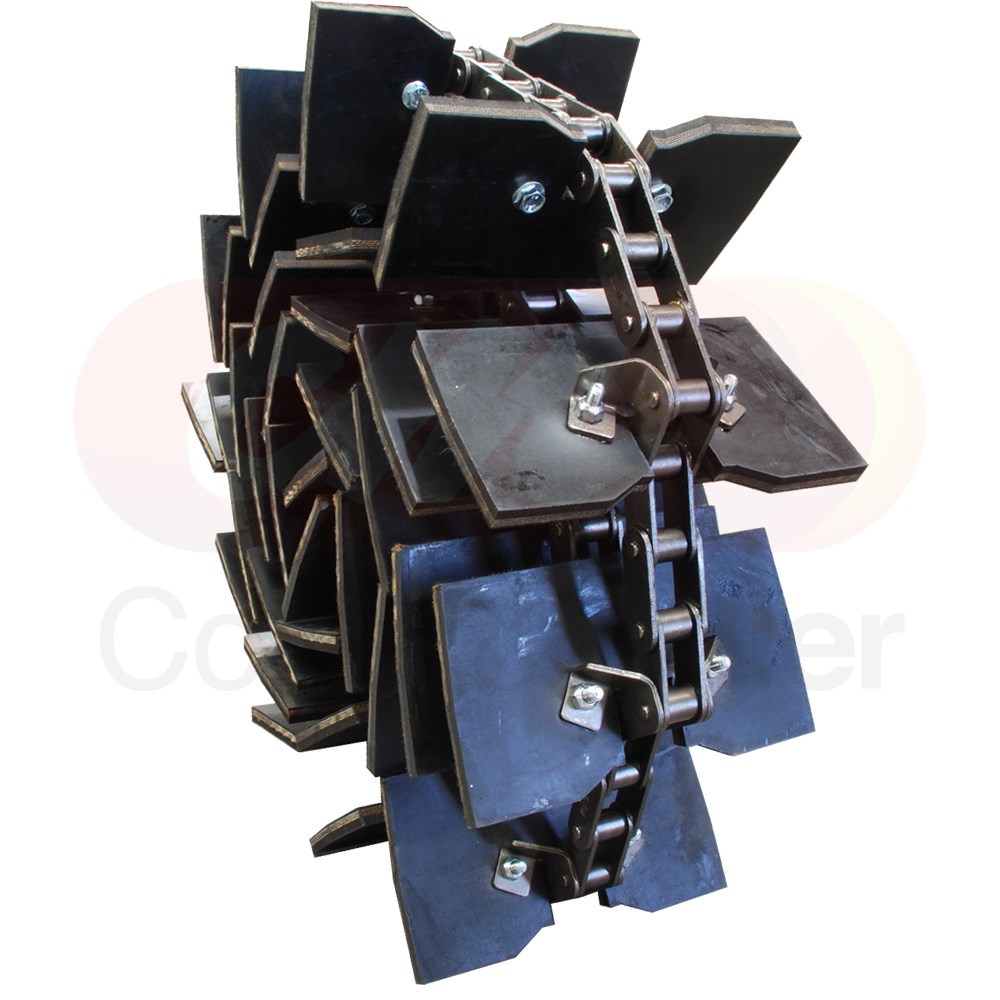

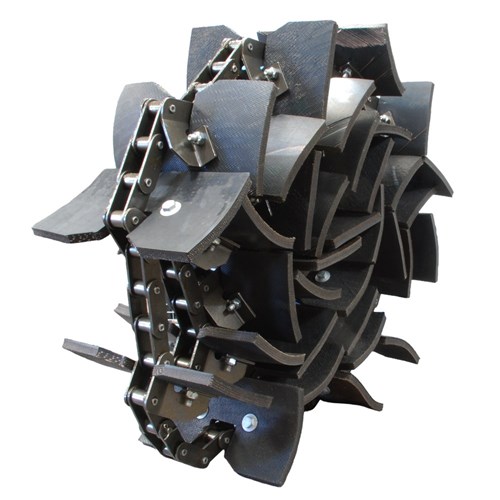

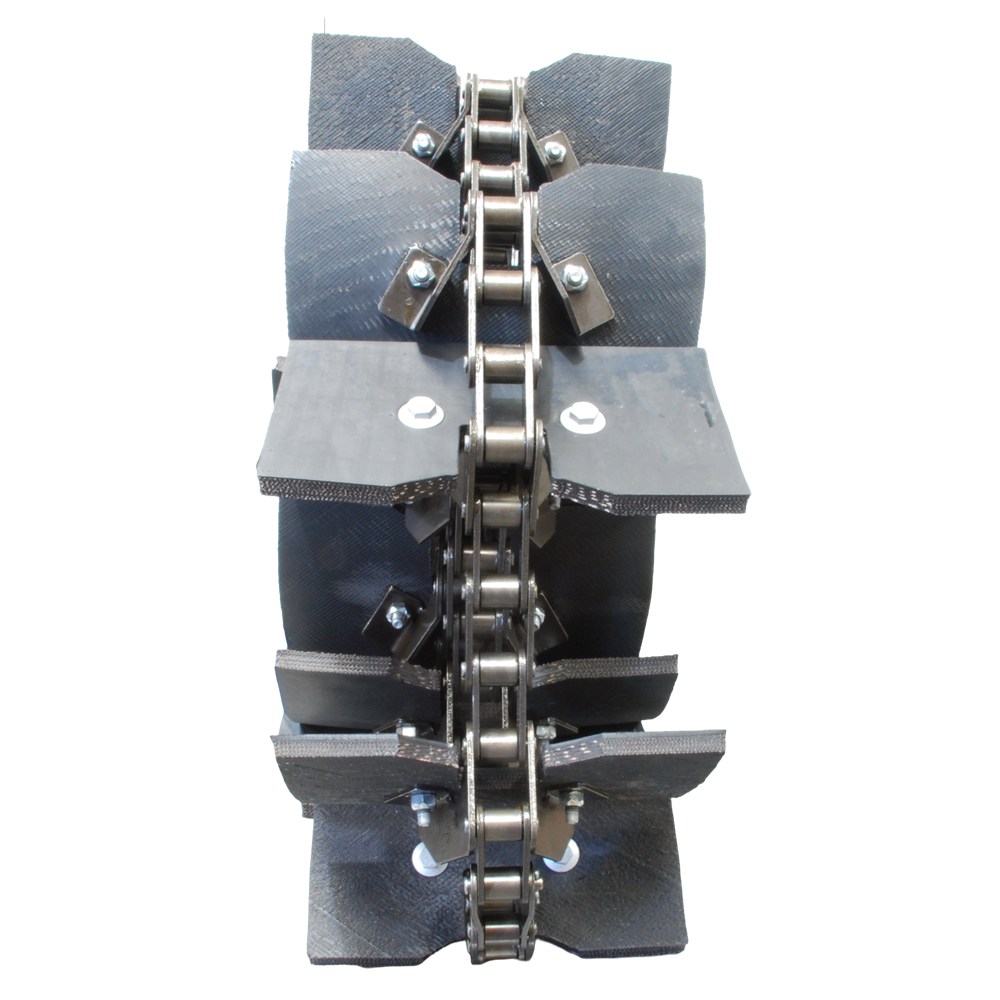

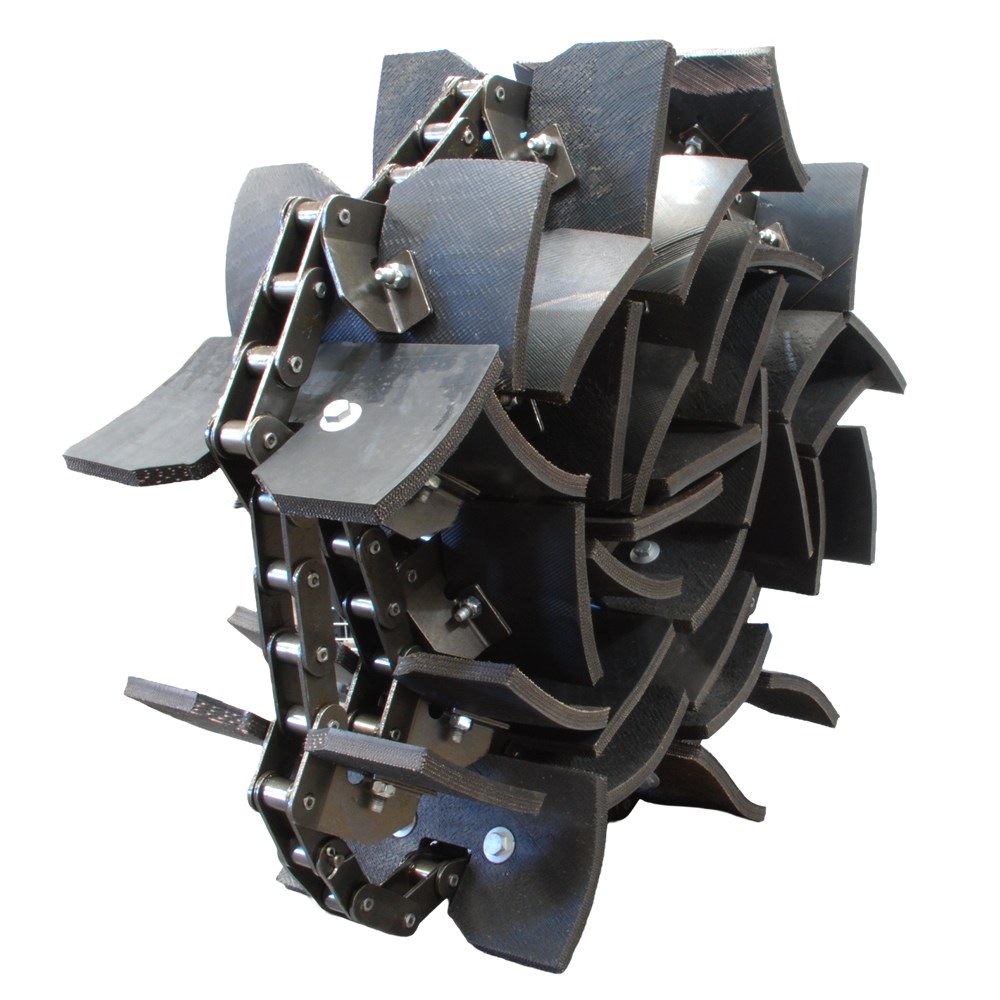

C&M replacement clean grain (main) chain assembly to suit the clean grain elevators on John Deere® S Series combine harvesters. This is a complete chain assembly including heavy duty paddles with the same spacing and attachment as the John Deere® original chain.

This chain assembly is supplied with connectors and half links and all paddles are fitted with grade 10.9 flange head bolts with locking nuts. We assemble these chains from premium grade agricultural chain and quality reinforced paddles.

Part Number

AXE25091

Series	Models	Serial/Year
John Deere® S600 Series	S660, S670, S680	Regular (Standard) Capacity
John Deere® S700 Series	S760	Regular (Standard) Capacity
John Deere® S7 XXX Series	S7 600, S7 700	Regular (Standard) Capacity

Features

Fits John Deere Regular Capacity Elevators with 8T sprockets
145 Links with 35 paddles

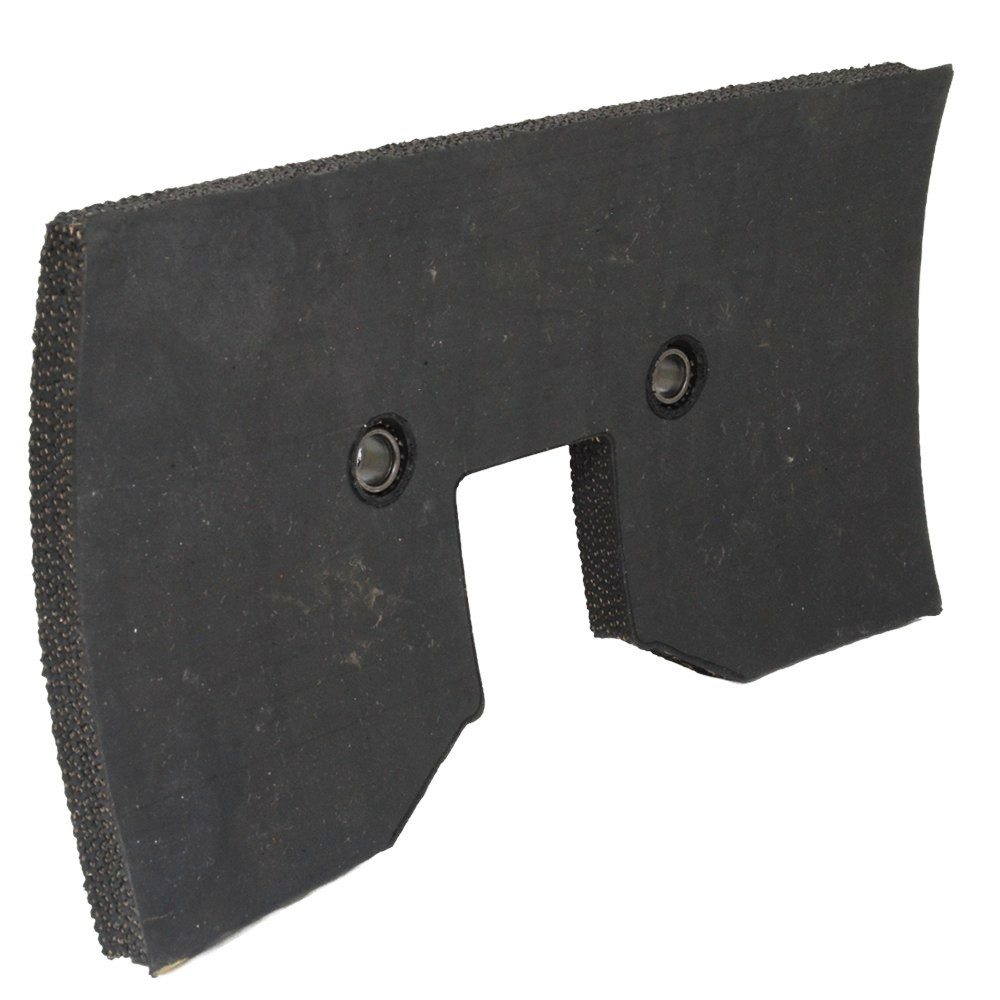

Premium paddle material
Supplied with connectors
Fully assembled by C&M in Australia

C&M Technical Specifications

Item	Details	Notes
CM336SC	John Deere® S Series	Standard Capacity
Chain Brand	AMEC	Chrome Pin Stamped C&M
Chain Type	CA557	SP-4L
Chain Assembly	Single chain with paddles
Attachment Pattern	4th	Same as John Deere®
Number of Pitches	145	Including 1 x connectors 5 x offset
Supplied Connectors	1 x Conns 5 x Offset Links	Cottered
Number of paddles	35
Bar Type	11.5mmm x 8 Ply	Moulded
Bolts	70 x M8x29 class 8.8 flange head	Threadlocker Pre-Treated
Nuts	70 x MCCN8 8mm	Torque prevailing
