JOHN DEERE CLEAN GRAIN CHAIN A557 4TH 36 PADDLES 148L S SERIES EXTRA HIGH CAPACITY

A557 4TH 36 PADDLES 148L S SERIES EXTRA HIGH CAPACITY

Product Code: CM336XHC

Detail
Technical
Interchange
Downloads

John Deere® Compatible

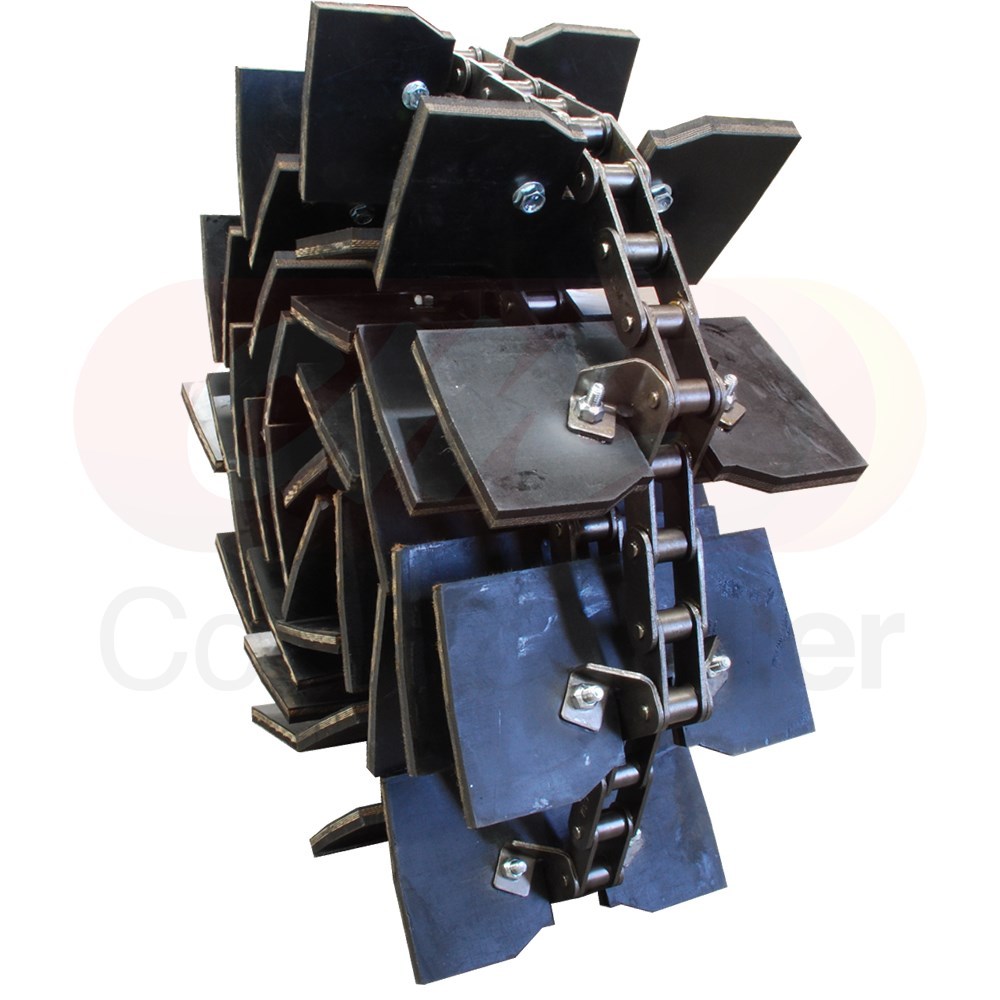

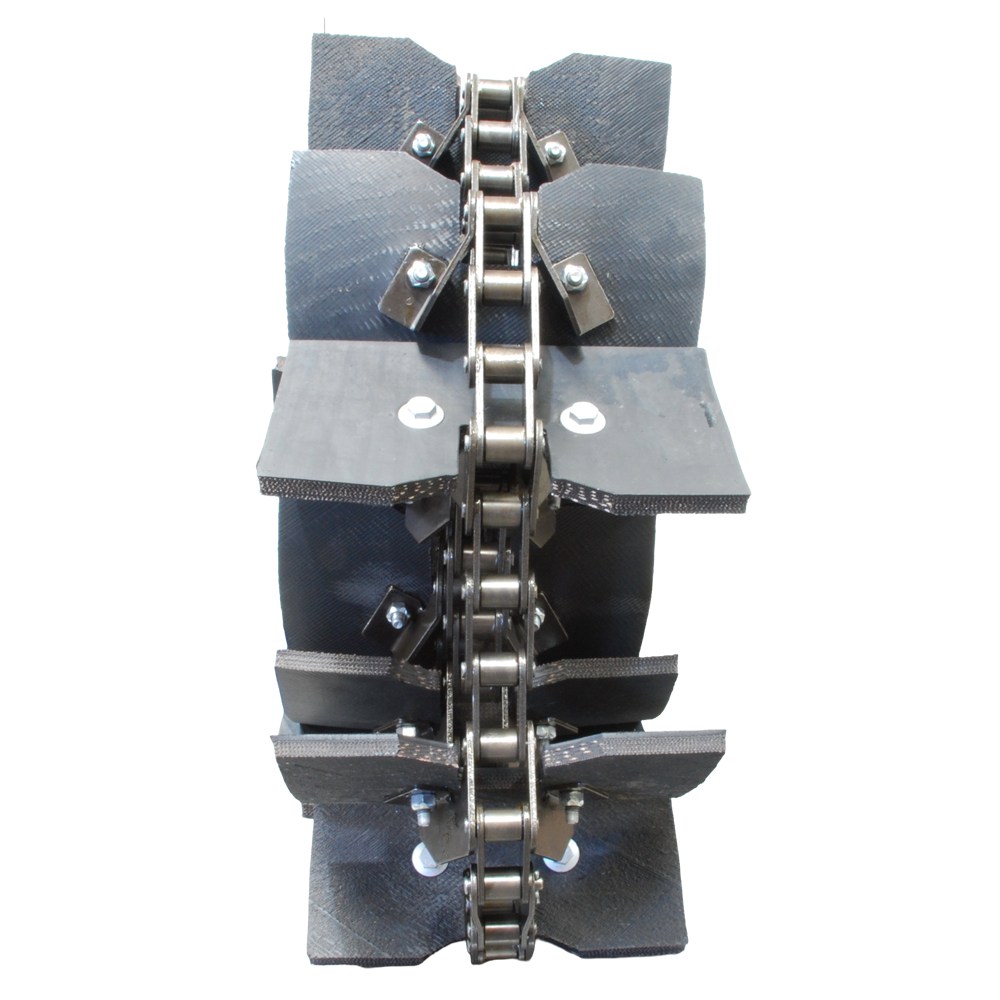

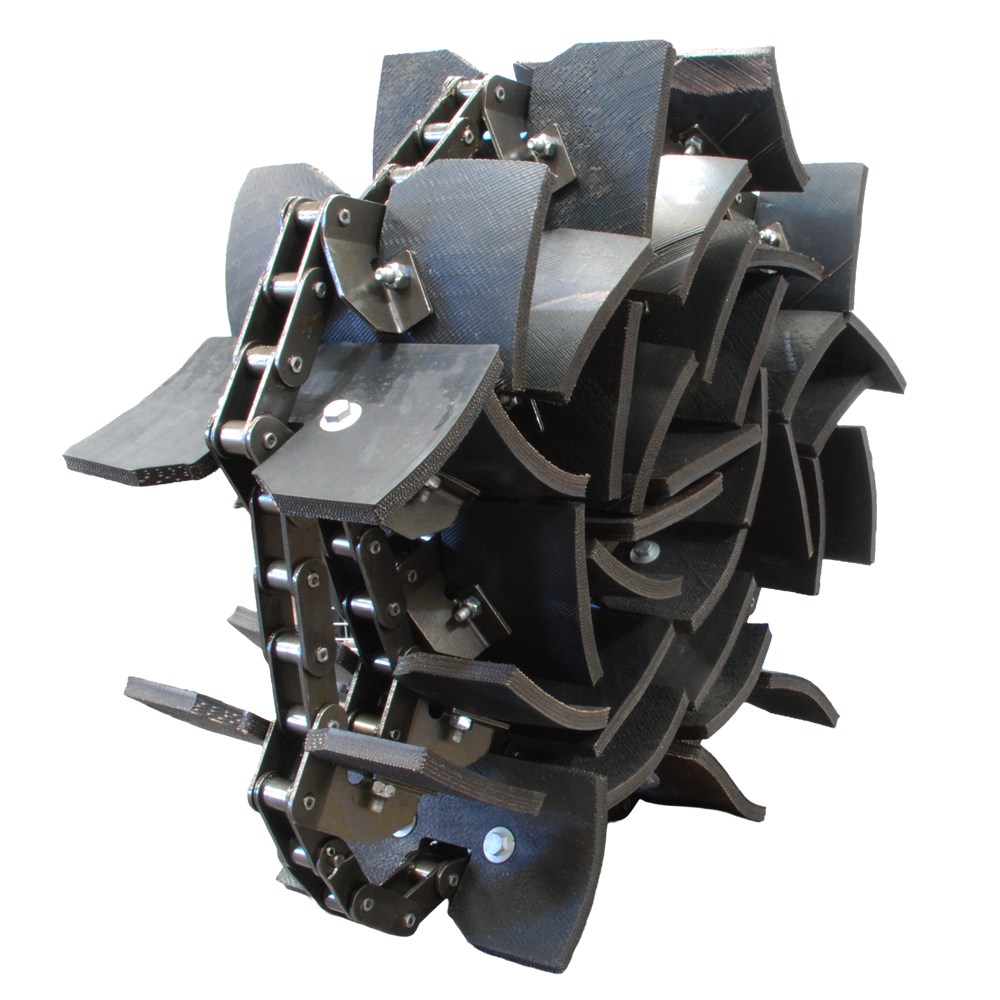

Clean Grain Chain Assembly (Extra High Capacity)

C&M replacement clean grain (main) chain assembly to suit the clean grain elevators on John Deere® S Series combine harvesters. This is a complete chain assembly including heavy duty paddles with the same spacing and attachment as the John Deere® original chain.

This chain assembly is supplied with connectors and half links and all paddles are fitted with grade 10.9 flange head bolts with locking nuts. We assemble these chains from premium grade agricultural chain and quality reinforced paddles.

Part Number

AXE16681

Series	Models	Serial/Year
John Deere® S600 Series	S690	Extra High Capacity
John Deere® S700 Series	S790	Extra High Capacity
John Deere® S7 XXX Series	S7 900	Extra High Capacity

Features

Fits John Deere Extra High Capacity Elevators with 10T sprockets
148 Links with 36 paddles
Premium paddle material
Supplied with connectors
Fully assembled by C&M in Australia

C&M Technical Specifications

Item	Details	Notes
CM336XHC	John Deere® S Series	Extra High Capacity
Chain Brand	AMEC	Chrome Pin Stamped C&M
Chain Type	CA557	SP-4L
Chain Assembly	Single chain with paddles
Attachment Pattern	4th	Same as John Deere®
Number of Pitches	148	Including 1 x connectors 4 x offset
Supplied Connectors	1 x Conns 4 x Offset Links	Cottered
Number of paddles	36

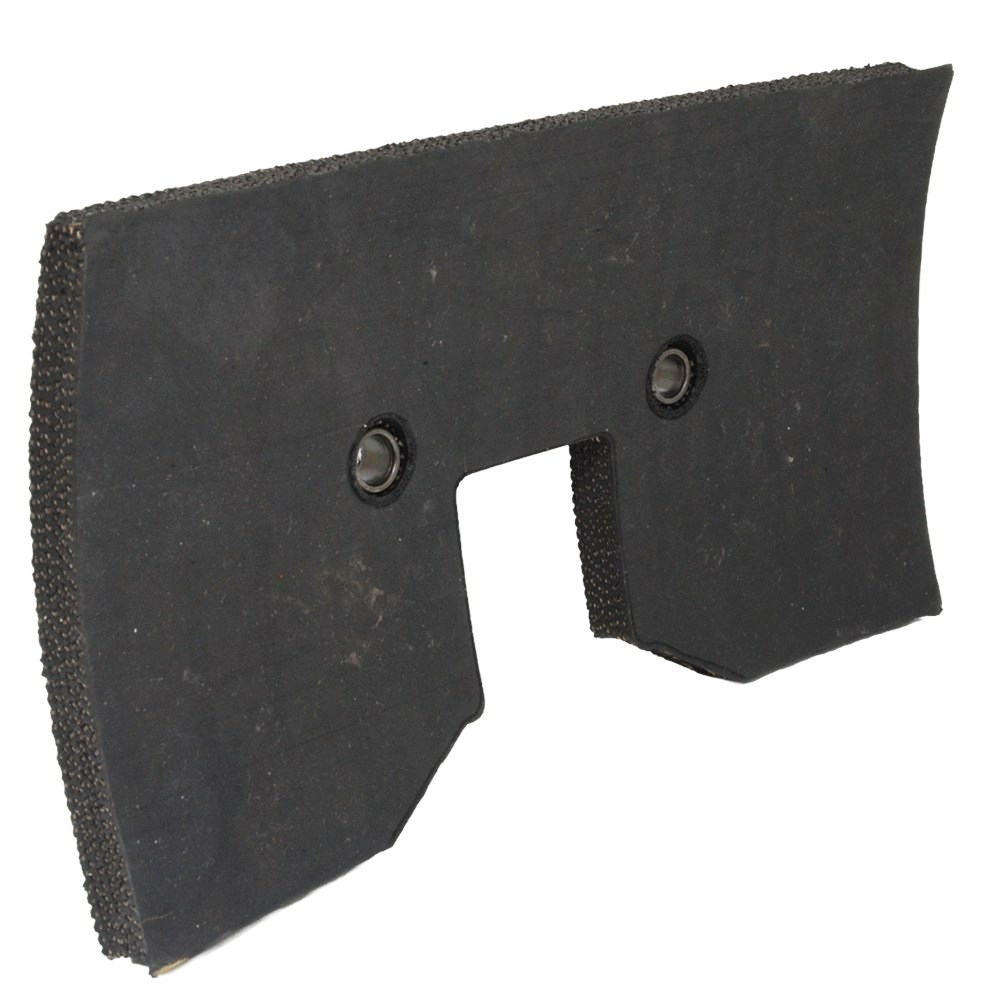

Bar Type	11.5mmm x 8 Ply	Moulded
Bolts	72 x M8x29 class 8.8 flange head	Threadlocker Pre-Treated
Nuts	72 x MCCN8 8mm	Torque prevailing
