NEW HOLLAND CLEAN GRAIN CHAIN

CA550 4TH 146 LINKS 37 PADDLES CR960/CR970/CX860

Product Code: CM352
$1155.00
EACH inc GST
Afterpay Logo
4 payments of $288.75
In Stock Low Stock Contact Us Please See Attributes 2
Increase value Decrease value

  • Detail
  • Tech Specs
  • Interchange

New Holland® Compatible

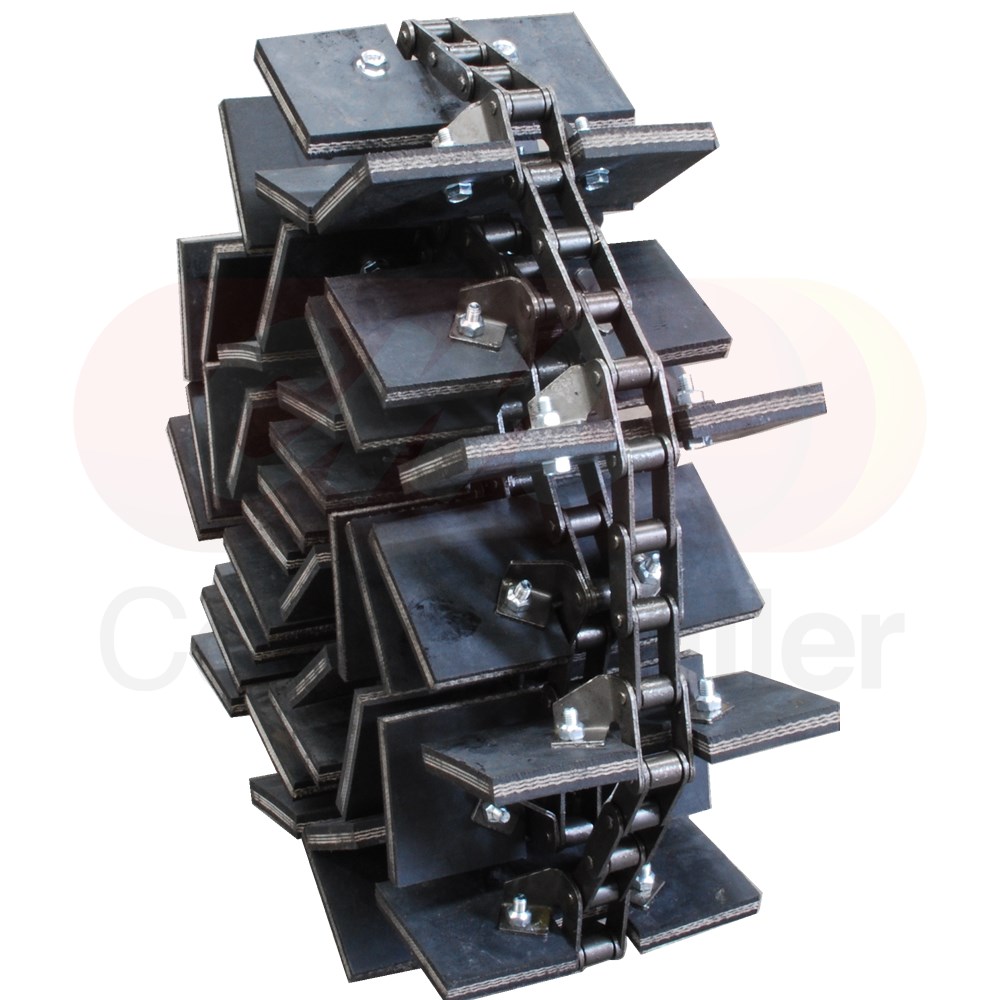

Clean Grain Chain Assembly


C&M replacement clean grain (main) chain assembly to suit the clean grain elevators on New Holland® combine harvesters. This is a complete chain assembly including heavy duty paddles with the same spacing and attachment as the New Holland® original chain.

This chain assembly is supplied with connectors and half links and all paddles are fitted with class 8.8 flange head bolts with locking nuts. We supply these chains from premium grade agricultural chain and quality reinforced paddles.

Part Number
  • 84145229 47949285
Series Models Serial/Year
New Holland® CR CR940  CR960 CR980
New Holland® CR90 CR9040 CR9060 CR9070 CR9080 CR9090
New Holland® CR90 CR6090 CR7090 CR8090
New Holland® CR Dot 80 CR7.80 CR8.80 CR9.80
New Holland® CR Dot 90 CR7.90 CR8.90 CR9.90 CR10.90
New Holland® CX Dot 80 CX7.80 CX8.80
New Holland® CX70 CX7080
New Holland® CX7 CX720 CX740 CX760
New Holland® CX Dot 70 CX8.70
New Holland® CX Dot 90 CX8.90
New Holland® CX80 CX8030 CX8040 CX8050 CX8060 CX8070 CX8080 CX8090
New Holland® CX8 CX840 CX860 CX880

Technical Specifications

Assembly Code CM352
Chain Type CA550 AMEC INC.
Chain Attachment SE
Chain Length 148 Links Inc Connectors
Chain Connectors 1 Cottered
Chain Offset Links 2 Cottered
Paddle Dimension W=197MM H=95MM
Paddle Quantity 37
Fastener Specs M8x29 Flange Head Zinc Class 8.8 Loctite M8 Zinc torque prevailing cone lock nut

Open Build Sheet


* Contact Collier & Miller as access is restricted to build data sheets
84145229 84432111 84437418 47949285 87373433 87538988
New Holland® Compatible ensures the C&M chain kit will fit the machine model stated based on our research and customer feedback. C&M chain kits are an aftermarket product and do not make a claim to be a genuine New Holland® part. It is recommended prior to ordering the kit to verify the parts will fit your equipment. New Holland® is a registered trademark of CNH Industrial America LLC.
