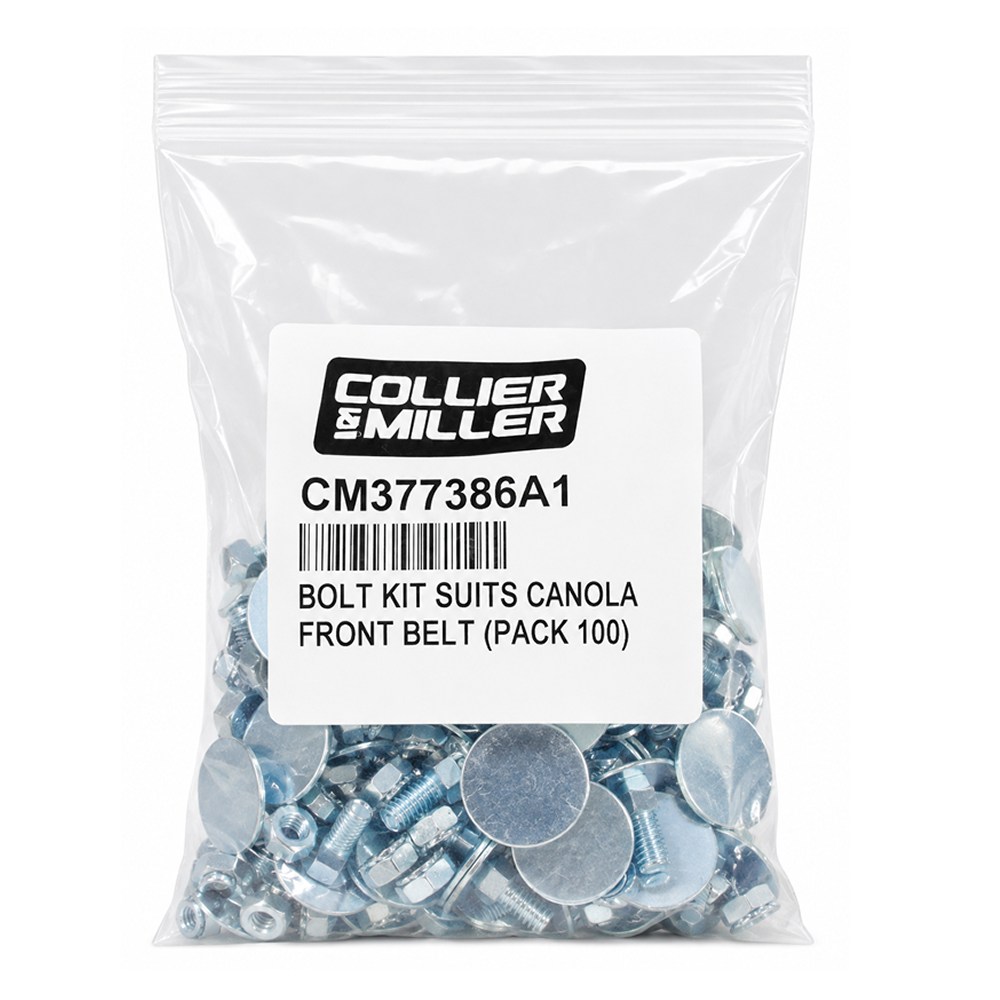

Canola Pickup Belt Bolt & Nut Kit - 1/4" x 5/8" - Pack of 100
Replace worn, damaged or missing pickup belt fasteners with this quality aftermarket Canola pickup belt bolt and nut kit. Designed for securing nylon pronged pickup fingers to the belt on a wide range of MacDon®, Case-IH®, John Deere®, New Holland®, AGCO®, Massey Ferguson®, Challenger®, Phillips and Countrywide canola pickup fronts, each kit contains 100 bolts and 100 matching flanged serrated nuts.

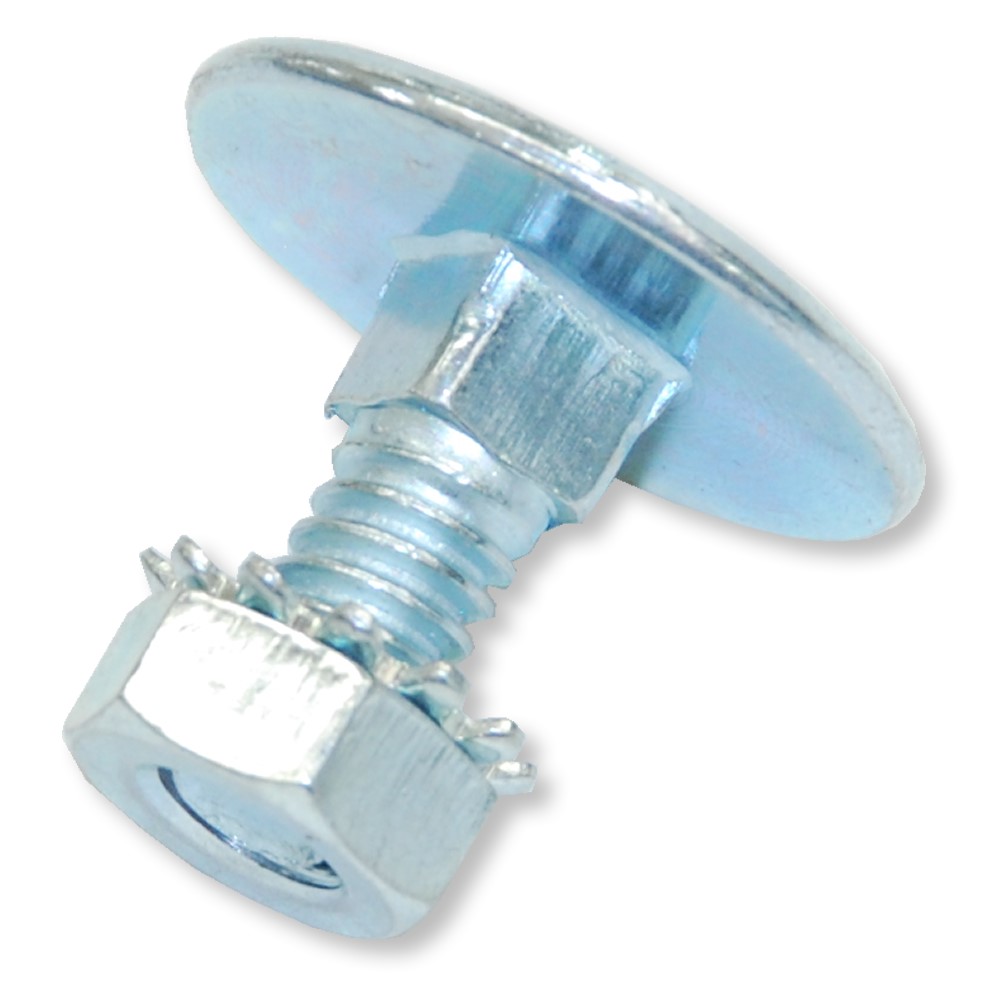

Each 1/4" x 5/8" bolt features a 25 mm flanged head and 7 mm square shank. The square shank helps locate the bolt in the pickup belt and reduces rotation while the pickup finger and nut are being fitted. The matching flanged serrated nut provides a broad clamping surface, while the serrations help resist loosening during normal pickup operation.
OEM Cross-Reference
Replaces OEM / Cross-Reference Part Numbers:
- 184494
- 1000378
- 377386A1
- AH86897
Compatible Canola Pickup Fronts
Compatibility for 1/4 inch x 5/8 inch canola pickup belt bolt and nut kit
| Brand |
Compatible Models |
| MacDon® |
PW7, PW8 |
| Case-IH® |
810, 914, 1015, 2015, 2016, 3016 |
| Phillips |
Swathmaster |
| AGCO® |
420, 4000, 4200 |
| New Holland® |
75C, 76C |
| John Deere® |
200, 212, 214, 900, 912, 914, 914P, 615P |
| Massey Ferguson® |
4000, 4200, 9720 |
| Challenger® |
PH13, PH15 |
| Countrywide |
Selected canola pickup fronts |
Technical Specifications & Features
- Fastener size: 1/4" x 5/8"
- Pack quantity: 100 bolts and 100 nuts
- Bolt head: 25 mm flanged head
- Bolt shank: 7 mm square shank
- Nut type: Flanged serrated nut
- Designed for fastening nylon pronged pickup fingers to canola pickup belts
- Square shank helps hold the bolt in position while the pickup finger is secured
- Flanged head spreads the clamping load across a larger area of the pickup belt
- Serrated nut helps resist loosening during operation
- Quality aftermarket direct-fit replacement fastener kit
What's Included

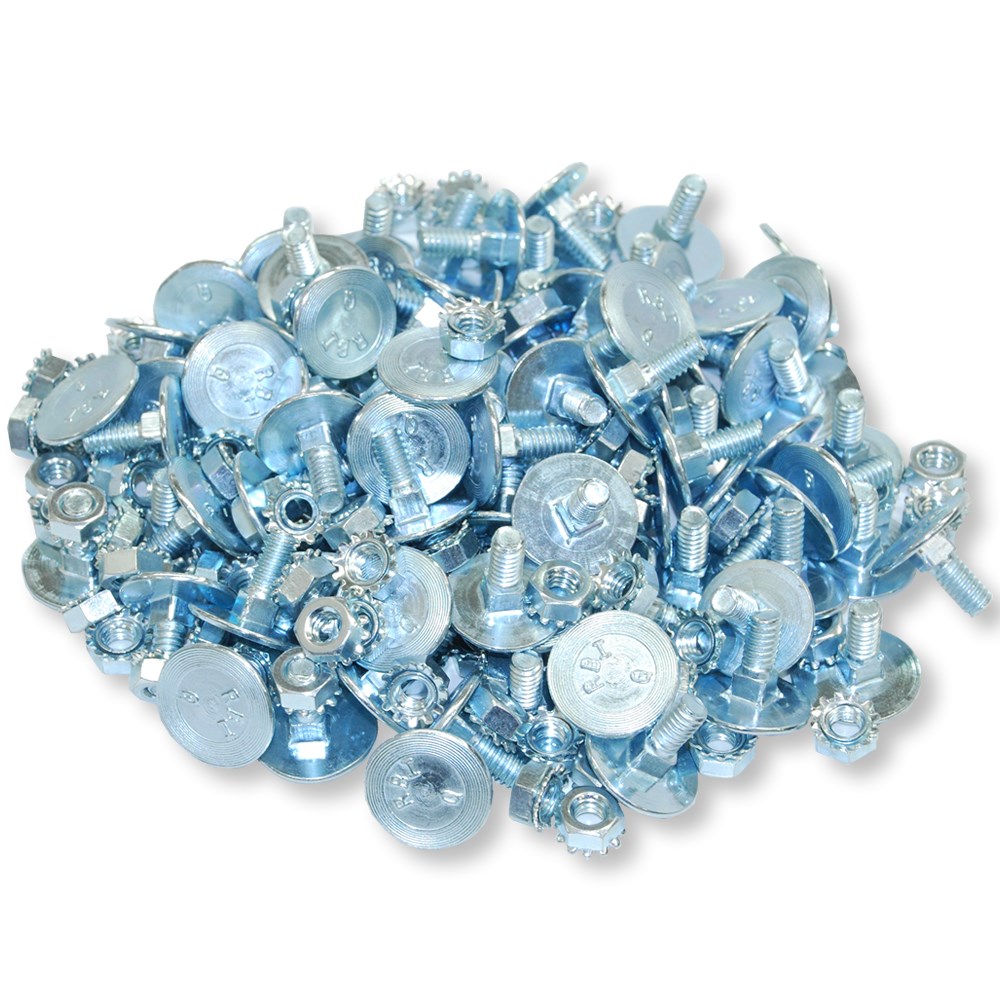

- 100 x 1/4" x 5/8" flanged pickup belt bolts
- 100 x matching flanged serrated nuts
The C&M Difference
Pickup belts operate in a high-vibration, high-impact environment, so using the correct fastener profile is important. This quality aftermarket kit combines a wide flanged bolt head, square locating shank and serrated flange nut to provide the fastening arrangement required for compatible canola pickup belt fingers. Cross-reference and application information has been checked to help make replacement straightforward.
Expert Maintenance Review
Loose pickup fingers can enlarge the mounting holes in the belt and increase movement through the finger mounting area. During preseason servicing, check each pickup finger for movement and inspect the surrounding belt material for cracking, tearing or elongated bolt holes. Replace missing, worn or damaged fasteners before returning the pickup front to service.
Recommended Maintenance Check
When replacing pickup fingers, inspect the condition of the complete pickup belt rather than only the failed mounting point. Loose fasteners, damaged fingers or stretched mounting holes elsewhere on the belt can indicate additional areas that require attention.
Installation Tip
Seat the 7 mm square section of the bolt correctly into the pickup belt before tightening the serrated flange nut. This helps prevent the bolt from turning while the nylon pickup finger is secured. Tighten the fastener sufficiently to hold the finger firmly without unnecessarily crushing or distorting the pickup belt material.
Original equipment manufacturer names and part numbers are quoted for identification and cross-reference purposes only. This is an aftermarket replacement product and is not manufactured by the original equipment manufacturers. Confirm machine and pickup belt compatibility before ordering.
