CLAAS CLEAN GRAIN CHAIN ASSY

CA512 4TH 136 LINKS 34 PADDLES DOMINATOR & MEGA

Product Code: CM407
$814.00
EACH inc GST
Afterpay Logo
4 payments of $203.50
Manufactured to Order
Increase value Decrease value

  • Detail
  • Tech Specs
  • Interchange

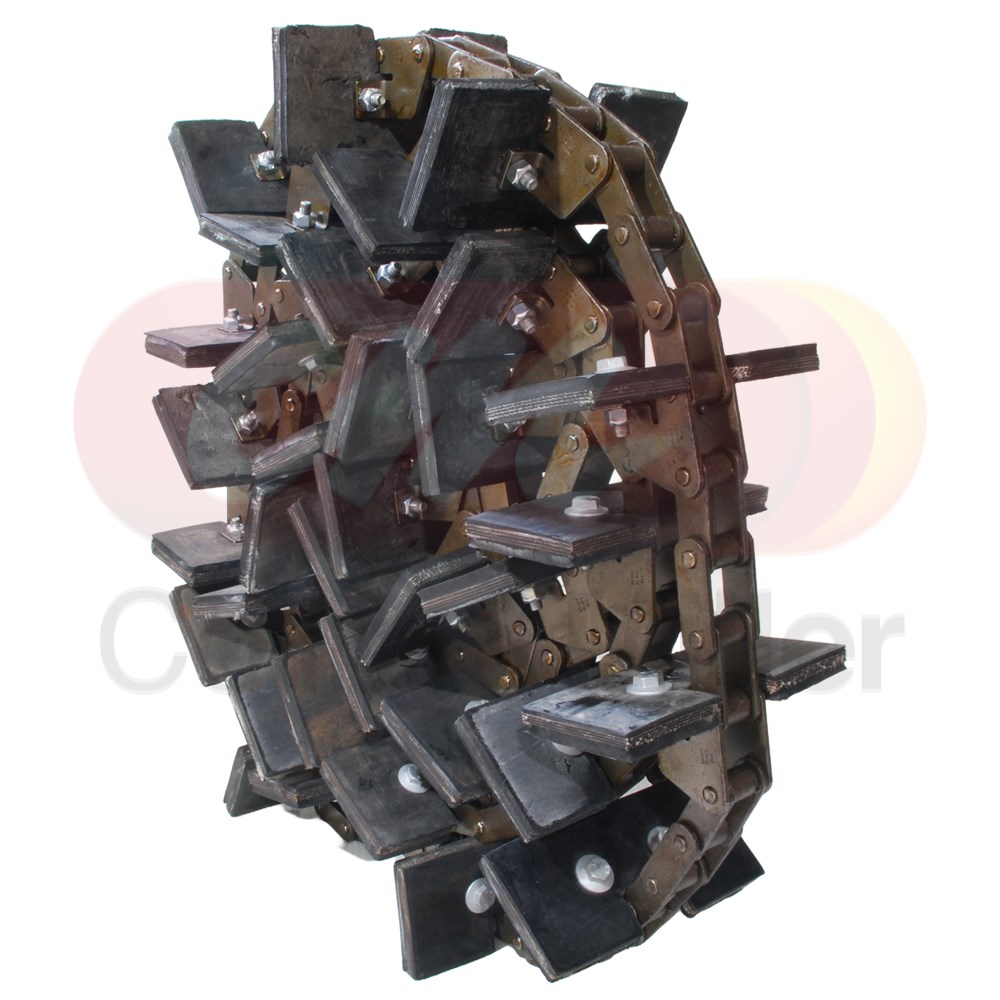

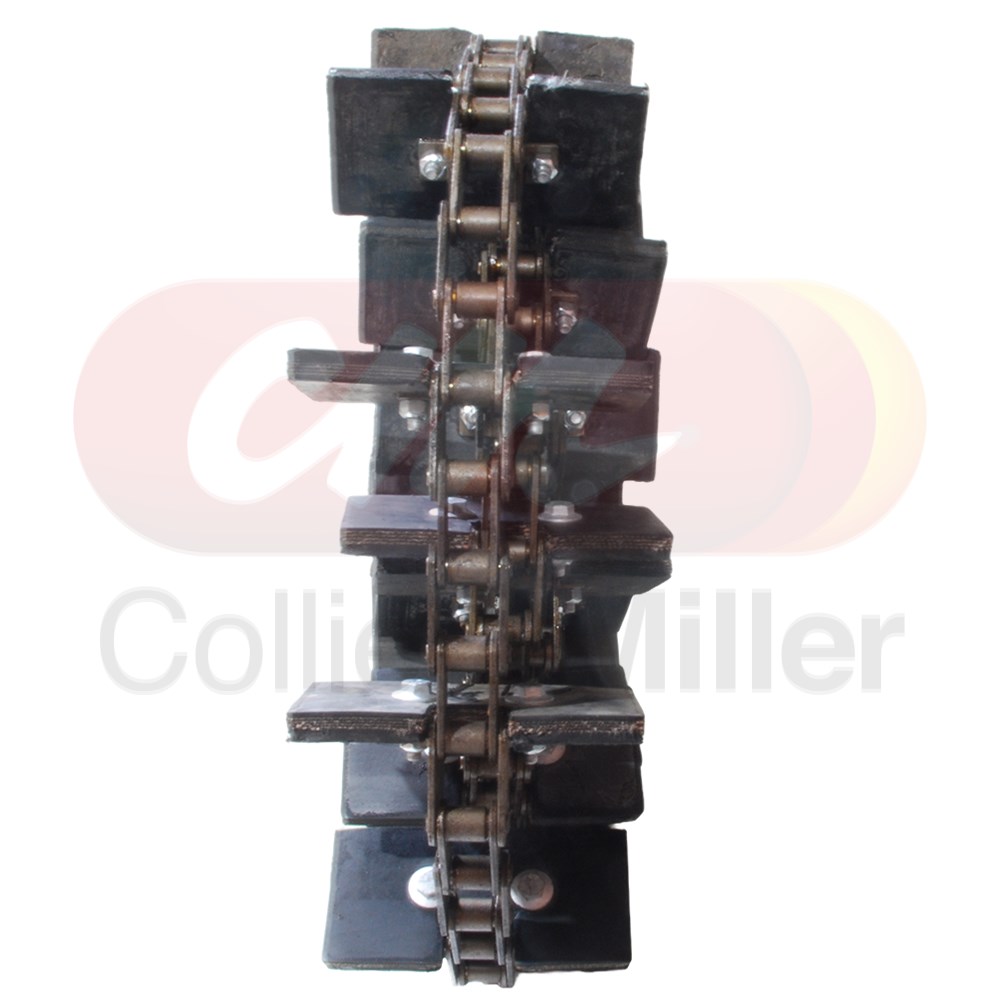

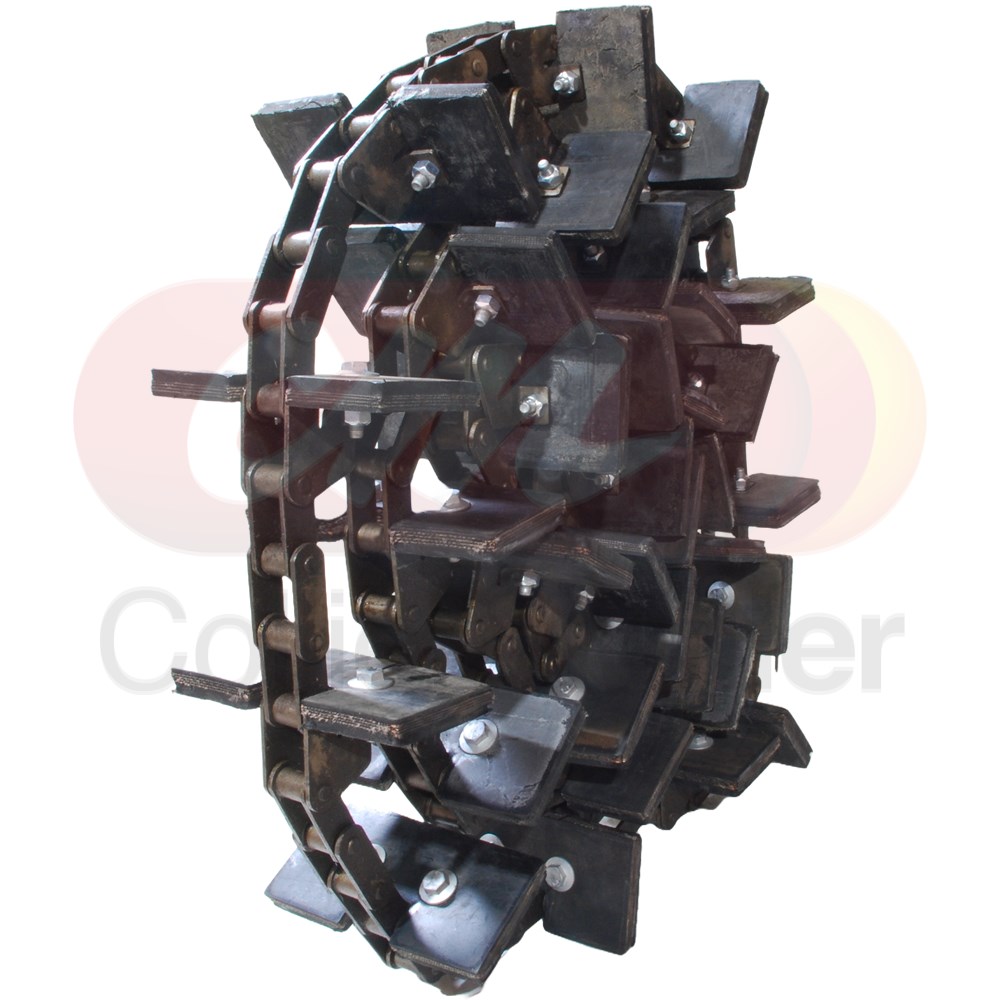

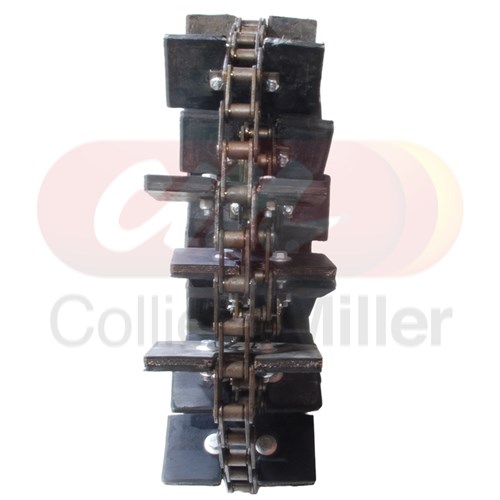

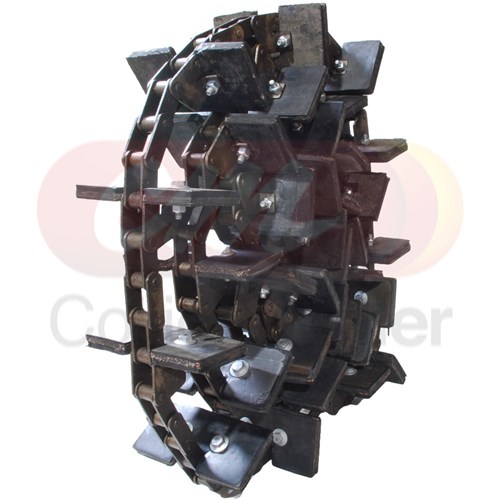

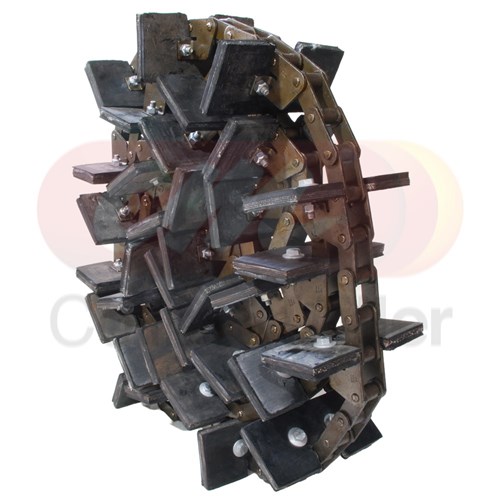

Claas® Compatible Dominator™

Clean Grain Elevator Chain


C&M replacement clean grain (main) chain assembly to suit the clean grain elevators on Claas® Dominator™ 6 & 8 series  and Mega™ 8 series combine harvesters. This is a complete chain assembly including paddles with the same spacing and attachment as the Claas® original chain. This chain assembly is supplied with connectors and half links ready to fit your existing paddles.

Part Number
  • 605456 601494
Series Model Serial/Year
Claas® Dominator™ 6 Series 76 86 96 106
Claas® Dominator™ 8 Series 78 88 98 108 118
Claas® Mega™ 8 Series 208 218

Features
  • Quality Drives Inc. USA Chain
  • CA512(CA624) 38.4mm pitch
  • Premium paddle material
  • 136 Links with 34 paddles
  • Supplied with connectors
  • Fully assembled by C&M in Australia

Technical Specifications

Assembly Code CM407
Chain Type CA512(CA624) Drives Inc USA
Chain Attachment F4 1.875" Hole Centers
Chain Strands 1
Chain Length 136 Links Inc Connectors
Chain Connectors 1 Cottered
Chain Offset Links 2 Cottered
Paddle Quantity 34 2
Fastener Specs M8x29 Flange Head Fastener with loctite MCCN8 Cone Lock Nuts


Build Sheet
601494 6014940 000601494 0006054562 605456 000605456 605456.2 0006054562
