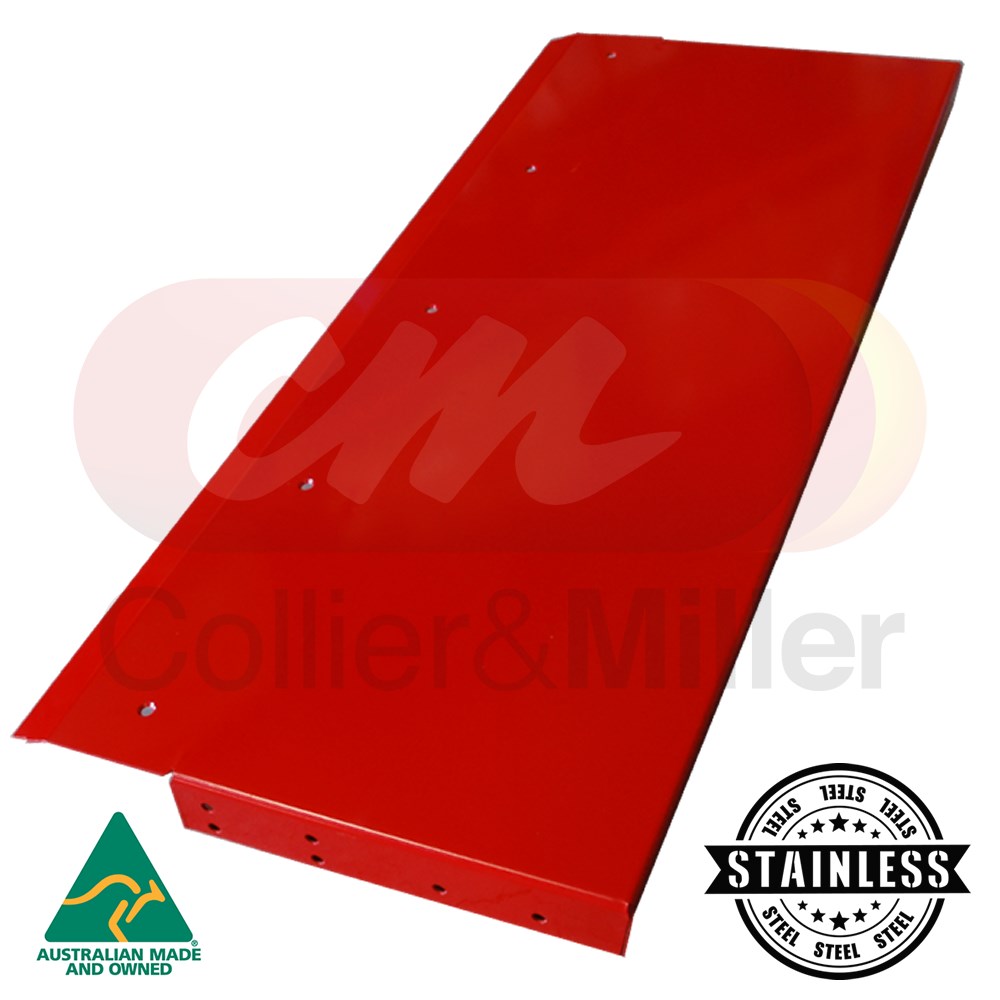

Case-IH® Compatible Rear Feeder House Floor (6 x Side Bolt Holes)
Increase feeder house operation with this premium C&M Australian-made rear feeder house floor. Specifically engineered for Case-IH® Flagship series combines without a rock trap, this high-performance floor panel is the professional choice for maintaining your product feeding system in top condition.
This panel is manufactured in our Griffith factory from high-grade extended wear stainless steel. By utilising stainless steel, this unit provides superior corrosion resistance, preventing the surface pitting and rust-drag that can occur during the off-season. This ensures a consistently slick surface for optimal crop transition through multiple high-capacity harvests.
Important Fitment Note
Before ordering, please verify your original floor configuration. This C&M floor features 6 bolt holes on each side. Machines requiring a 4-bolt side pattern use a different part number.
Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 47594973 (Also related to 87730307)
Rear Feeder Floor Compatibility: Case IH Axial-Flow (No Rock Trap)
| Series |
Models |
Serial/Reference |
Version |
| Case-IH® 10 Series |
7010, 8010 |
Flagship Units |
No Rock Trap |
| Case-IH® 120 Series |
7120, 8120, 9120 |
Flagship Units |
No Rock Trap |
| Case-IH® 230 Series |
7230, 8230, 9230 |
Common Cab Models |
No Rock Trap |
| Case-IH® 240 Series |
7240, 8240, 9240 |
MY14 - MY18 Models |
No Rock Trap |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.

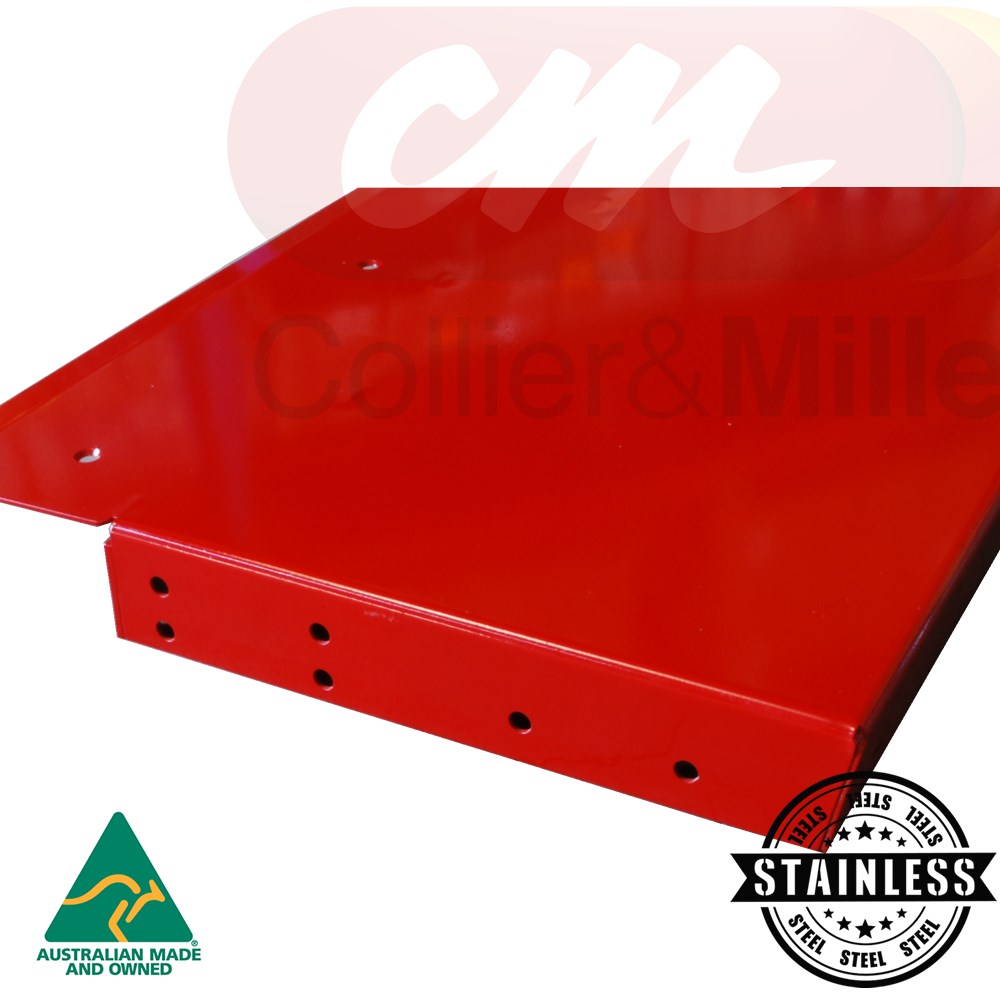

- Configuration: 6-hole side bolt pattern (6 holes per side).
- Material: High-grade Stainless Steel for maximum corrosion resistance.
- Wear Rating: Extended wear configuration designed for abrasive crop flow.
- Design: Precision cut for machines not equipped with an intake rock trap.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The rear feeder house floor (often called the top floor) is subject to extreme friction as the feeder chain aggressively drags material toward the rotor intake. Standard painted floors often suffer from thinning and "washboarding," which creates friction and increases fuel consumption. We recommend checking the floor for thinning during every preventative maintenance cycle.
Upgrading to this high-strength stainless steel floor is a strategic choice to **save money** on long-term repairs. The extended wear material resists the "scouring" effect of abrasive dust and grain, keeping your machine in top condition and ensuring a smooth transition into the rotor for a longer service life.
Installation & Alignment Tip

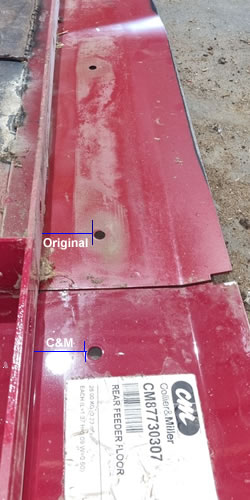

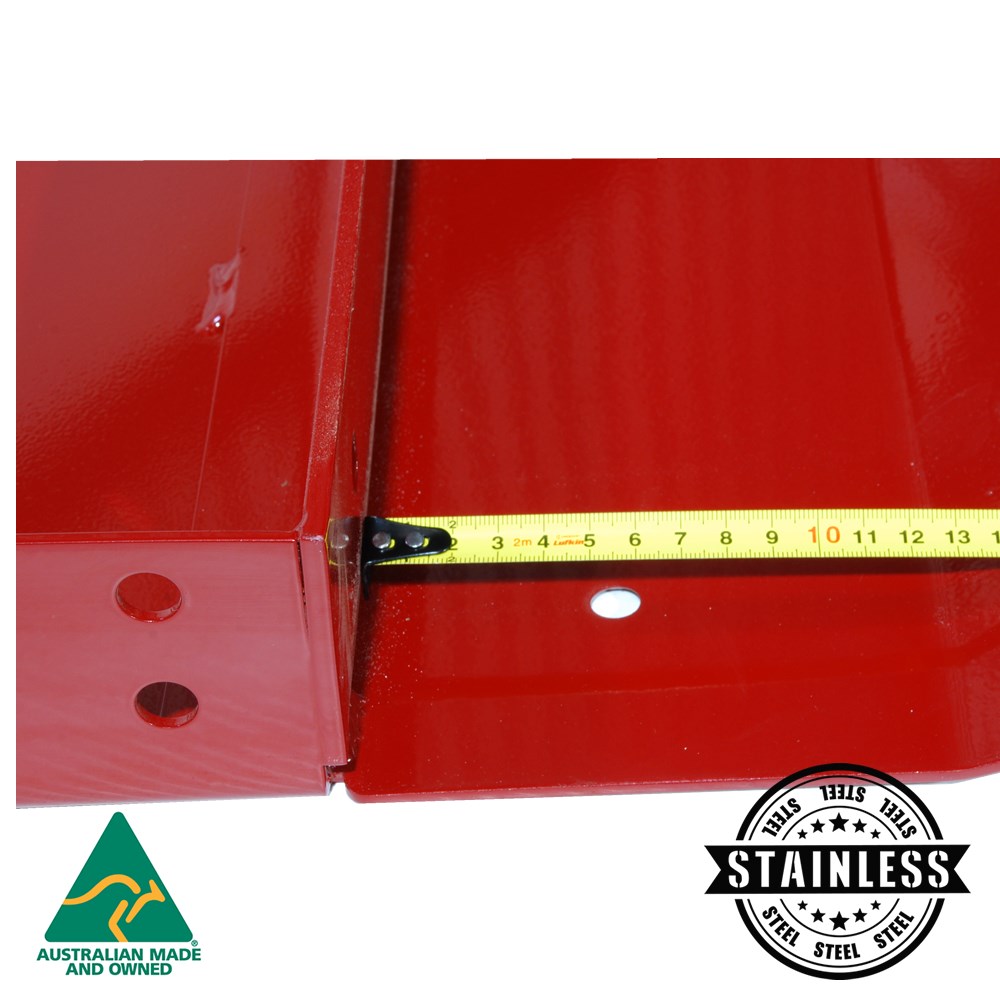

In rare instances (specifically noted on some 9120 models), the hole spacing on the rear seal section may vary slightly. As shown in the comparison images, if a half-hole discrepancy is found, simply slot the holes in the angle mount of the feeder floor to ensure a perfectly flush fit. A precision-aligned high-performance floor ensures maximum crop throughput.
