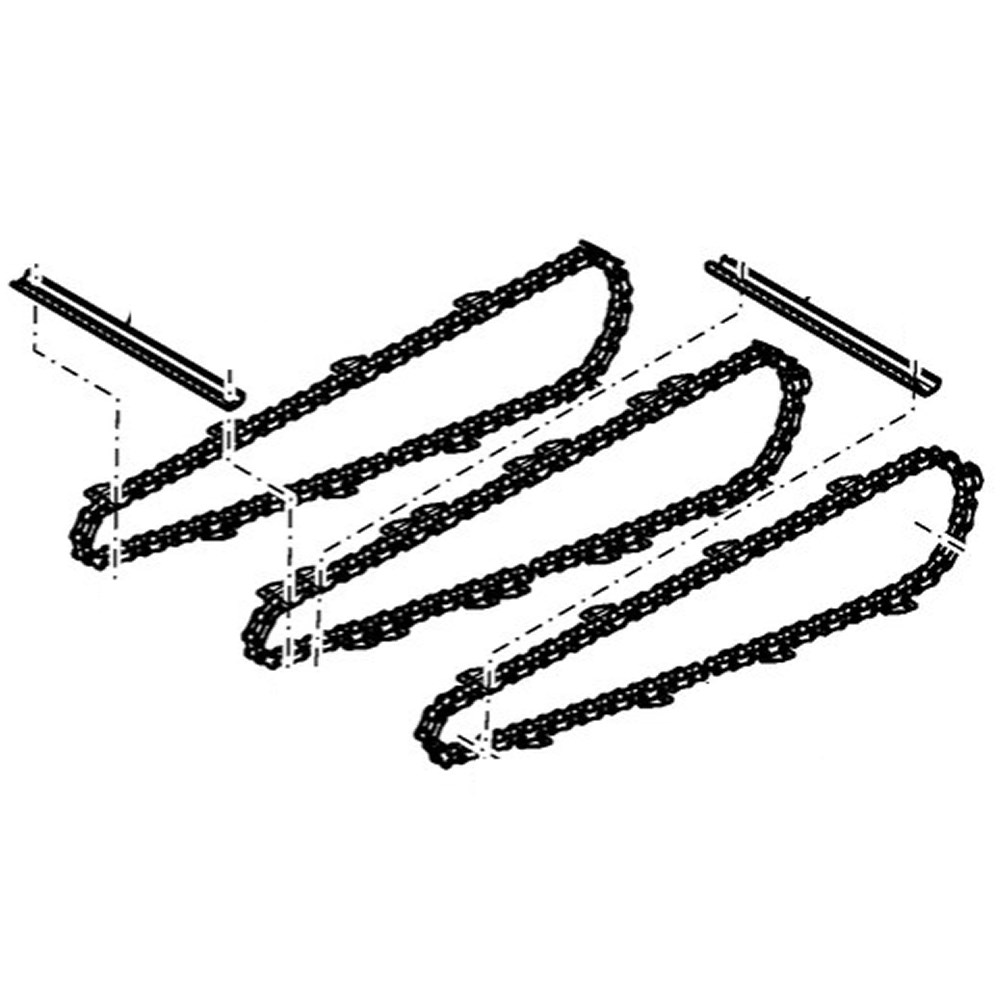

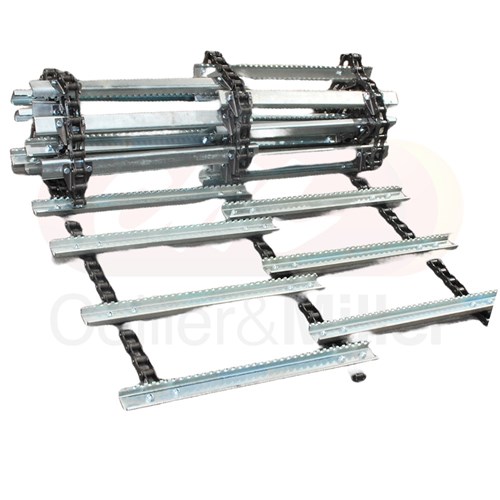

CASE-IH 5140 5150 6140 6150 7140 7150 Feeder House Chain Assembly (With-Rock-Trap)
C&M replacement complete feeder house chain assembly to suit the front feeder house on Case-IH combine harvesters. This is a set of three (3) replacement chains fitted with grade 350 electroplated 6mm roll-serrated U-Bar slats with the same spacing as the case original chain.
This chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premiuum grade chain and electroplated serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.
Fitment
This chain assembly has the bar spacing of later model 140 & 150 Series combine harvesters. Later models were supplied with wider spacing (less bars) than the 130 Series and early 140 series machines.
Part Number
Models
Series |
Models |
Serial/Year |
Case 140 Series |
5140, 6140, 7140 |
Models from 10/15 Onwards |
Case 150 Series |
5150, 6150, 7150 |
All Models |
- Fits Feeder House With-Rock-Trap
- Premium Chain
- Electroplated roll formed 6mm seratted U-Bar
- Connectors & Half Links Included
- Bolted assembly ready to install
- Connectors & Half Links Included
- 9 LH Slats 9 RH Slats
- 75 Links 8628 Spacing as per OEM chains
