CASE DRAPER DRIVE ROLLER 3152

CASE 3152 3162 48169204 47502852 84476056

Product Code: CM48169204
  P.O.A.
EACH inc GST
Afterpay Logo
Available for orders between $0.04-$2,000.00
In Stock Low Stock Contact Us Please See Attributes 1
Increase value Decrease value

  • Detail
  • Parts & Codes

Case-IH® Compatible

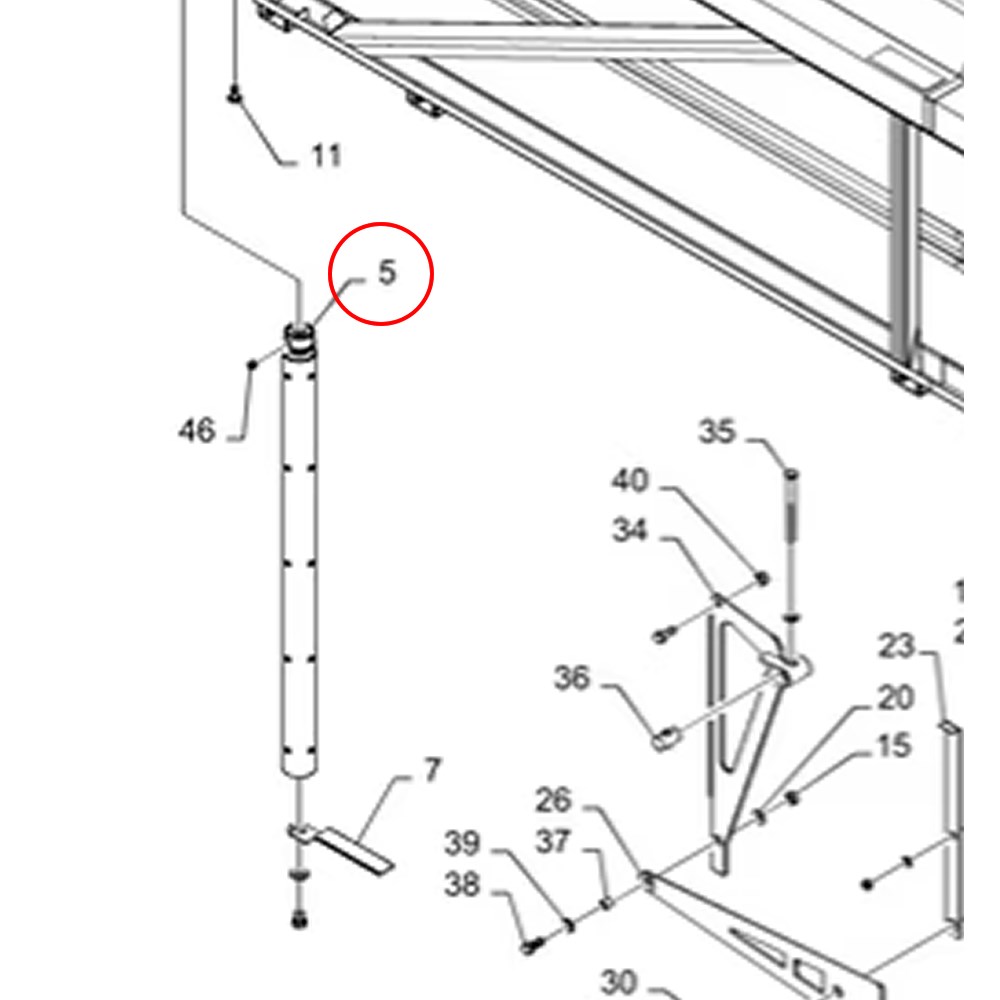

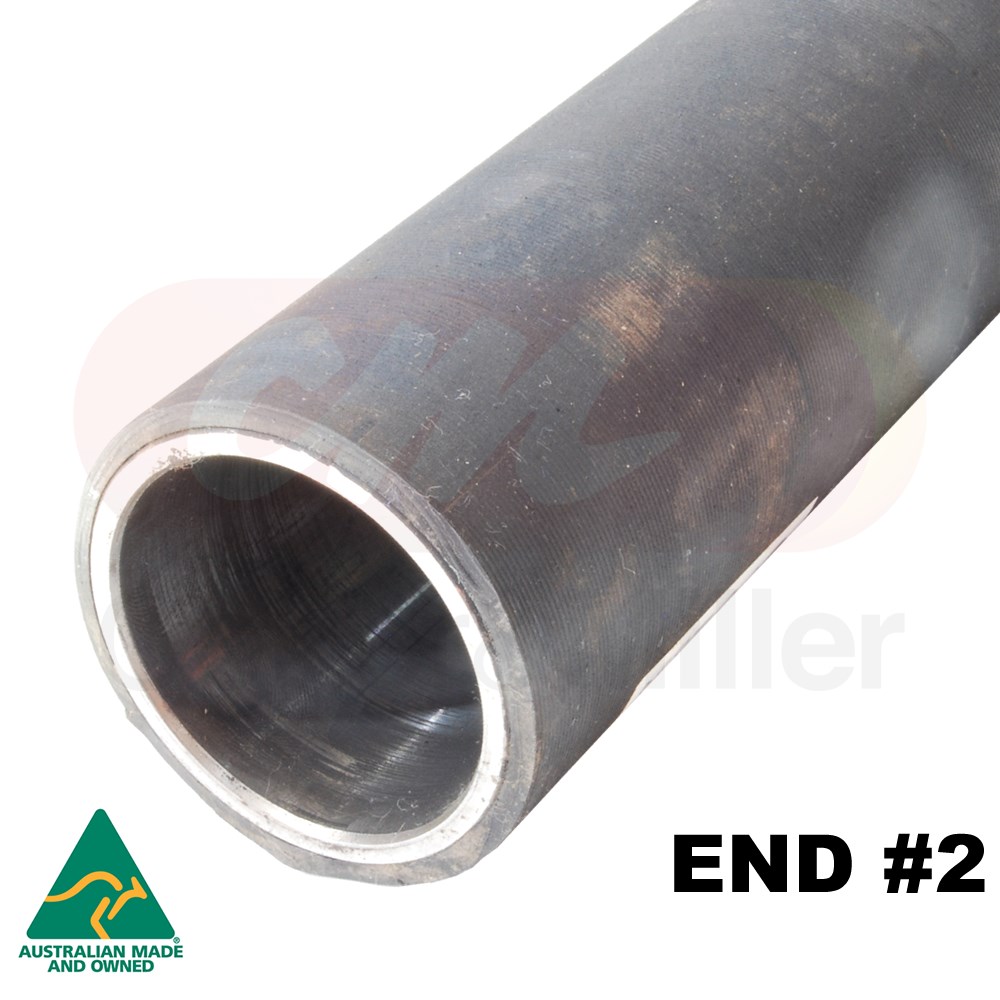

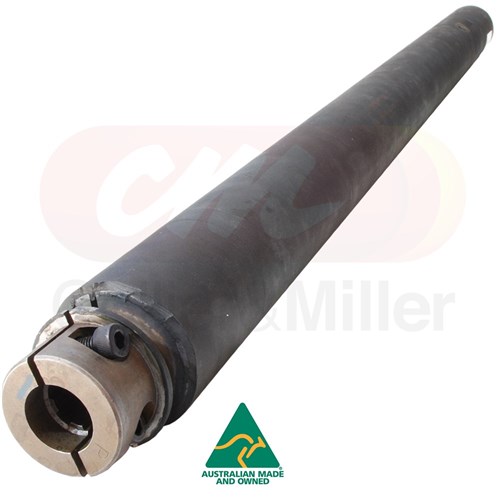

Lateral Side Draper Drive Roller Assembly


C&M made in Australia lateral draper belt drive roller to suit Case-IH® 3152 3162 4R and 4F series draper fronts. This side belt drive roller is made from heavy wall tube for improved service life.  Supplied with bearing, seal and pin.

Part Number
  • 48169204 84476056
Series Models Serial/Year
Case-IH® 31 Series 3152 3162
Case-IH® 4F Series 4F30 4F35 4F40 4F45
Case-IH® 4R Series 4R30 4R35 4R40 4R45

Features
  • C&M Made in Australia
  • Lagged (Vulcanized)

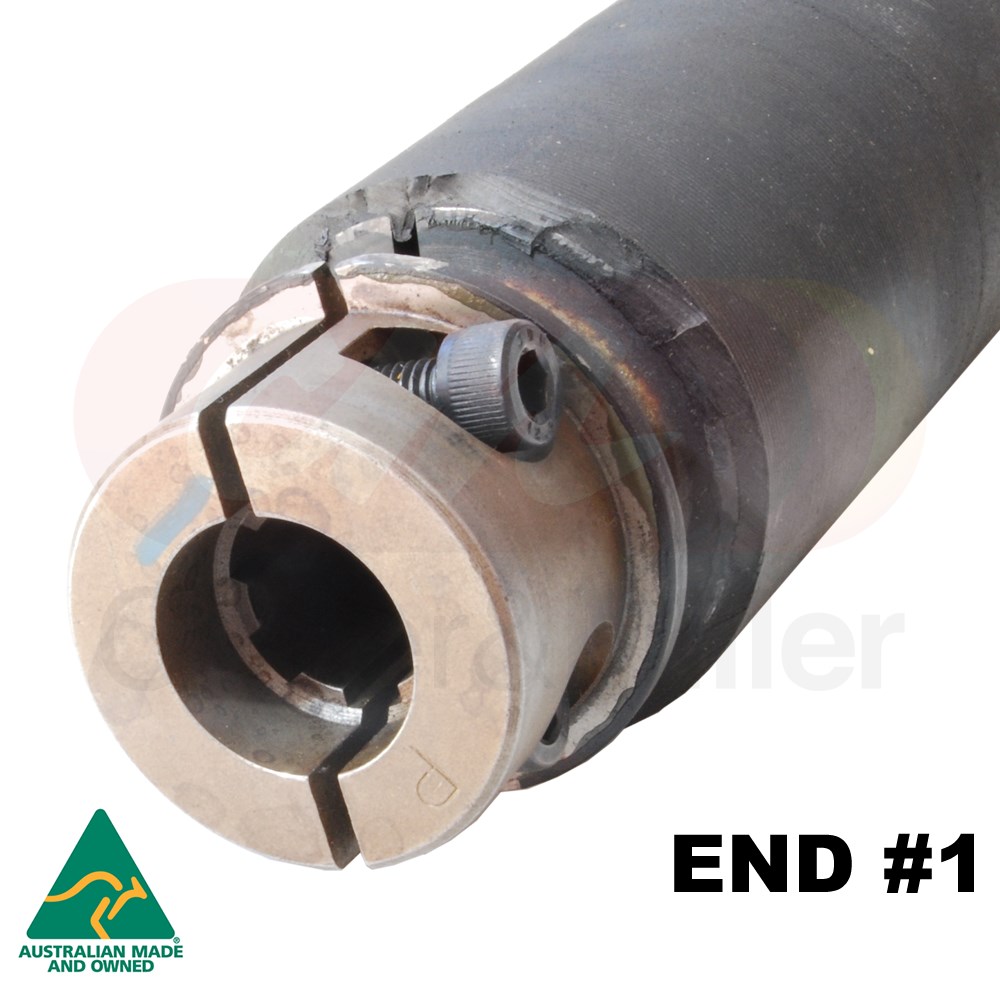

  • 2 x Clamp Bolts
  • 1" x 6 Spline Hub
  • L=1051mm
  • OD = (Lagged) 66.3mm
48169204 84476056
