CASE-IH® Compatible

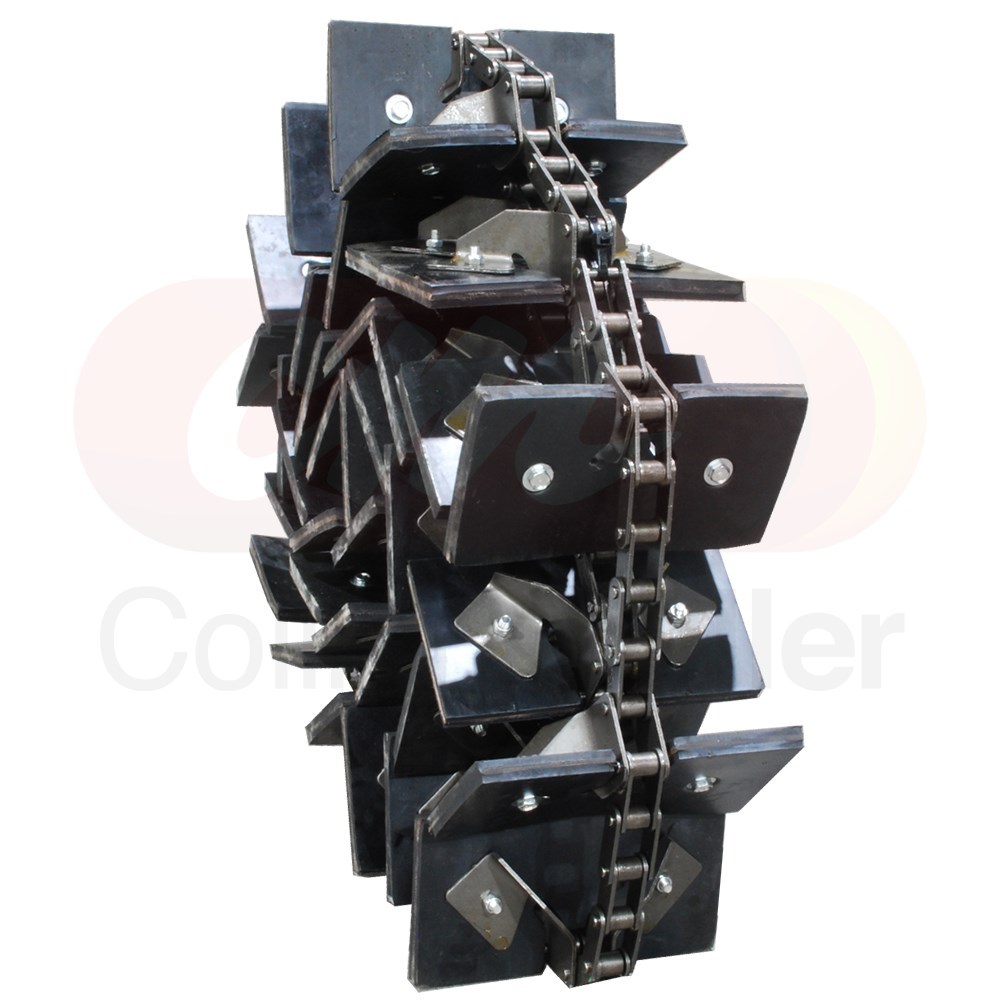

Clean Grain Chain Assembly
C&M replacement clean grain (main) chain assembly to suit the clean grain elevators on CASE-IH® mid-series combine harvesters. This is a complete chain assembly including heavy duty paddles and special pusher attachments with the same spacing and attachment as the Case-IH® original chain.
This chain assembly is supplied with connectors and all paddles are fitted with quality class 8.8 hex head bolts with locking nuts. We supply these chains from premium grade agricultural chain and quality reinforced paddles. We guarantee the quality of this assembly, however we recommend you fit new sprockets at the time of installation.
Part Number
| Series |
Model |
Serial/Year |
| Case-IH® 140 Series |
5140 |
TIER 2 (APAC/LA) 11/16 10/17
TIER 2 ASN - YFG014001 10/15 08/16
TIER 4B (EU) - 2016 11/16 10/17
TIER 2 (APAC/LA) 10/17 10/18 |
| Case-IH® 140 Series |
6140 |
TIER 2 (APAC/LA) 11/16 09/17
TIER 2 (ROW) 10/18 09/19
TIER 2 ASN - YFG014001 10/15 09/16
TIER 3 (APAC) - 2015 10/15 11/15
TIER 3 (APAC) - 2016 11/16 08/17
TIER 2 (APAC/LA) 10/17 09/18 |
| Case-IH® 140 Series |
7140 |
TIER 2 (APAC/LA) 11/16 09/17
TIER 2 ASN - YFG014001 10/15 10/16
TIER 3 (APAC) - 2015 11/16 12/16
TIER 3 (APAC) - 2016 10/15 02/16
T3 RETRO 10/18 10/20
TIER 2 (APAC/LA) 10/17 09/18 |
| Case-IH® 150 Series |
5150 |
RWLD - MY23 09/22
RWLD 5150 T2, MY22 10/22
TIER 2 (APAC/LA) 11/19 09/20
TIER 2 (ROW) 10/20 04/21 |
| Case-IH® 150 Series |
6150 |
T2,AXIAL FLOW RWLD - MY22 10/22
TIER 2 (APAC) 10/18 10/20
TIER 2 (APAC/LA) 11/19 09/20
AUST. TIER 3 - (BR) 03/24 |
| Case-IH® 150 Series |
7150 |
T3,AXIAL FLOW - MY22 10/22 09/22
TIER 2 (APAC) 10/18 05/19
TIER 2 (APAC/LA) 11/19 10/20
TIER 2 (ROW) 10/20 09/21
RWLD - MY22 10/22 |
Features
- Quality C&M product
- Heavy duty water-jet cut paddles
- Special pusher attachment same as OEM chain
- Quality M10x40mm class 8.8 hex head bolts
- M10 torque prevailing lock nuts
- Assembled in Australia
