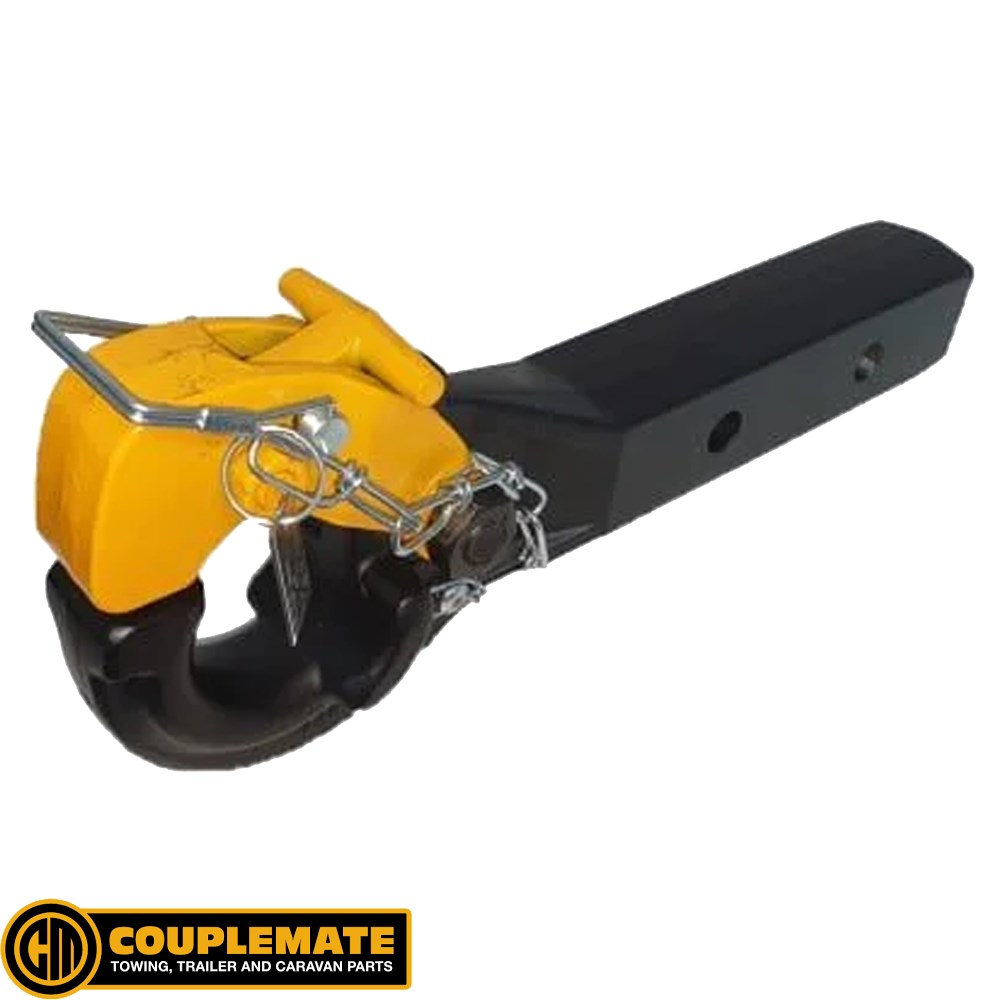

Couplemate 6000kg Pintle Hook Receiver Hitch

The Couplemate™ 6000kg Pintle Hook Receiver Hitch is meticulously designed to ensure safe towing and convenience.

Crafted from premium materials, this hitch boasts a robust design aimed at enhancing towing safety to the highest standards. Investing in top-quality components is crucial for all vehicles on our roads, as they play a pivotal role in ensuring the safety of all Australians during their travels.

Couplemate™ only supplies high-quality and safe components. The CM535 Pintle Hook Receiver Hitch has been rigorously tested to meet strict ADR 62/02 regulations, meaning it will provide you and your fleet with a safe tow — every single time.

Features

• ADR Compliant for consistently safe towing.
• Easy installation by inserting into 50mm tow bar.
• Tows up to 6000kg ATM trailers with ease (36.4kN).

Includes

• 1 x Receiver Hitch Body
• 1 x Pintle Safety Chain, Pin & Clip

Note: The component is supplied without a 5/8″ hitch pin. Class V pins can be purchased separately.

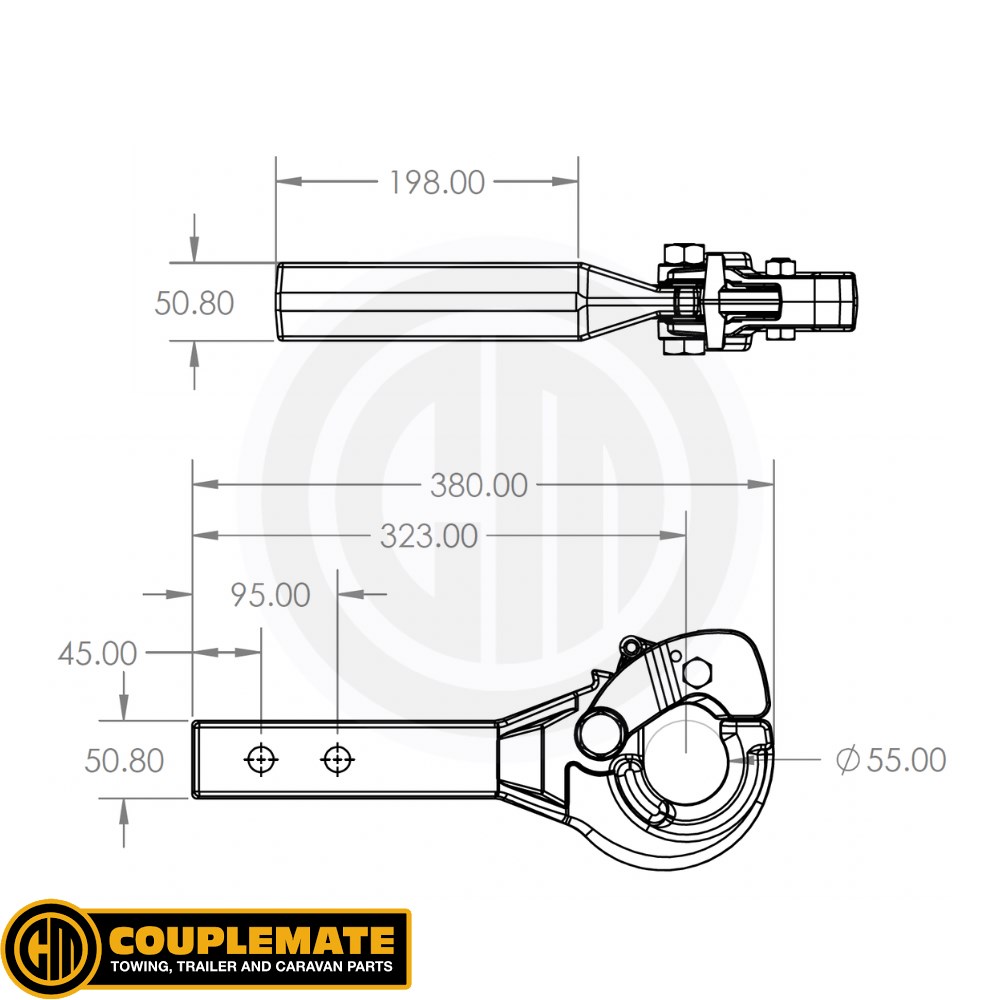

Specifications

• Weight: 7kg
• Dimensions: 40 x 20 x 6cm
• Weight Rating: Up to 6000kg ATM
• Materials: Forged SAE1045
• Coating: Powder Coated
• Suitable Tow Bars: 50mm x 50mm (2″)
• D-Value: 36.4kN
• Receiver Length: 200mm
• The CM535 is suitable for towing trailers up to 6000kg ATM.
