GLEANER FRNT FEEDER CHAIN ONLY A557 8-4-4-8 4 ROW 96L 36B S67 & S77 SUPER, S68, S78, S88

A557 8-4-4-8 4 ROW 96L 36B S67 & S77 SUPER, S68, S78, S88

Product Code: CM71456596CO

Detail
Technical
Interchange
Downloads

AGCO Gleaner® Compatible

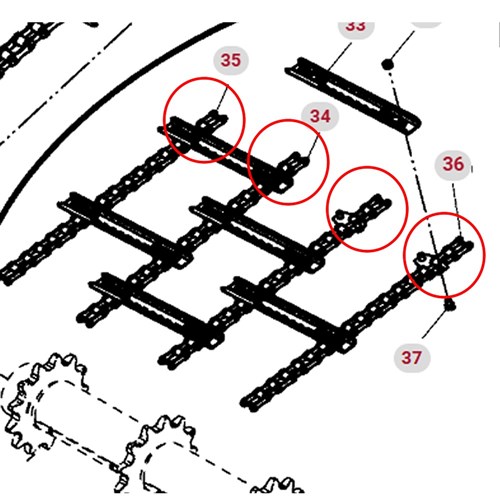

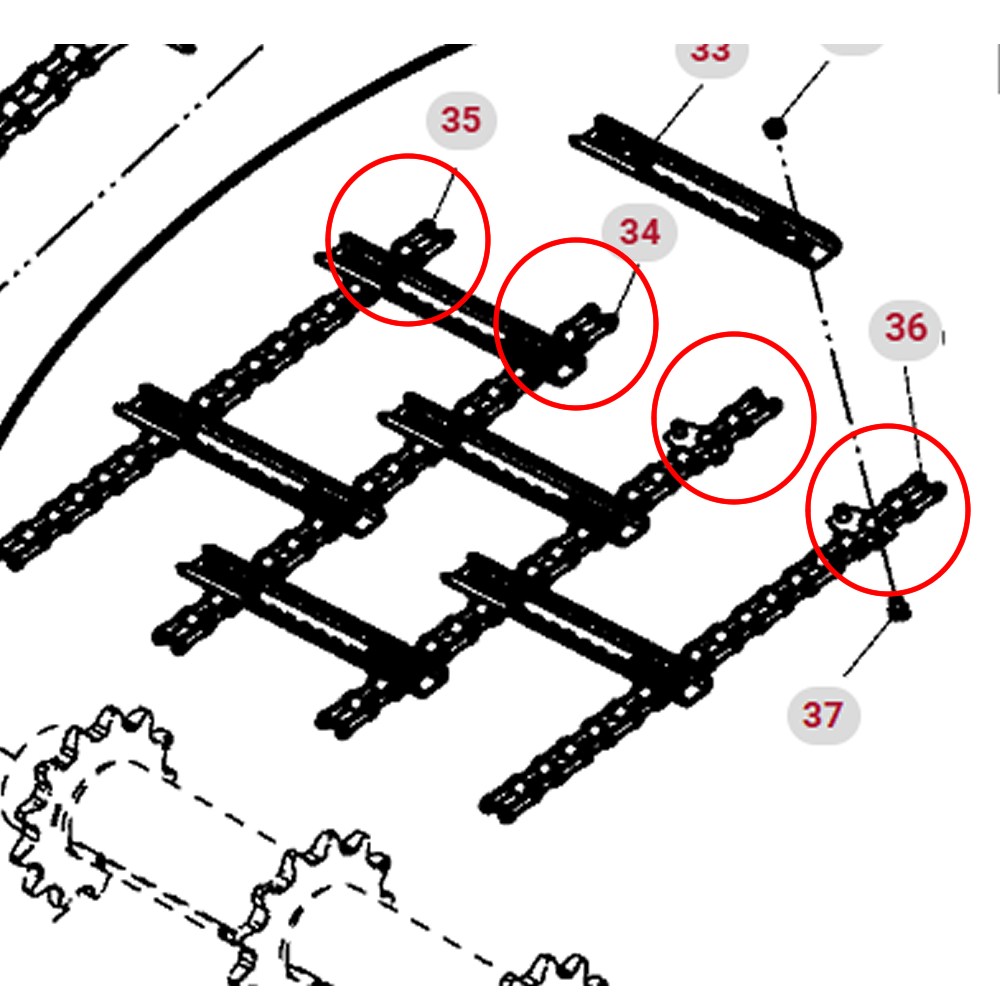

Feeder House Chains Only Set - Front Chain

C&M replacement complete feeder house chains only kit to fit the front conveyor on AGCO Gleaner® combine harvesters .This is a set of four (4) replacement chains with the same spacing and attachment hole spacing as the original Gleaner® chain.

You can re-chain your assembly using the original Gleaner® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium chrome-pin chain. We warranty the quality of this kit, however we recommend you fit new sprockets at the time of installation

Part Number

71456597 71456598

Series	Models	Serial/Year
Gleaner 7 Super Series	S67, S77 Super Series	(2011-2014) (BHTV6101-EHTV7999)
Gleaner 8	S68, S78, S88	(2014-2016) (EHTVX501-X999) (FHTVX101-X999) (GHTVX101-X999)

Features

C&M Assembled In Australia
Premium grade chrome-pin chain
4 x Connectors & 8 x Half Links Included
Same spacing as Gleaner® OEM Assembly
No fasteners supplied - reuse your original bolts

Item	Details	Notes
CM71456596	Gleaner Front Feeder Chain Assembly	4 Chain
Chain Type	CA557	Chrome Pin
Chain Assembly	4 Chain	No Bars
Attachment Pattern	8-4-4-8
Number of Links	96	Including Connectors
Number of slats	36	Not included
Assembly Width (Overall)
Chain centre to centre	264mm + 264mm + 264mm
Slat Type	6mm U-Bar Roll-Serrated & Electroplated	Not Inluded
Supplied Connectors	4 x Conns 8 x Offset Links	Chrome pin threaded
Bolts	UNC 1/2" x 1.00" Grade 8	Not Inluded
Nuts	UNC 1/2" Cone lock	Not Inluded
