GLEANER REAR FEEDER CHAIN ONLY A557 8-4-4-8 4 ROW 85L 32B S67 & S77 SUPER, S68, S78, S88

A557 8-4-4-8 4 ROW 85L 32B S67 & S77 SUPER, S68, S78, S88

Product Code: CM71456599CO

Detail
Technical
Interchange
Downloads

AGCO Gleaner® Compatible

Feeder House Chains Only Set - Rear Chain

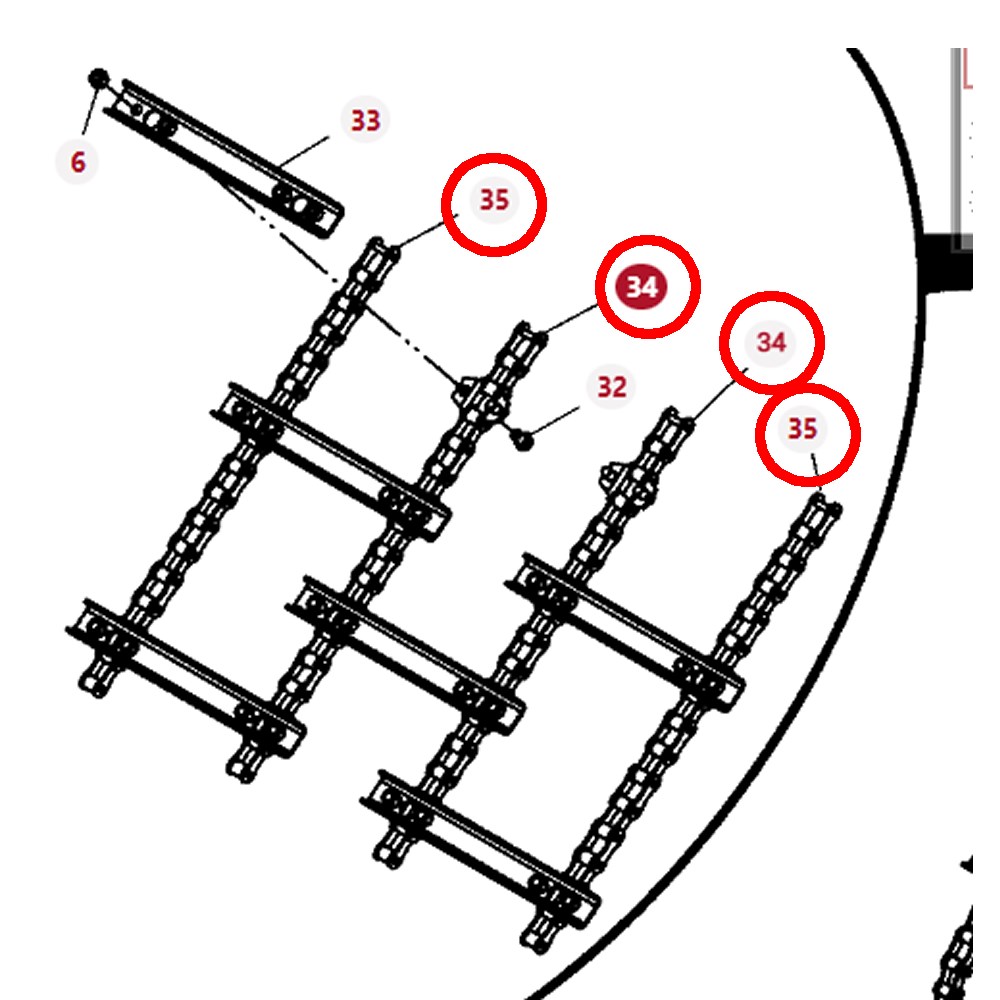

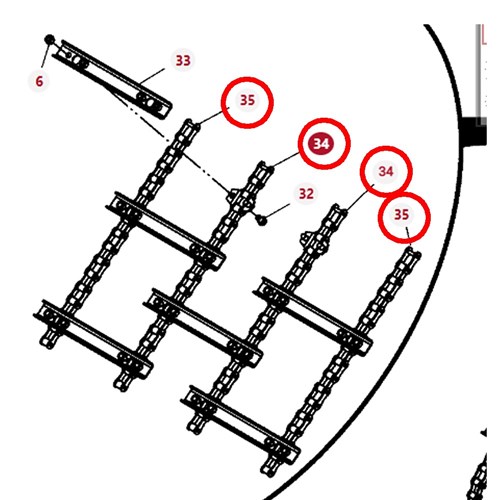

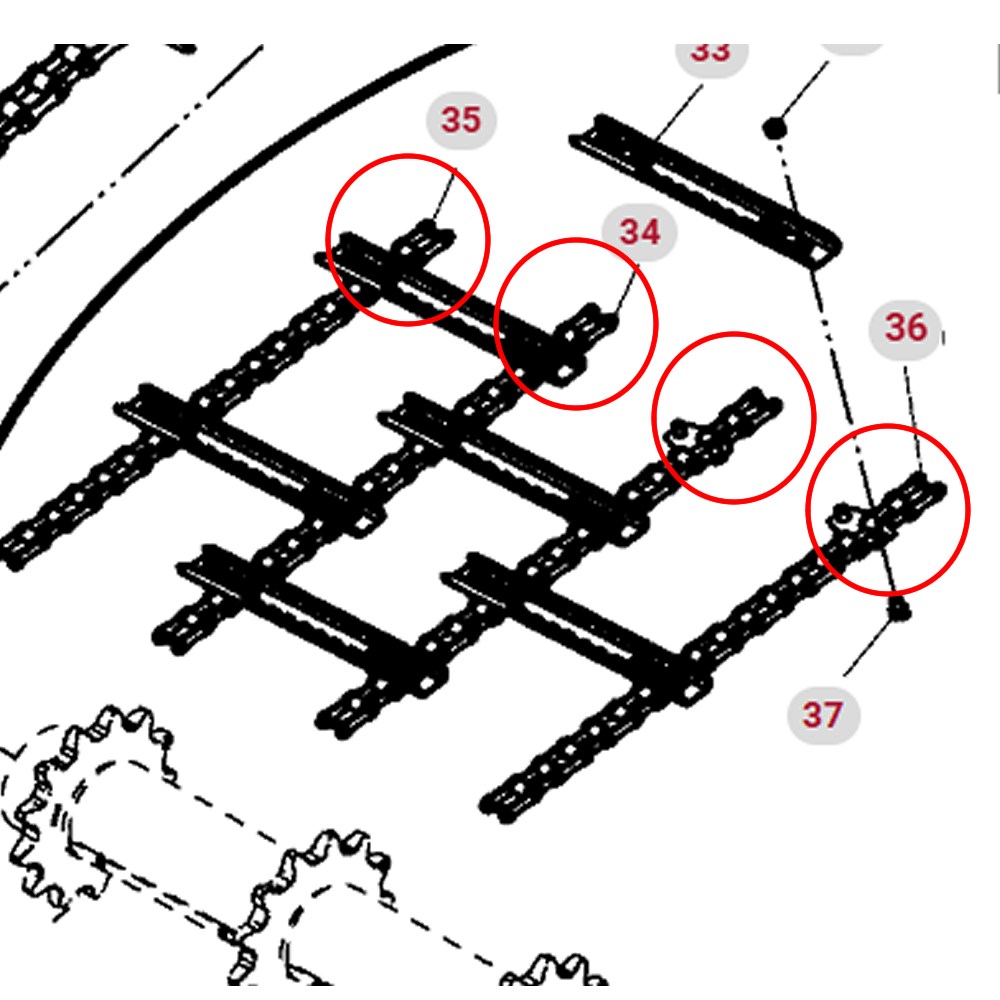

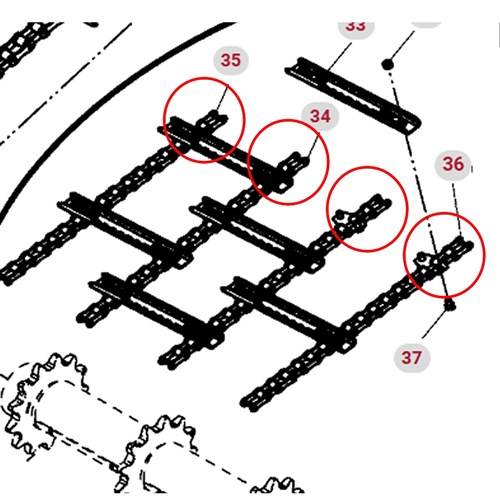

C&M replacement complete feeder house chains only kit to fit the rear conveyor on AGCO Gleaner® combine harvesters .This is a set of four (4) replacement chains with the same spacing and attachment hole spacing as the original Gleaner chain.

You can re-chain your assembly using the original Gleaner® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium chrome-pin chain. We warranty the quality of this kit, however we recommend you fit new sprockets at the time of installation

Part Number

71456600 71456601

Series	Models	Serial/Year
Gleaner 7 Super Series	S67, S77 Super Series	(2011-2014) (BHTV6101-EHTV7999)
Gleaner 8	S68, S78, S88	(2014-2016) (EHTVX501-X999) (FHTVX101-X999) (GHTVX101-X999)

Features

C&M Assembled In Australia
Premium grade chrome-pin chain
4 x Connectors & 8 x Half Links Included
Same spacing as Gleaner® OEM Assembly
No fasteners supplied - reuse your original bolts

C&M Technical Specifications

Item	Details	Notes
CM71456599	Gleaner S Series	Rear Feeder x 4 Chain
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Chrome Pin
Chain Assembly	4 Chain	No bars
Attachment Pattern	8-4-4-8	Same as AGCO OEM
Number of Pitches	85	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)	264mm + 264mm + 264mm
Number of bars	32	Bars not included
Chain centre to centre	264mm + 264mm + 264mm	1
Bar Type	6mm U-Bar G350 Roll serrated & electroplated	Not included
Bolts	132 x CM121 1/2" X 1.0" UNC GRADE 8	Not included
Nuts	132 x NCCN12 1/2" CONE LOCK NUT	Not included
