Claas® Lexion™ Compatible

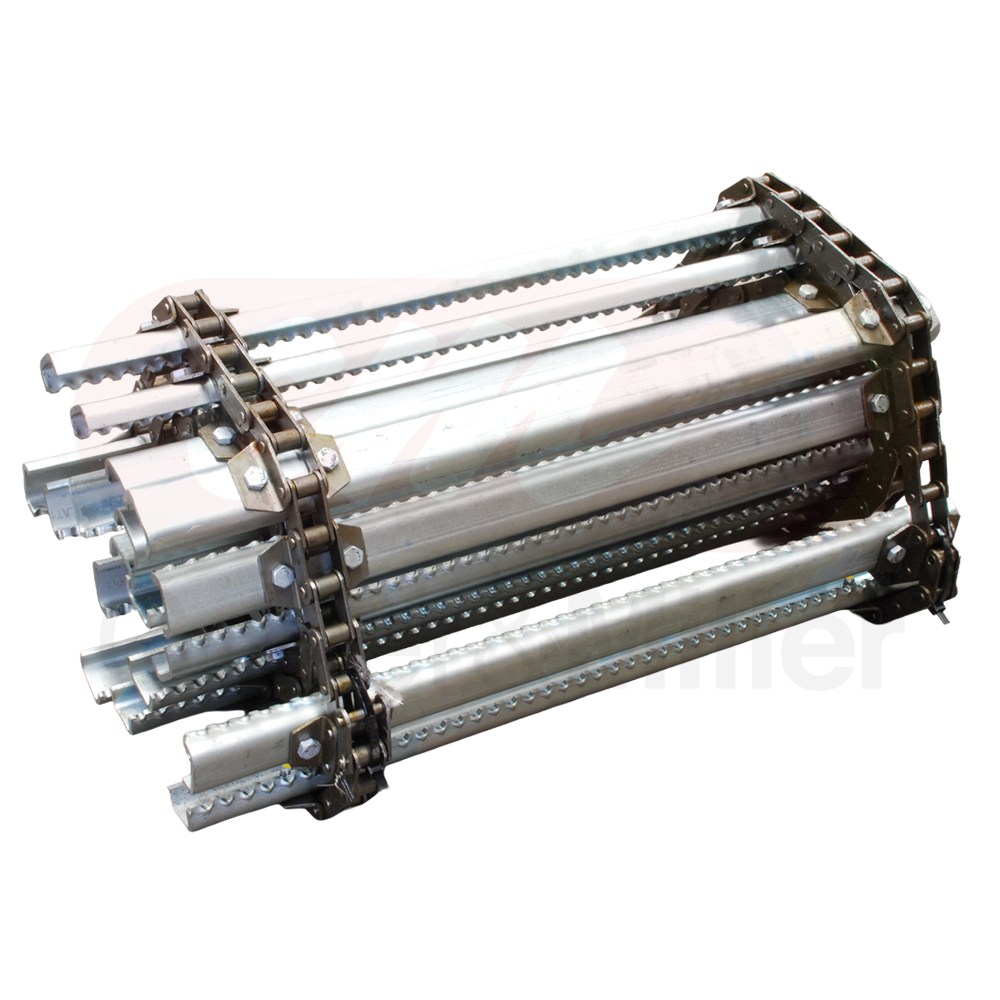

Feeder House Chains Assembly

LEFT HAND SIDE ONLY

C&M aftermarket 2 strand feeder house chain to fit the left side (from operators seat) feeder house on Claas® Lexion™ 400, 500 & 600 series European & North American model combine harvester. Suitable for machines with a wide feeder house. This is a set of 1 replacement chain fiited with G350 electroplated 6mm roll-serrated u-bar slats with the same spacing as the Claas® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and high performance roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

 LEFT SIDE ONLY - ORDER RIGHT SIDE TO COMPLETE THE SET

Brand	Part No.	Description
Lexion™ 400 European Series	000753691.1	400 450 460 480
Lexion™ 400 (N.a Cat) Series	000753691.1	460 465 480R 485R
Lexion™ 500 European Series	000753691.1	540 550 560 580
Lexion™ 600 European Series	000753691.1	(640 Gen 1(, (650 Gen1&2), (660 Gen 1&2), (Euro 670 Gen 1 & 2)

Chain Features

• Drive Inc. USA 38.4 VB CA512 CA624 Chain

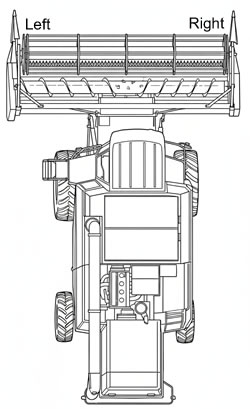

• Left chain (as viewed from operators seat)
• Same spacing as the OEM chain
• 18 x 6mm Roll-Serrated Electroplated Bars
• 2 x Connectors 4 x Offset Links
• High tensile fasteners
• Ready to install

Item	Details	Notes
CM753691	Claas Feeder House Chain Assembly	Left Hand
Chain Brand	Drives Inc.	Stamped Drives
Chain Type	CA512	CA512 CA624 38.4V
Chain Assembly	2 Chain with bars
Attachment Pattern	6th
Number of Pitches	108	Including Connector
Supplied Connectors	2 x Conns 4 x Offset Links	Cottered
Assembly Width (Overall)	740mm
Number of slats	18
Chain centre to centre	577mm
Slat Type	6mm U-Bar	G350 Roll-Serrated & Electroplated
Bolts	72 X M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	72 X M10 Cone lock	Torque prevailing

Build Sheet

5181871 0005181870 0005181871CL

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
