REEL TINE FINGER DOUBLE WING

FITS 6" SPACED 35MM TUBES AGCO CASE JOHN DEERE MASSEY

Product Code: CM783597
  $4.84
EACH inc GST
Afterpay Logo
4 payments of $1.21
Qty
1.0000 - 199.9999 $4.84 (inc GST)
200.0000+ $4.60 (inc GST)
* 10 EACH in a Pack
In Stock Low Stock Contact Us Please See Attributes 3481
Increase value Decrease value

  • Detail
  • Parts & Codes

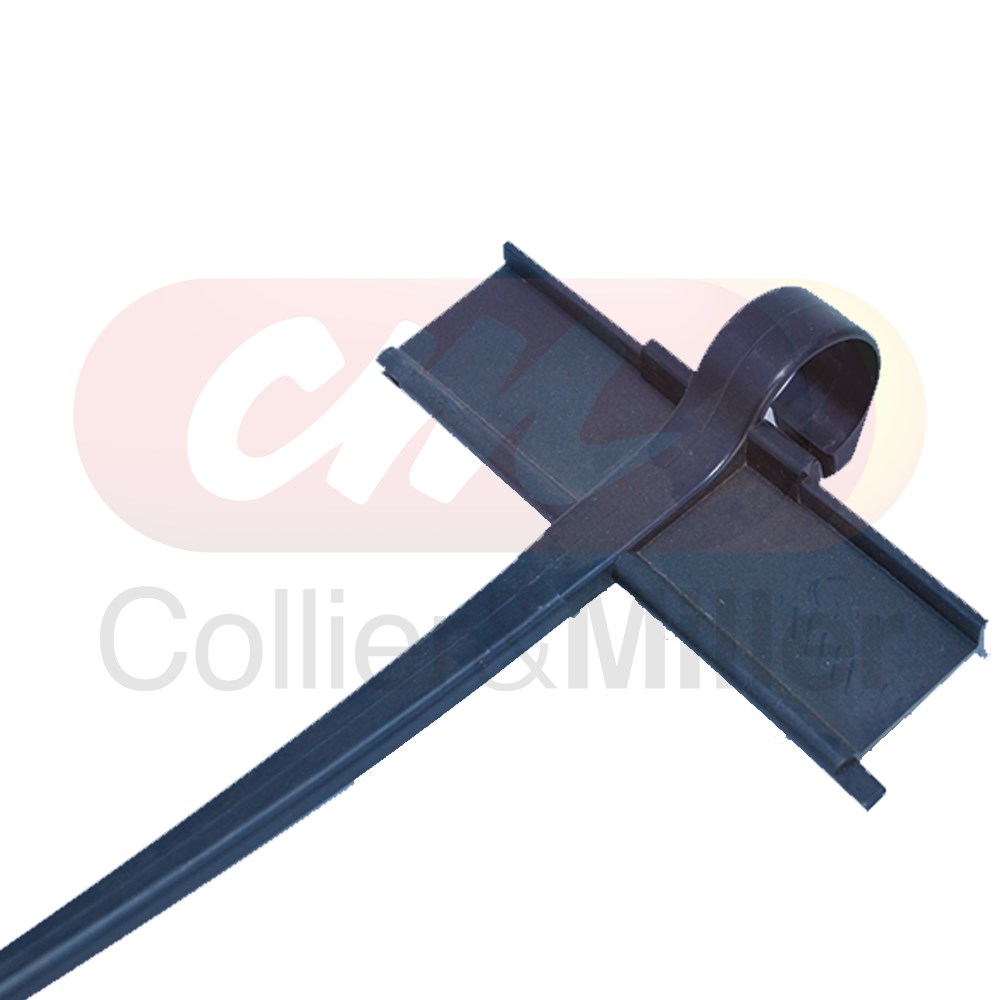

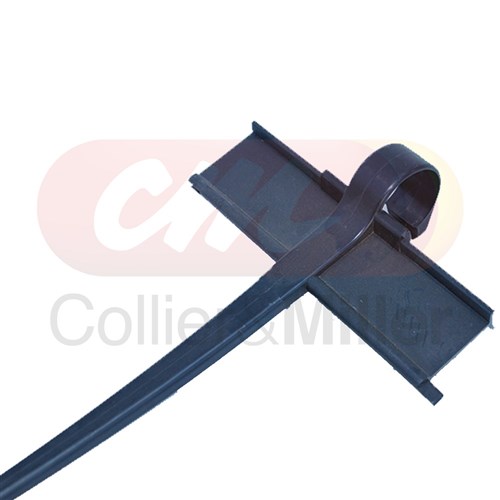

Reel Finger 35mm Tube Double Wing


Aftermarket double winged finger tine to suit reel tubes with 6" tine spacing such as Case, Agco, New Holland, John Deere Honeybee, and Massey Ferguson.This poly  double winged finger tine mounts onto 35mm (1-3/8") reel tube with 12.5mm (1/2") hex holes spaced every 152mm (6") apart. Suit various cutting platforms. Does not come with mounting screw. Wing has male nib and female receiver to mate with left and right hand version

Part numbers
  • Agco 71389106, 783597
  • Case 1989438C1, 410856A1, 86620758, 9842263
  • HoneyBee 224047, 26962
  • John Deere AH153175, AH166489, AH166493, H169804
Models

Series Models Serial/Year
Agco 5100, 700, 700C, 800, 7000, 7200,  8000, 8200, 9250, 9325, 9330, 9335, 9340
Case 10 Series 1010, 1020
Case 20 Series 1020, 2020, 3020
Case 30 Series 3020, 3162
Honeybee Later Models
John Deere 600 D Series 625D, 630D, 635D
John Deere 600 FD Series 630FD, 635FD, 640FD
John Deere 600 F Series 615F, 618F, 620F, 622F, 625F, 630F, 635F,
John Deere 600 R Series 615R, 618R, 620R, 622R, 625R, 630R, 635R,
John Deere 700 D Series 725D, 730D, 735D
John Deere 900 D Series 925D, 930D, 936D
John Deere 900 F Series 913F, 915F, 916F, 922F, 924F, 925F, 930F
John Deere 900 R Series 913R, 915R, 920R, 922R, 924R
Massey Ferguson 5100, 5200, 7000, 7200, 8000, 8200, 9250, 9325, 9330, 9335, 9340, 9800, 9850
New Holland 71C, 72C, 73C, 74C, 740CF
New Holland 840CD, 880CF, 88C
New Holland 92C, 94C, 994

Features
  • Overall length 11"
  • Overall width 6"
  • Double winged
  • 35mm tube
  • Fits Universal Reel Level 2 (U-II)
    AH166489 A783597 783597 1989438C1 224047 71389106 AH153175 410856A1 9842263 88608282 86620758 26962 86608281 AH166493 H169804
