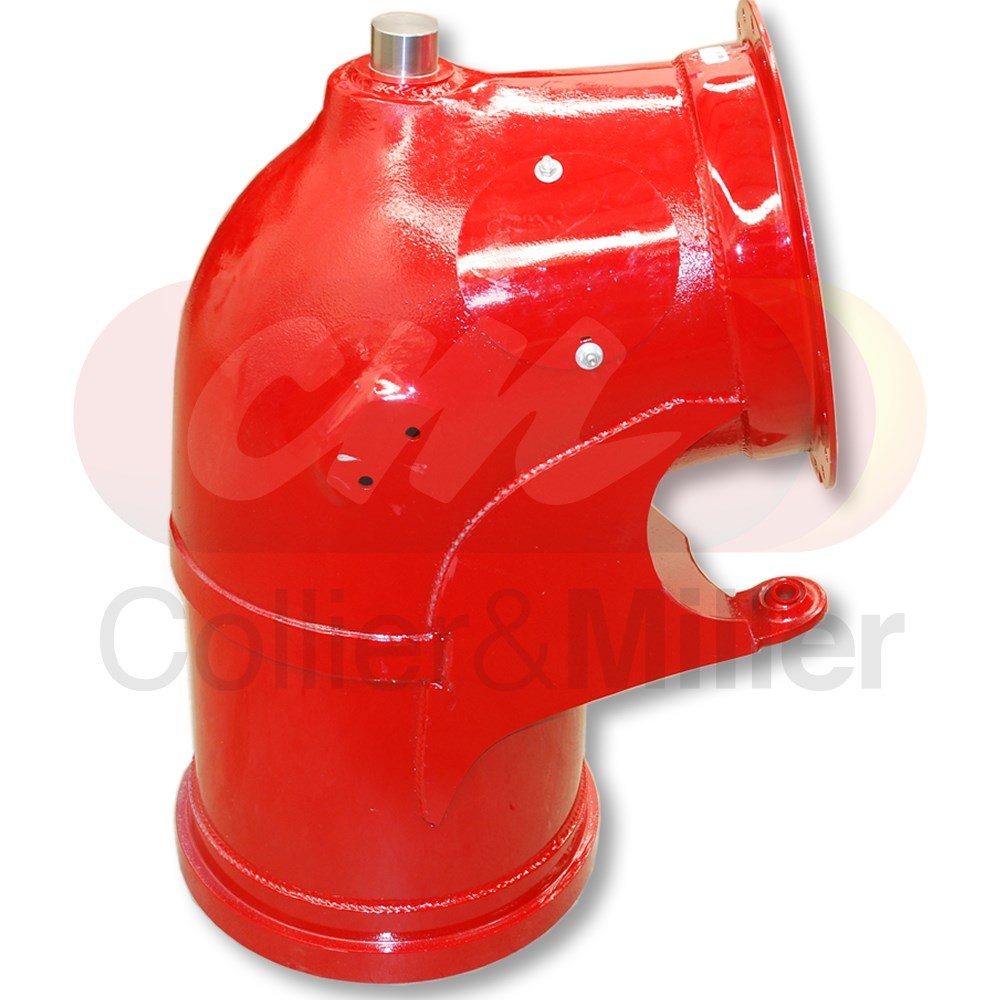

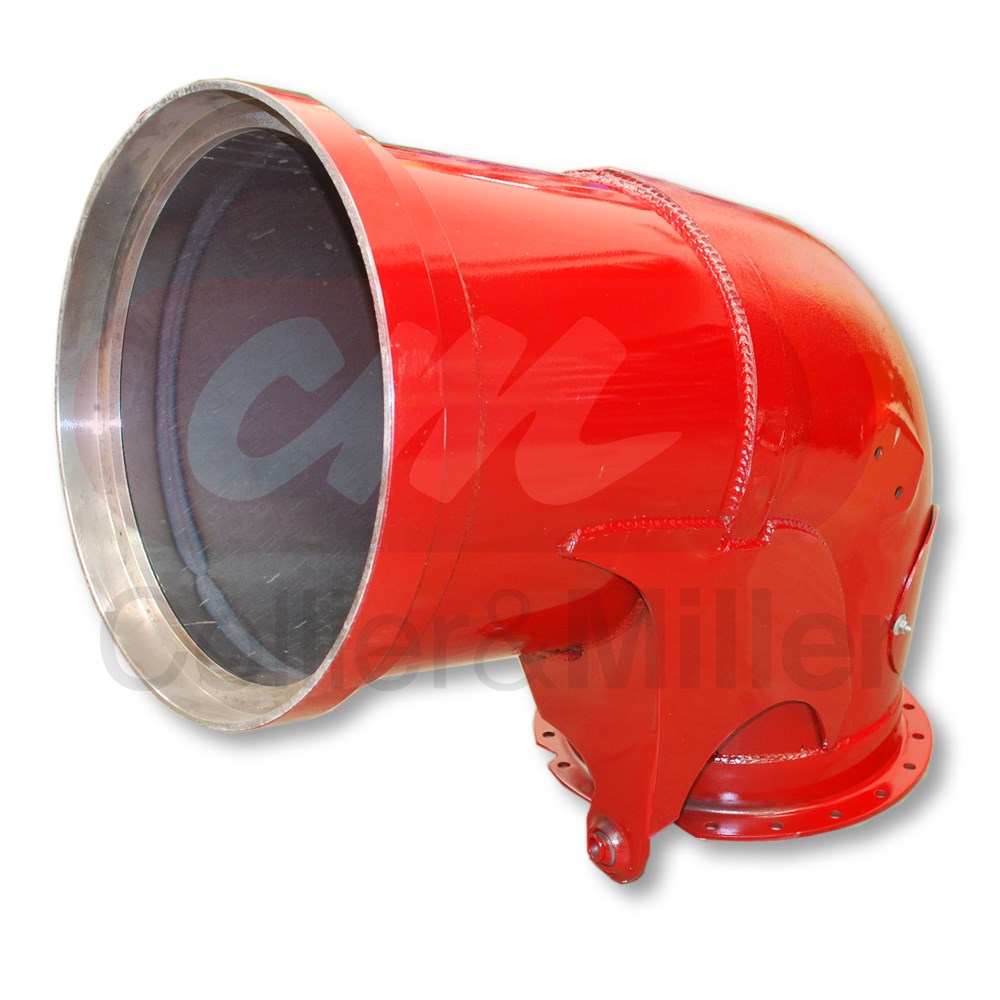

Case-IH® & New Holland® Compatible Hardened Unloading Auger Elbow
Restore the operation of your grain unloading system with this premium hardened unloading auger elbow. Specifically engineered for Case-IH® and New Holland® flagship combine harvesters, this heavy-duty cast component is the professional solution for repairing worn components at the critical transition point of the unloading circuit.
Manufactured to high-performance standards, this standard capacity elbow features hardened internal surfaces to provide superior abrasion resistance against abrasive grain flow. The heavy cast construction offers a high-strength foundation that resists the structural thinning. This extended wear design ensures your unloading system stays in top condition, providing a significantly longer service life through demanding harvest seasons.
Case-IH® & New Holland® OEM Cross-Reference
Replaces OEM Part Numbers: 84126361, 87474233, 87552529, 87754415
Auger Elbow Compatibility: Case-NH Flagship Series
| Series |
Models |
Specification |
| 10 & 20 Series |
7010, 8010, 8010-AFX, 7120, 8120, 9120 |
19-Hole Flange |
| 30 & 40 Series |
5130, 6130, 7130, 7230, 8230, 9230, 5140, 6140, 7140, 7240, 8240, 9240 |
19-Hole Flange |
| 50 & 88 Series |
5150, 6150, 7150, 7250, 8250, 9250, 5088, 6088, 7088 |
19-Hole Flange |
Technical Specifications & Features
- Quality: Premium quality aftermarket replacement part.
- Material: Heavy-duty cast iron with hardened wear zones.
- Capacity: Designed for standard capacity unloading systems.

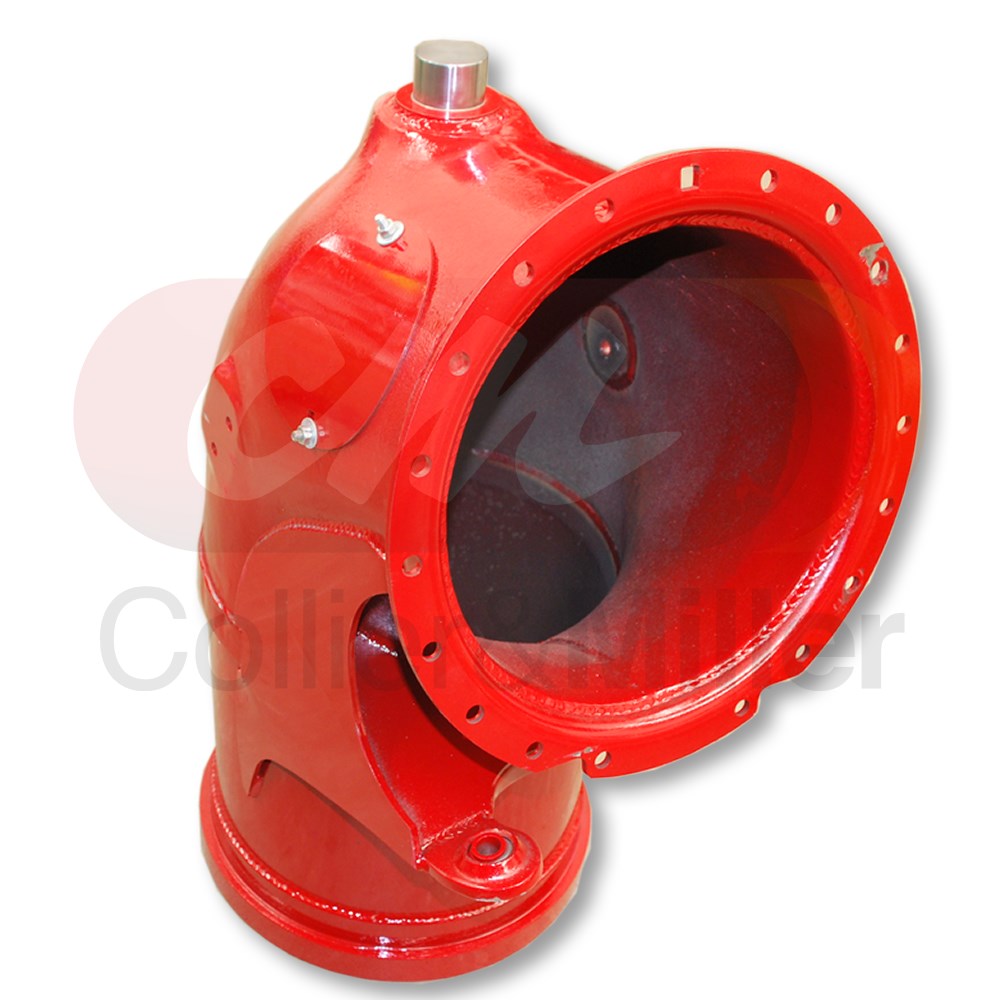

- Fitment: Precision 19-hole flange for direct-fit bolt-up installation.
- Wear Rating: Extended wear configuration for high-volume grain handling.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The unloading auger elbow is a primary wear point where grain is forced to change direction at high speeds. This creates an intense abrasion zone that often leads to "blow-outs" in standard elbows. We recommend inspecting the internal curvature of the elbow for thinning or rough spots during every preventative maintenance check to identify worn components before they cause significant grain leakage or downtime.
Upgrading to this high-performance hardened elbow is a strategic choice to save money on long-term maintenance. The increased material density and surface hardening maintain the original discharge profile far longer than standard steel or non-hardened cast versions, ensuring your grain handling system remains in top condition for a longer service life.
Installation Tip: Flange Alignment
When bolting the new 19-hole flange into place, ensure the mating surfaces on the vertical and horizontal tubes are perfectly clean of old sealant and debris. A flush, high-strength seal is essential to prevent moisture entry and grain dust leakage. This is the ideal time to check your unload auger pivot bearings and drive splines to ensure the entire unloading assembly is perfectly aligned.
