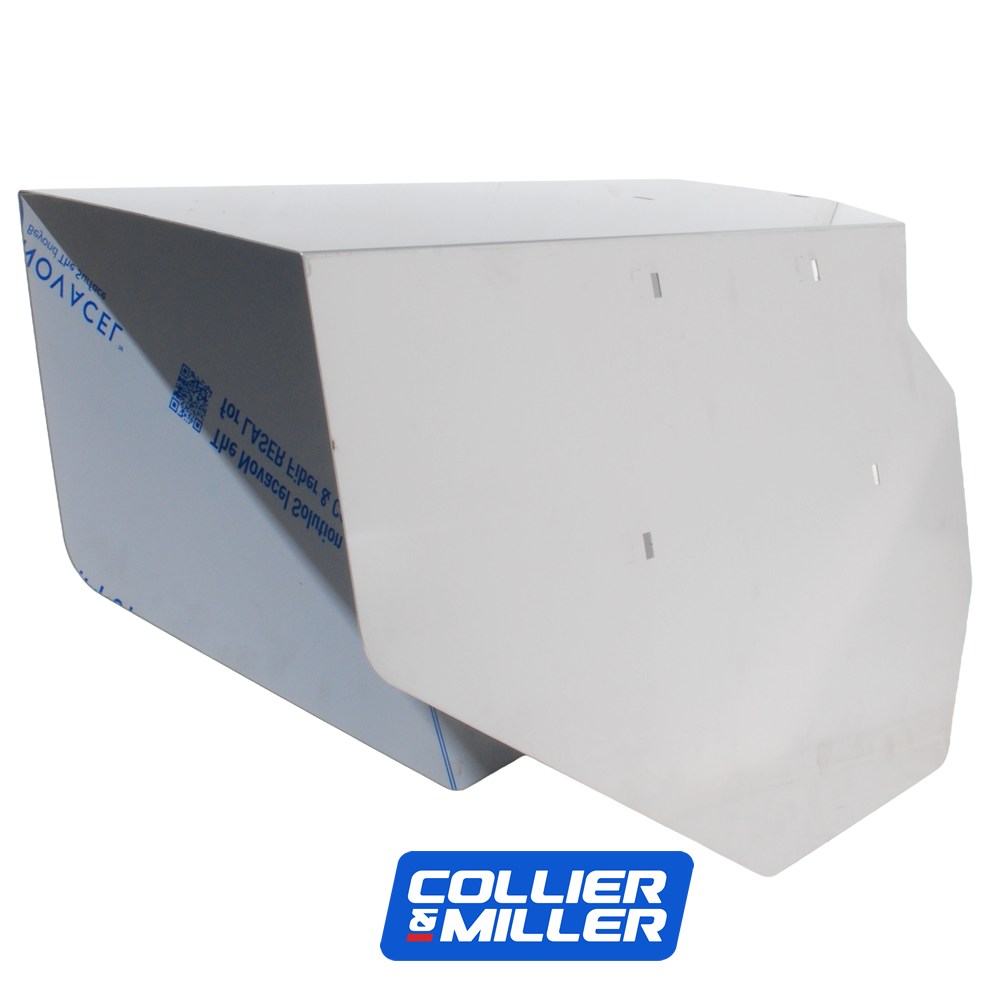

Case-IH® Compatible Stainless Steel Spreader Deflector (Left Hand)
Optimise your residue management system with this premium aftermarket left-hand spreader deflector. Specifically engineered for Case-IH® Flagship series Axial-Flow combine harvesters, this high-performance component is the professional solution for repairing worn deflectors in the residue discharge area.
Manufactured in Australia by XTD Engineering, this deflector is precision laser-cut from heavy-duty 2mm stainless steel to deliver superior abrasion resistance under the constant wear of high-velocity straw and chaff. While standard factory panels suffer from rapid thinning and premature failure, this extended-wear replacement provides a solution that maintains its profile, keeping your machine in top condition for a significantly longer service life.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 84131356, 51522801
Spreader Deflector Compatibility: Case-IH Flagship Series
| Series |
Models |
Specification |
| Case-IH® 230 Series |
7230, 8230, 9230 |
Left Hand Side Only |
| Case-IH® 240 Series |
7240, 8240, 9240 |
Left Hand Side Only |
| Case-IH® 250 Series |
7250, 8250, 9250 |
Left Hand Side Only |
| Case-IH® 260 Series |
7260, 8260, 9260 |
Left Hand Side Only |
Technical Specifications & Features
- Manufacturer: High-performance aftermarket by XTD Engineering (Made in Australia).
- Material: 2mm high-grade Stainless Steel for maximum abrasion resistance.
- Orientation: Dedicated Left Hand (LH) design.
- Fitment: Precision laser-cut profile for an exact direct-fit replacement.
- Wear Rating: Extended wear configuration to handle severe residue friction.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The residue spreader deflector operates in an intense, high-wear zone. Constant scouring from chopped crop material and dust causes the internal surface of factory panels to thin rapidly, which eventually leads to holes and an uneven residue spread pattern. We recommend inspecting the deflector faces for abrasion thinning during every preventative maintenance check to catch worn components before they cause distribution issues in the paddock.
Upgrading to this high-performance stainless steel deflector is a strategic choice to save money on recurring maintenance. The high-density stainless steel surface resists the pitting and material drag common on painted steel panels, ensuring your residue system stays in top condition and delivers a consistent, wide spread for a longer service life.
Installation Tip: Check the Right Hand Side
When replacing the left-hand deflector plate, it is highly recommended to inspect the corresponding Right Hand Spreader Deflector (OEM 84131355). Replacing these plates in pairs ensures uniform friction levels across the residue path, allowing for an identical, balanced throw on both sides of the machine. Check all mounting brackets for structural alignment prior to final bolt-up.
