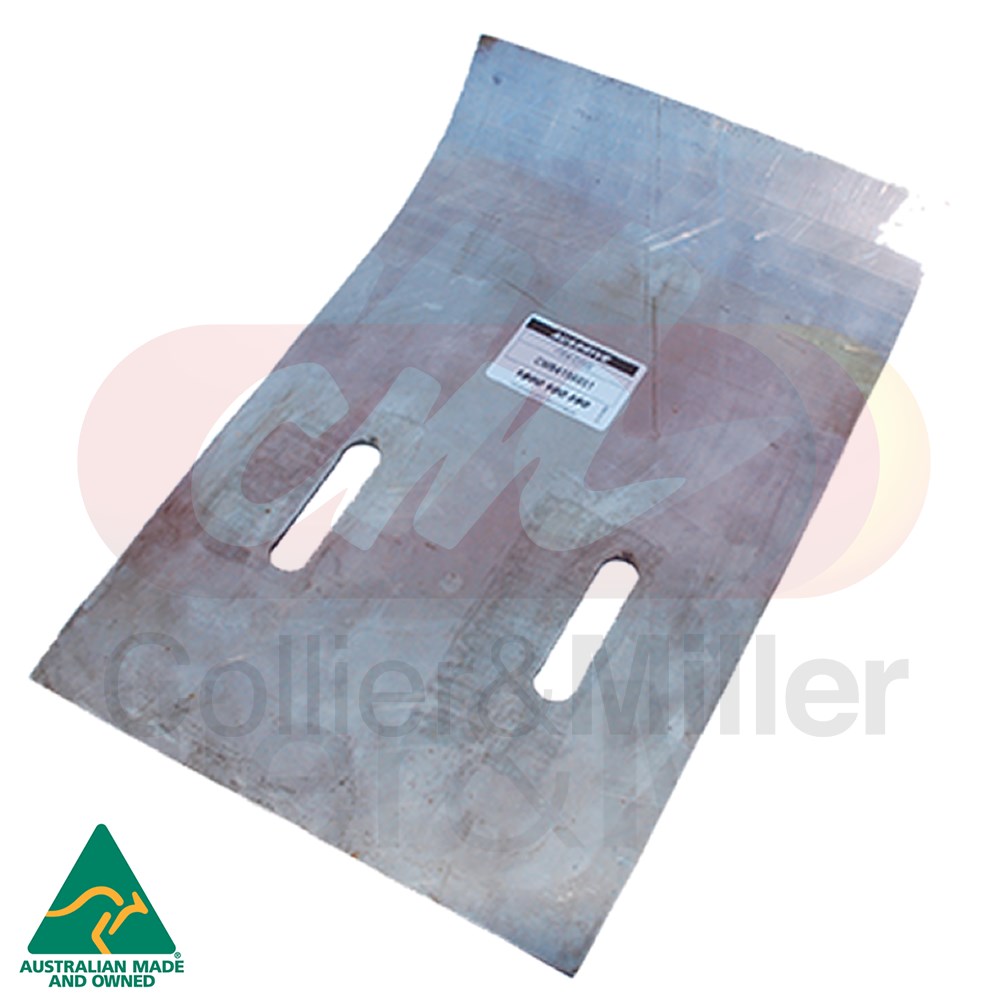

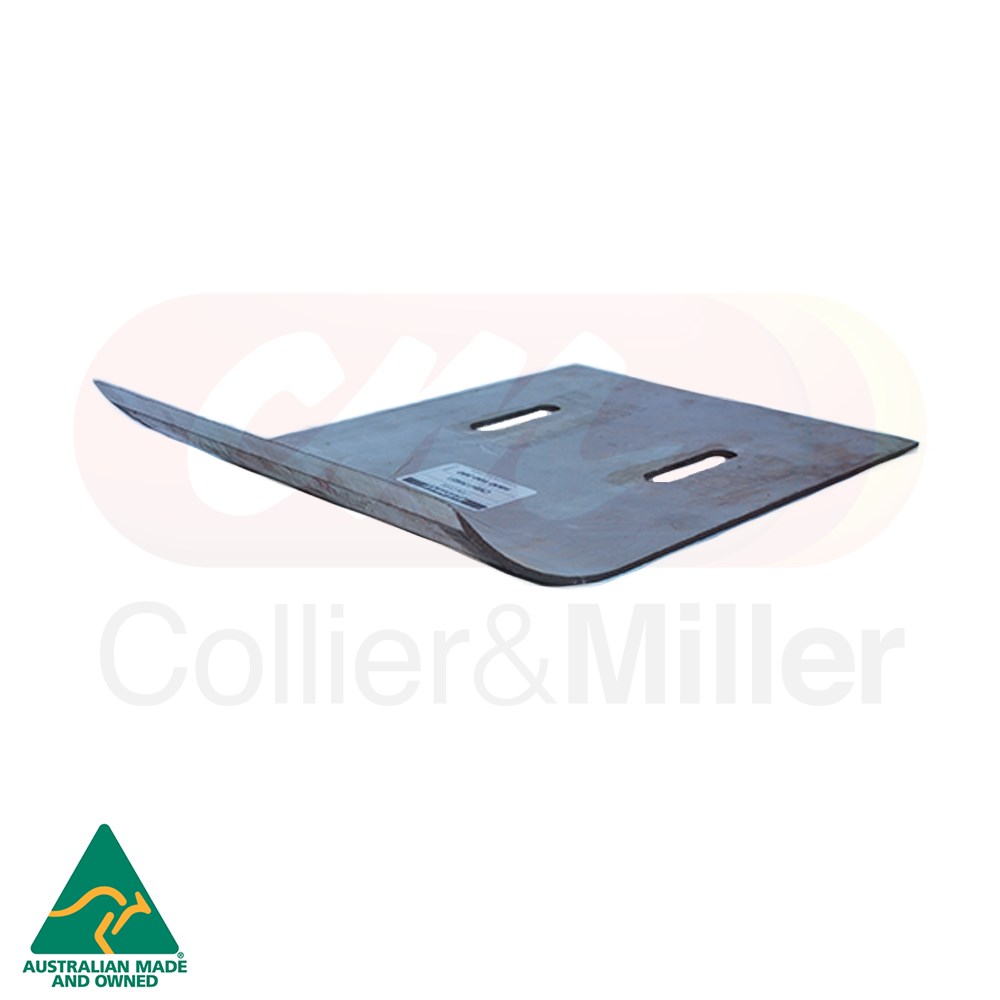

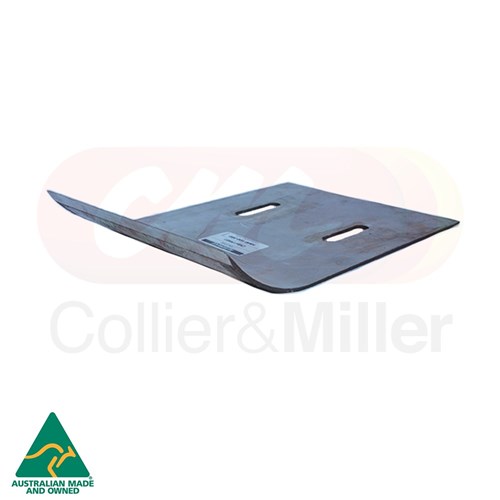

Case-IH® Compatible Stainless Steel AFS Elevator Deflector Plate
Enhance the accuracy of your yield monitoring system with this premium C&M aftermarket stainless steel elevator deflector plate. Specifically designed for early model Case-IH® Axial-Flow combines, this abrasion-resistant component is a critical part of the Advanced Farming System (AFS) grain flow assembly.
Manufactured in our Griffith factory, this deflector plate is engineered to direct grain precisely toward the flow sensor unit. By upgrading to a high-grade stainless steel version, you eliminate the surface pitting and corrosion common with standard plates, ensuring a longer service life and more consistent yield data throughout the harvest season.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 224603A1, 84156951, 87617031
AFS Deflector Plate Compatibility: Case IH Axial-Flow Models
| Series |
Models |
Serial/Reference |
| Case-IH® 2100 Series |
2188 |
AFS Equipped Models |
| Case-IH® 2300 Series |
2377, 2388 |
AFS Equipped Models |
| Case-IH® 2500 Series |
2588 |
AFS Equipped Models |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made for precision farming applications.
- Material: High-grade Stainless Steel for superior abrasion resistance.
- Application: Designed for machines fitted with AFS (Advanced Farming System) yield monitoring.
- Function: Deflects clean grain toward the flow sensor for accurate yield mapping.
- Wear Rating: Extended wear configuration for high-volume grain flow.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The elevator deflector plate is vital for maintaining the calibration of your yield monitor. If this plate becomes worn, grooved, or corroded, it changes the trajectory of the grain as it hits the sensor, leading to inaccurate data. We recommend inspecting the surface finish of this plate during every preventative maintenance cycle.
Replacing a worn factory plate with this stainless steel version is a high-performance upgrade that maintains a smooth, consistent surface for much longer. This ensures your grain flow sensor receives a predictable stream of grain, keeping your machine in top condition and your harvest data reliable even in abrasive crops.
AFS Precision Tip
When installing the new deflector plate, ensure the mounting angle matches the OEM specifications exactly. Even a slight tilt can impact how the grain strikes the flow sensor plate. Regularly cleaning any sap or dust buildup from the stainless surface will also help maintain maximum sensor accuracy.
