Case-IH® 3016 Compatible Pickup Belt Metal Joiner Strip
Enhance the high-capacity feeding performance of your header with this premium C&M Australian-made pickup belt metal joiner strip. Specifically engineered for Case-IH® 3016 pickup headers, this high-strength stainless steel strap is the professional solution for securing the wide 59.64" pickup belts.
Manufactured in our Griffith factory from 3mm stainless steel, this extended wear joiner is designed to work in conjunction with overlap-style belt joins. By providing a reinforced bridge across the connection, it distributes clamping pressure evenly, significantly reducing belt stress and preventing the fasteners from pulling through the material. This ensures your belts remain in top condition for a longer service life.
Case-IH® OEM Cross-Reference & Fitment
Replaces OEM Part Number: 84203802
Metal Joiner Compatibility: Case-IH 3016 Pickup Header
| Series |
Model |
Year / Reference |
| Case-IH® Pickup Header |
3016 (15' Width) |
06/10 - Current |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: 3mm heavy-duty Stainless Steel for superior abrasion resistance.
- Dimensions: Length = 504mm | Width = 32.5mm | Thickness = 3mm.
- Belt Application: Fits the large 59.64" wide pickup belts.
- Versatility: Pre-punched to accept both genuine Case-IH and C&M aftermarket hole spacings.
- Requirement: 3 straps required per belt (9 total for a full 15' pickup front).
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review

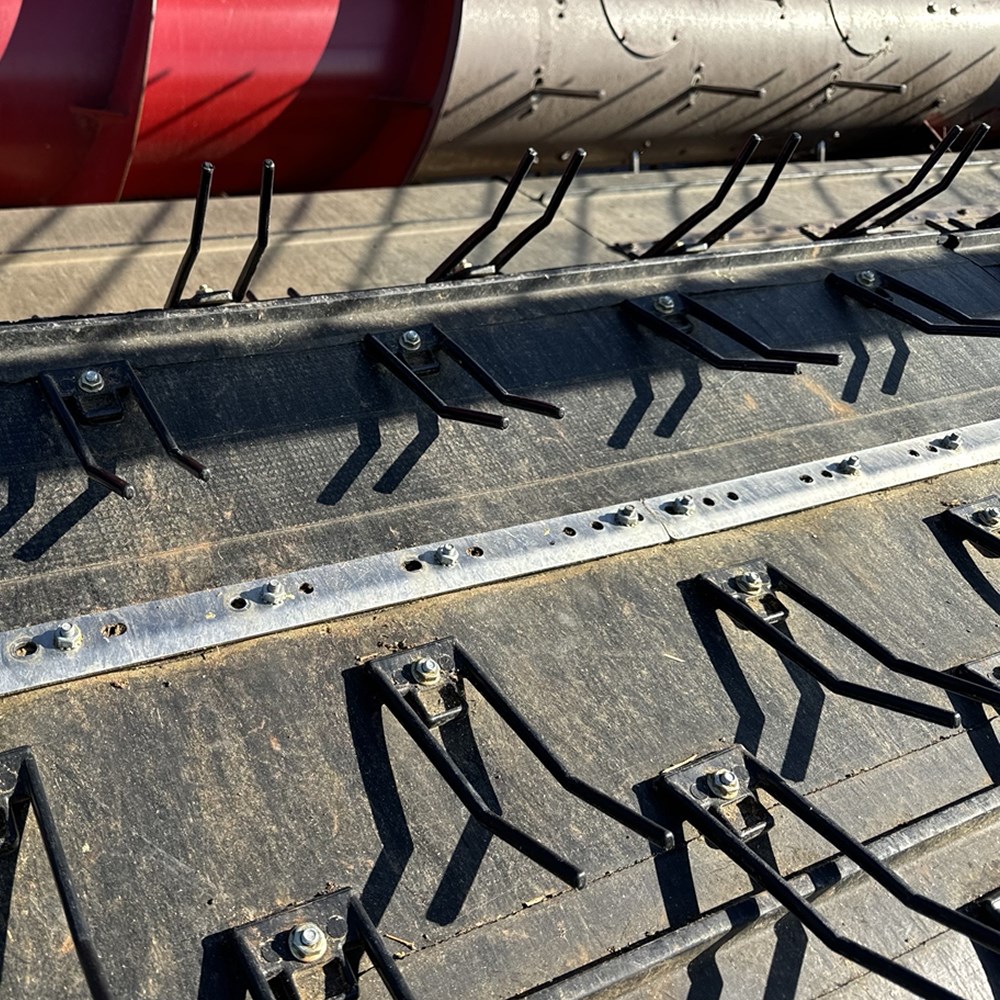

The belt joiner strip is a critical stress point in the product feeding assembly. For wide 59.64" belts, maintaining a perfectly square and high-strength join is essential to prevent belt "walking" and uneven tracking. We recommend inspecting the joiner fasteners for tightness and the stainless surface for abrasion thinning during every preventative maintenance check.
Upgrading to this high-performance stainless steel strap is a strategic choice to **save money** on belt repairs. The 3mm reinforced profile provides a much more robust mechanical bond than standard light-duty alternatives, keeping your pickup system in top condition through heavy swaths and maintaining maximum throughput during harvest.
Installation Tip: Hole Spacing Flexibility

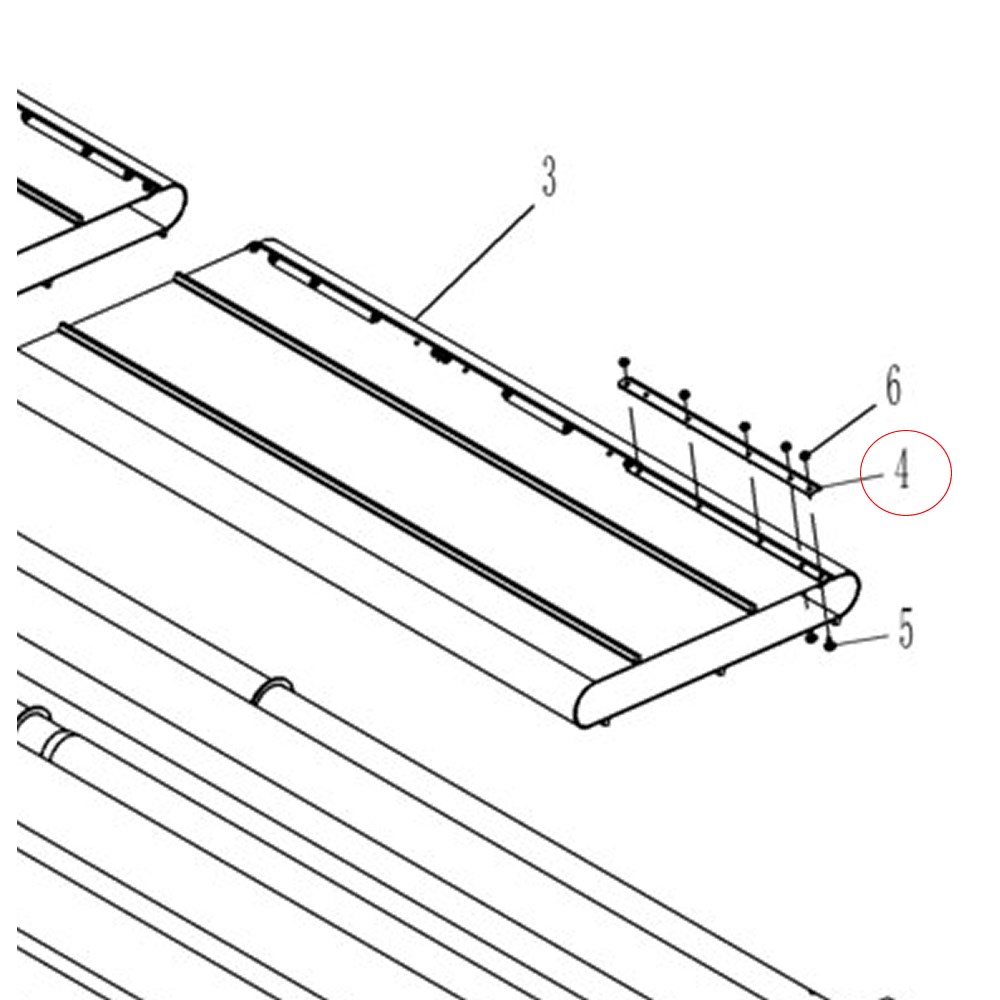

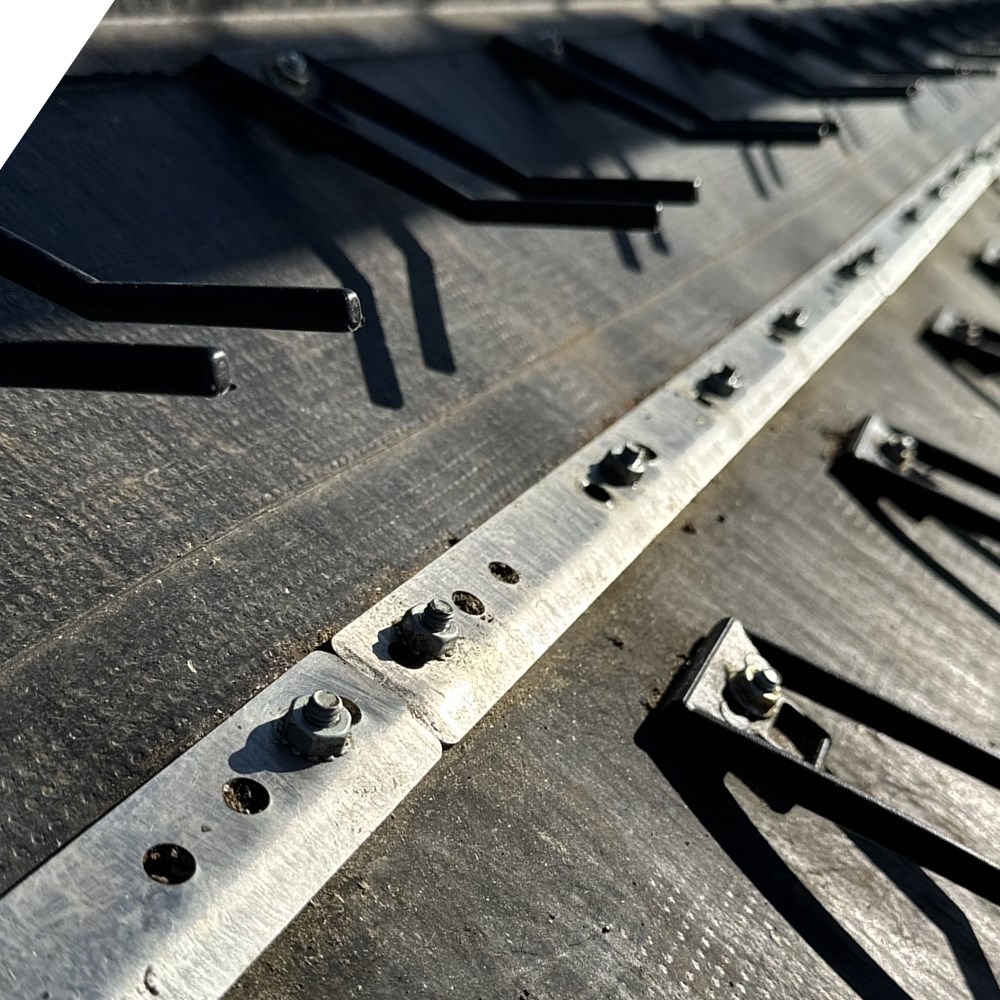

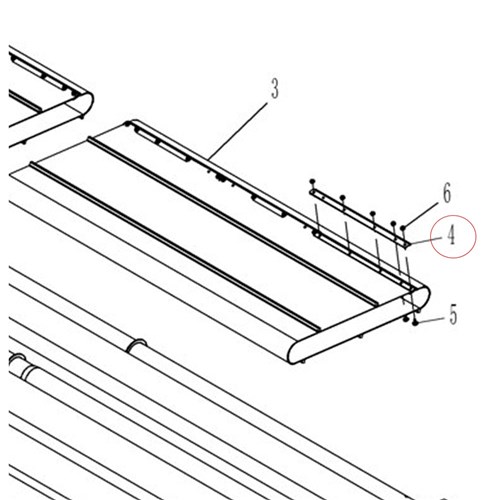

This C&M joiner is uniquely designed with dual-pattern hole punching. Whether you are using original Case-IH belts or the C&M extended wear overlap belts, the pre-drilled holes will align perfectly. Ensure all fasteners are torqued correctly through the 3mm plate to create a high-strength sandwich that eliminates belt slippage.
