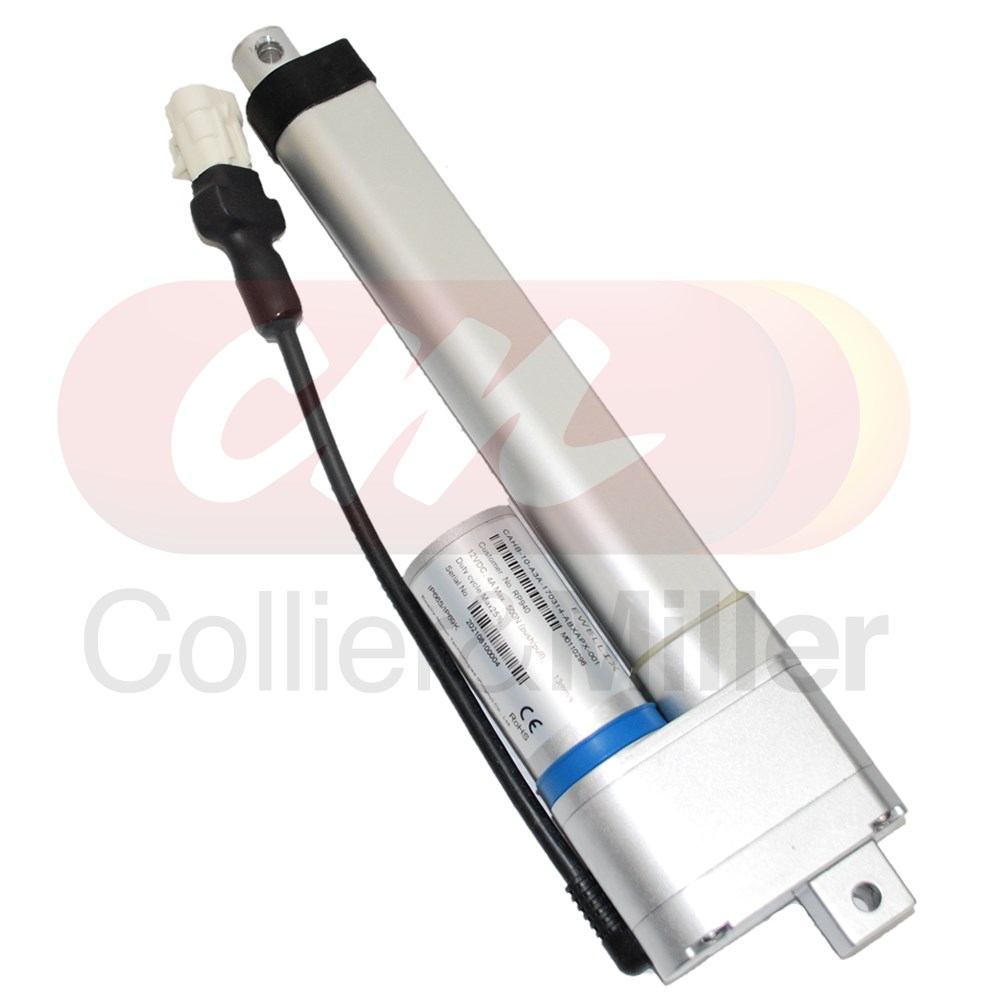

CASE-IH® & New Holland® Compatible Electric Sieve & Chaff Spreader Actuator
Upgrade or replace your remote adjustment system with this heavy-duty 12V linear electric actuator. Engineered specifically for CNH flagship combine harvesters, this 500N force push/pull actuator allows for precise, cab-controlled adjustments of your cleaning system and residue equipment.
Designed to withstand the most extreme harvest conditions, this actuator features high-strength
steel gearing to prevent gear stripping and carries an
IP66/IP69 protection rating for maximum resistance against dust and high-pressure water. Whether adjusting sieve openings, chaff spreader angles, or straw hood positions, this unit ensures reliable operation without the need for manual intervention.
Model Compatibility & Fitment
Replaces OEM Part Numbers: 47421232, 84208481, 87711042
Case IH 8240, 9250 and New Holland CR8090, CX8080 Sieve and Chaff Spreader Actuator Compatibility
| Series |
Models |
Serial/Year |
| Case-IH® Flagship |
7120, 8120, 9120, 7230, 8230, 9230, 7240, 8240, 9240, 7250, 8250, 9250 |
120, 230, 240, 250 Series |
| New Holland® CR |
CR6090, CR7090, CR8070, CR8090, CR9040, CR9060, CR9070, CR9080, CR9090 |
CR Series |
| New Holland® CX |
CX7080, CX8070, CX8080, CX8090 |
CX Series |
Multi-Location Application

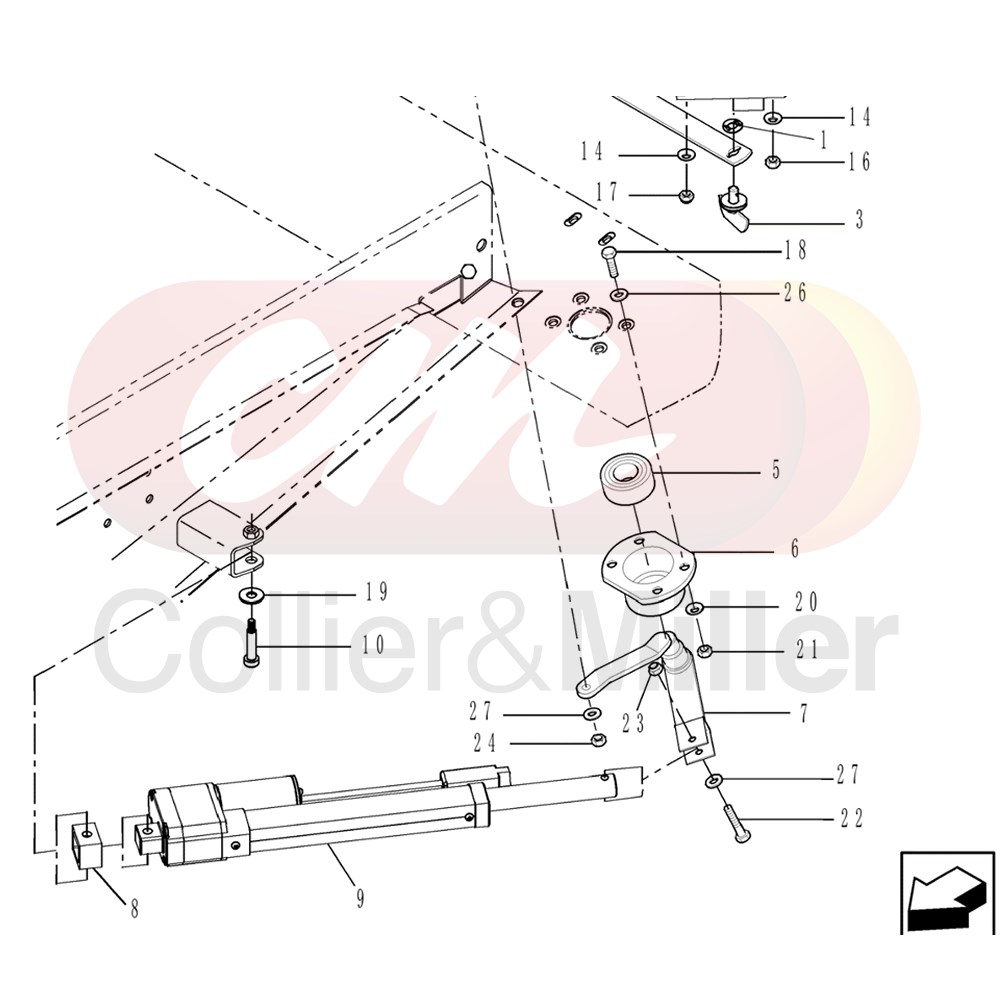

- Sieve Adjustment: Remote Upper & Lower Sieve (Ref: 74.114.03, 74.118.04).

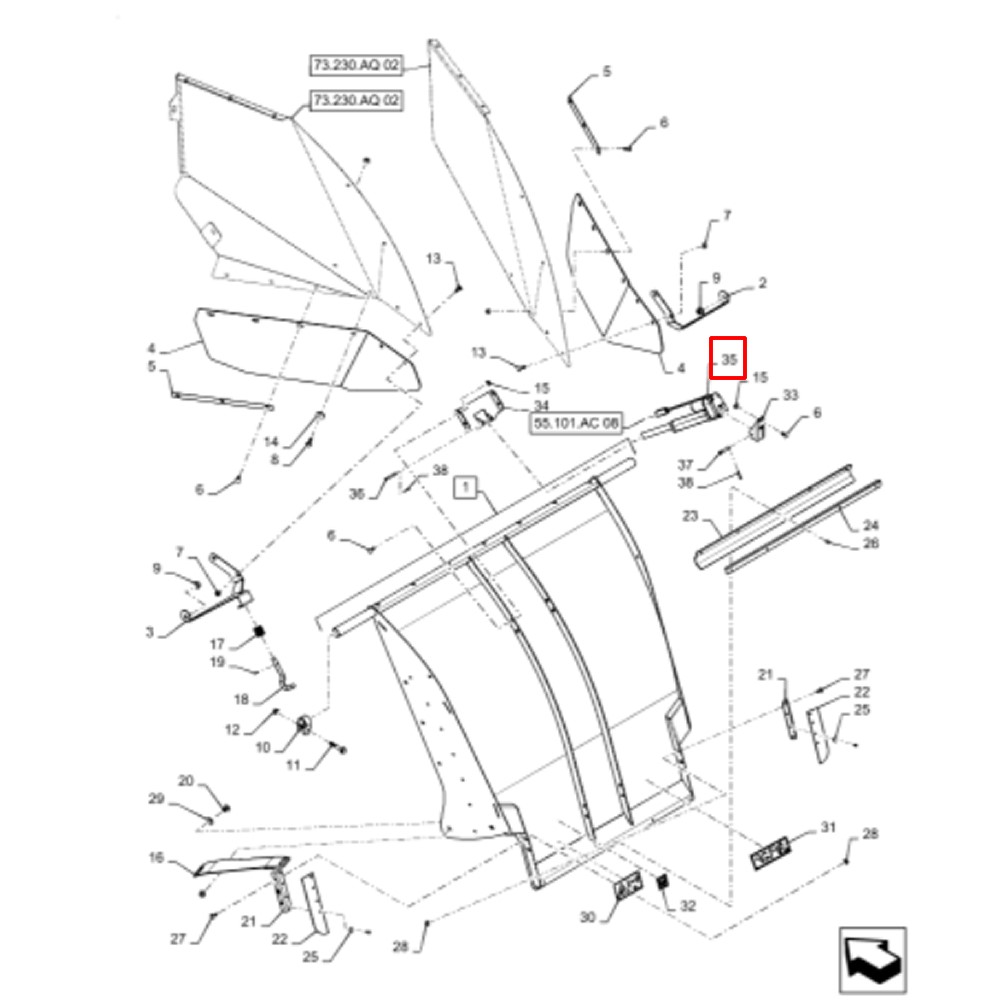

- Residue Management: Chaff Spreader spread angle adjustment.
- Discharge Control: Straw Hood positioning and adjustment.
Technical Specifications
- Drive System: Precision steel gears for high-torque and anti-strip protection.
- Environmental Protection: IP66/IP69 rated for dust-tight and high-pressure washdown.
- Performance: 500N Push/Pull force with 12V DC motor.
- Available for fast Australia-wide dispatch from Collier & Miller.
