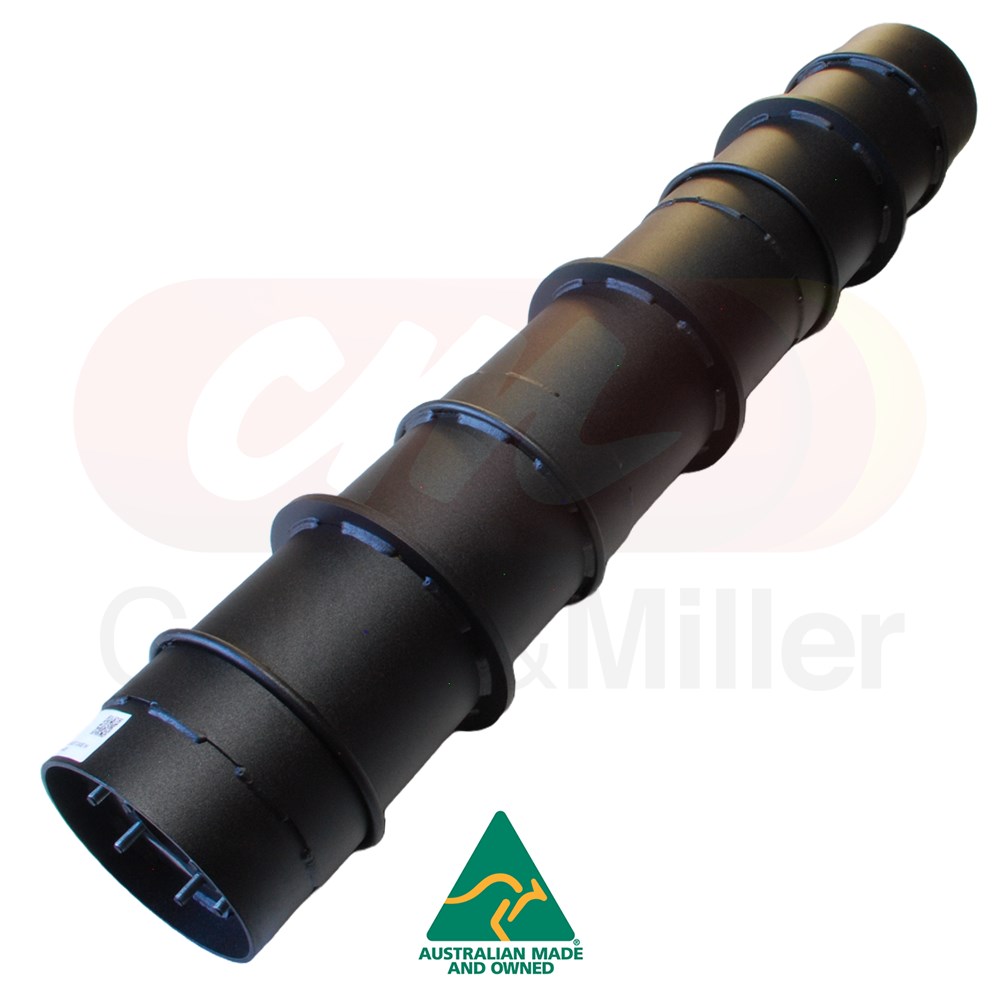

Case-IH® Compatible Feeder Drum Tube Assembly (Support Rings)
Maintain smooth, reliable crop flow with this premium C&M Australian-made feeder drum tube assembly. Engineered to suit Case-IH® Flagship Axial-Flow combines fitted with standard U-bar feeder chains, this heavy-duty replacement is built to withstand the demands of high-capacity harvesting while helping reduce machine downtime.
Manufactured in our Griffith, NSW engineering workshop from premium materials, this feeder drum features precision-welded support rings that provide positive support for U-bar feeder chain slats. The heavy-duty construction improves durability, promotes consistent crop feeding and delivers a longer service life in demanding Australian harvesting conditions.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 84294425, 51552581
Feeder Drum Compatibility: Case IH Axial-Flow Flagship (U-Bar Systems)
| Series |
Models |
Fitment Notes |
| Case-IH® 120 Series |
7120, 8120, 9120 |
Standard Fitment |
| Case-IH® 230 Series |
7230, 8230, 9230 |
Standard Fitment |
| Case-IH® 240 Series |
7240, 8240, 9240 |
Models up to 10/2017 only |
*Important: This feeder drum is designed for machines fitted with standard U-bar feeder chains. It is not suitable for later 240 Series or 250 Series combines equipped with heavy cast-bar feeder chains.
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.

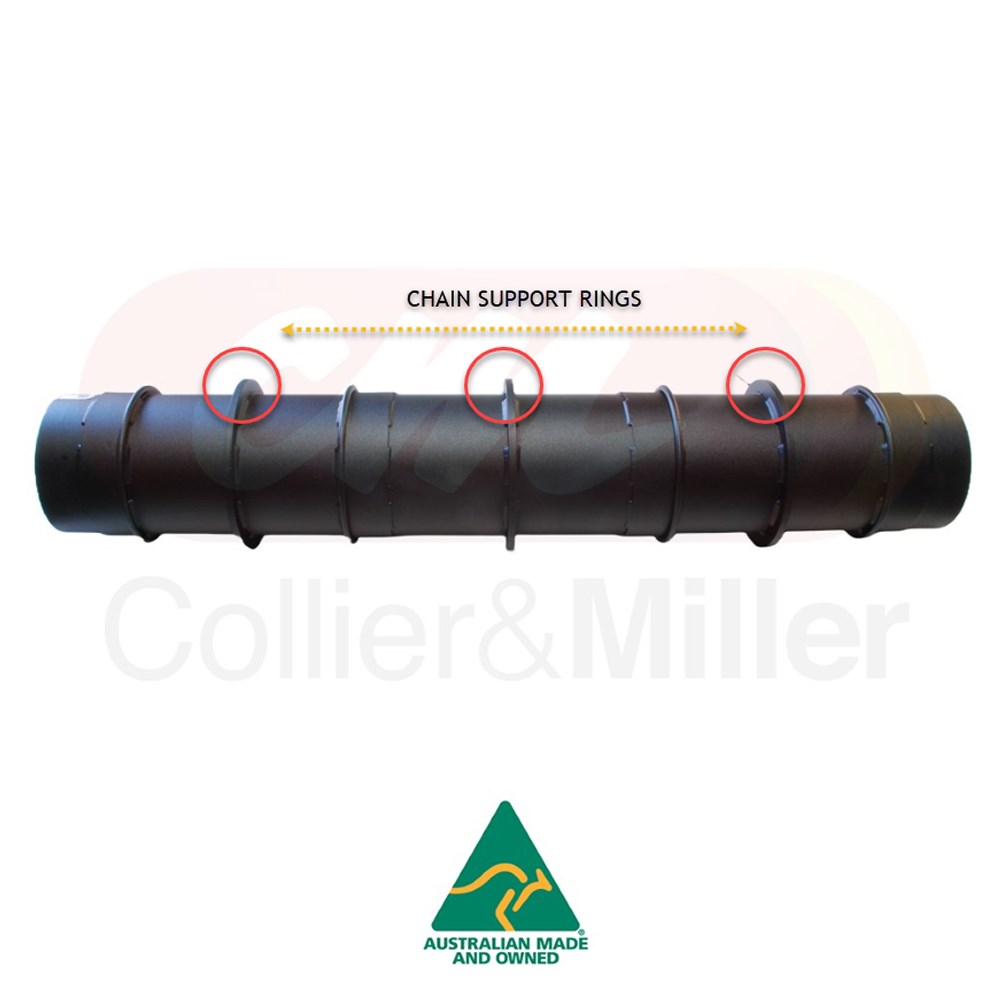

- Construction: Heavy-duty feeder drum with precision-welded support rings.
- Tube Dimensions: 203mm diameter with 4mm wall thickness.
- Chain Configuration: Designed specifically for U-bar feeder chain systems.

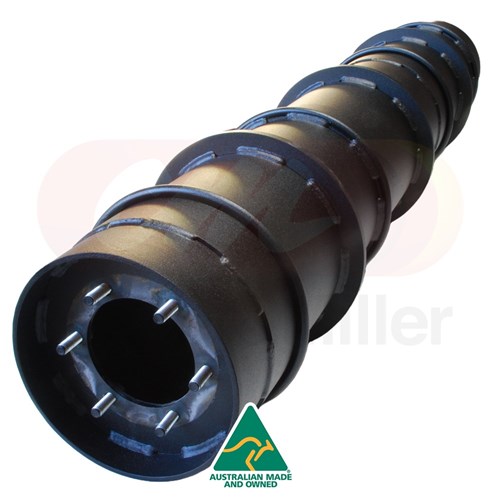

- Mounting: Supplied with M10 x 1.5mm mounting studs.
- Performance: Promotes smooth feeder chain operation and consistent crop flow.
- Dispatch: In stock and ready to ship Australia-wide.
The C&M Difference
Every C&M Australian-made product is manufactured in our Griffith, NSW engineering workshop and enhanced using more than 80 years of engineering experience supporting Australian agriculture. We don't make changes for the sake of it. Every improvement is made with a clear purpose — to deliver a product that is better performing, longer lasting or better value for Australian farmers.
Whether it's selecting premium materials, strengthening critical wear areas or refining our manufacturing methods, every enhancement is focused on reducing machine downtime, extending service life and helping you get more from your equipment.
Expert Maintenance Review
The feeder drum is a critical component responsible for maintaining smooth crop flow from the front of the machine into the rotor. On combines fitted with U-bar feeder chains, the support rings help guide and stabilise the feeder chain slats. As these rings wear, crop flow can become inconsistent, increasing the likelihood of chain vibration, slat damage and premature wear of surrounding components.
As part of your preventative maintenance routine, inspect the support rings for uneven wear, scoring and damage, along with checking drum bearings and alignment. Replacing worn feeder drums before failure helps maintain smooth crop feeding, reduces unnecessary stress on the feeder drive system and contributes to reliable harvesting performance throughout the season.
Installation Tip: Verify Your Feeder Chain
Before installation, confirm your combine is fitted with a standard U-bar feeder chain. If your machine has been upgraded to a heavy cast-bar feeder chain, use the C&M ringless feeder drum (Part No. 51552615). Correct drum selection ensures proper feeder chain alignment, smooth crop flow and maximum service life.
