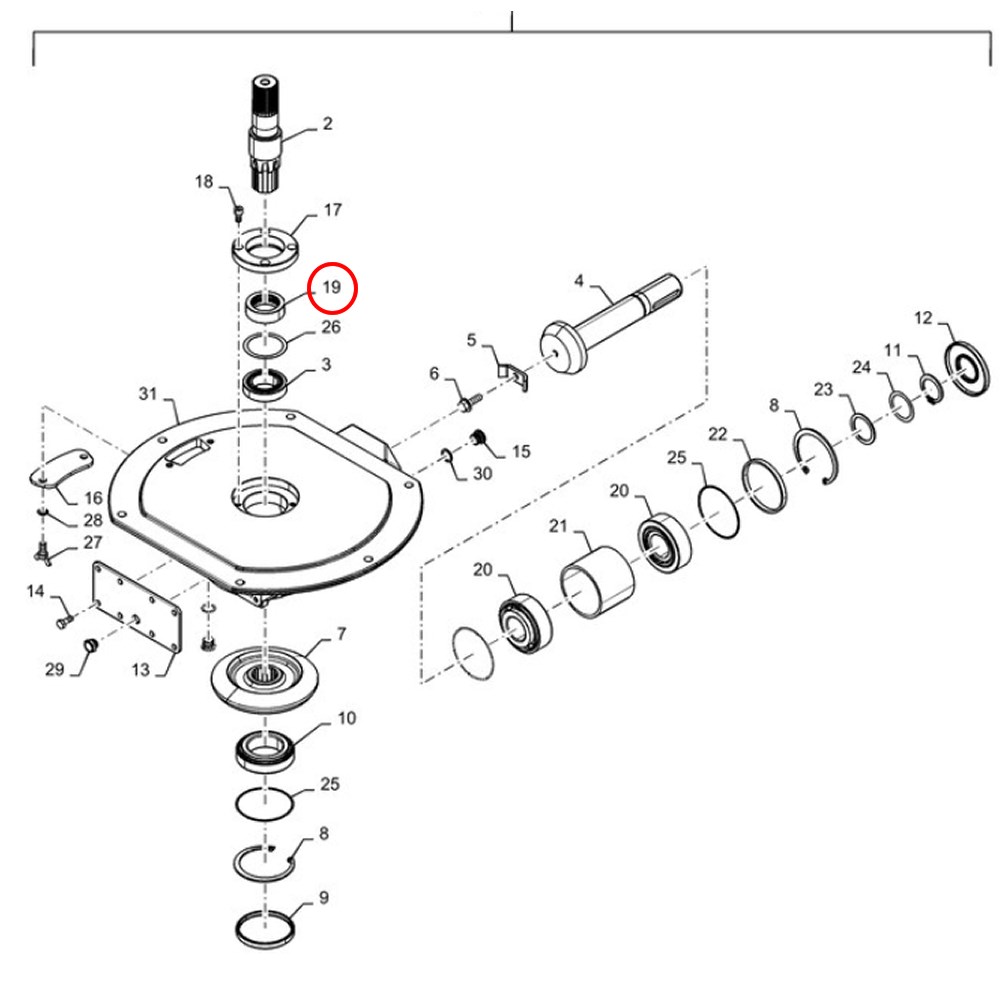

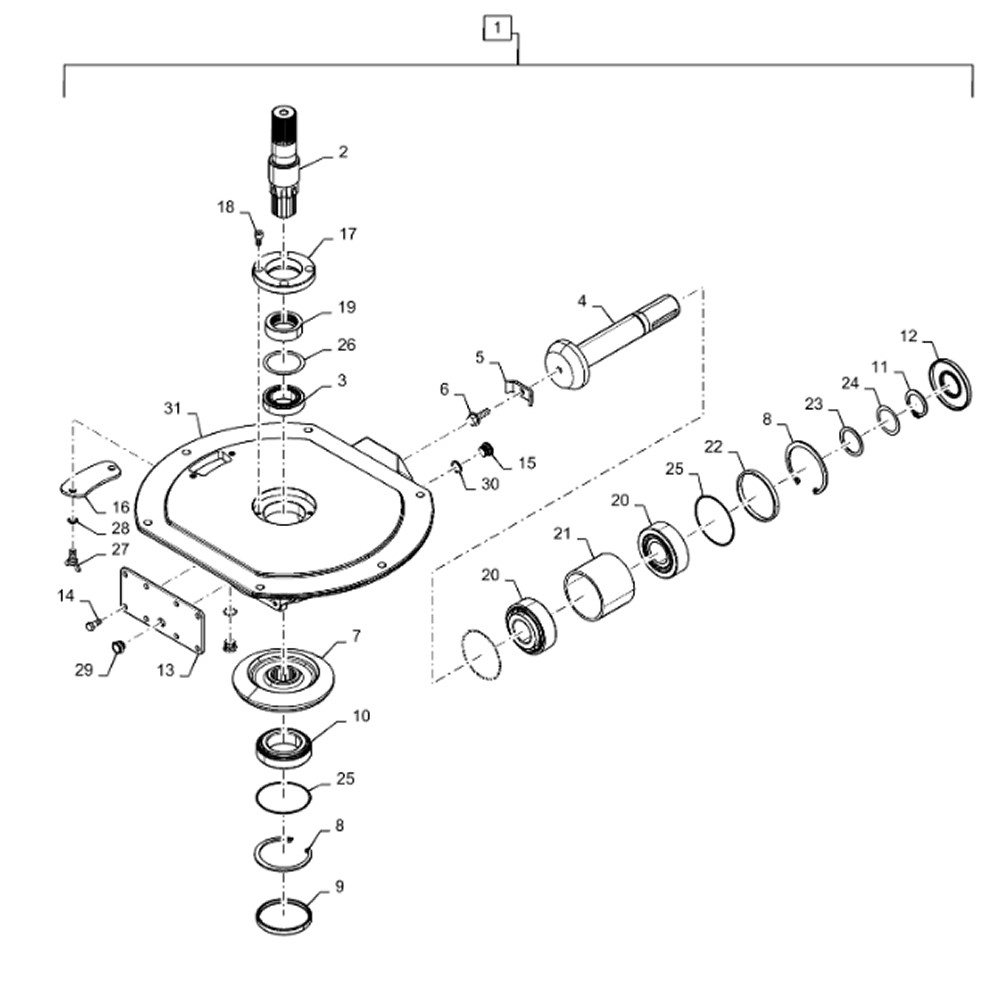

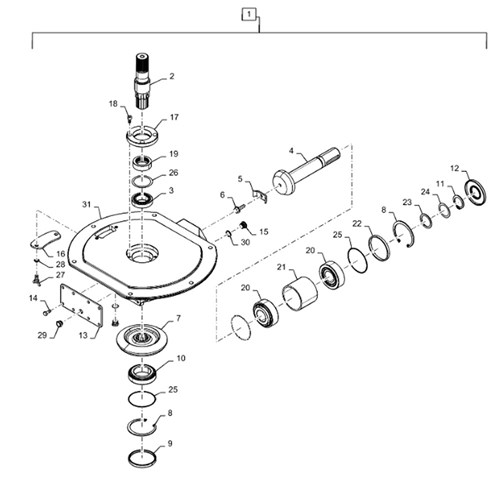

Genuine Comer replacement seal for unload auger gearbox's on CNH Combine harvesters. This genuine Comer suits the output shaft of the Vertical unload auger gearbox, keeps you going during harvest without requiring a full rebuild.

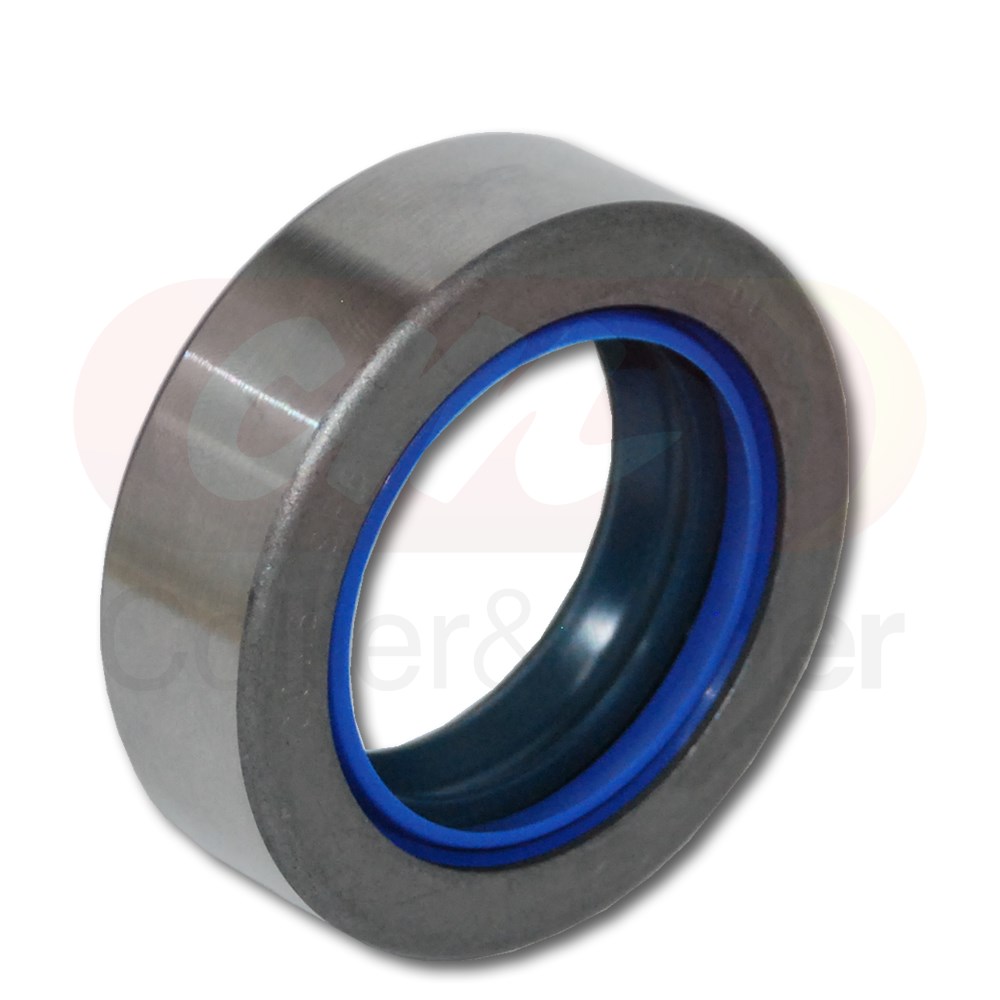

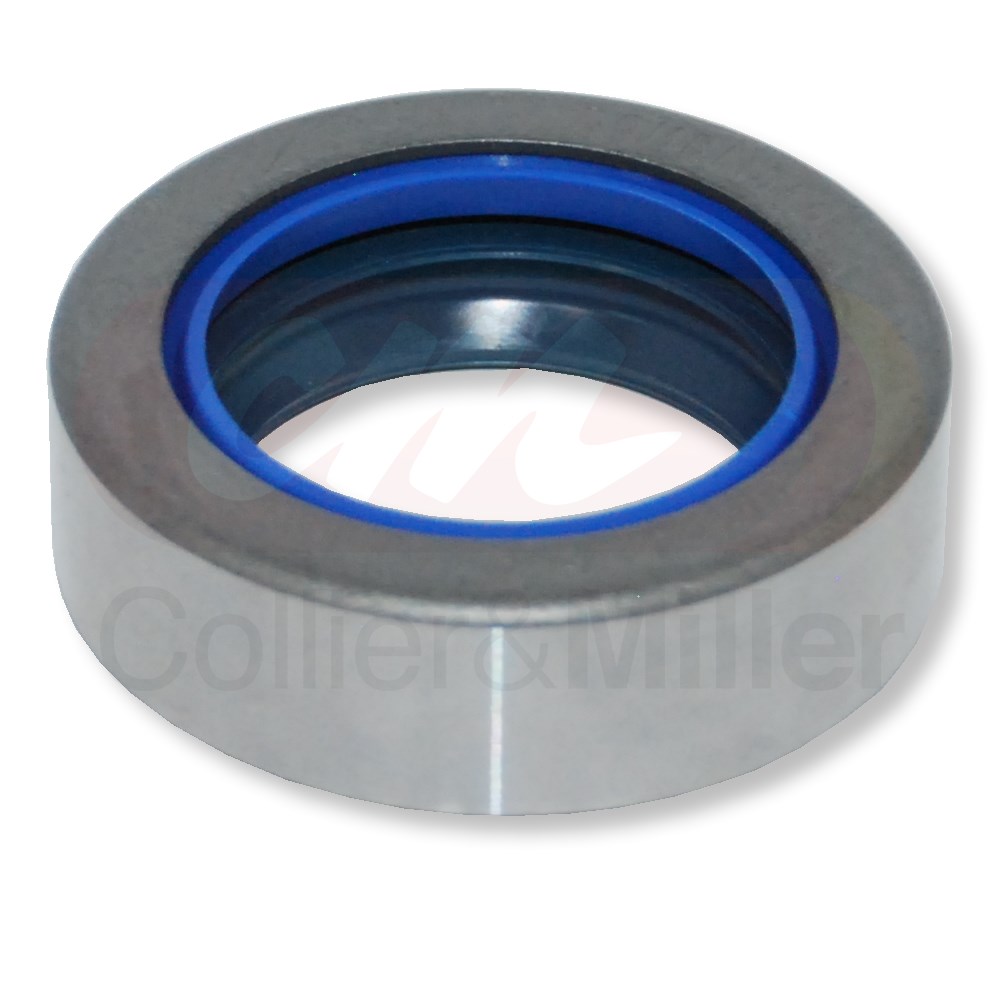

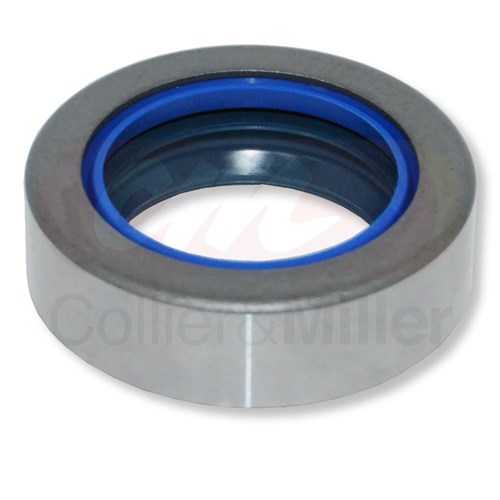

Seal wearing is a common problem which allows water and other contaminants into the gearbox causing failure to bearings and major components. Measuring 38.9mm ID x 60mm OD x 18.5mm W the seal has a specific lip style to help prevent contamination getting into the gearbox. Also available are rebuild kit's for the output shaft of both the Standard (21 spline) Prt # CM84320052R and High Flow (24 spline) Prt # CM84262053R.
Part number
CASE
| Series |
Models |
Serial/Year |
| 10 Series |
7010, 8010, 8010AFX |
|
| 20 Series |
7120, 8120 |
|
| 30 Series |
5130, 6130, 7130, 7230, 8230, 9230 |
|
| 40 Series |
5140, 6140, 7140, 7240, 8240, 9240 |
|
| 50 Series |
5150, 6150, 7150, 7250, 8250, 9250 |
|
| 88 Series |
5088, 6088, 7088 |
|
NEW HOLLAND
| Series |
Models |
Serial/Year |
| CR |
CR6090 A4 - TIER4 COMBINES (12/11 - 10/13) |
|
| CR7.80 |
CR7.80 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 12/18) |
|
|
CR7.80 E4B - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 10/19) |
|
| CR7.90 |
CR7.90 .I2 - REVELATION COMBINE - TIER 2 (APAC/LATAM) (10/21 - ) |
|
|
CR7.90 A4A - REVELATION COMBINE - TIER 4A (NAFTA) (10/17 - 12/18) |
|
|
CR7.90 D4 - COMBINE - TIER 4A (APAC) (02/15 - 12/17) |
|
|
CR7.90 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 09/19) |
|
|
|
|
|
|
|
|
|
|
|
|
|
- 20 series - CX720, CX820
- 30 series - CX8030
- 40 series - CR940, CR9040, CX740, CX840, CX8040
- 50 series - CX8050
- 60 series - CR960, CR9060, CX760, CX860, CX8060
- 70 series - CH7.70, CR8070, CR970, CR9070, CX8.70, CX8070
- 80 series - CR7.80, CR8.80, CR9.80, CR980, CR9080, CX6.80, CX5080, CX6080, CX7.80, CX7080, CX8.80, CX880, CX8080
- 90 series - CR6090, CR7.90, CR7090, CR8.90, CR8090, CR9.90 CR9090, CR10.90, CX5090, CX5.90, CX6.90, CX6090, CX780, CX8.90, CX8090
