Case-IH® Compatible Reinforced Stainless Steel Front Rotor Bearing Plate

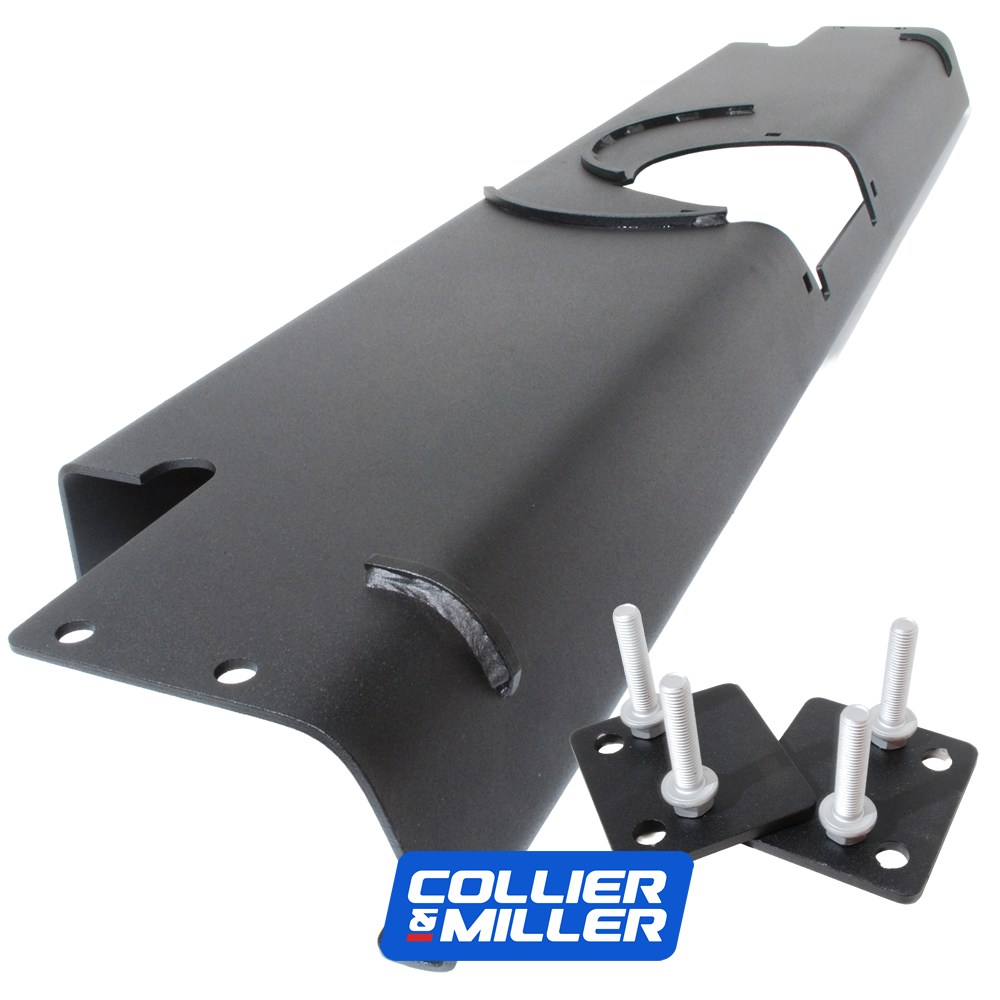

Keep your Case-IH® threshing system operating smoothly with this premium C&M Australian-made reinforced stainless steel front rotor bearing mounting plate. Specifically engineered to solve common plate failures in Flagship Axial-Flow combines, this high-performance plate provides a high-strength foundation for the primary rotor support system.
A frequent issue with standard plates is fatigue cracking around the mounting holes and structural thinning due to abrasive wear, which leads to rotor instability and potential damage. This C&M assembly addresses these weaknesses by utilising a 5mm high-grade stainless main plate coupled with two (2) 8mm stainless steel reinforcing plates. This unique design provides superior corrosion resistance and extended wear properties, ensuring your rotor stays perfectly aligned and keeping your machine in top condition.
Case-IH® OEM Cross-Reference
Upgraded Replacement for OEM Part Number: 87106336
Reinforced Bearing Plate Compatibility: Case IH Flagship Series
| Series |
Models |
Reference |
| Case-IH® 10 / 120 Series |
7010, 8010, 7120, 8120, 9120 |
Standard Fitment |
| Case-IH® 230 / 240 Series |
7230, 8230, 9230, 7240, 8240, 9240 |
Standard Fitment |
| Case-IH® 250 / 260 Series |
7250, 8250, 9250, 7260, 8260, 9260 |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Main Plate: 5mm high-grade Stainless Steel for maximum corrosion resistance.
- Reinforcement: Includes 2 x 8mm Stainless Steel plates to eliminate fatigue cracking.
- Hardware: Supplied with 4 x Class 12.9 (16mm x 70mm) high-tensile flange mounting bolts.
- Precision: Laser-cut for exact alignment with the OEM bearing housing.
- Longevity: Extended wear design prevents the structural failures common in factory units.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The front rotor bearing plate is a critical stress point. Original units are notoriously subject to cracking across the four mounting holes due to harmonic vibration and off-season rust weakening the metal. We recommend inspecting the mounting area for hairline fractures during every preventative maintenance check. If left unaddressed, a failed plate can lead to catastrophic damage to the rotor drive and transition cone.
Upgrading to this reinforced stainless steel assembly is a high-performance choice to save money on potential rotor drivetrain failure. The combination of 5mm and 8mm stainless steel creates a high-strength sandwich that resists "flex-fatigue" while providing extended wear. This keeps your threshing system in top condition for a significantly longer service life.

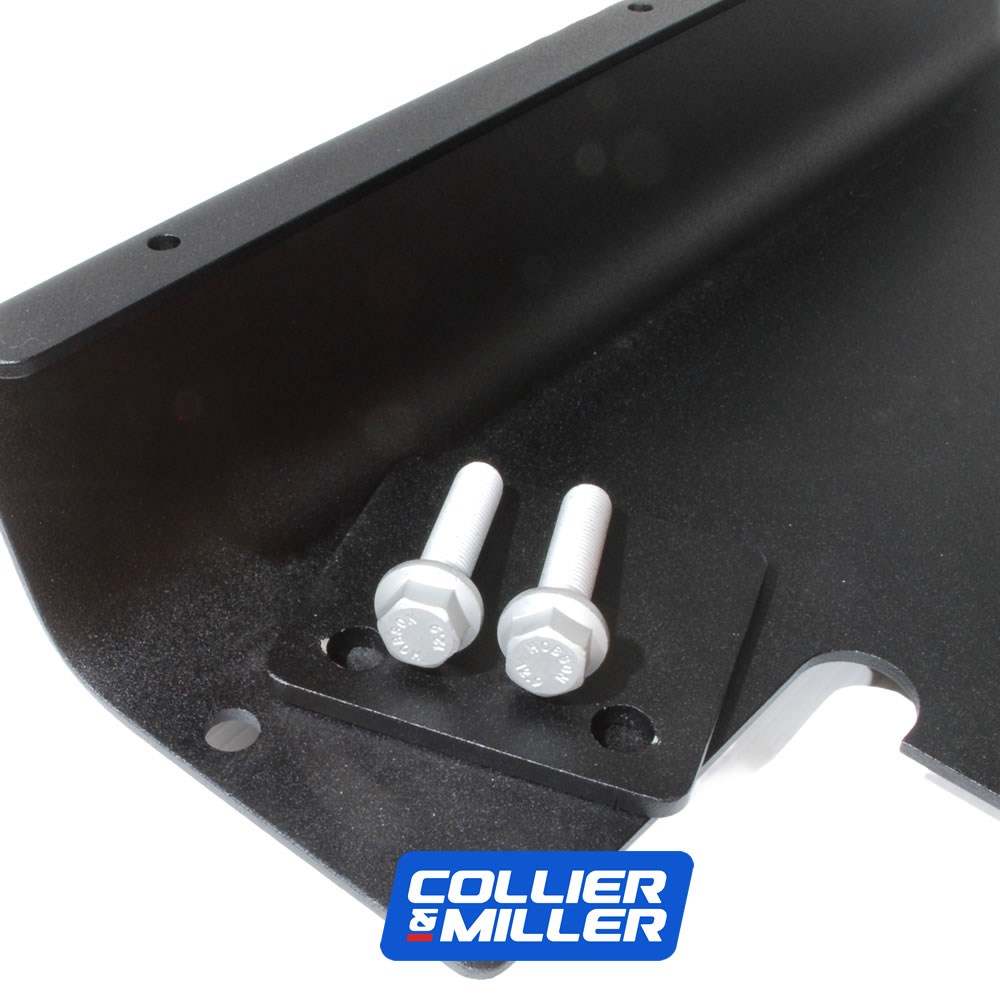

Installation Tip: High-Tensile Fastening
This kit is supplied with Class 12.9 high-tensile bolts. When installing the reinforcement plates, ensure the frame surface is clean and level. Using the provided flange bolts ensures a high-performance mechanical bond that prevents vibration. This is the ideal time to check your rotor drive splines and bearing condition for a trouble-free harvest.
