CASE TOP SIEVE STD LOUVRE

A&I LOWEN MANUFACTURING CASE & NEW HOLLAND

Product Code: CM87109830AI
$2725.00
EACH inc GST
Afterpay Logo
4 payments of $681.25
In Stock Low Stock Out of Stock Please See Attributes 0
Increase value Decrease value

  • Detail
  • Downloads

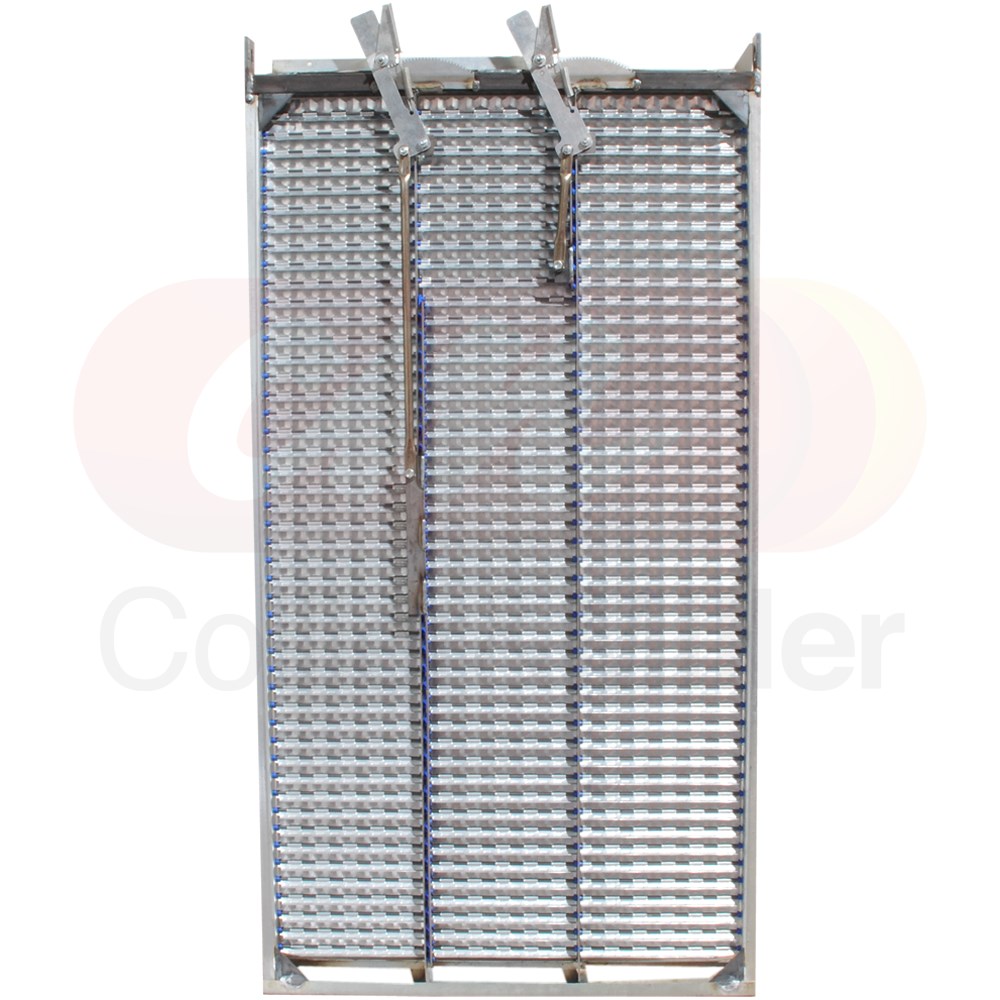

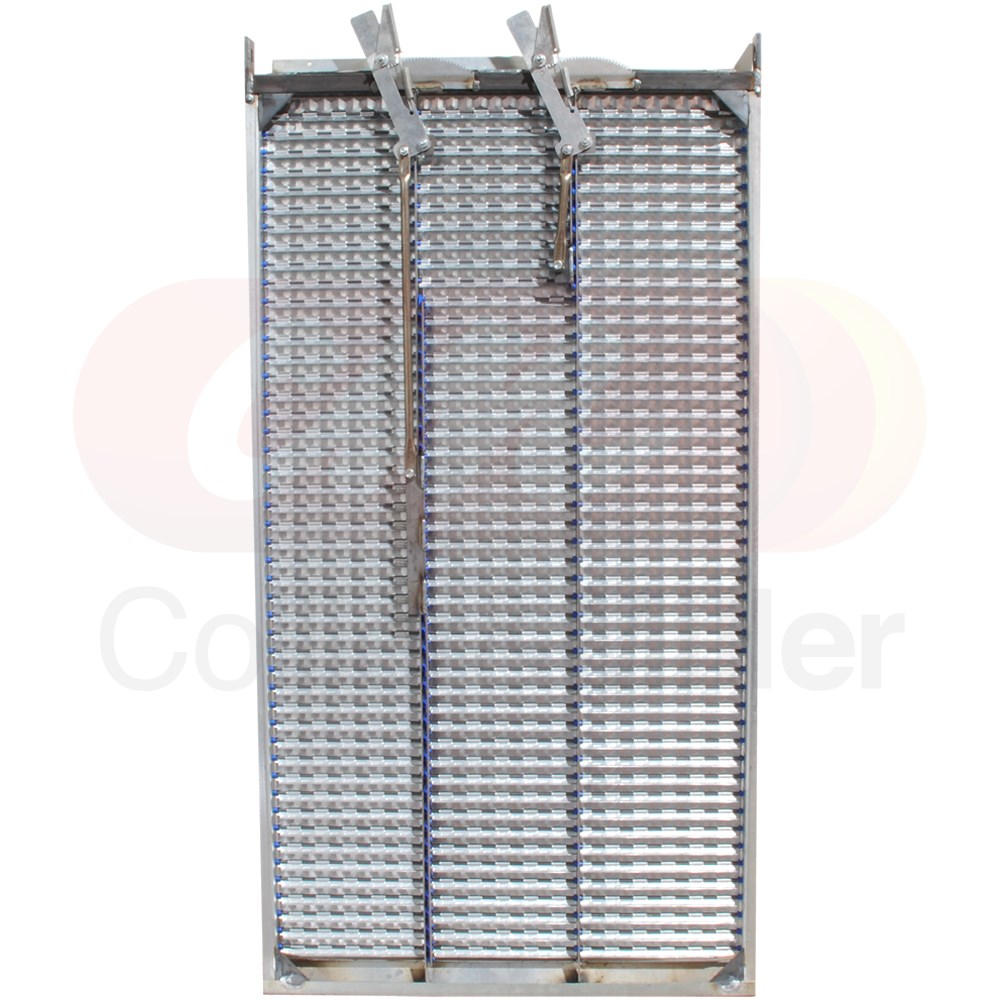

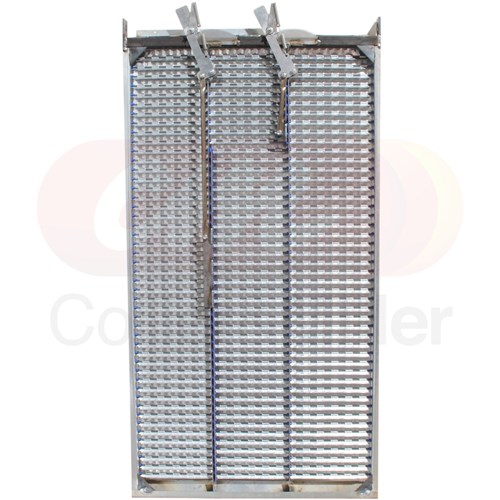

CASE-IH® & New Holland® Compatible Upper Adjustable Blunt Finger Sieve


Optimise your cleaning capacity with this premium A&I Lowen Manufacturing anti-rattle upper (top) sieve. Engineered specifically for Case-IH® Flagship and New Holland® CR/CX combine harvesters, this adjustable blunt finger sieve provides superior durability and performance across most grain crops.

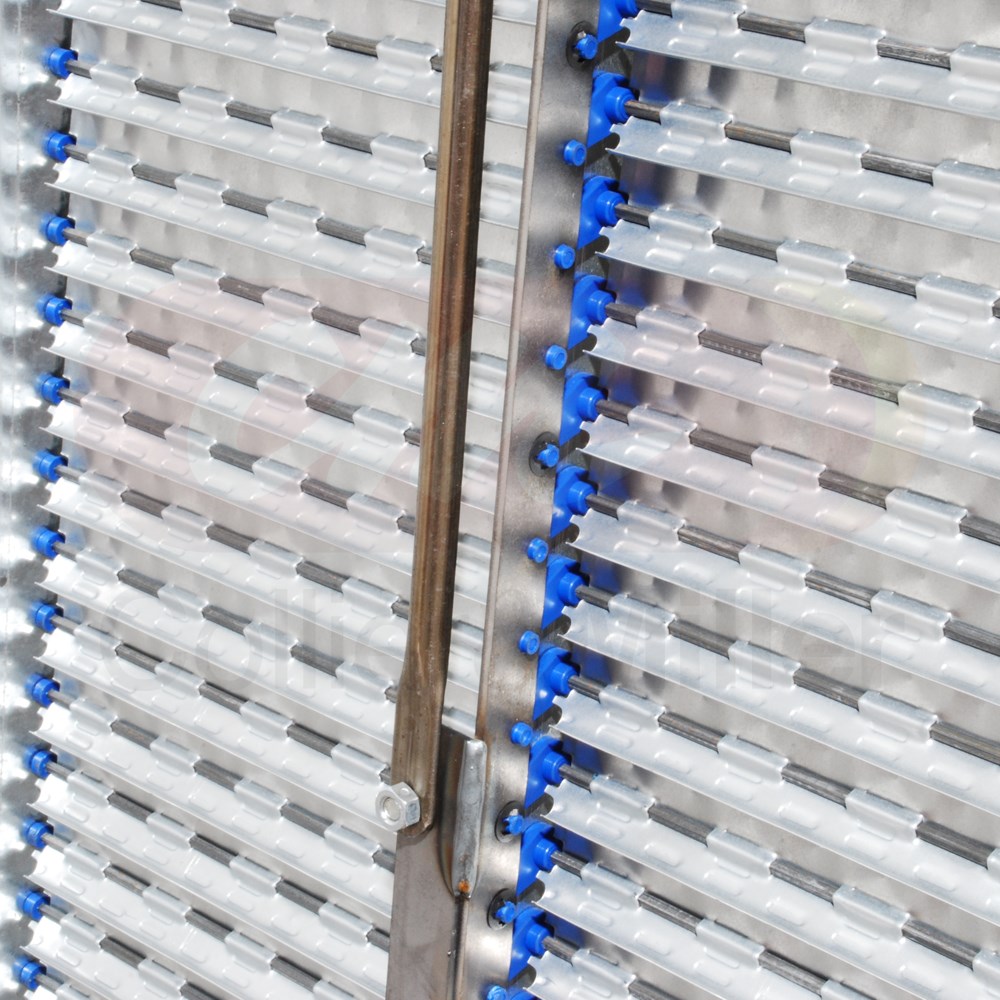

This sieve features the genuine Lowen anti-rattle design, utilising nylon bushings fixed at every pivot point and a unique square-pin configuration to reduce friction and frame wear. Measuring 1433mm L x 784mm W, it is supplied with an adjustable handle assembly but is fully compatible with your existing cab-controlled electric actuator linkages. Note: 2 units are required for a full cleaning shoe set.

Model Compatibility & Fitment

Replaces OEM Part Number: 87109830

A&I Lowen Adjustable Blunt Finger Top Sieve for Case IH 8240, 9230 and New Holland CR9090, CX8.90 Models
Series Models Fitment
Case-IH® Flagship 8010, AFX8010, 7120, 8120, 9120, 7130, 7230, 8230, 9230, 7240, 8240, 9240 Upper Sieve
New Holland® CR CR8090, CR940, CR960, CR970, CR980, CR9060, CR9070, CR9080, CR9090 Upper Sieve
New Holland® CX CX7.80, CX7080, CX8.70, CX8.80, CX8.90, CX8030, CX8040, CX8050, CX8060, CX8070, CX8080, CX8090 Upper Sieve

Technical Specifications

  • Manufacturer: Genuine A&I Lowen Manufacturing.
  • Anti-Rattle Design: Full nylon bushed system with square-pin retention for extended wear life.
  • Dimensions: Length 56.5" (1433mm) x Width 30.8" (784mm) Overall.
  • Slat Config: 1.125" wire spacing with high-quality galvanised louvres.
  • Actuation: Includes adjustable handle; removable for use with electric actuator linkages.
  • Available for fast Australia-wide dispatch from Collier & Miller.
