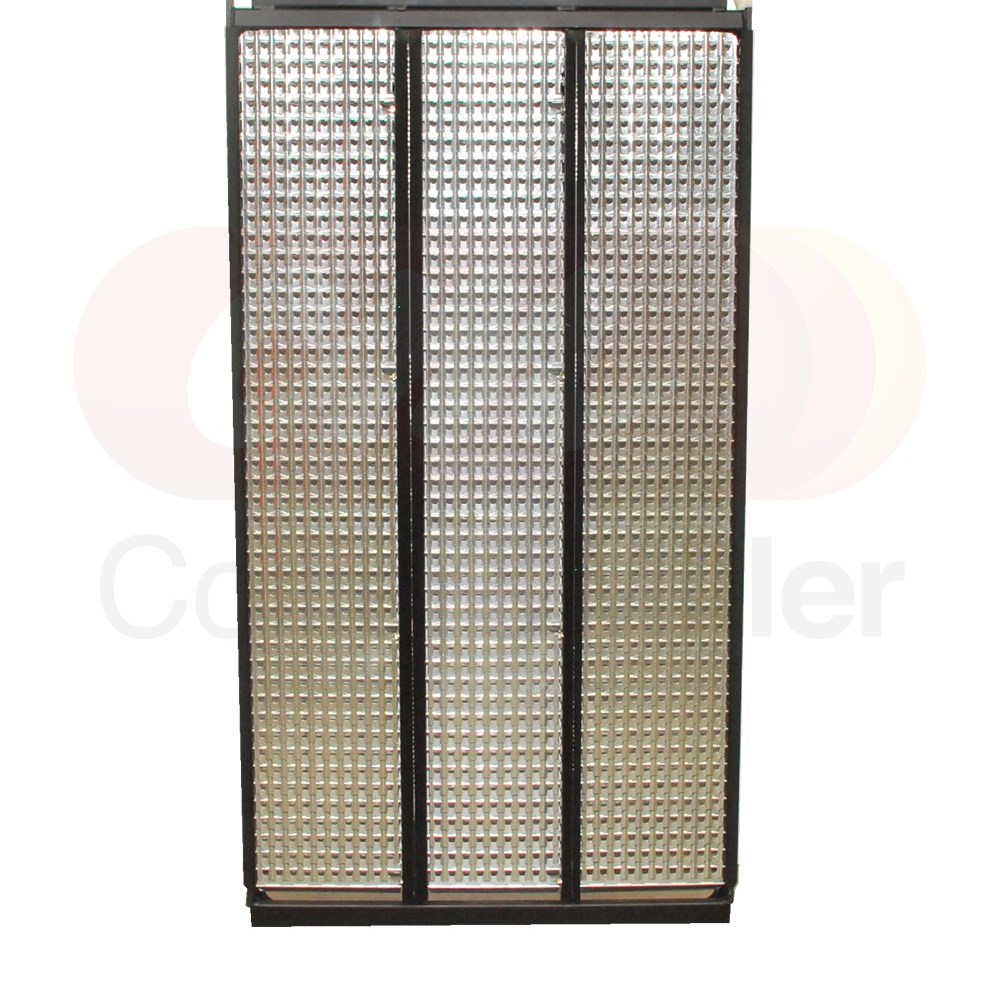

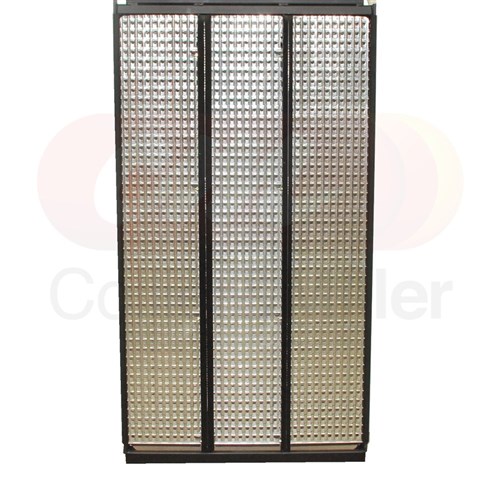

CASE-IH® & New Holland® Compatible Bottom Sieve (Standard Louvre)
Enhance your grain sample and reduce machine wear with this premium A&I Lowen Manufacturing anti-rattle bottom sieve. Specifically engineered for Case IH® and New Holland® flagship combine harvesters, this lower sieve eliminates common rattle and pivot-point wear.
The advanced design features nylon bushings fixed at every pivot point within the frame, secured by a unique square-pin configuration that prevents bushing rotation. This system significantly extends the service life of the sieve compared to standard OEM versions. Note: 2 units are required for a full cleaning shoe set.
Model Compatibility & Fitment
Replaces OEM Part Numbers: 84319323, 87109846, 47705979
Case IH Flagship Anti-Rattle Lower Sieve for 8010, 8120, 8230, 8240, 9250 Models
| Series |
Models |
Fitment |
| Case-IH® 10 Series |
8010, AFX8010 |
Bottom Sieve |
| Case-IH® 20 Series |
7120, 8120, 9120 |
Bottom Sieve |
| Case-IH® 30 Series |
7130, 7230, 8230, 9230 |
Bottom Sieve |
| Case-IH® 240 Series |
7240, 8240, 9240 |
Bottom Sieve |
| Case-IH® 250 Series |
7250, 8250, 9250 |
Bottom Sieve |
Technical Specifications
- Design: Genuine A&I Lowen Manufacturing full anti-rattle system.
- Bushing System: Fixed nylon bushes at every pivot point for silent operation.
- Hardware: Square-pin retention prevents bushing rotation and pivot failure.
- Slat Type: Durable galvanised Standard Louvre slats with 1-1/8" spacing.
- Dimensions: Length 1433mm (56.5") x Width 784mm (30.8") Overall.
- Available for fast Australia-wide dispatch from Collier & Miller.
