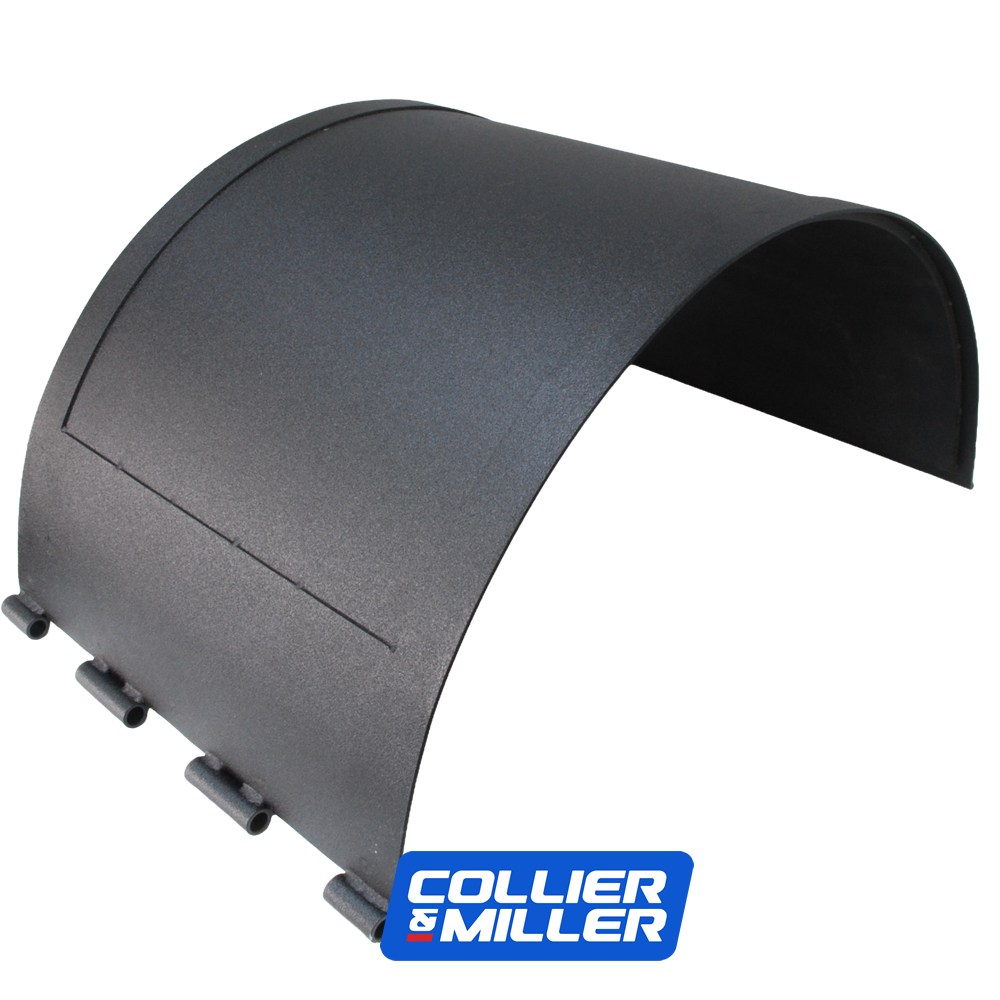

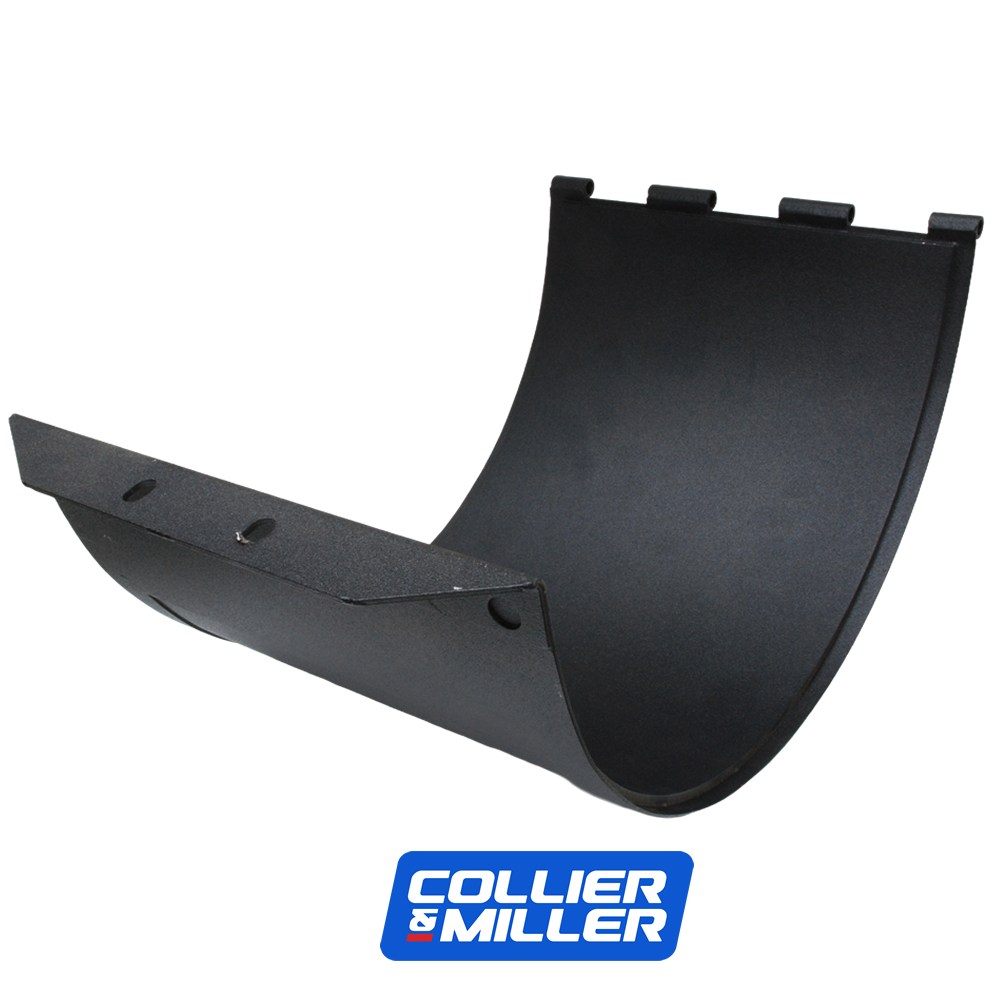

Case-IH® Compatible Stainless Steel Clean Grain Elevator Door
Invest in a significantly longer service life for your flagship harvester with this premium C&M Australian-made stainless steel clean grain elevator door. Specifically engineered for Case-IH® Flagship Axial-Flow combines, this non-perforated door is the professional choice for maintaining your grain handling system in top condition.
Manufactured in our Griffith factory, this door fits directly onto the bottom clean grain elevator boot. We utilise high-grade stainless steel for this critical component because it provides superior abrasion resistance compared to standard carbon steel units. The stainless construction prevents the surface pitting and "rust-drag" that often occurs during the off-season, ensuring a consistently slick, low-friction surface for optimum grain transition and an extended wear life through multiple harvests.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 87108780, 87282178, 87282183
Elevator Door Compatibility: Case IH Axial-Flow Flagship Models
| Series |
Models |
Reference |
| Case-IH® 10 Series |
7010, 8010, 8010-AFX |
Standard Fitment |
| Case-IH® 20 Series |
7120, 8120, 9120 |
Standard Fitment |
| Case-IH® 30 Series |
7230, 8230, 9230 |
Standard Fitment |
| Case-IH® 40 Series |
7240, 8240, 9240 |
Standard Fitment |
| Case-IH® 50 Series |
7250, 8250, 9250 |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Design: Non-perforated solid face for maximum material flow integrity.
- Material: High-grade Stainless Steel for maximum abrasion resistance.
- Wear Rating: Extended wear configuration designed for high-capacity harvesting.
- Fitment: Direct-fit aftermarket door designed for the clean grain elevator boot.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The clean grain elevator door is a primary contact zone where the elevator paddles sweep grain toward the tank. Standard steel doors often thin out rapidly due to the constant abrasion of grain and dust, eventually developing holes that cause grain loss. We recommend inspecting the interior surface of the boot door for thinning during every preventative maintenance check.
Upgrading to this high-performance stainless steel door is a strategic choice to save money on long-term maintenance. The polished stainless surface maintains its structural integrity far longer than carbon steel, keeping your grain handling system in top condition and providing a longer service life for the elevator assembly.
Installation Tip: Verify Hinge Alignment
When installing your new high-strength stainless door, ensure the hinge pin and latch mechanism are clean and lubricated. A perfectly flush seal against the elevator boot is essential to prevent grain leakage. This is the ideal time to check your Clean Grain Elevator Chain tension and paddle condition for a trouble-free harvest.
