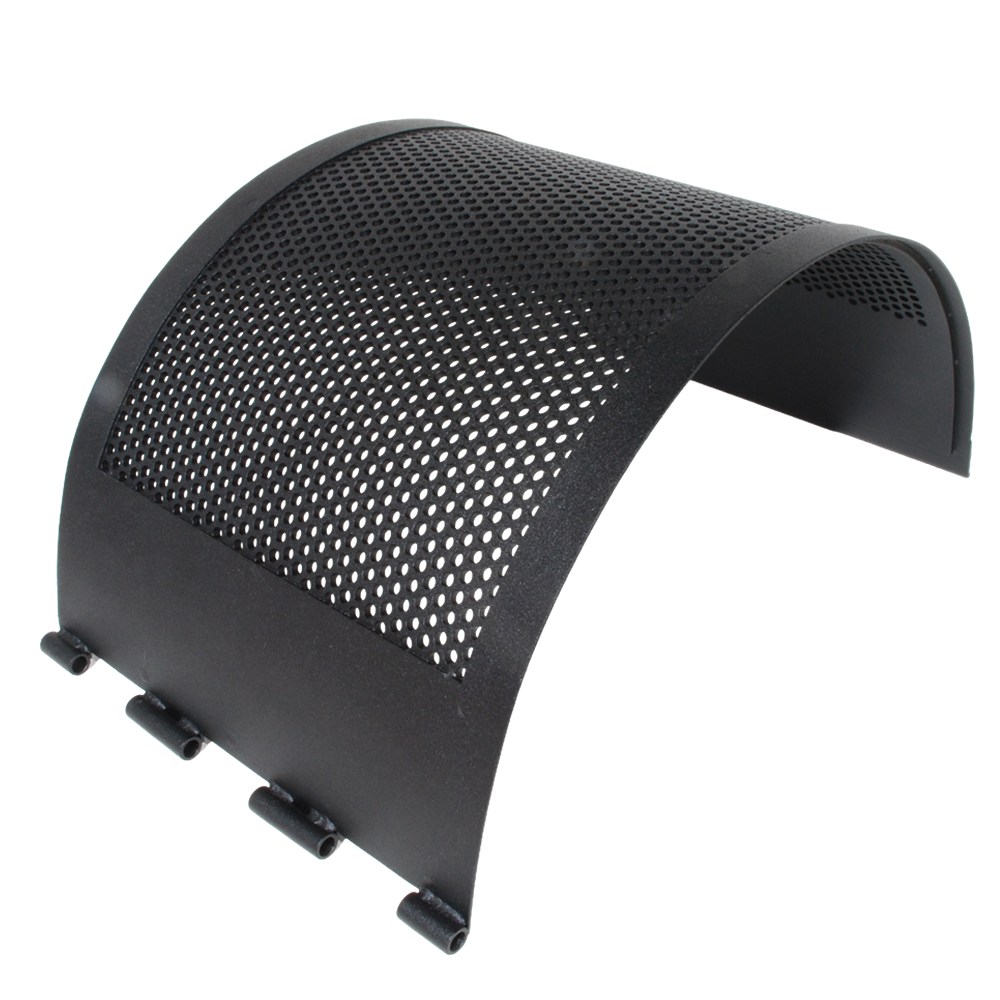

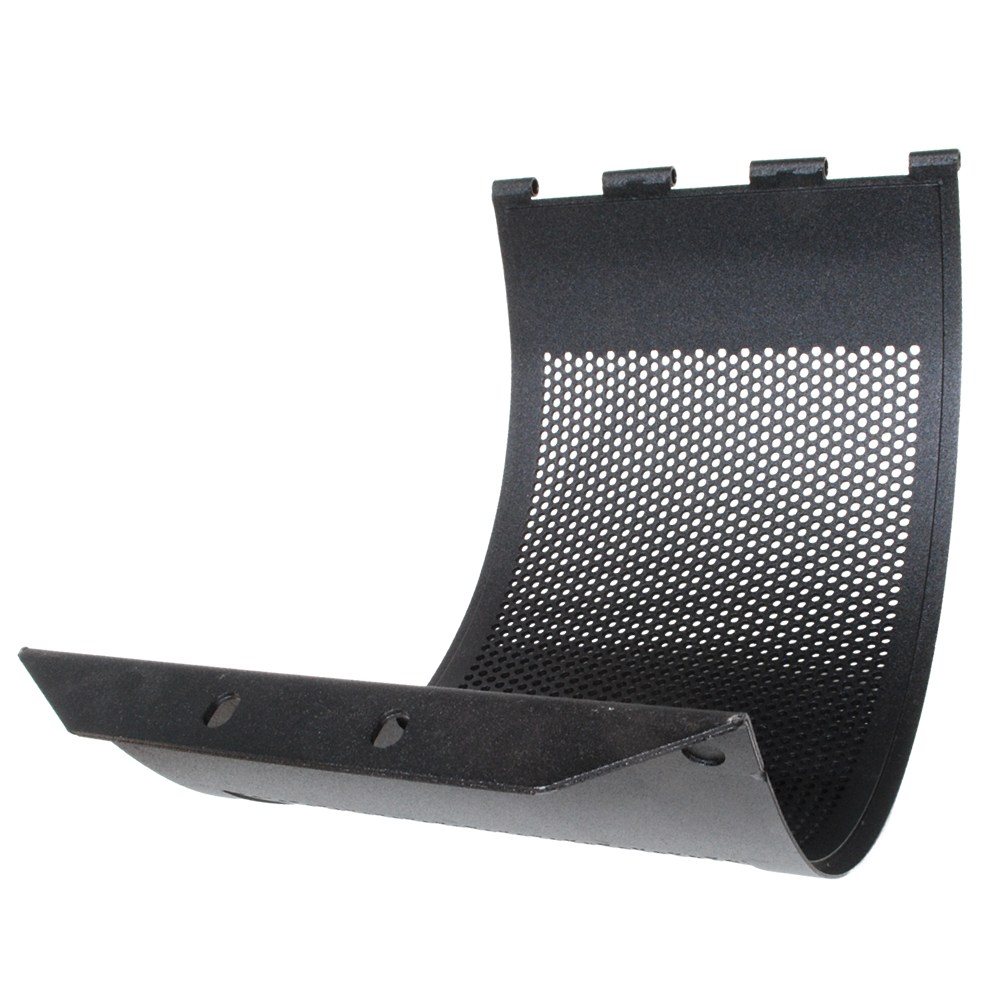

Case-IH® Compatible Stainless Steel Clean Grain Elevator Perforated Door
Invest in a significantly extended service life for your flagship harvester with this premium C&M Australian-made stainless steel perforated door. Specifically engineered for Case-IH® Flagship series combines, this heavy-duty upgrade is the professional choice for keeping your elevators and grain handling systems in top condition, especially during challenging harvest conditions.
This door is a high-performance addition when harvesting close to the ground, where the risk of picking up soil, dust, and other field contaminants is high. The 5mm diameter perforated pattern effectively screens out dirt and debris before it reaches the grain tank, ensuring a significantly cleaner grain sample. It is a highly recommended solution for specialised crops such as peas and lentils, where sample purity is critical. Manufactured in our Griffith factory, this extended wear door resists the pitting and corrosion common in standard units, maintaining a slick surface for optimal screening.
Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 87282576
Perforated Grain Door Compatibility: Case IH Axial-Flow Flagship Models
| Series |
Models |
Specification |
| Case-IH® 10-120 Series |
7010, 8010, AFX8010, 7120, 8120, 9120 |
Flagship Boot |
| Case-IH® 230-240 Series |
7230, 8230, 9230, 7240, 8240, 9240 |
Flagship Boot |
| Case-IH® 250-260 Series |
7250, 8250, 9250, 7260, 8260, 9260 |
Flagship Boot |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: High-grade Stainless Steel for superior abrasion resistance and longevity.
- Function: Effectively screens out dust, dirt, and soil contamination when harvesting low.
- Crop Specialisation: Optimized for pulse crops including peas and lentils.
- Screening Pattern: 5mm diameter perforations for maximum separation efficiency.
- Fitment: Direct-fit aftermarket door designed to hinge onto the OEM clean grain elevator boot.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The clean grain elevator perforated door is a vital tool for maintaining grain quality in dusty or dirty paddocks. When operating the header close to the ground, soil intake is almost inevitable; this door provides a high-performance "first stage" cleaning action. We recommend inspecting the door for blockages after working in high-moisture or high-dirt environments to ensure the 5mm holes remain clear.
Upgrading to a stainless steel door is a smart preventative maintenance choice. Standard steel doors often become rough or "pitted" over time, which causes dirt to stick and reduces screening efficiency. This extended wear solution maintains a smooth, high-strength surface through multiple harvests, ensuring your cleaning system stays in top condition.
Recommended Maintenance Upgrade
For optimal sample results when harvesting pulse crops, we specifically recommend inspecting your Clean Grain Elevator Chains and Sprockets for wear when installing a new perforated door. Ensuring your chain paddles are square and sprockets aren't "hooked" will work in tandem with the door to provide the cleanest possible sample.
