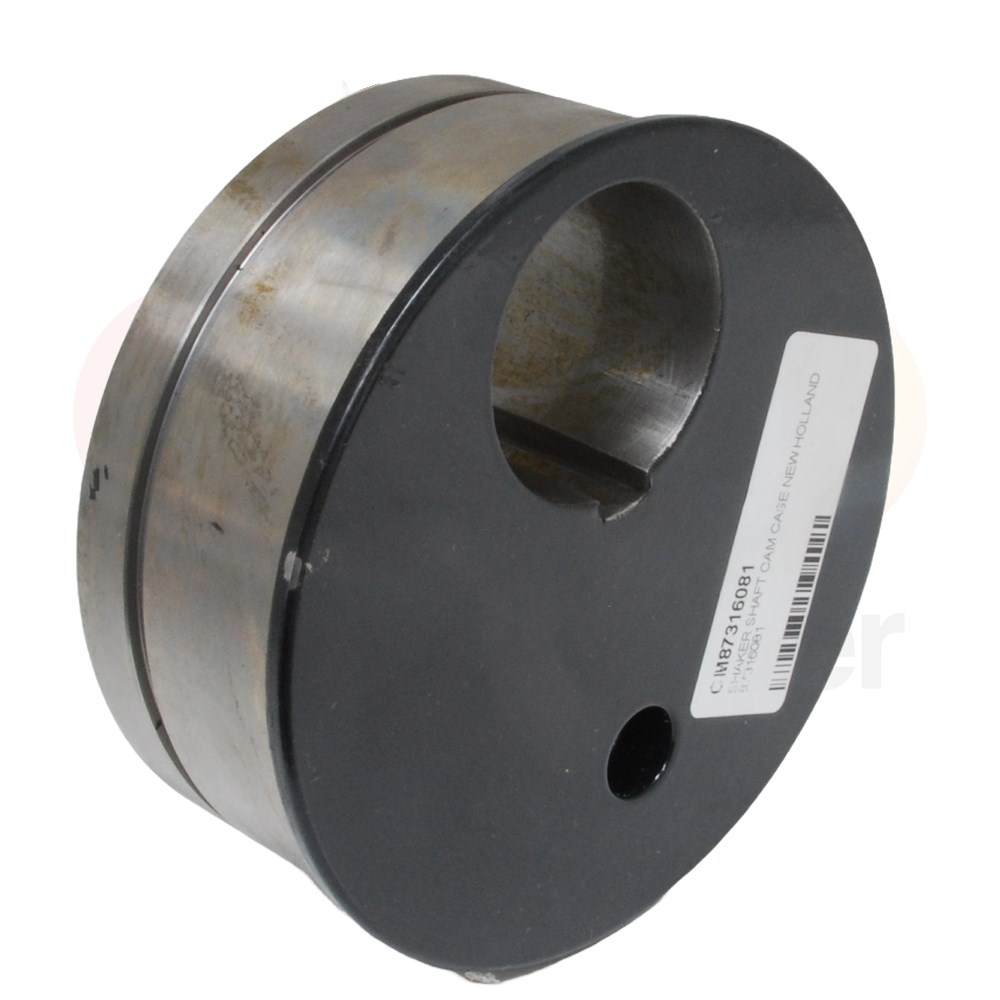

Case-IH® & New Holland® Compatible Shaker Shoe Eccentric
Maintain the smooth operation of your cleaning shoe with this premium C&M Australian-made shaker shoe eccentric. Specifically designed for Case-IH® Flagship and New Holland® CR/CX series combine harvesters, this high-performance component provides a precision fit and reliable oscillation for your sieve assembly.
Manufactured in our Griffith factory as a direct replacement for the original unit, this shaker cam is engineered to meet or exceed OEM specifications. By utilising high-strength materials and precision machining, this extended wear solution ensures consistent cleaning shoe performance across a wide range of CNH flagship models, keeping your machine in top condition.
CNH Model Compatibility & Cross-Reference
Replaces OEM Part Number: 87316081
Shaker Shoe Eccentric Compatibility: Case IH & New Holland Models
| Series |
Models |
Reference |
| Case-IH® Flagship |
7010, 8010, 120, 230, 240, 250, 260 Series |
Axial-Flow Flagship |
| New Holland® CR Series |
CR7.80–CR10.90, CR9000 Range, CR900 Range |
Rotary Series |
| New Holland® CX Series |
CX7.80–CX8.90, CX7000 & CX8000 Range |
Conventional Series |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: Precision machined from medium-tensile 1045 carbon steel for high-strength impact resistance.

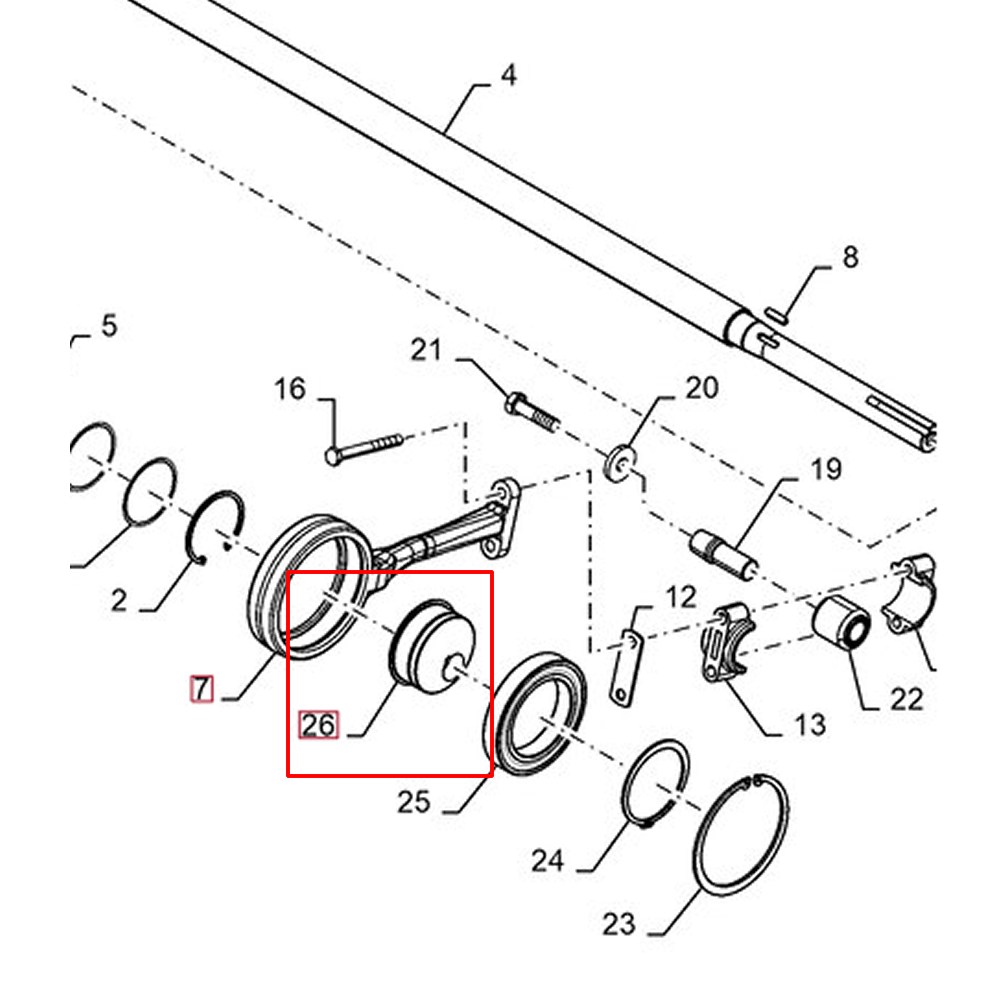

- Fitment: Designed for an exact like-for-like fit into the 87317702 shaker arm.
- Build Quality: Precision-balanced for smooth, consistent oscillation.
- Longevity: Engineered to provide an extended service life in high-capacity cleaning systems.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The shaker shoe eccentric (or shaker cam) is a high-cycle component responsible for the repetitive motion of the cleaning shoe. Over time, the contact surfaces can develop abrasion or "flat spots," leading to uneven sieve vibration and potential shaker arm failure. We recommend inspecting the eccentric surface and the internal bearing landing during every preventative maintenance check.
Upgrading to this 1045 carbon steel eccentric is a high-performance choice. The superior material density resists surface deformation much more effectively than standard cast alternatives. This ensures your cleaning system remains in top condition, maintaining the precise stroke required for maximum grain separation and ensuring a longer service life for the entire shaker drive assembly.
Installation Tip: Check the Shaker Arm
When installing a new 87316081 eccentric, always inspect the shaker arm (PN 87317702) and its associated bushes for wear. Even a high-strength eccentric will wear prematurely if the shaker arm has excessive "play" or if the bushes are perished. Ensuring all drive components are tight and correctly aligned provides a high-performance, reliable repair.
