CASE-IH® Compatible Extended Wear Transition Cone (Bisalloy 400)

Keep your product transition and threshing systems in top condition with this premium Australian made ultra-extended wear transition cone. Specifically engineered for Case IH® Flagship series Axial-Flow combines with enhanced cleaning systems, this C&M cone is designed to handle high-volume crop flow and abrasive conditions.

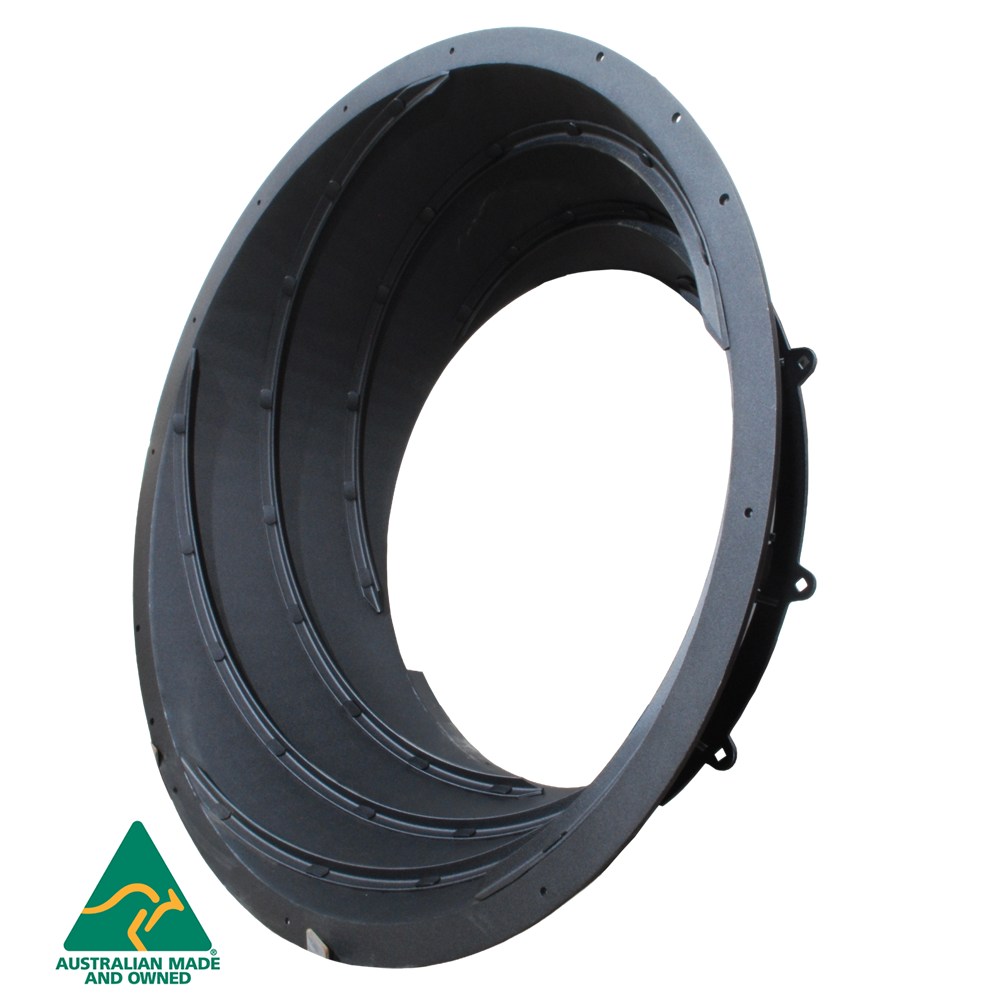

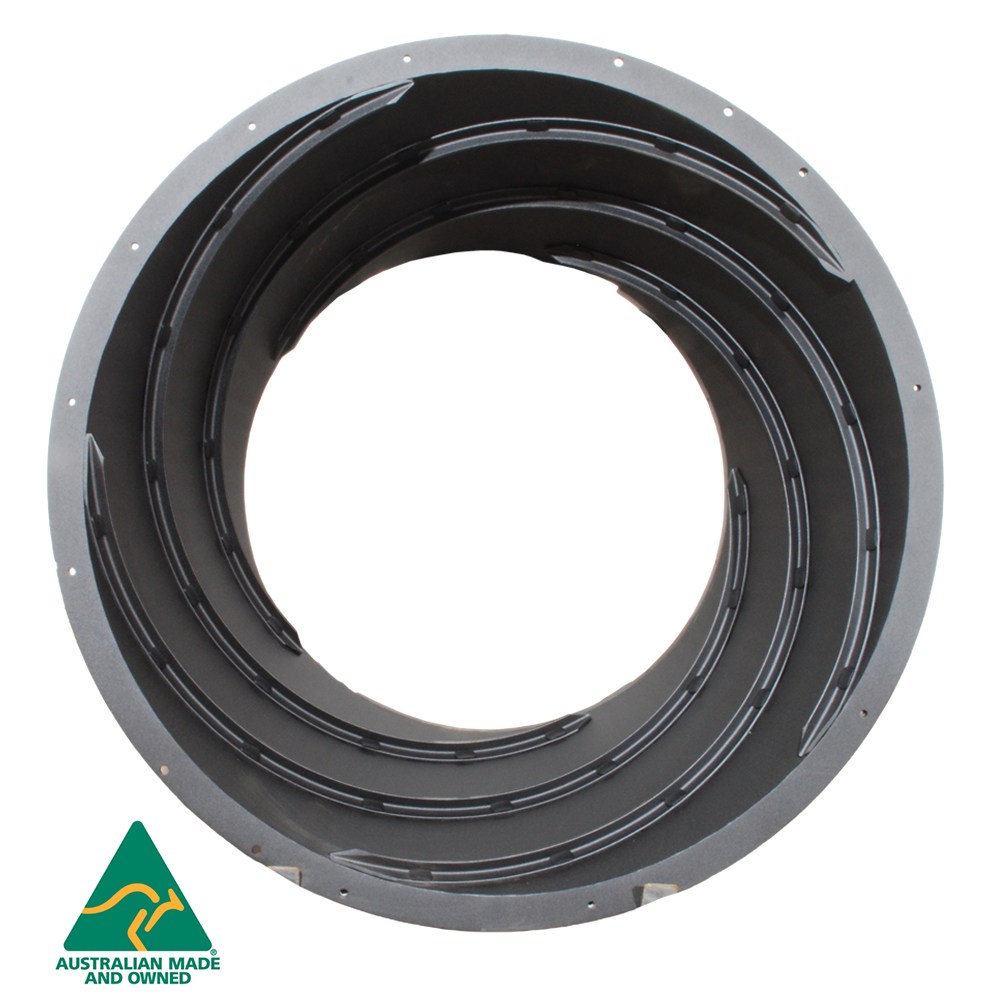

Manufactured by C&M in Australia, this one-piece transition cone provides a significantly extended service life compared to standard units. The cone is segment pressed, fabricated from high-strength Bisalloy 400 wear plate and is supplied pre-fitted with stainless-steel vanes to ensure optimal crop transition into the rotor. Investing in this heavy-duty preventative maintenance solution improves productivity through less down time and maintenance costs.

CASE-IH® OEM Cross-Reference

Replaces OEM Part Numbers: 87390937, 47843259

Bisalloy 400 Transition Cone for Case IH 8120, 8230, 9240, 9250 Axial-Flow Models

Series	Models	Details
Case-IH® 10 Series	7010, 8010, 8010-AFX	Extended Wear
Case-IH® 20 Series	7120, 8120, 9120	Extended Wear
Case-IH® 30 Series	7130, 7230, 8230, 9230	Extended Wear
Case-IH® 40 Series	7240, 8240, 9240	Extended Wear
Case-IH® 50 Series	7250, 8250, 9250	Extended Wear

Technical Specifications & Features

• Quality Assurance: Proudly C&M Australian made to keep your equipment in top condition.
• Material: High-grade Bisalloy 400 wear plate for maximum abrasion resistance.

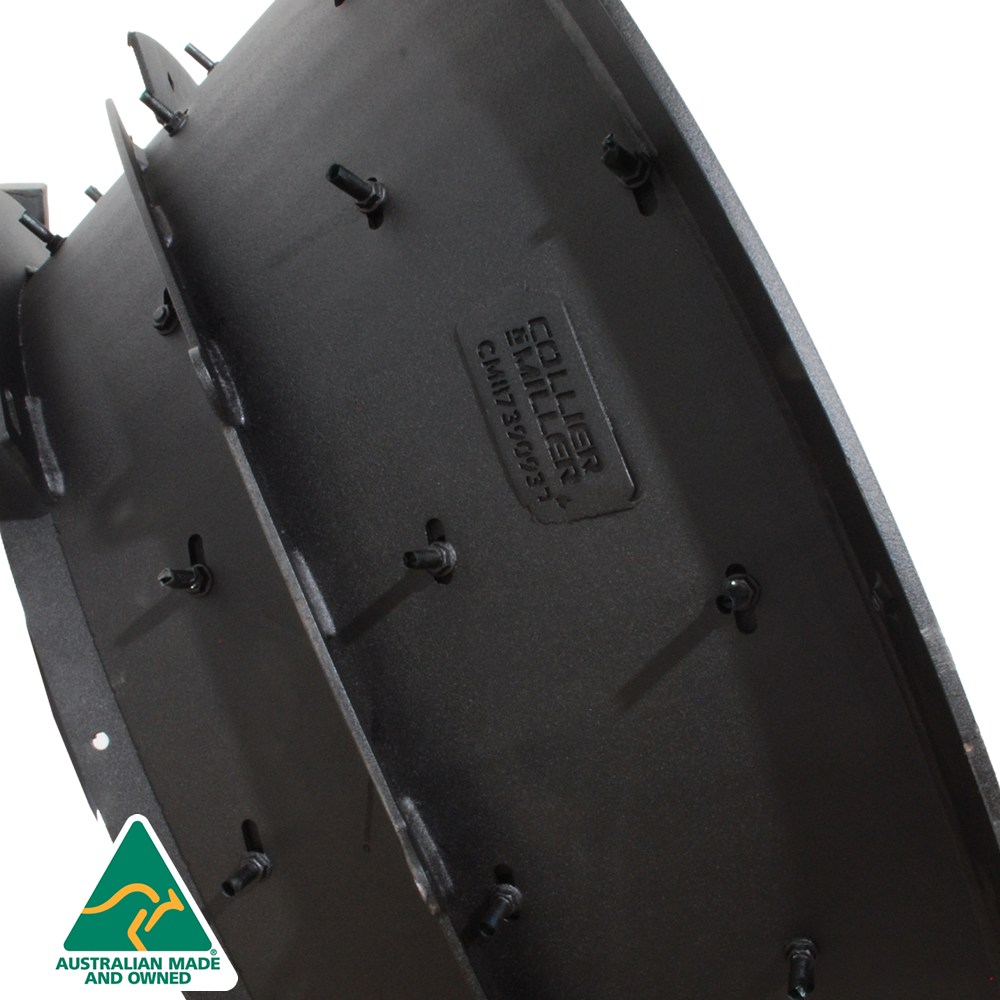

• Vanes: Pre-fitted with stainless steel vanes for superior crop transition and durability.
• Design: Robust one-piece cone configuration for models with enhanced cleaning systems.
• Application: Recommended for all crop types to provide an extended service life.
• Available for fast Australia-wide dispatch from Collier & Miller.

Expert Maintenance Review

To keep your transition and threshing system in top condition, we recommend a thorough inspection of the transition cone vanes and the rotor inlet area for thinning or "holing" during every pre-season service.

Standard preventative maintenance using a Bisalloy 400 transition cone ensures consistent material flow into the threshing system. This upgrade provides an extended service life in high-wear crops like rice or pulses, preventing the structural failures associated with standard mild-steel cones.
