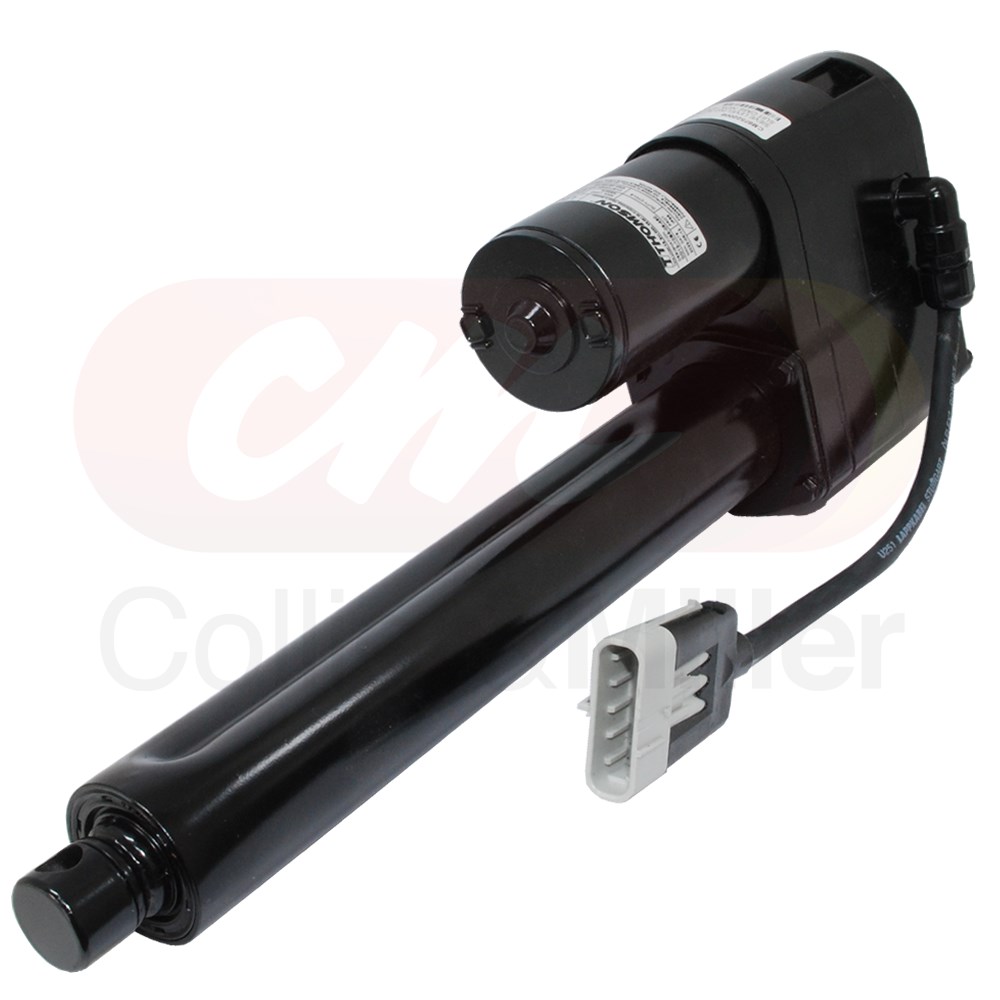

CASE-IH® & New Holland® Compatible Sieve Actuator (4800N)
Maintain precise cab-controlled cleaning shoe settings with this heavy-duty aftermarket linear sieve actuator. Engineered specifically for Case-IH® and New Holland® flagship combines, this high-performance unit is the direct functional equivalent to the
Thomson DD12-10B5-08-480 12VDC genuine part.
Designed for extreme agricultural environments, this actuator features a highly efficient
ball screw drive system and a
stainless steel extension tube for maximum durability. With a powerful 4800N (1000lbf) force and integrated overload clutch protection, it ensures reliable sieve adjustment throughout the entire harvest season.
Model Compatibility & Fitment
Replaces OEM Part Numbers: 87522008, DD12-10B5-08-480

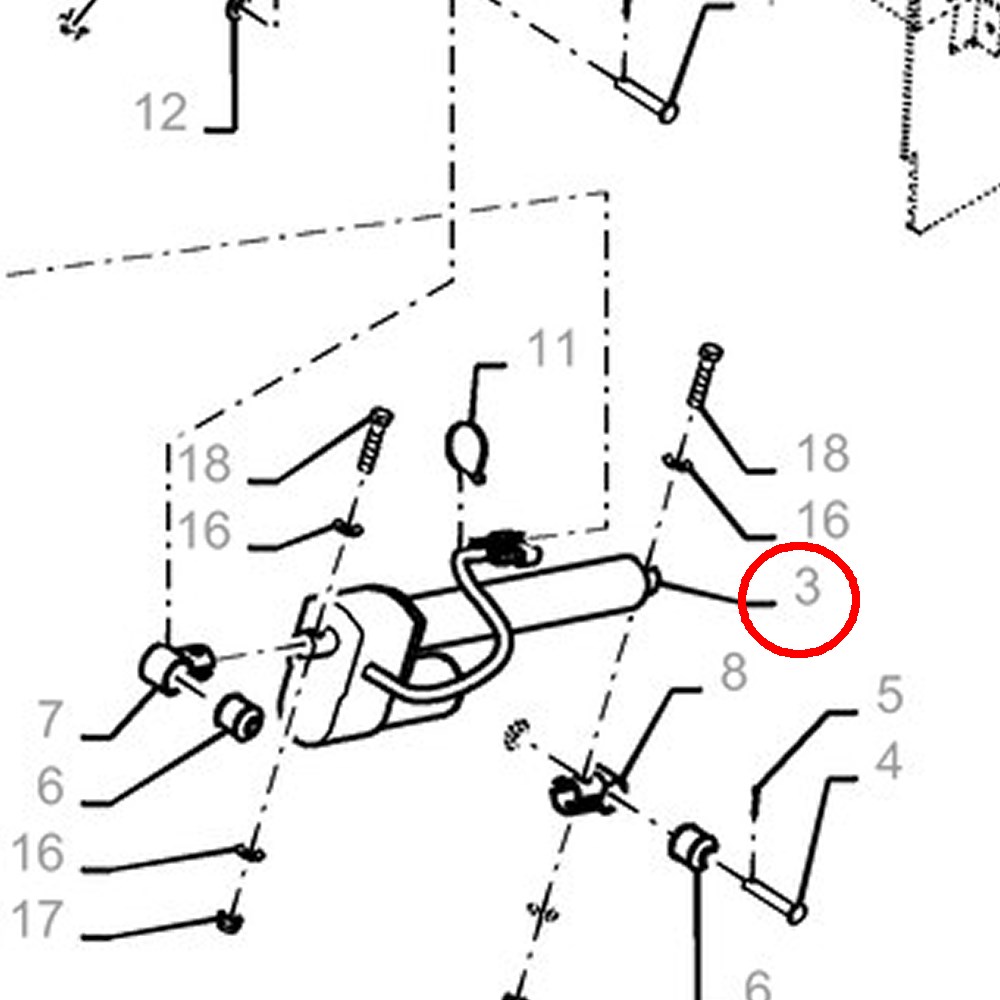

Case IH Flagship and NH CR/CX Sieve Actuator for 8240, 9240, CR10.90 Models
| Series |
Models |
Fitment |
| Case-IH® Flagship |
7010, 8010, 7120, 8120, 9120, 7230, 8230, 9230, 7240, 8240, 9240 |
12VDC Sieve |
| New Holland® CR |
CR7.80, CR7.90, CR8090, CR8.80, CR8.90, CR960, CR980, CR9040, CR9060, CR9070, CR9080, CR9090, CR9.80, CR9.90, CR10.90 |
12VDC Sieve |
| New Holland® CX |
CX720, CX760, CX7080, CX7.80, CX7.90, CX860, CX880, CX8030, CX8080, CX8.80 |
12VDC Sieve |
Technical Specifications
- Performance: High-force 4800N (1000lbf) Push/Pull capacity.
- Drive System: Highly efficient Ball Screw Drive for smooth actuation.
- Stroke: 203.2mm (8") total stroke length.
- Electrical: 12VDC motor with 26 Amp max current and thermal switch protection.
- Connectivity: Standard 5-pin flat plug for direct "plug-and-play" installation.
- Protection: Overload clutch for mid-stroke and end-stroke protection; maintenance-free design.
- Available for fast Australia-wide dispatch from Collier & Miller.
